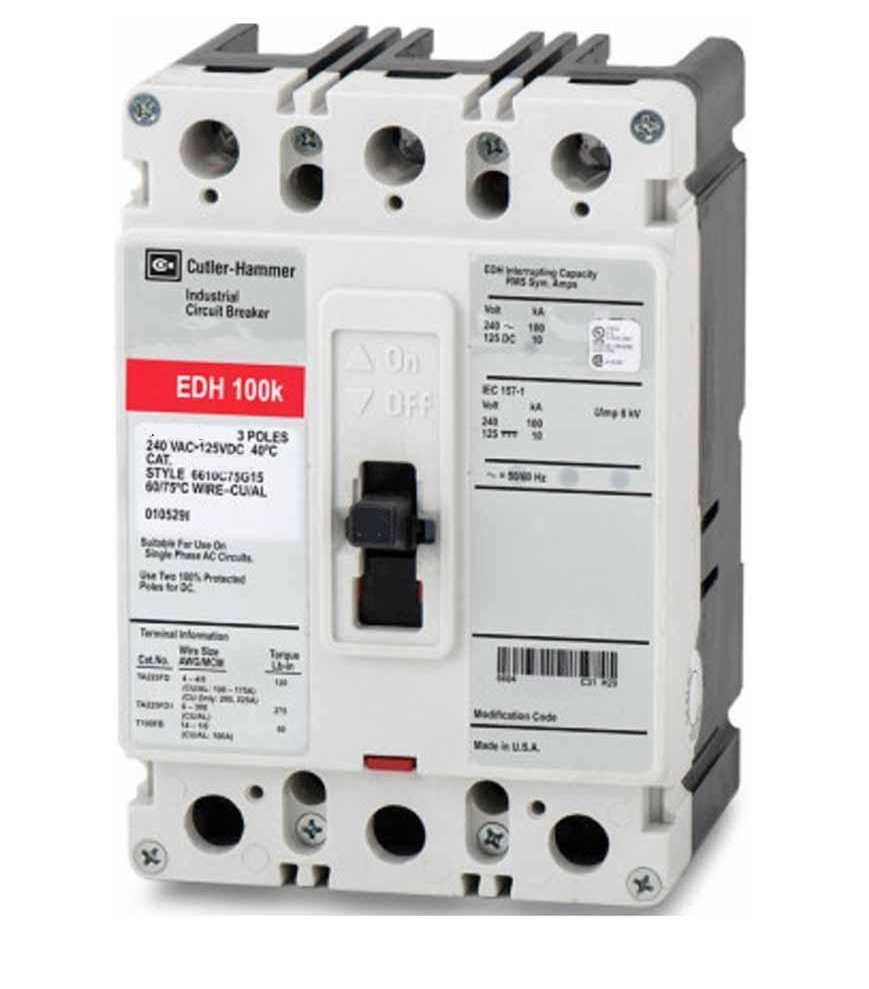

EDH3225L - Cutler Hammer 225A 240V 3 Pole Molded Case Circuit Breaker Feed-Thru Thermal Magnetic Trip 100kA AIC

EDH3225L

EDH3225L is a 3 pole, 225 amp, 240 volt molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications. This Cutler Hammer Series C breaker features a feed-thru configuration, thermal magnetic trip unit, and a high interrupting rating for demanding environments. The EDH3225L is built for durability and safety, with fixed thermal and magnetic trip settings, line and load side lug terminals, and compatibility with reverse fed installations. It is suitable for use in panelboards, switchgear, and distribution systems requiring robust protection.

• Part Number: EDH3225L
• Manufacturer: Cutler Hammer
• Series: Series C, F Frame
• Poles: 3
• Amperage: 225A
• Voltage: 240V AC / 125V DC
• Interrupt Rating: 100kA @ 240V
• Mounting Type: Feed-Thru
• Tripping Method: Thermal Magnetic (Fixed)
• Configuration: 3 Pole, 3 Phase
• Terminal Type: Line & Load Lug
• Standards: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDH3225L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : EDH
• Voltage : 240
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679454381
• GTIN : 00786679454381
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5
• Certification : UL Listed
