Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

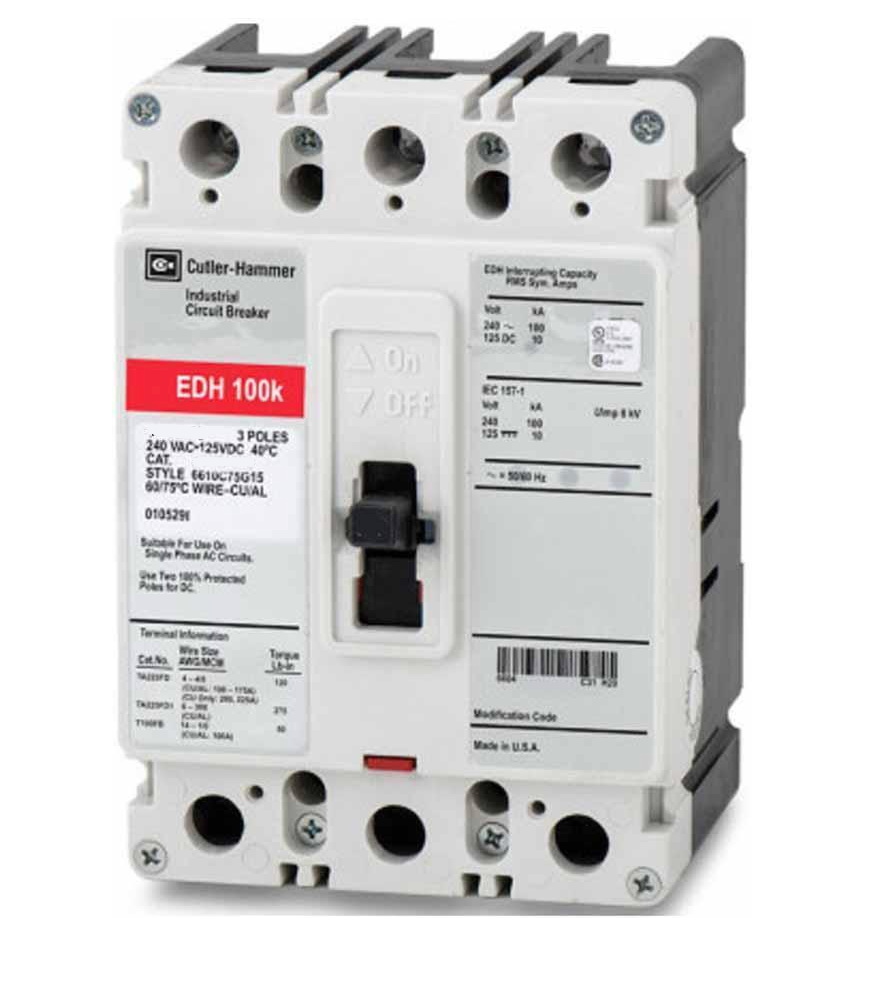

EDH3200W
EDH3200W is a 200 amp, 3-pole molded case circuit breaker from Eaton's Series C line designed for reliable circuit protection.This circuit breaker features a thermal magnetic trip unit (T186) and is rated for 240 Vac and 125 Vdc operation. It has a 65kA interrupt rating at 240 Vac and comes without terminals, designed for busbar connection. The breaker is UL Listed and built on the F-Frame platform, providing robust protection in industrial and commercial applications.
- Amperage Rating: 200 A
- Voltage Rating: 240 Vac, 125 Vdc
- Poles: 3
- Interrupt Rating: 65 kA at 240 Vac
- Trip Type: Thermal Magnetic (T186)
- Series/Frame: Series C, F-Frame
- Mounting Type: Busbar (no terminals)
- Certification: UL Listed
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: EDH3200W
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : EDH
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 078667945552
- GTIN : 00786679455524
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
