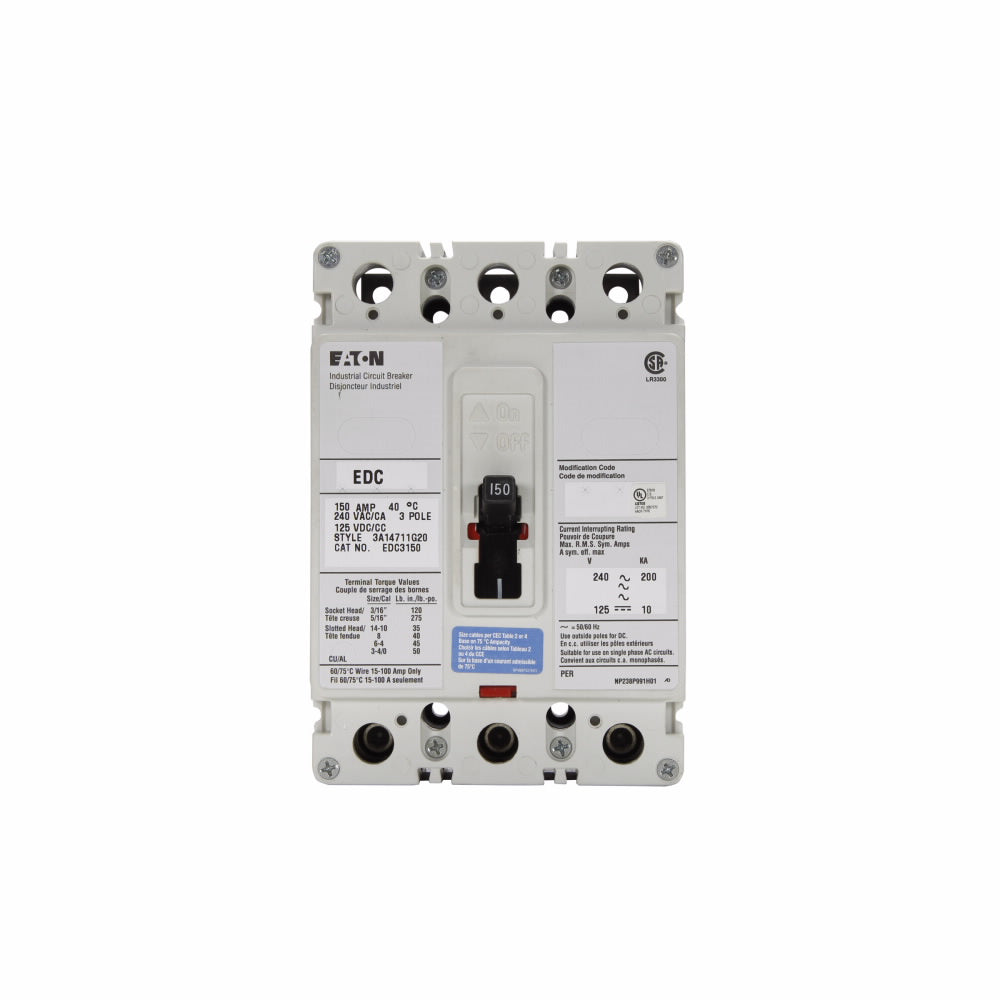

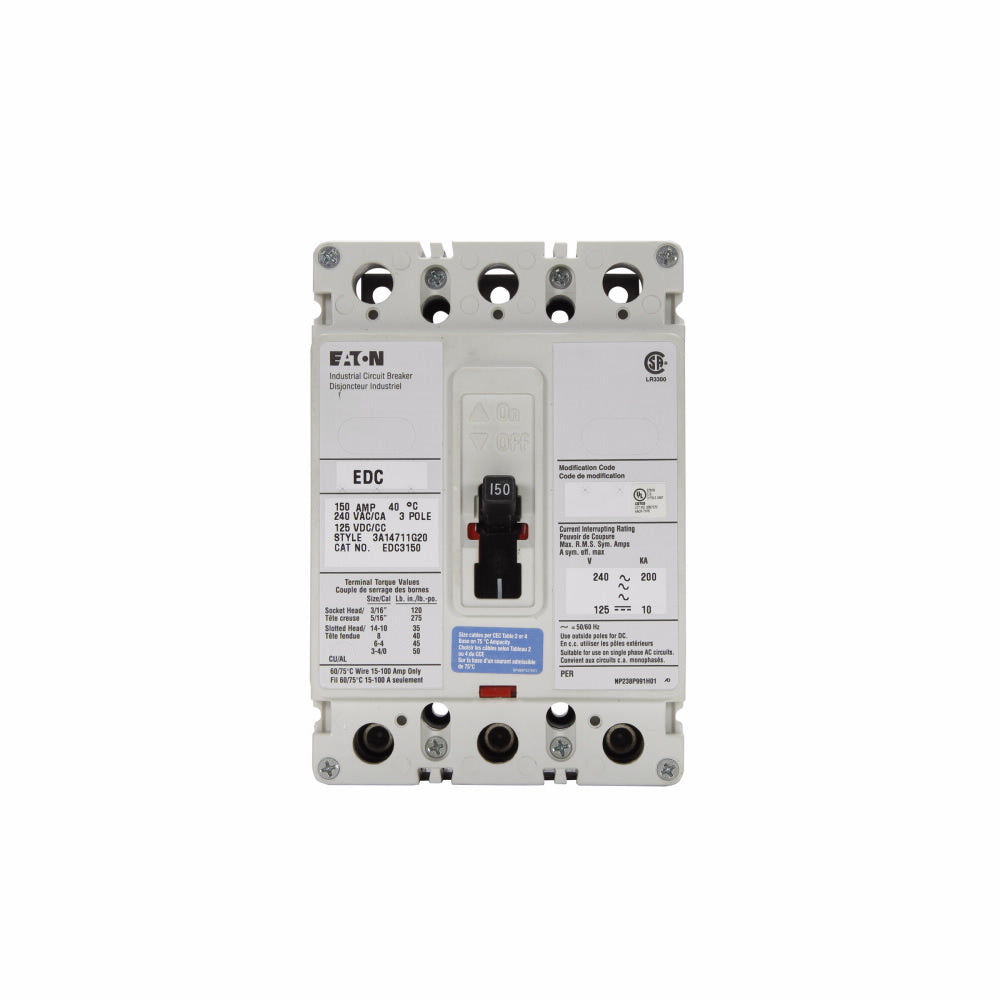

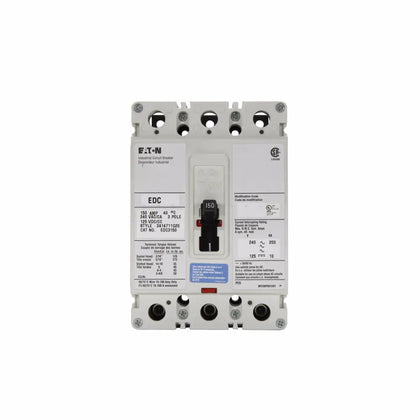

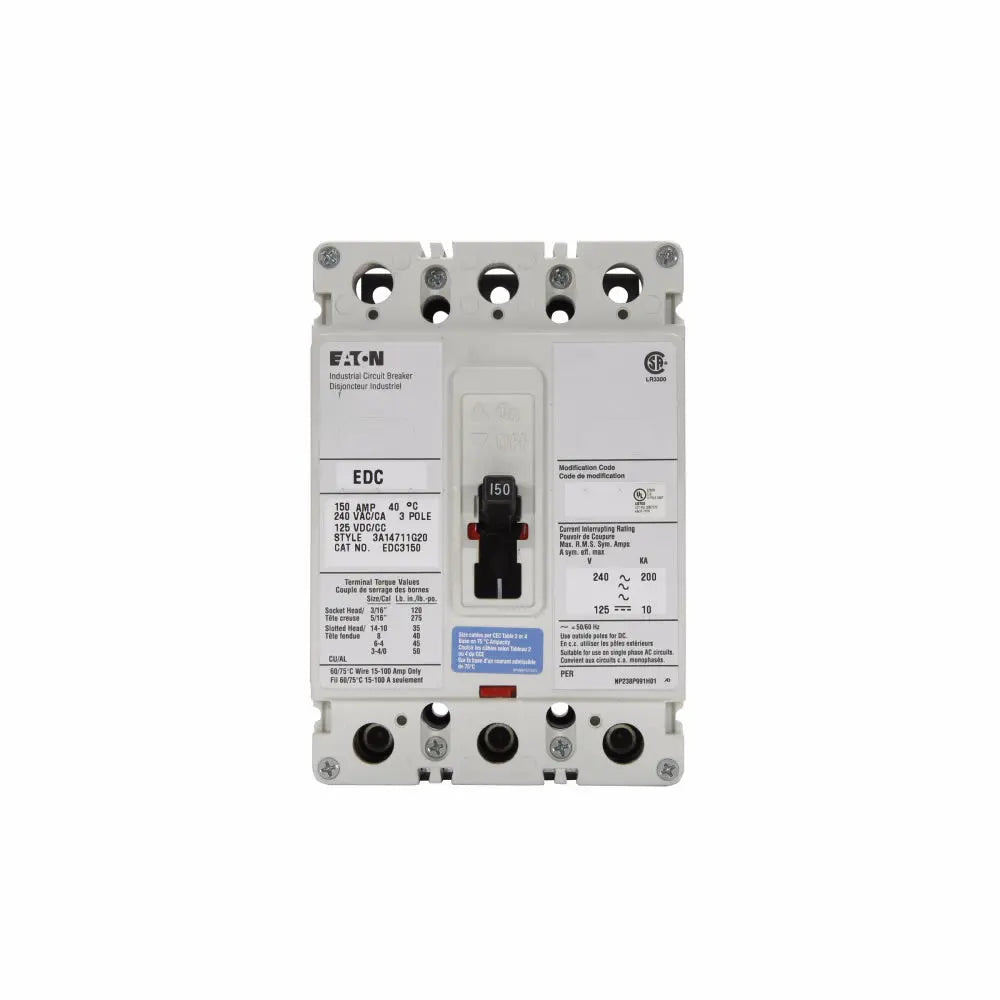

EDC3150 - Cutler Hammer 150A 3 Pole 240V Series C F-Frame Molded Case Circuit Breaker 200kA Interrupt Rating

EDC3150

EDC3150 is a Cutler Hammer Series C F-Frame molded case circuit breaker designed for robust industrial power distribution.

This thermal magnetic trip unit breaker features a 150A amperage rating, 3 poles, and a 240V voltage rating with a very high 200kA interrupting capacity at 240VAC. It is panel mount, UL and CSA certified, and suitable for demanding applications where reliability and safety are critical. Shunt trip and auxiliary switches are available for field installation.

Key Specifications
• Part Number: EDC3150
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 150A
• Voltage: 240VAC, 125VDC
• Poles: 3
• Mounting Type: Panel mount
• Interrupt Rating: 200kA @ 240VAC
• Series/Frame: Series C, F-Frame
• Trip Unit: Thermal magnetic, fixed trip
• Certifications: UL, CSA, CE
• Terminal: Standard pressure load terminal
• Dimensions: 4.125" W x 3.375" D x 6" H
• Status: New or re-certified available

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDC3150
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : EDC
• Voltage : 240
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679455302
• GTIN : 00786679455302
• Country of Origin : Dominican Republic
• Dimensions : 7.5 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 3
• Certification : UL Listed
