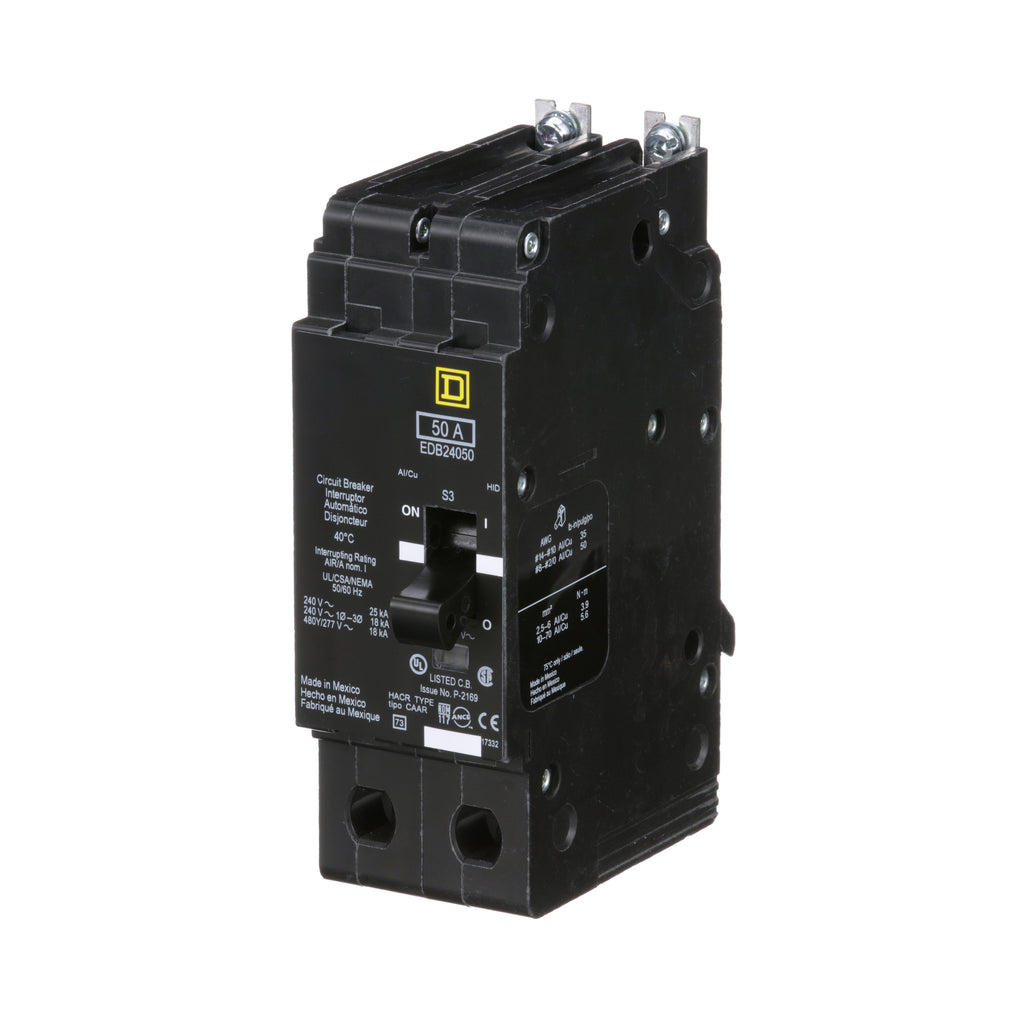

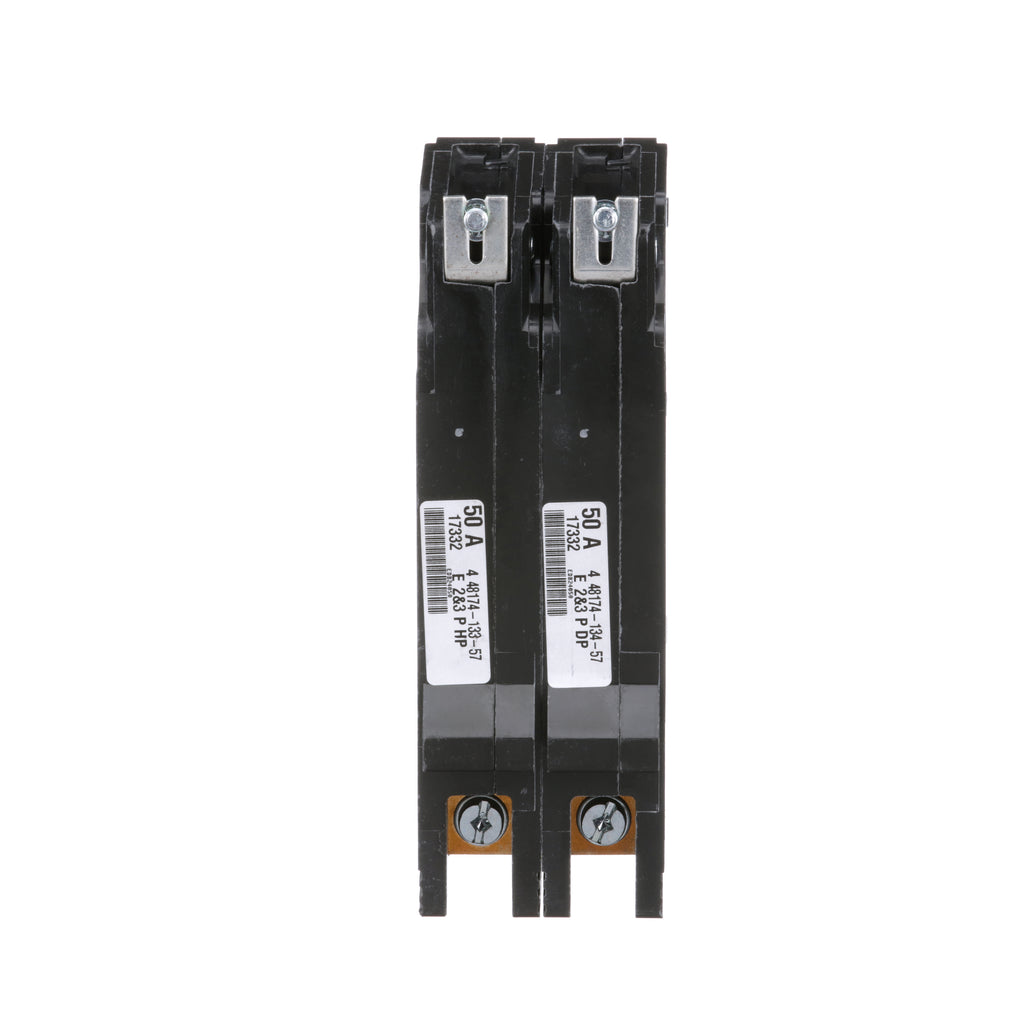

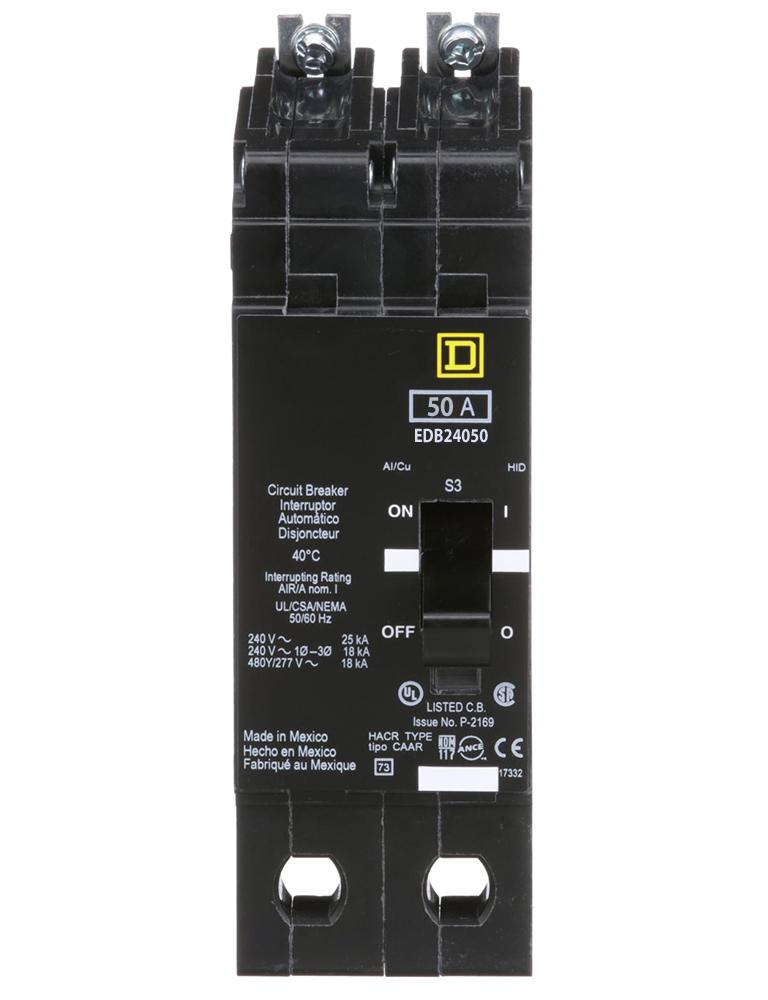

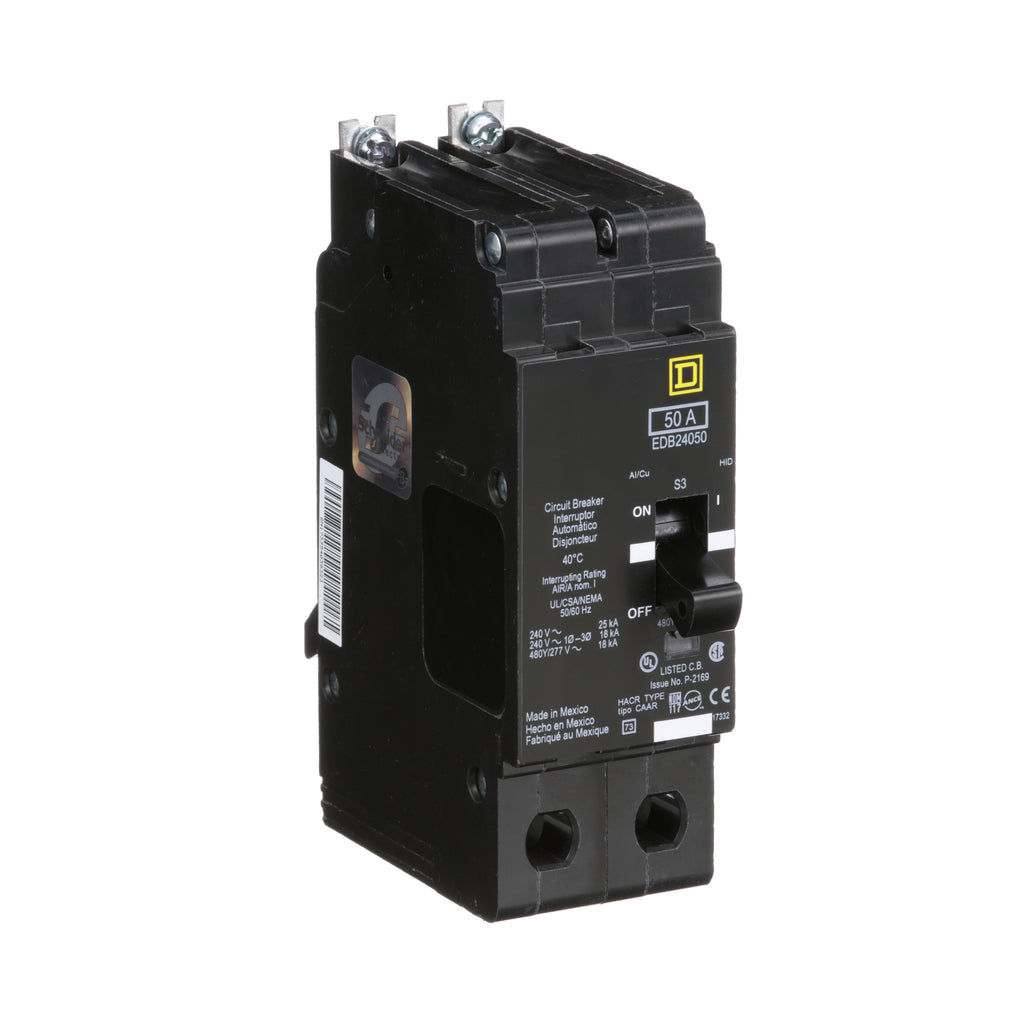

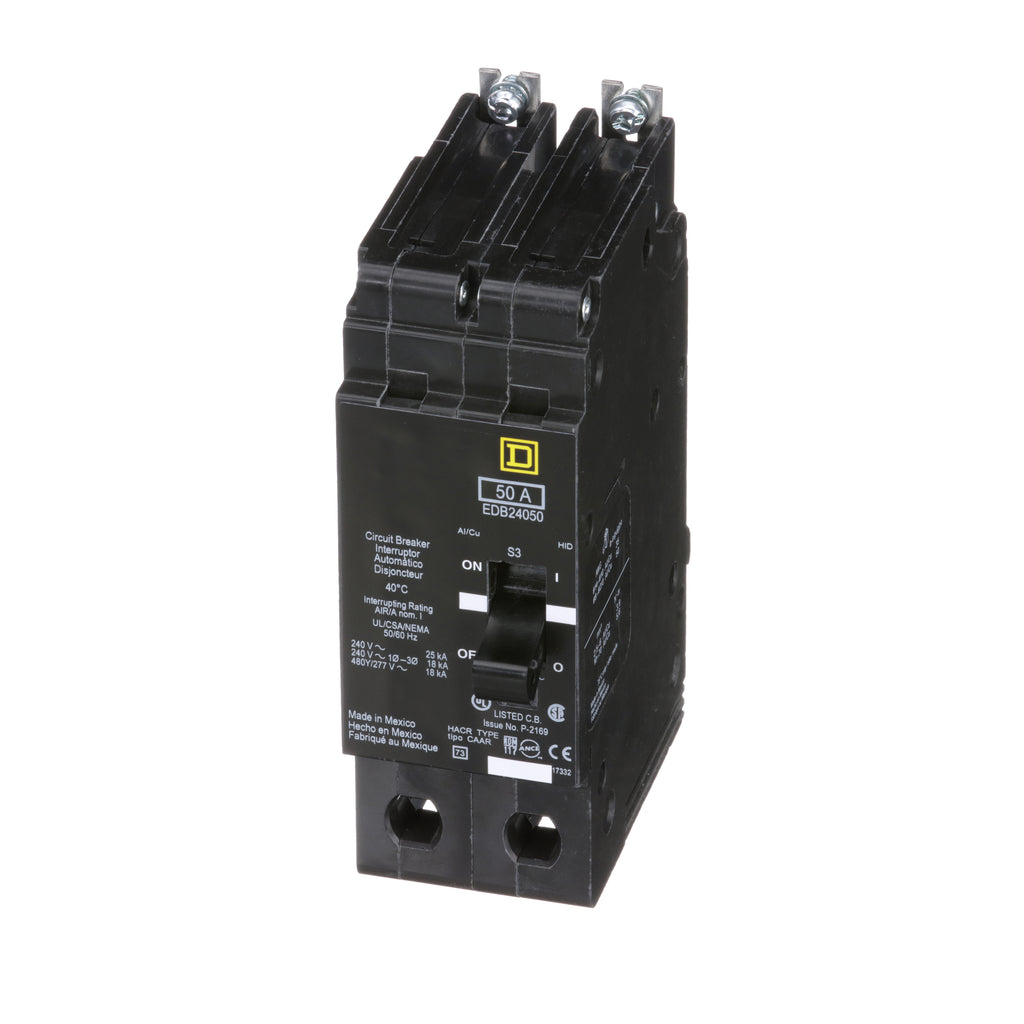

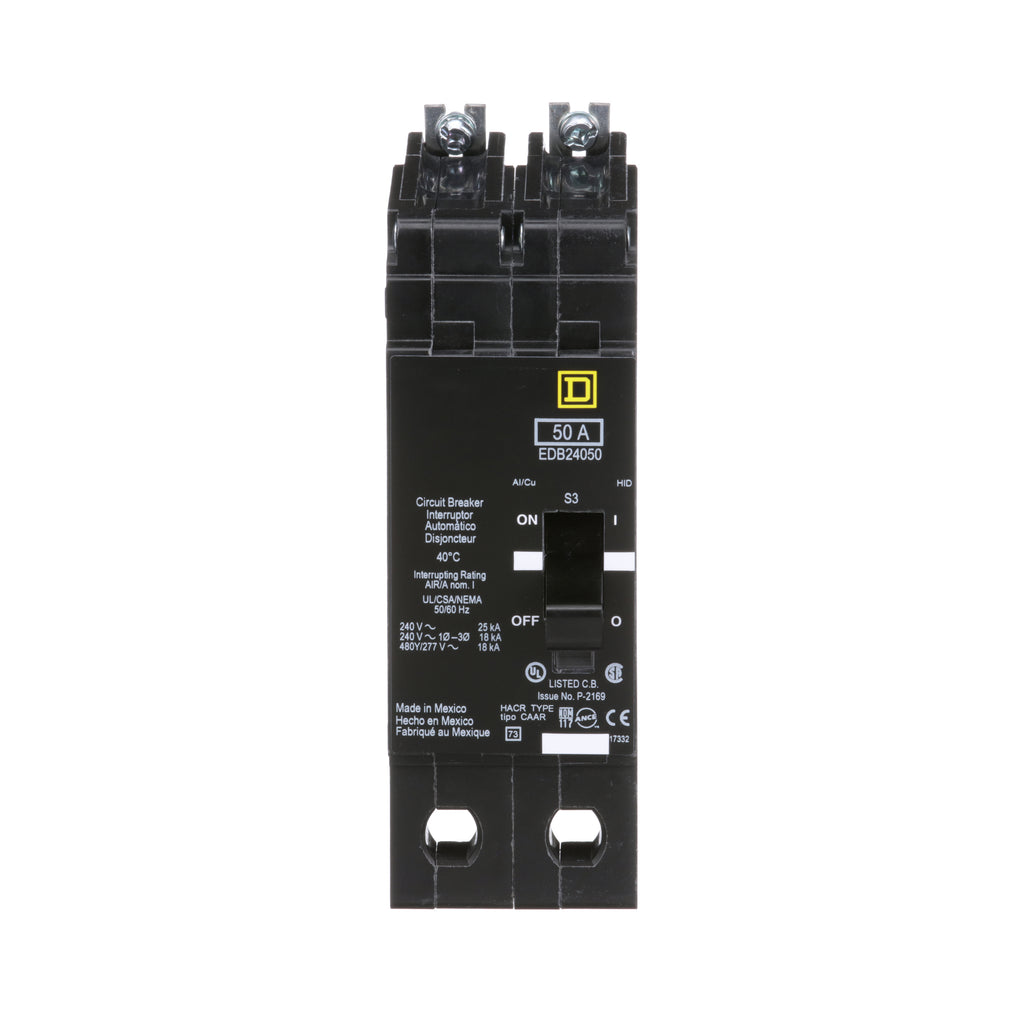

EDB24050 - Schneider Electric (Square D) 2-Pole 50 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

EDB24050

EDB24050 is a bolt-on molded case circuit breaker designed for use in Square D NF panelboards, providing reliable overload and short-circuit protection in lighting applications. This E-Frame breaker features a thermal-magnetic trip unit with a signal indicator to show when a trip has occurred, delivering superior protection with ratings from 15A to 125A across the EDB series. Key Specifications

• Amperage: 50 Amp
• Poles: 2
• Voltage: 480Y/277 VAC
• Interrupt Rating: 18 kA @ 480V, 18 kA @ 277V, 25 kA @ 240V, 25 kA @ 120V
• Frame: E-Frame
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic with Long-Time and Instantaneous Functions
• Certifications: UL Listed, CSA, HID-rated, HACR-rated
• Dimensions: 5.66 inches H x 1.96 inches W x 4.05 inches D
• Weight: 4 lbs
• Connection: Aluminum lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB24050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901879084
• GTIN : 00785901879084
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.639
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to AWG 2/0, Aluminum, AWG 14 to AWG 2/0, Copper
