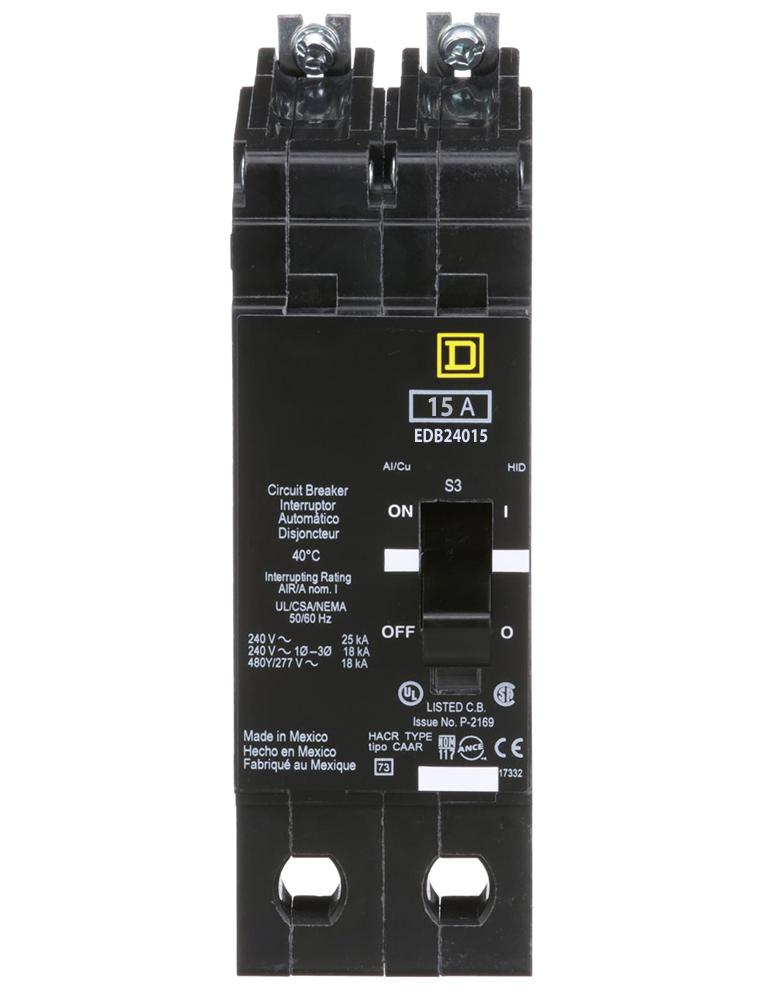

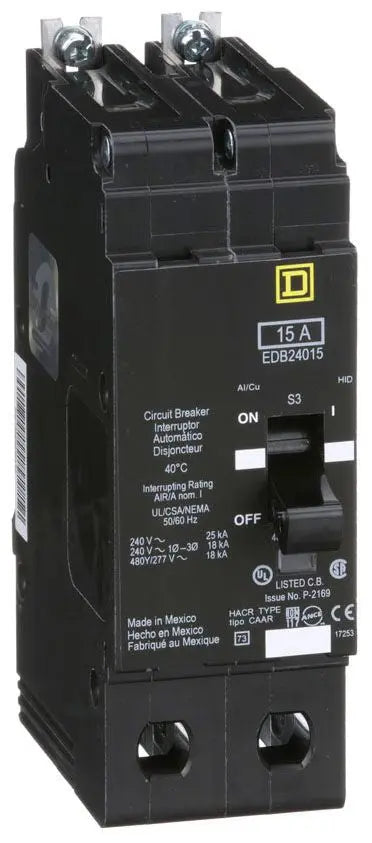

EDB24015 - Schneider Electric (Square D) 2-Pole 15 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

EDB24015

EDB24015 - Schneider Electric E-Frame molded case circuit breaker, 15A, 2-pole, bolt-on mounting for lighting panelboards. The EDB24015 features thermal-magnetic protection with long-time and instantaneous functions, rated for 480Y/277V AC systems. It provides superior overload and short-circuit protection with a trip indicator, holding current of 270A, and trip current of 875A. Designed for Square D NF panelboards, it supports aluminum and copper wire connections.

• Part Number: EDB24015
• Manufacturer: Schneider Electric
• Series/Frame: E-Frame / EDB
• Amperage: 15A
• Poles: 2
• Voltage: 480Y/277V AC
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA@480Y/277V, 25kA@240V
• Trip Unit: Thermal-Magnetic
• Functions: Long-Time and Instantaneous
• Wire Range: AWG 14-6 Cu, AWG 12-6 Al

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB24015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901879008
• GTIN : 00785901879008
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.661
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to AWG 6, Aluminum, AWG 14 to AWG 6, Copper
