EDB24020SA - Schneider Electric (Square D) 2-Pole 20 A 480Y/277 V AC Bolt-On Circuit Breaker with Shunt Trip, Type EDB

EDB24020SA

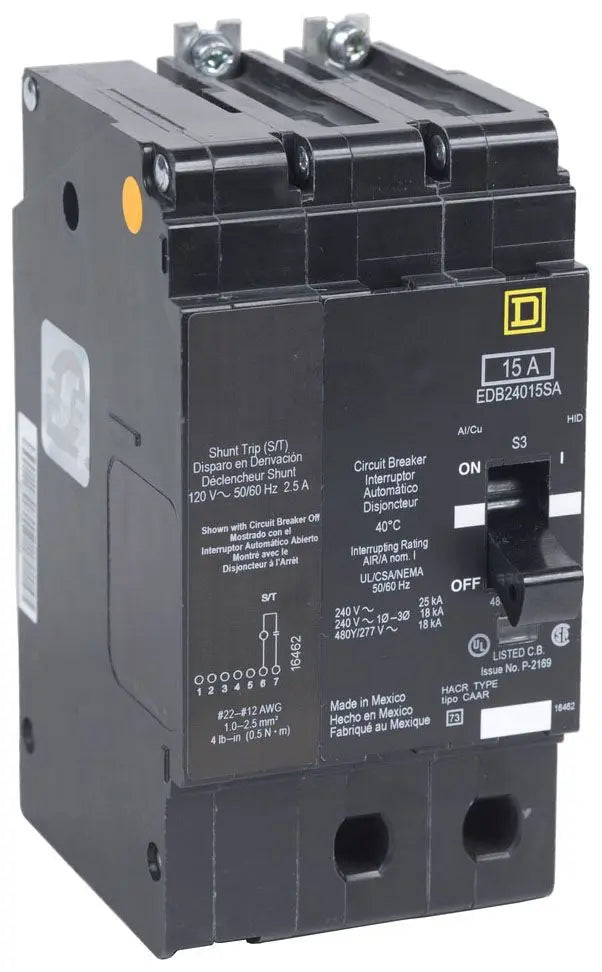

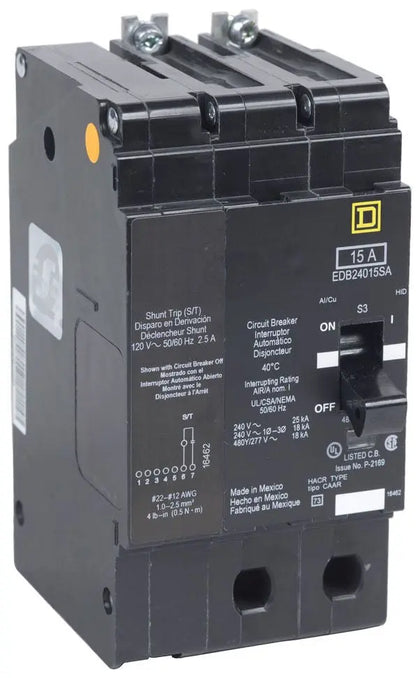

EDB24020SA is a Schneider Electric E-Frame miniature circuit breaker rated at 20A with shunt trip functionality for superior overload and short circuit protection.This bolt-on mounting circuit breaker features thermal-magnetic trip protection, designed for use in lighting panelboards, with Visi-Trip indicator for faster troubleshooting. It supports 480Y/277 VAC systems and provides reliable performance from 15A to 125A ratings.

• Amperage Rating: 20A
• Number of Poles: 2
• Voltage Rating: 480Y/277 VAC
• Frame Size: E-Frame
• Mounting Type: Bolt-On
• Trip Type: Thermal-Magnetic with Shunt Trip
• Interrupt Rating: 18 kA at 480Y/277 VAC, 25 kA at 240 VAC
• Certifications: UL Listed, CSA
• Connection: LI - Long-Time and Instantaneous

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: EDB24020SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901430797
• GTIN : 00785901430797
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.17
• Panel Type : Square D NF Panelboards
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12, AWG 6 Aluminium, AWG 14, AWG 6 Copper
