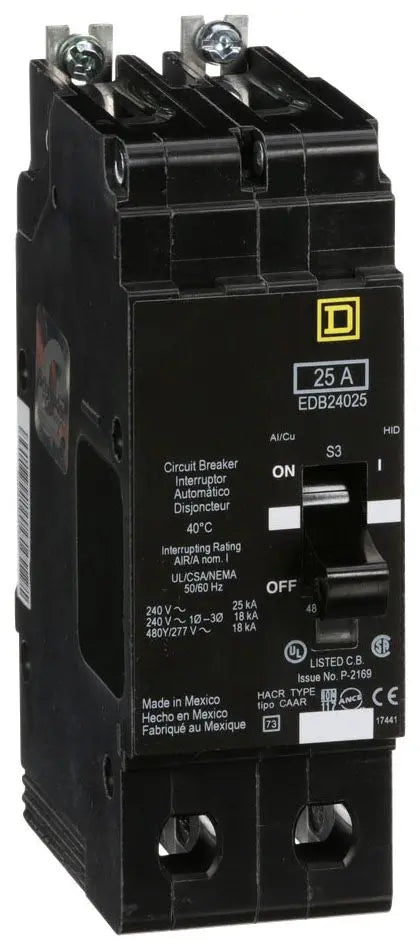

EDB24025 - Schneider Electric (Square D) 2-Pole 25 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

EDB24025

EDB24025 - Schneider Electric E-Frame 2-pole molded case circuit breaker rated at 25A, 480Y/277VAC with bolt-on mounting.This thermal-magnetic circuit breaker from the EDB series provides superior overload and short-circuit protection for lighting panelboards and NF systems. It features LI trip functions, trip indicator, and HID/HACR ratings with aluminum lug connections.

• Part Number: EDB24025
• Manufacturer: Schneider Electric
• Series/Frame: EDB / E-Frame
• Poles: 2
• Amperage: 25A
• Voltage: 480Y/277VAC
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 18kA@480V, 25kA@240V
• Protection: Short-Circuit / Overload
• Applications: HID-Rated / HACR-Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB24025
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 78590131101
• GTIN : 00785901311010
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.67
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to AWG 6, Aluminum, AWG 14 to AWG 6, Copper
