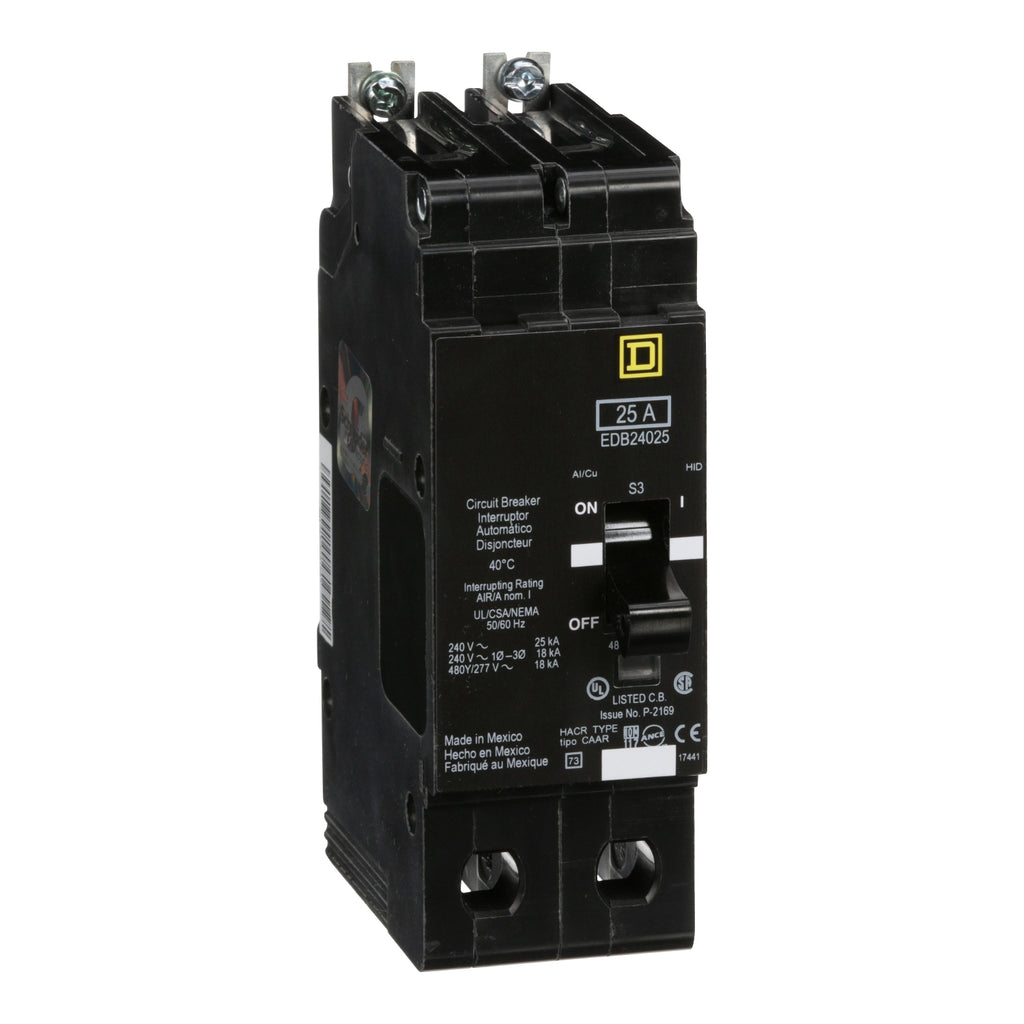

EDB24025SA - Schneider Electric (Square D) 2-Pole 25 A 480Y/277 V AC Bolt-On Circuit Breaker with Shunt Trip, Type EDB

EDB24025SA

EDB24025SA - Schneider Electric E-Frame miniature circuit breaker, 25A, 2 pole with shunt trip, rated for 480Y/277V AC, bolt-on mounting.This thermal-magnetic miniature circuit breaker provides superior overload and short circuit protection for lighting panelboards. It features a shunt trip for remote operation, bolt-on mounting, and is HACR and HID rated. The E-Frame design supports ratings from 15A to 125A with breaking capacities up to 25kA.

• Part Number: EDB24025SA
• Manufacturer: Schneider Electric
• Type: Miniature Circuit Breaker
• Frame: E-Frame
• Amperage: 25A
• Poles: 2
• Voltage: 480Y/277V AC
• Mounting: Bolt-on
• Trip Unit: Thermal-magnetic with shunt trip
• Interrupt Rating: 18kA @ 480Y/277V AC, 25kA @ 240V AC
• Certifications: cULus
• Application: HACR, HID rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: EDB24025SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• GTIN : 03606486143384
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : cULus, IEC
• Certification : cULus, IEC
