EDB24040SA - Schneider Electric (Square D) 2-Pole 40 A 480Y/277 V AC Bolt-On Circuit Breaker with Shunt Trip, Type EDB

EDB24040SA

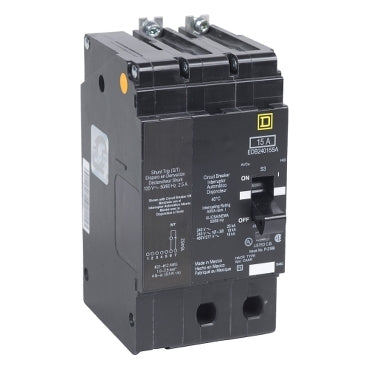

EDB24040SA is a Schneider Electric E-Frame miniature circuit breaker with shunt trip, rated at 40A, 2 poles, and 480Y/277V for bolt-on mounting in lighting panelboards.This thermal-magnetic circuit breaker provides superior overload and short circuit protection, featuring a visual trip indicator, lugs terminals compatible with 12 to 2/0 AWG wire, and protection against short-circuit and overload conditions as an equipment protection device.

• Part Number: EDB24040SA
• Manufacturer: Schneider Electric
• Amperage: 40A
• Poles: 2
• Voltage: 480Y/277V AC
• Frame Size: E-Frame (125A max)
• Mounting: Bolt-on
• Trip Unit: Thermal-magnetic with shunt trip
• Interrupt Rating: 18kA @ 480Y/277V AC, 25kA @ 240V AC
• Terminals: Lugs (12-2/0 AWG)
• Application: Lighting panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: EDB24040SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901545804
• GTIN : 00785901545804
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.17
• Panel Type : Square D NF Panelboards
• Standards : cULus, IEC
• Certification : cULus, IEC
