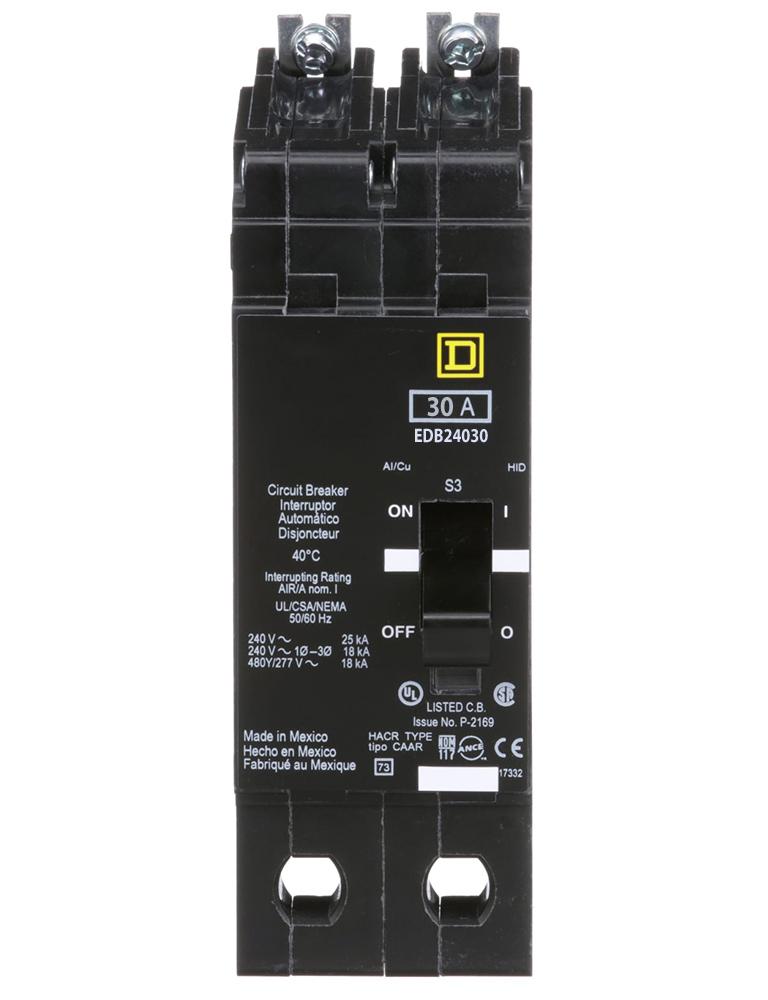

EDB24030 - Schneider Electric (Square D) 2-Pole 30 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

EDB24030

EDB24030 is a 2-pole bolt-on mini circuit breaker rated at 30 amperes, 480Y/277V AC, designed for use in Square D NF lighting panelboards. This E-Frame breaker features thermal-magnetic protection with a trip unit rating of 875 amperes and an interrupt rating of 18 kA at 480Y/277V AC. The device includes a trip indicator to signal when a trip has occurred and is suitable for HID and HACR-rated lighting applications. Key Specifications

• Part Number: EDB24030
• Manufacturer: Schneider Electric (Square D)
• Poles: 2
• Amperage: 30 A
• Voltage: 480Y/277 V AC
• Frame: E-Frame
• Mounting Type: Bolt-On
• Trip Unit Rating: 875 A
• Interrupt Rating: 18 kA at 480Y/277V AC
• Protection Type: Thermal-Magnetic
• Wire Gauge: AWG 12 to AWG 6 Aluminum; AWG 14 to AWG 6 Copper
• Dimensions: 5.66 in H x 1.96 in W x 4.05 in D
• Certifications: UL Listed, CSA Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB24030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901879046
• GTIN : 00785901879046
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.661
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to AWG 6, Aluminum, AWG 14 to AWG 6, Copper
