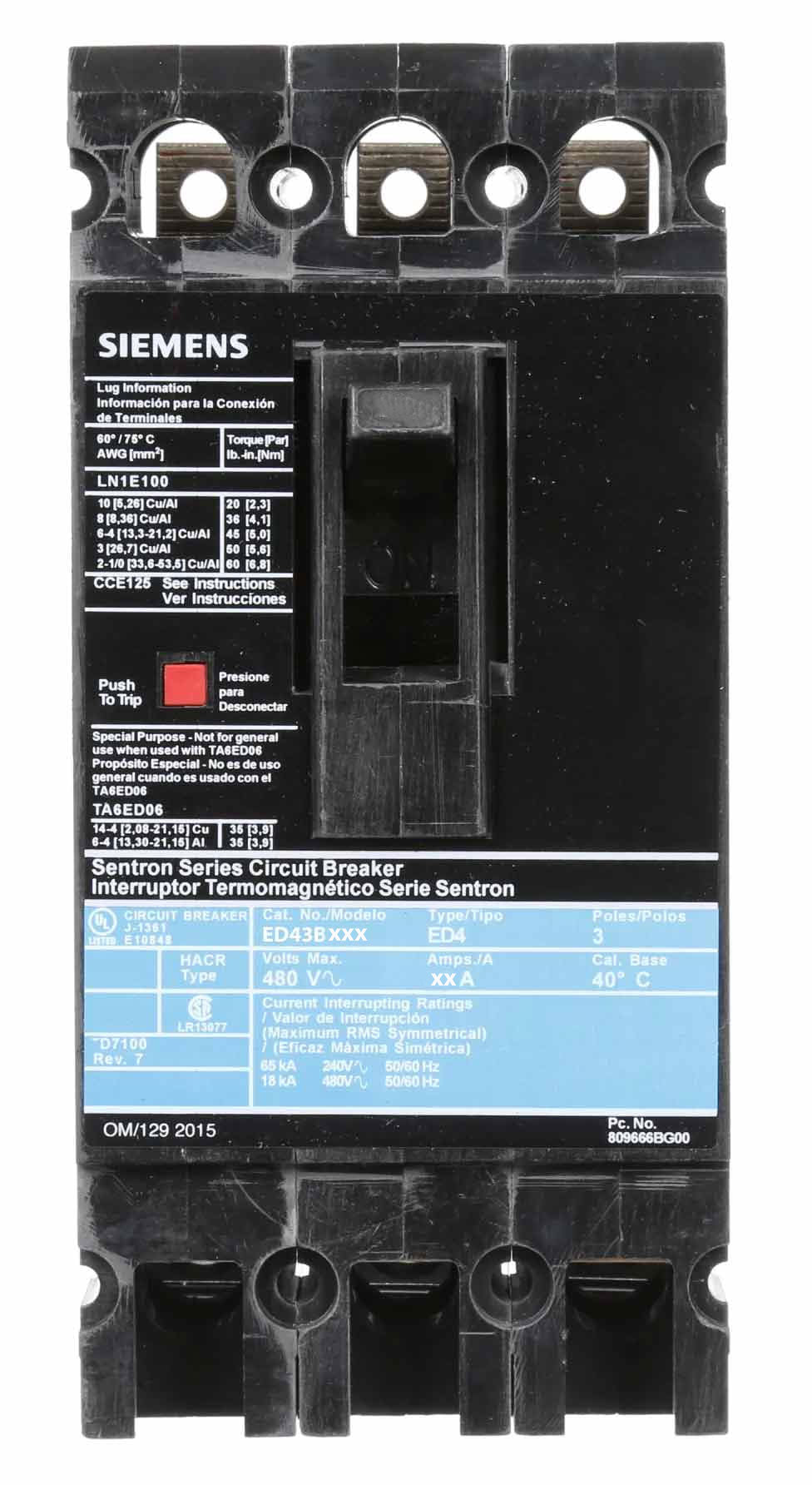

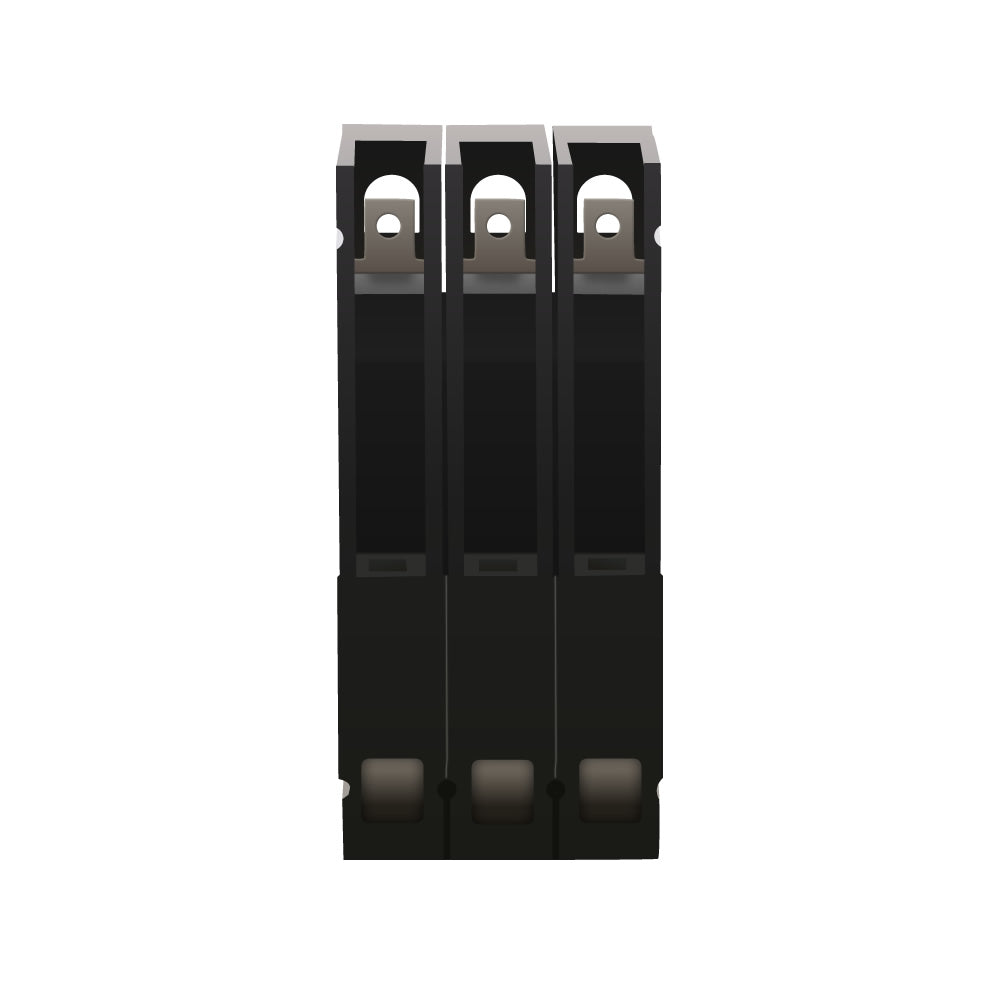

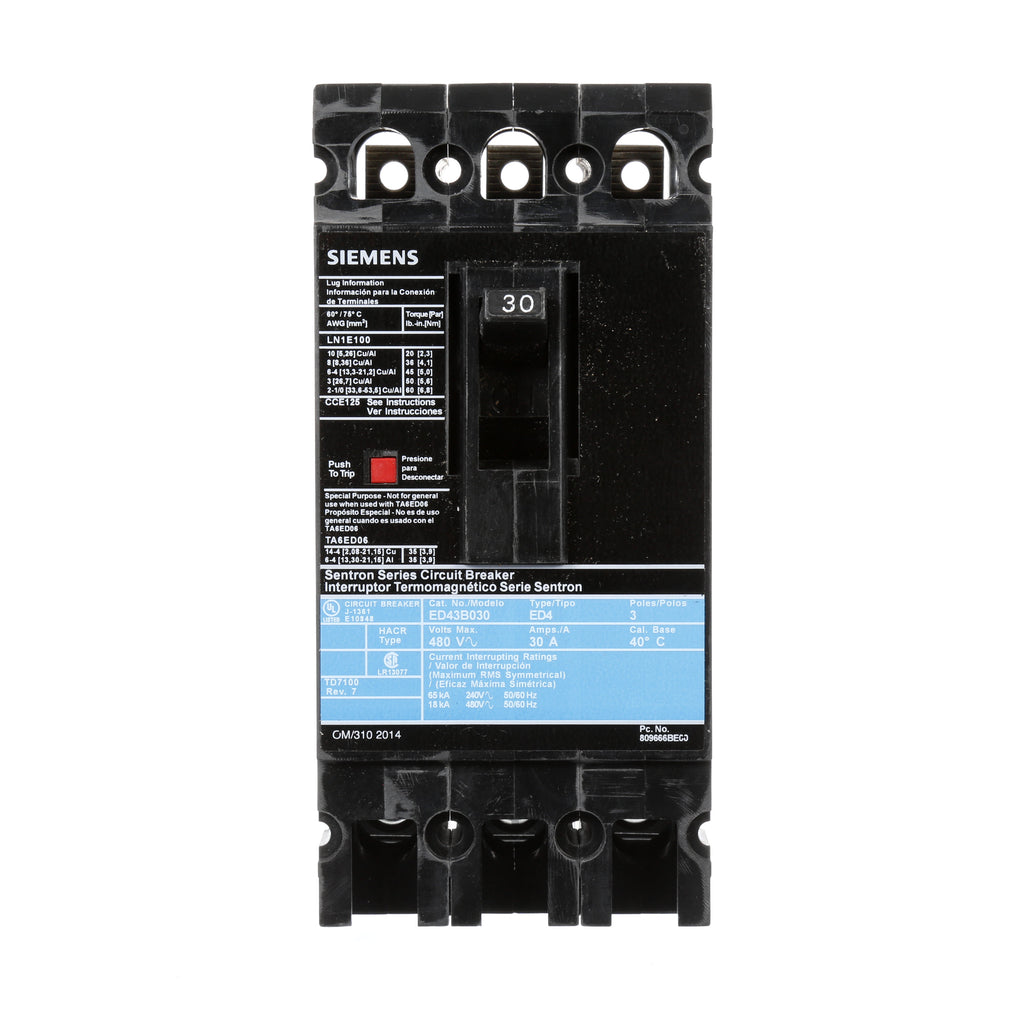

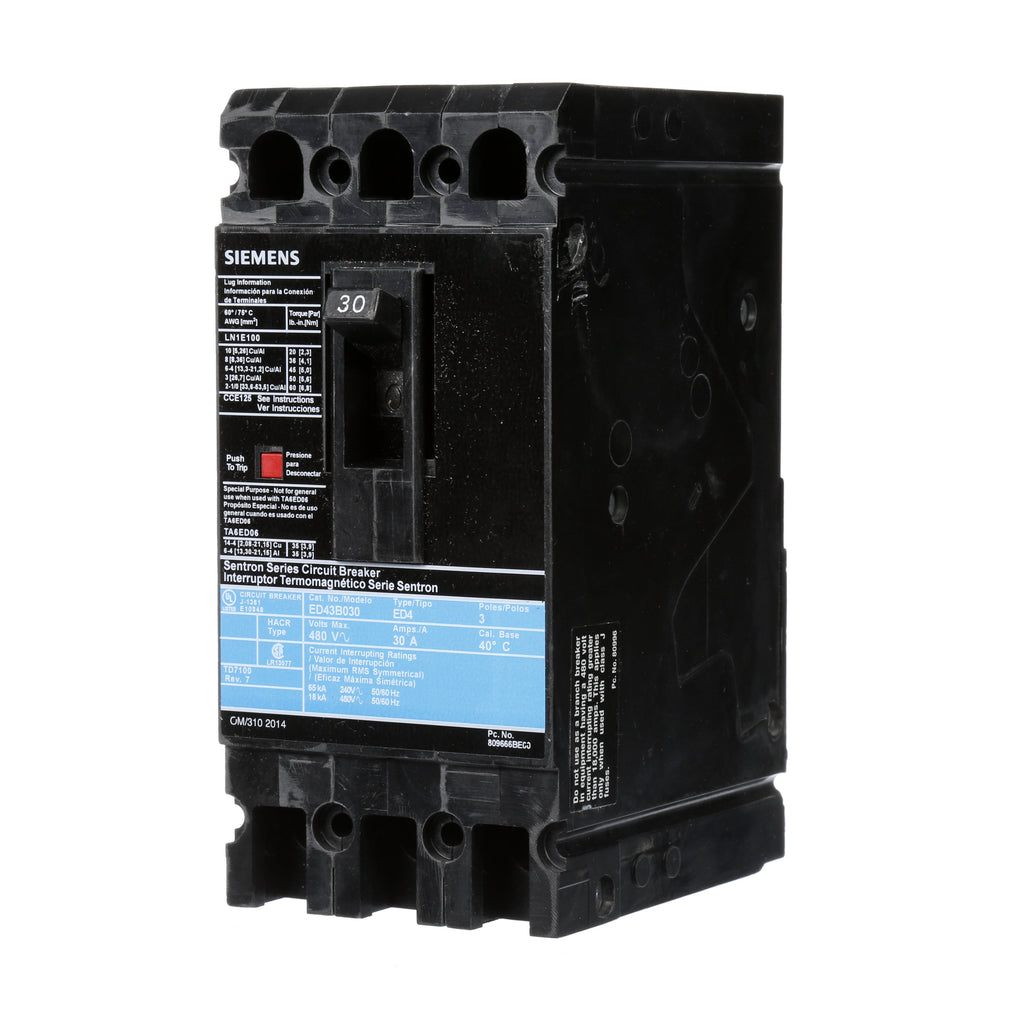

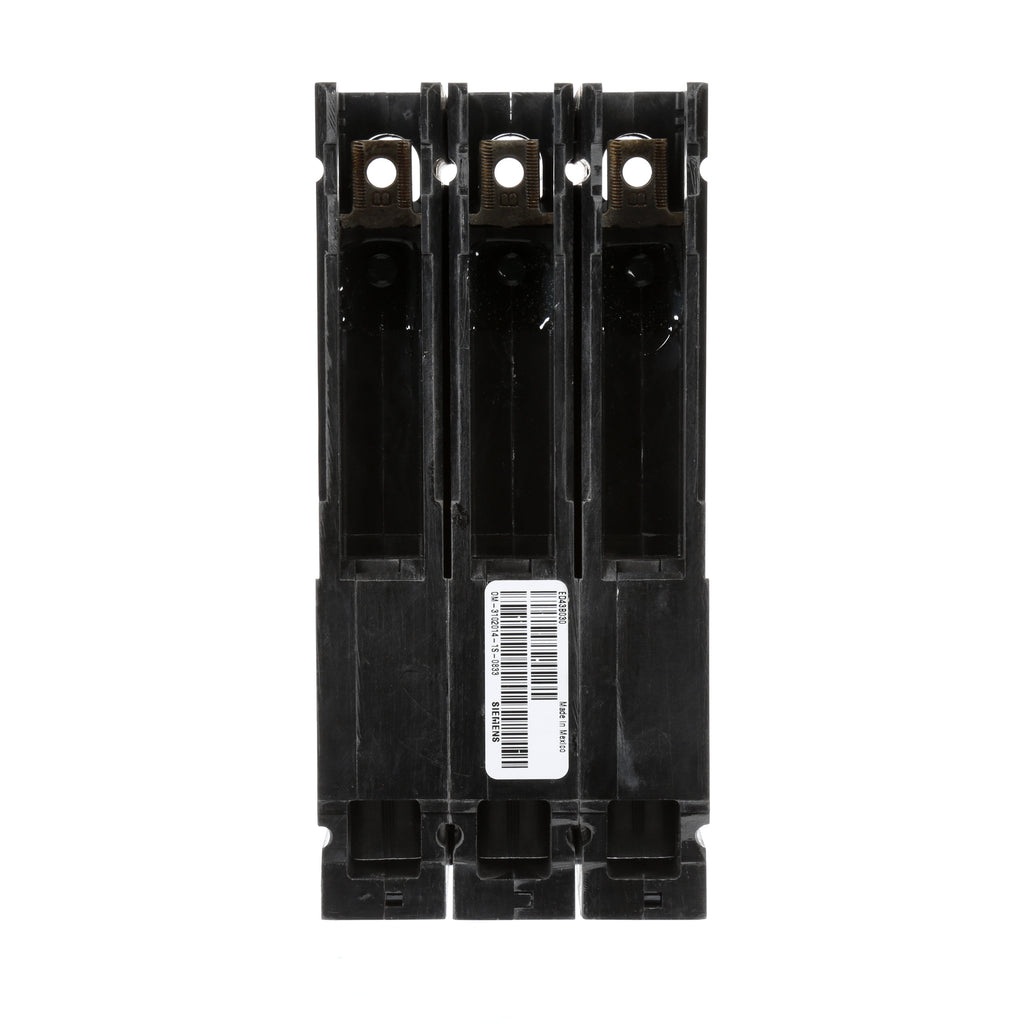

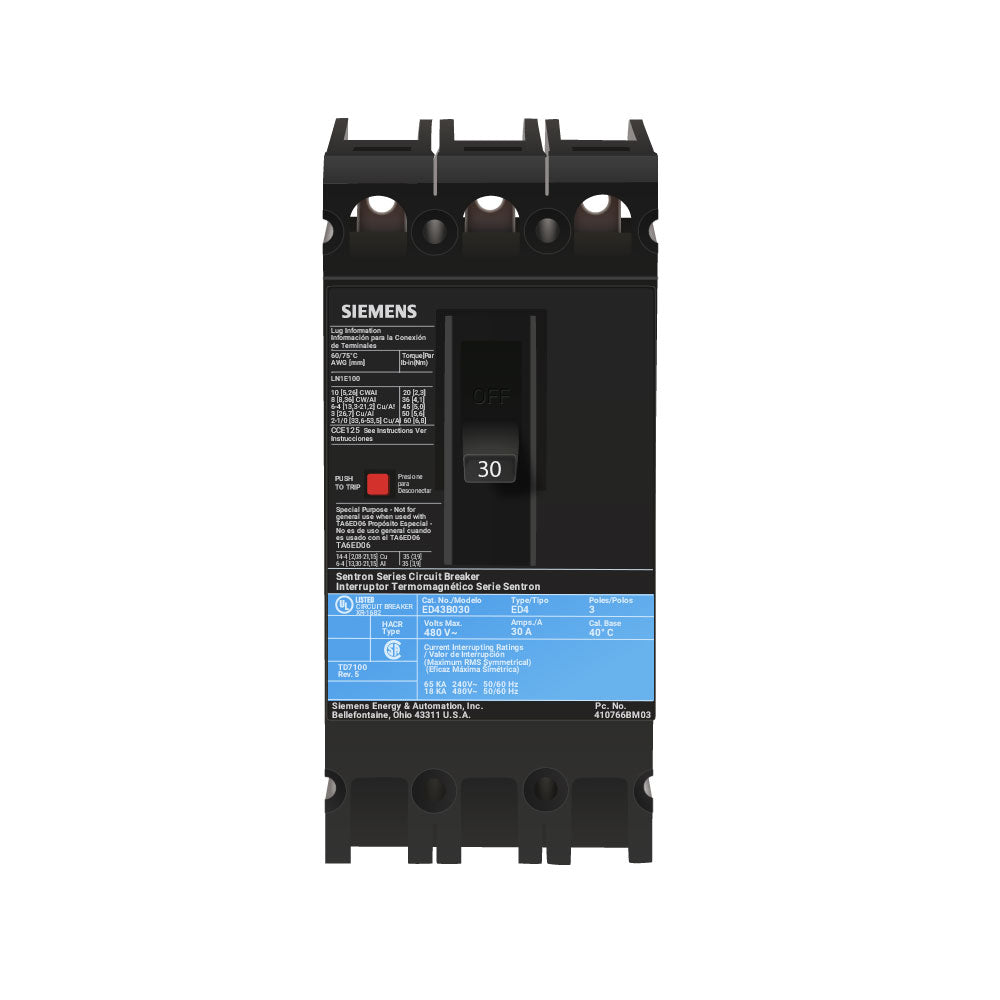

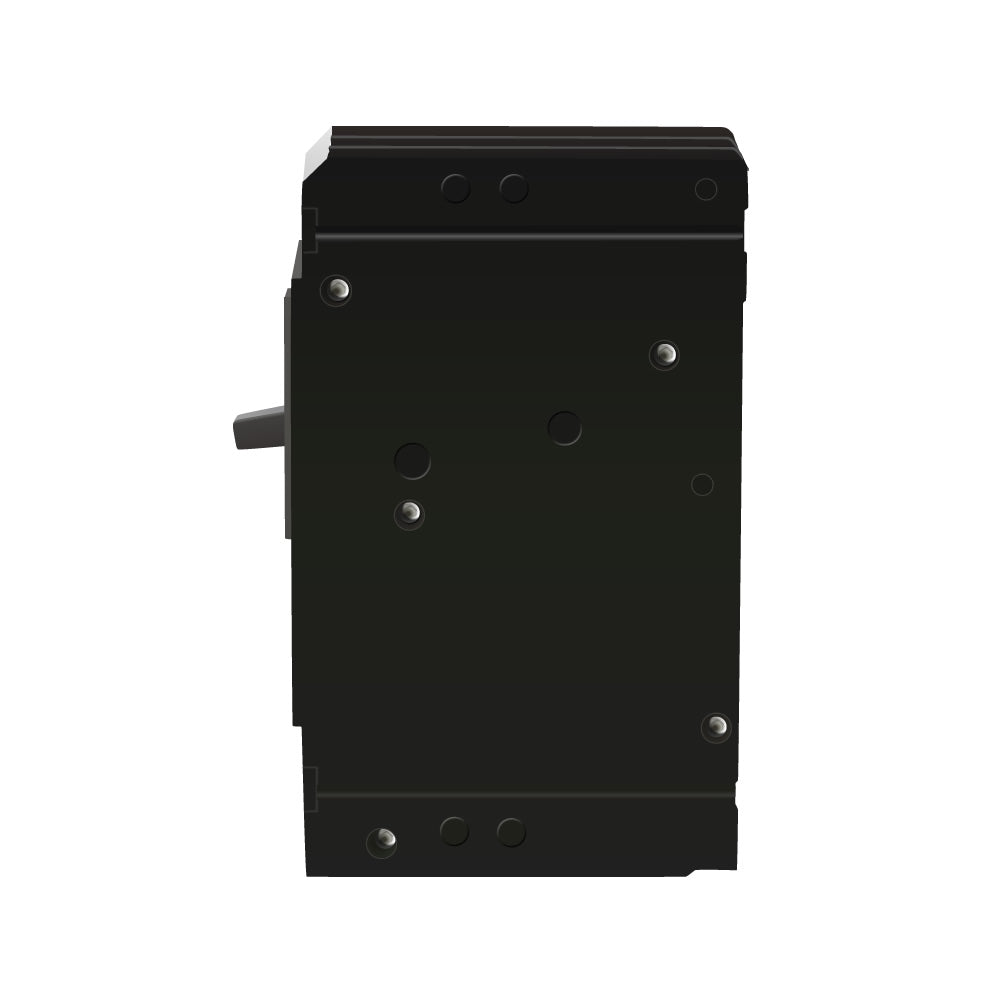

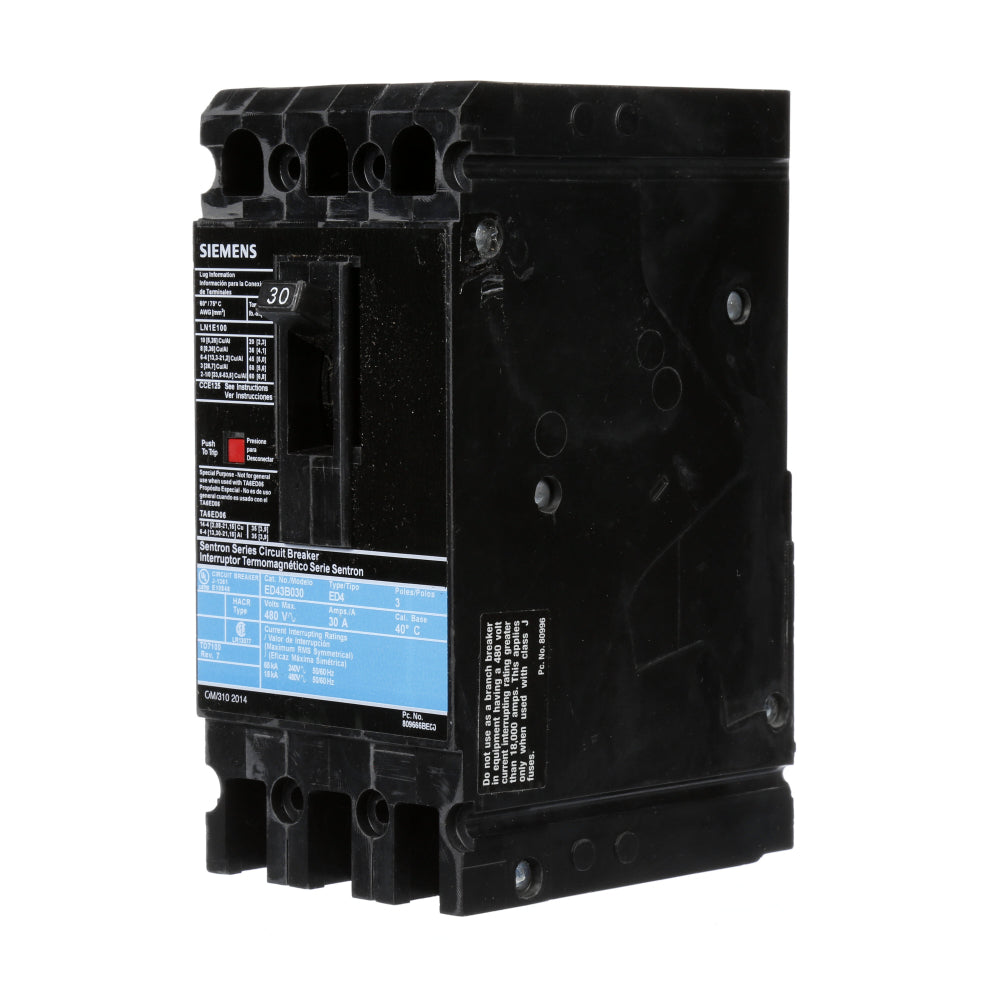

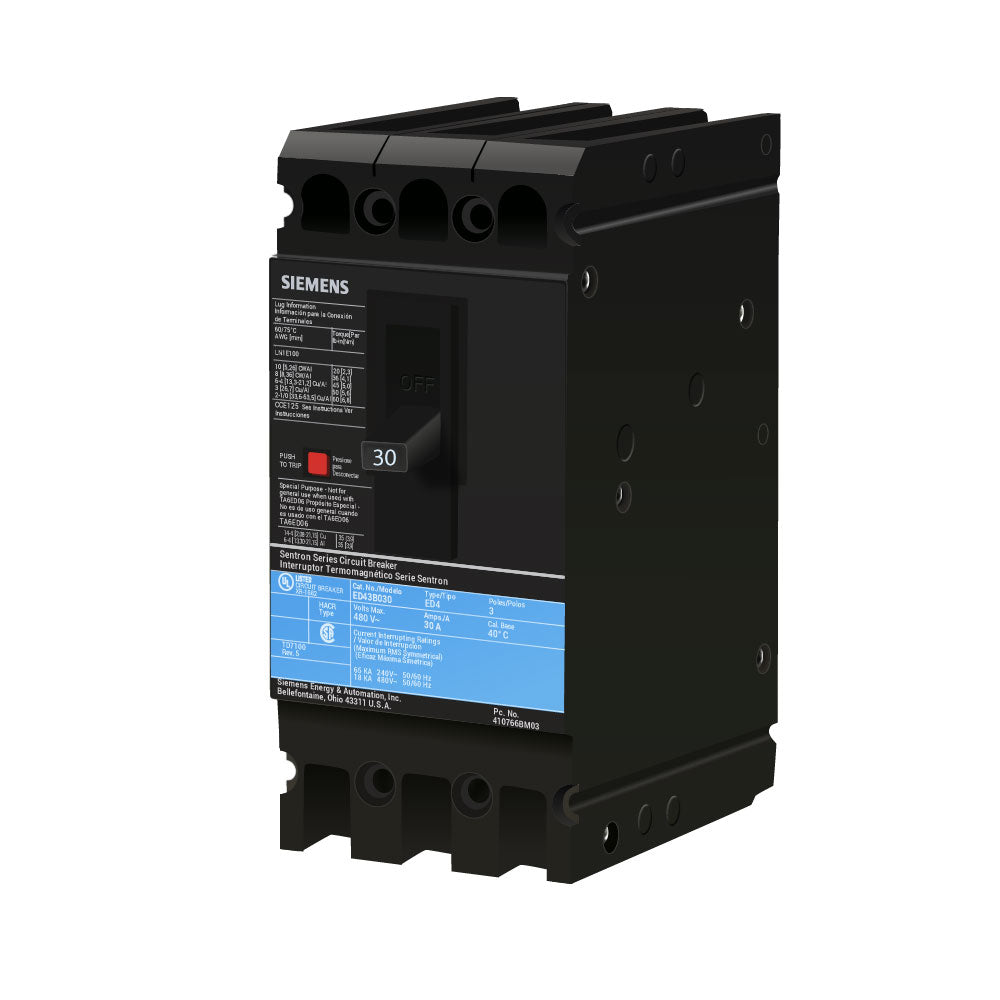

ED43B030 - Siemens 30A 3-Pole 480V Molded Case Circuit Breaker ED Frame 18kA Interrupt Rating

ED43B030

ED43B030 is a Siemens molded case circuit breaker with a 30 amp rating, 3 poles, and 480 volts AC voltage rating designed for reliable circuit protection.This Siemens ED frame breaker features a thermal magnetic trip unit, an 18 kA interrupt rating at 480 VAC, and is HACR rated for standard 40¡C applications. It has a bolt-on mounting type and is suitable for industrial and commercial power distribution systems. The breaker measures approximately 4 in L x 7 in W x 6 in H and complies with relevant safety standards.

Key Specifications
• Amperage: 30 A
• Voltage Rating: 480 VAC, 250 VDC
• Number of Poles: 3
• Interrupt Rating: 18 kAIC at 480 VAC
• Frame: ED4
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On
• Temperature Rating: 40 ¡C
• Standards: HACR Rated
• Dimensions: 4 in L x 7 in W x 6 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED43B030
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209398
• GTIN : 00783643209398
• Country of Origin : Mexico
• Dimensions : 7.323 x 5.512 x 3.937 inch
• Weight : 3.697
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
