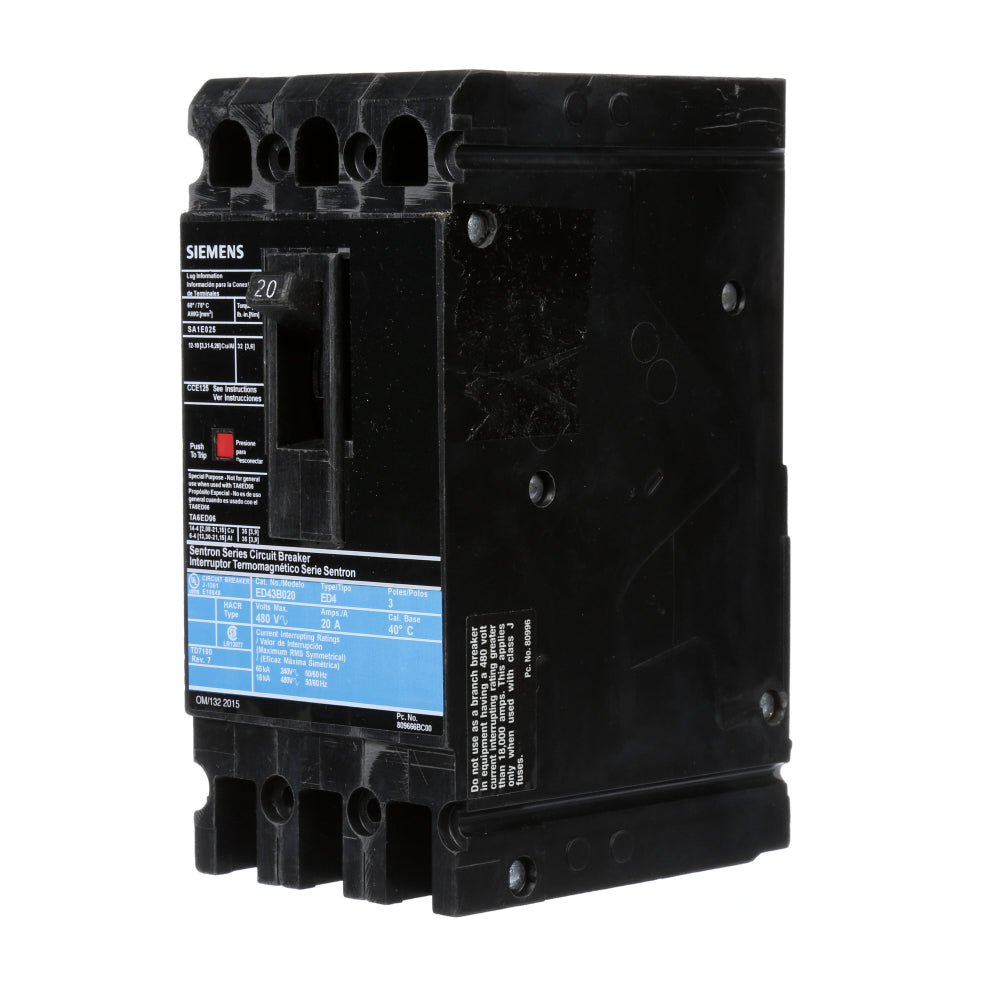

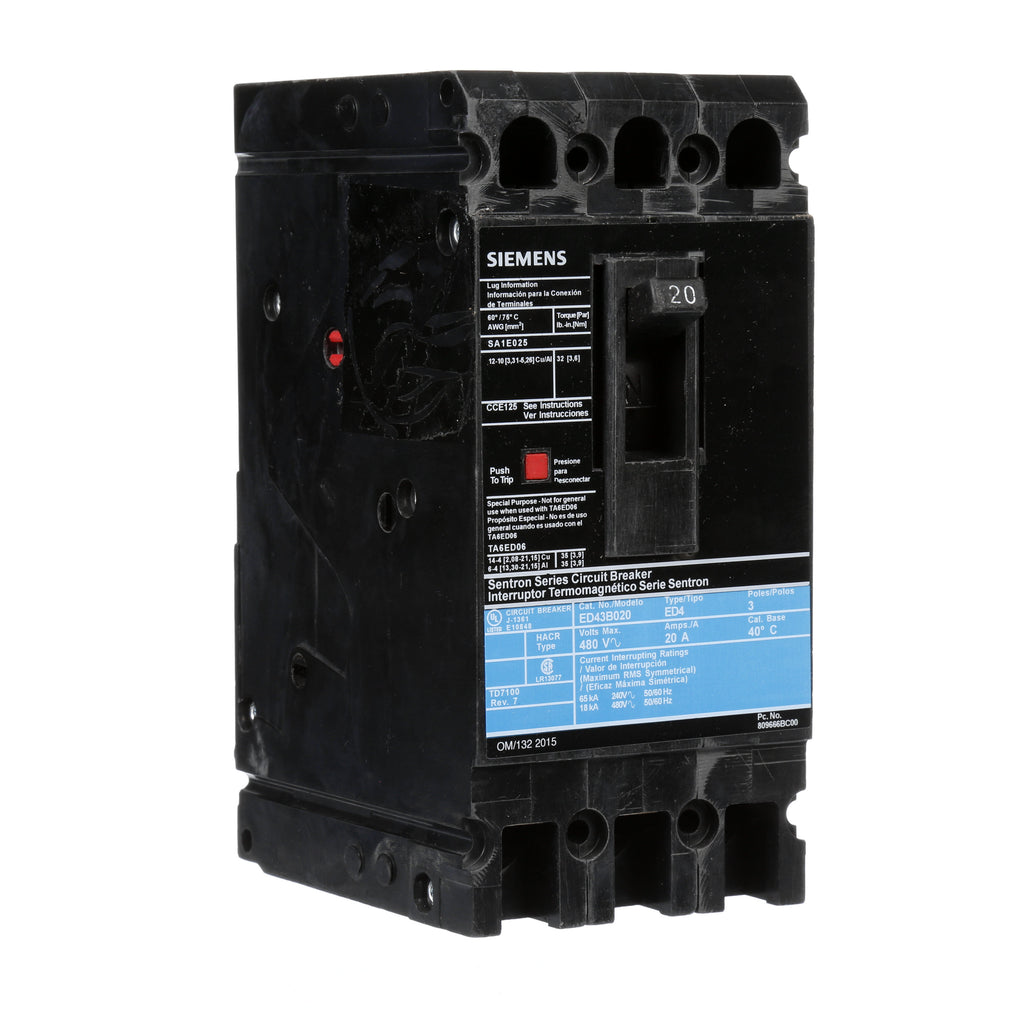

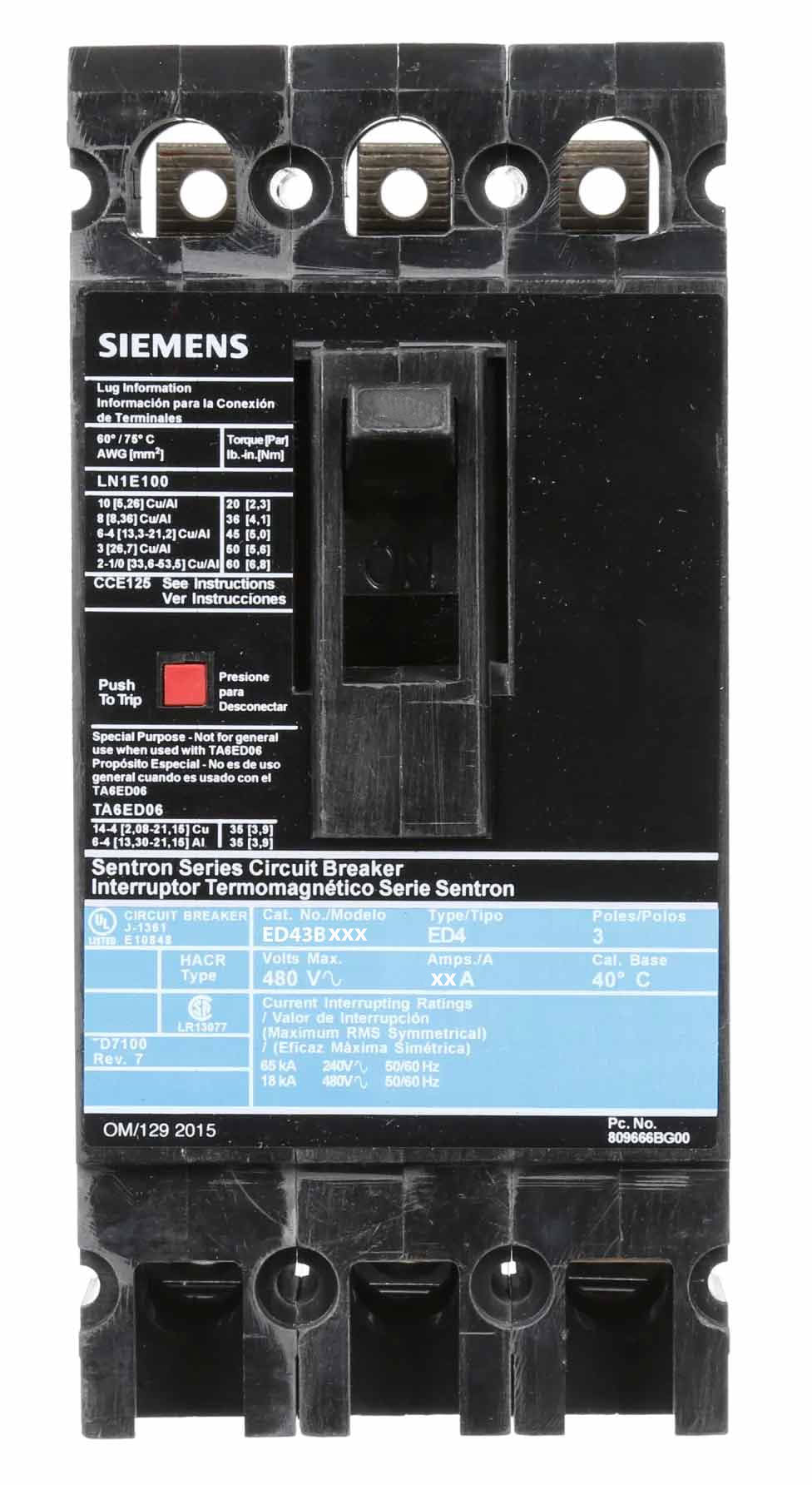

ED43B020 - Siemens 3 Pole 20A 480VAC Molded Case Circuit Breaker, ED Frame, Bolt-On, 18kAIC, Thermal Magnetic Trip, UL/IEC

ED43B020

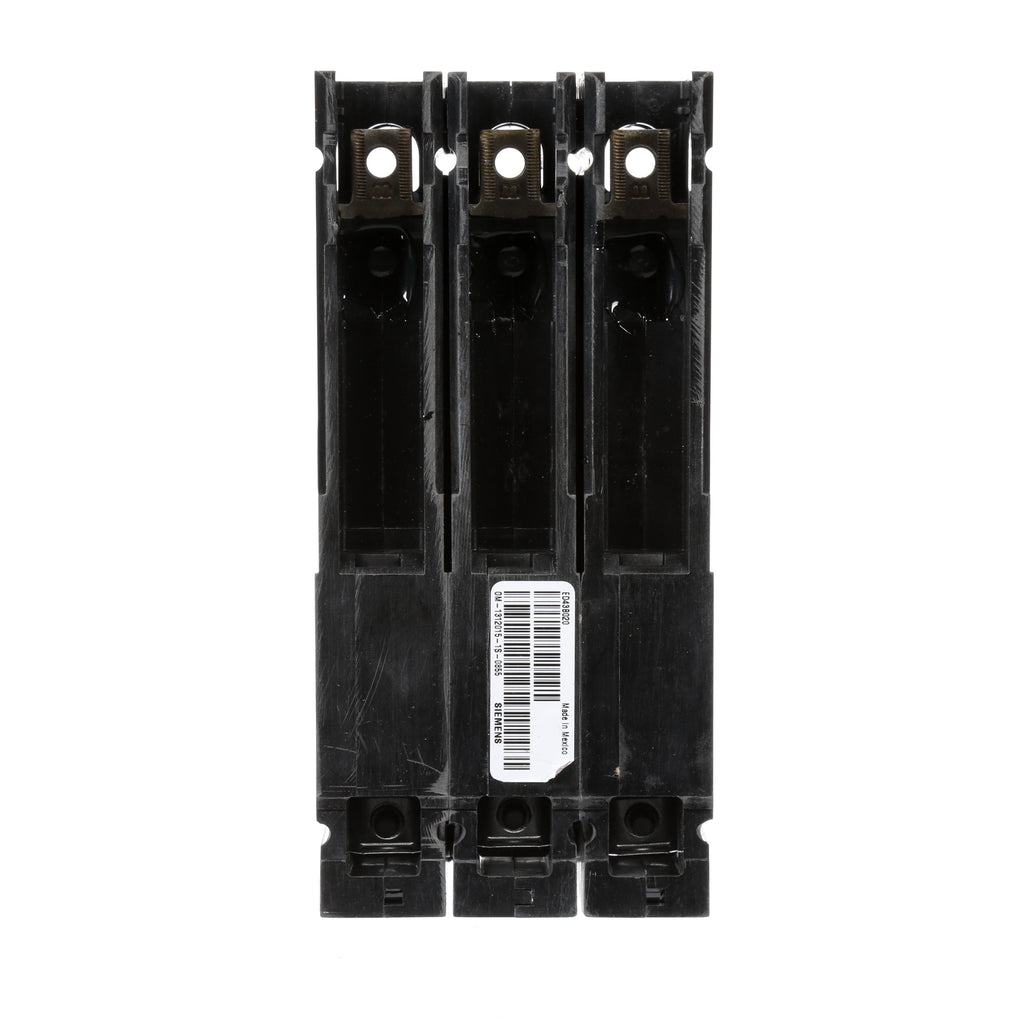

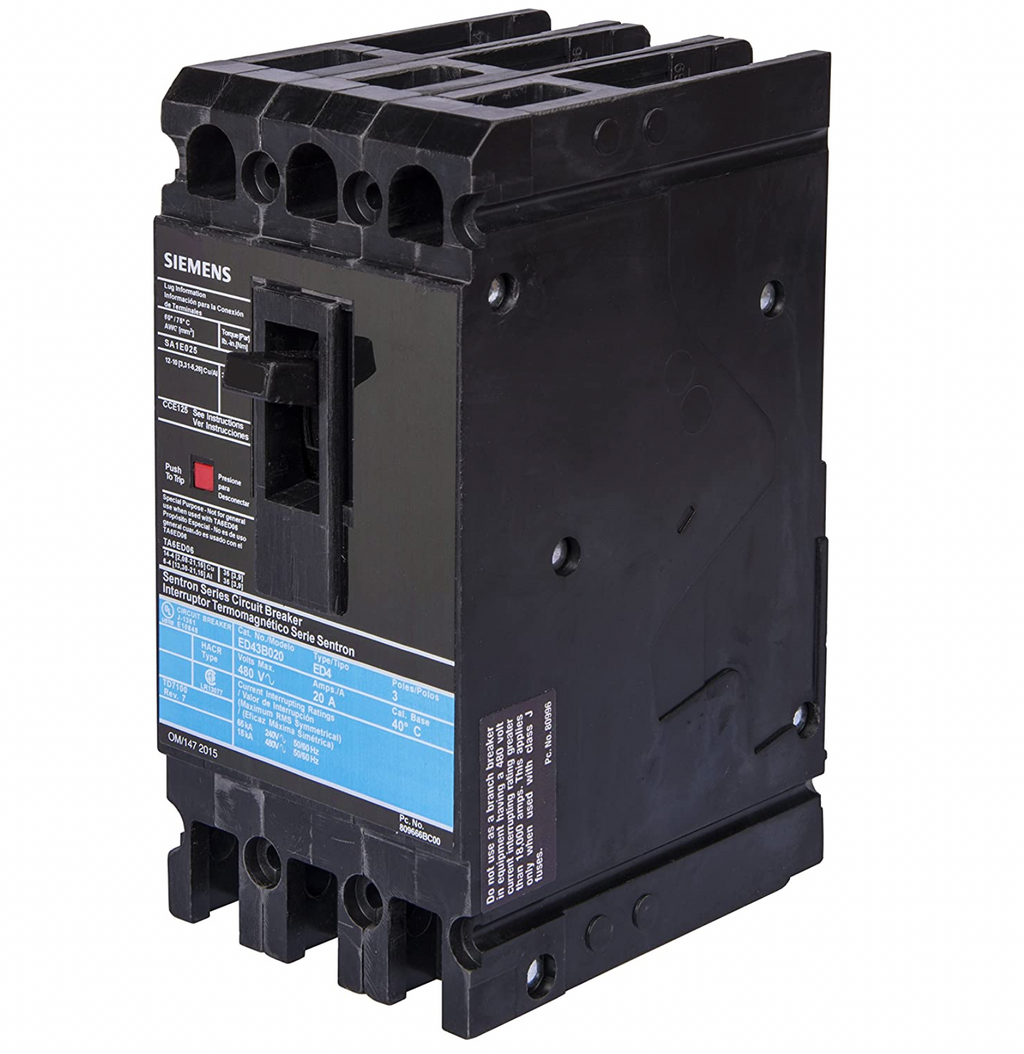

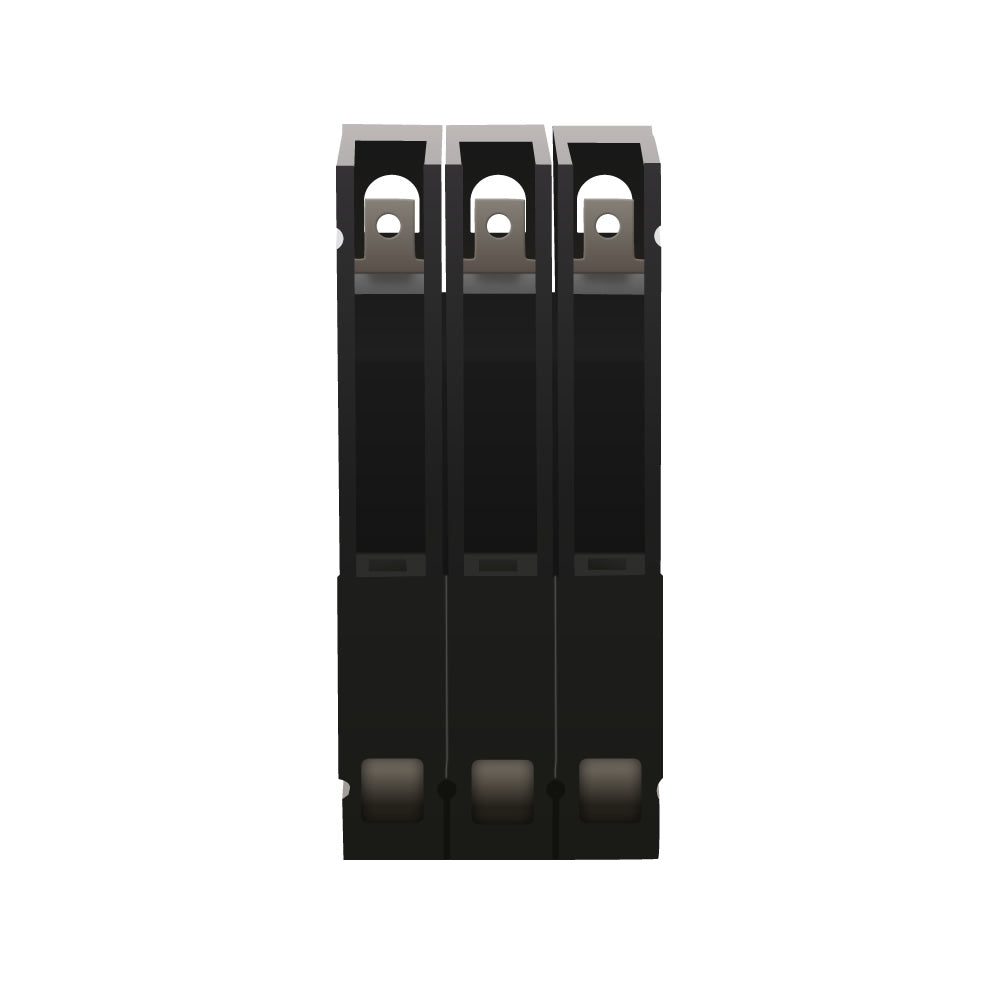

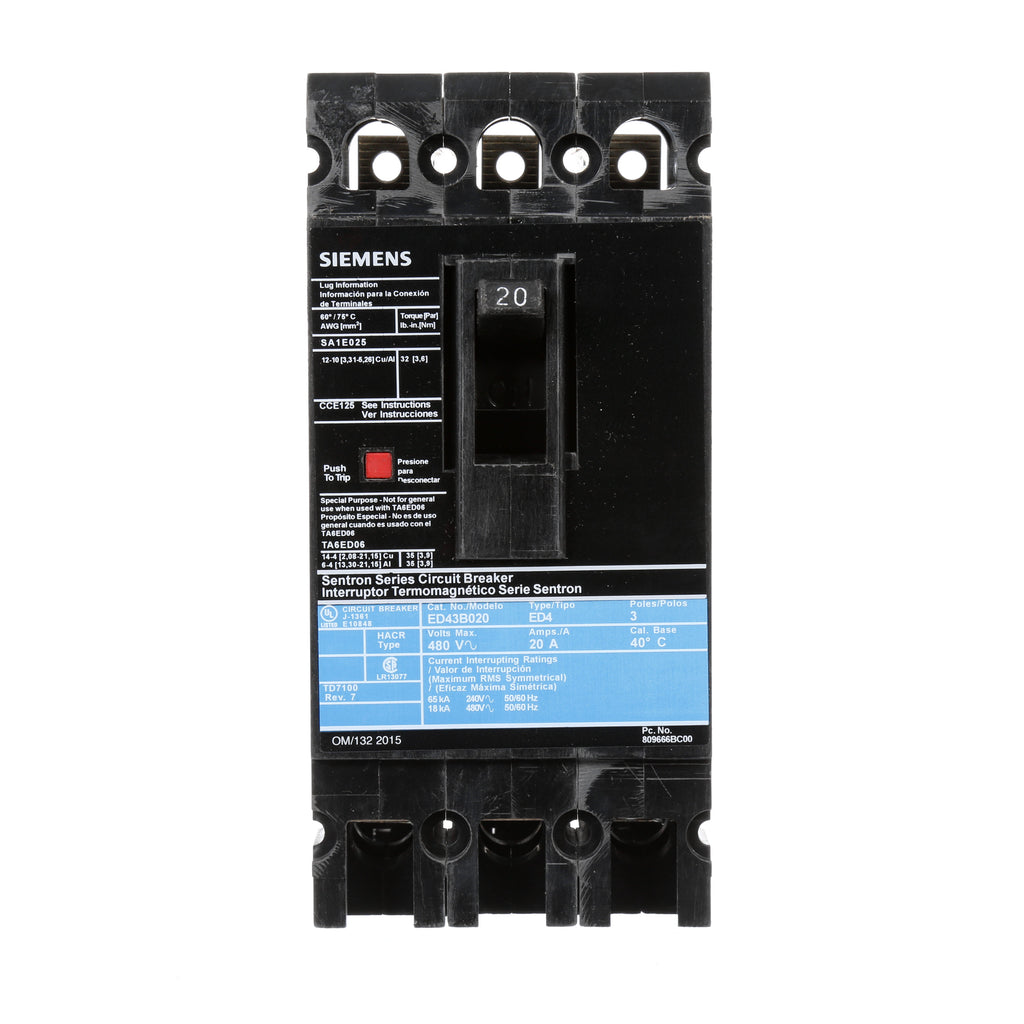

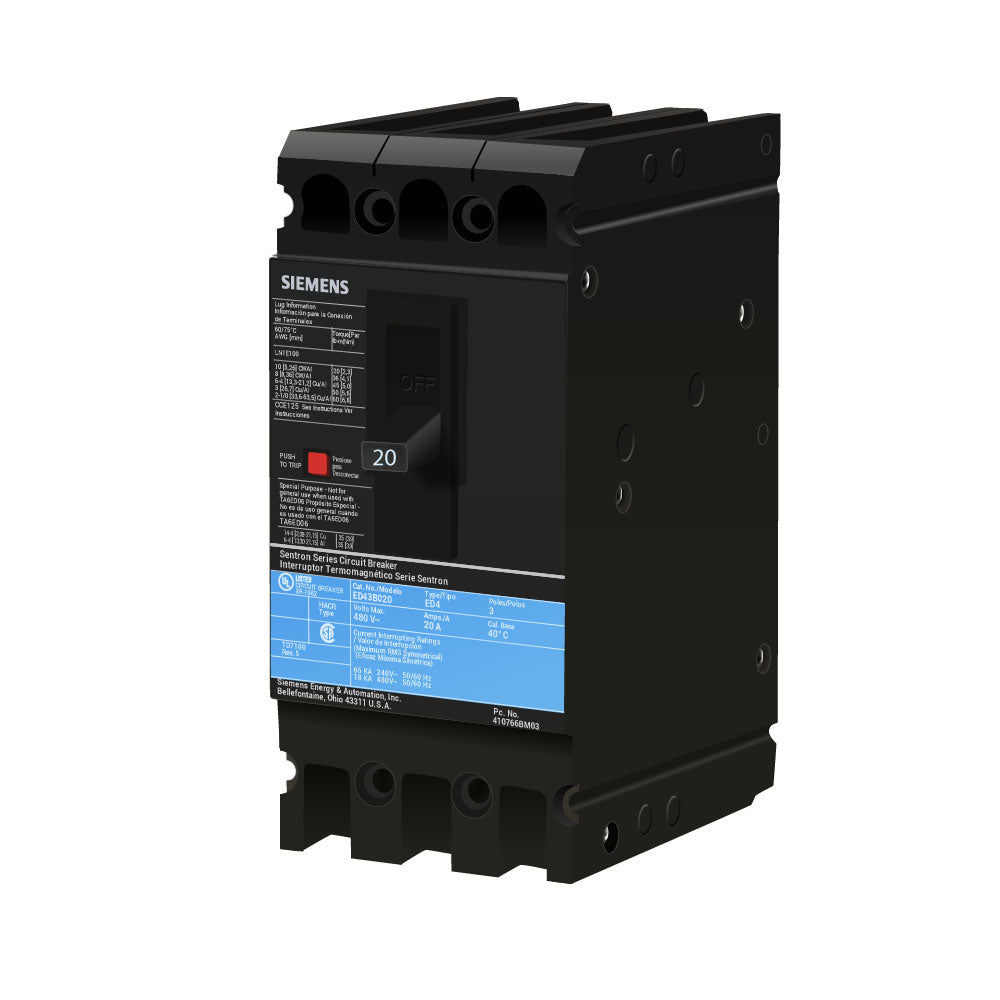

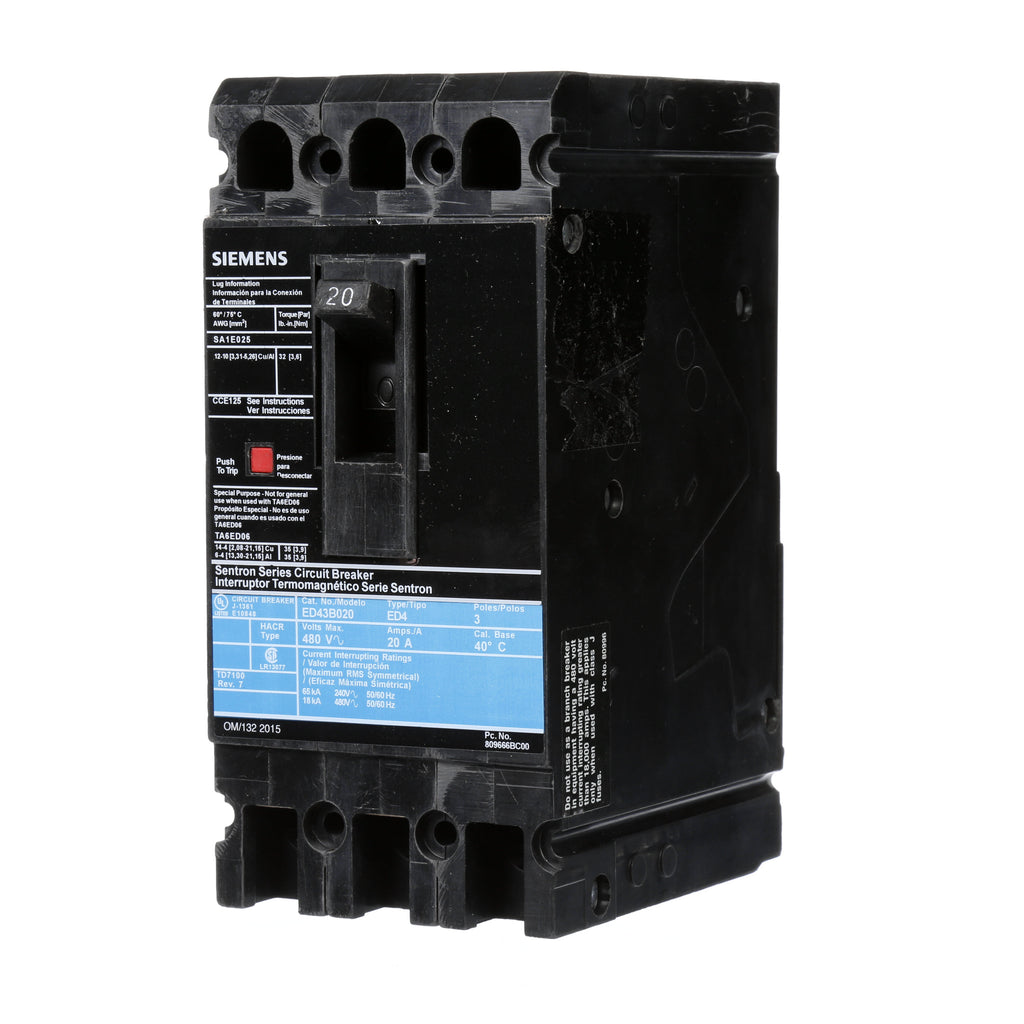

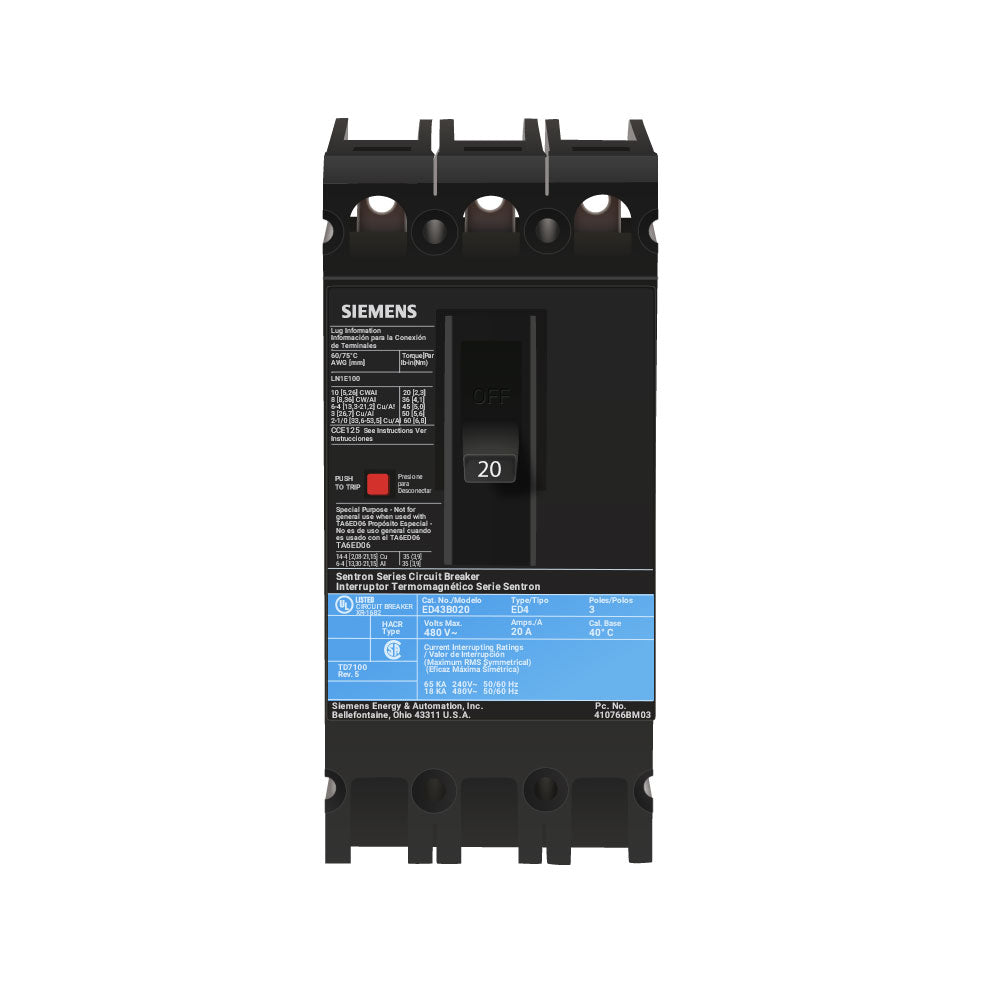

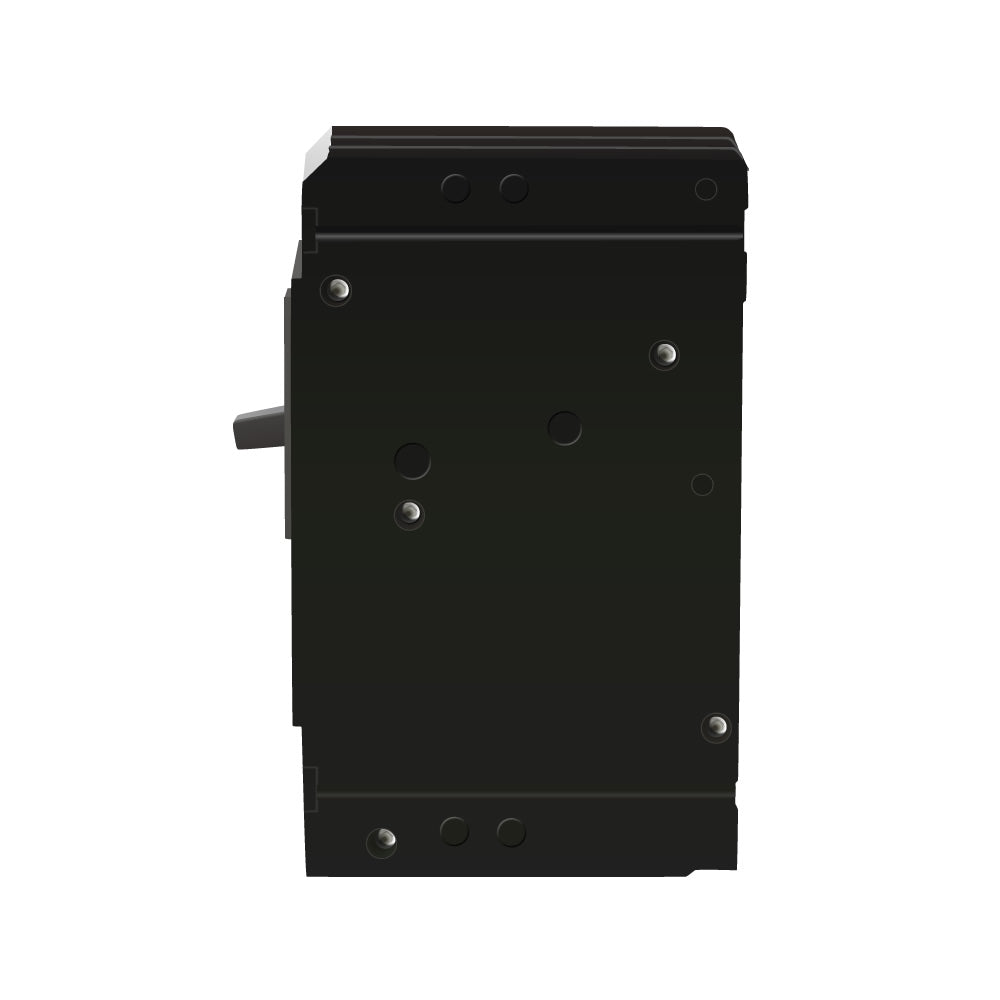

ED43B020 - Siemens 3-pole molded case circuit breaker rated at 20A and 480VAC with thermal magnetic trip.The Siemens ED43B020 features an ED frame, bolt-on mounting, and standard breaking capacity of 18kA at 480V. It provides long time and instantaneous trip functions with load side lug terminals in a compact design suited for industrial panelboards.

• Part Number: ED43B020
• Manufacturer: Siemens
• Frame Size: ED
• Poles: 3
• Amperage: 20A
• Voltage: 480VAC
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA at 480V
• Trip Type: Thermal Magnetic
• Trip Functions: Long Time, Instantaneous
• Terminal: Load Side Lugs
• Temperature Rating: 40C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED43B020
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209374
• GTIN : 00783643209374
• Country of Origin : Mexico
• Dimensions : 7.48 x 3.937 x 5.512 inch
• Weight : 3.713
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al
