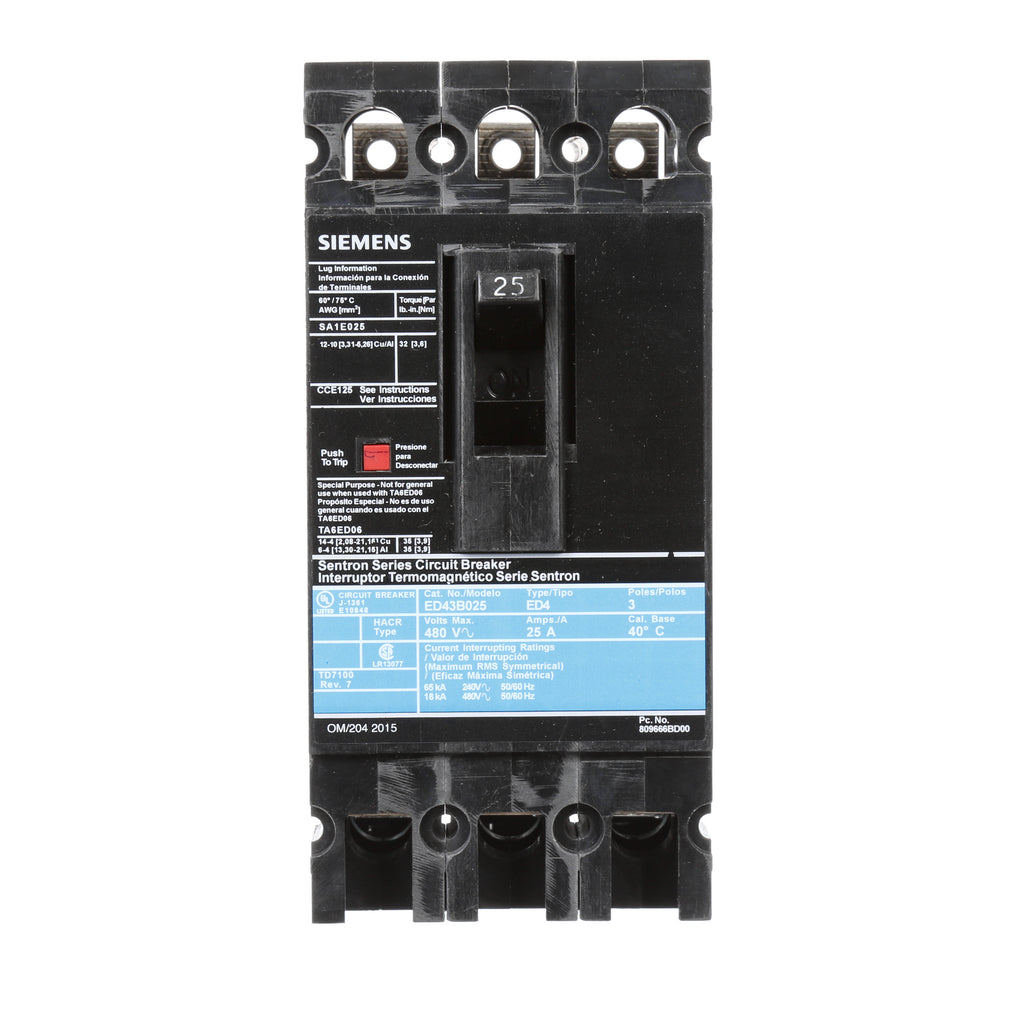

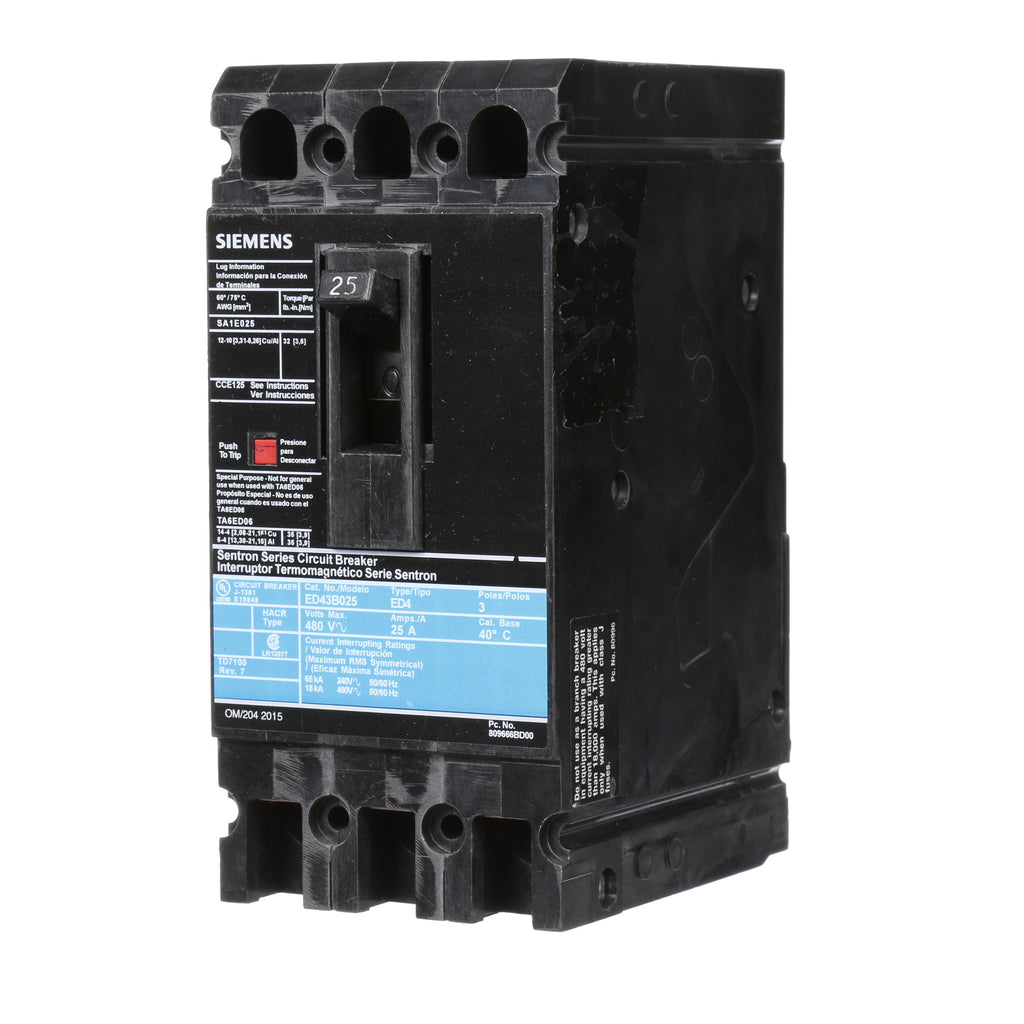

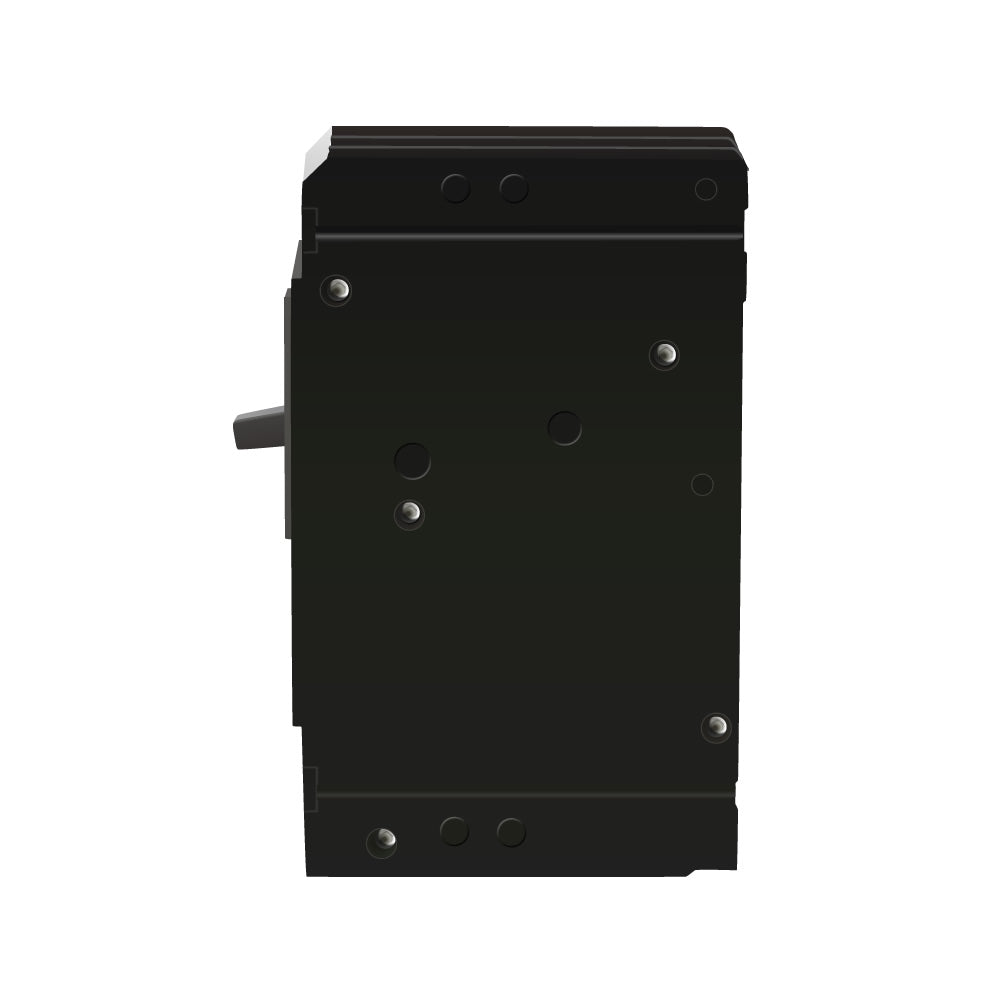

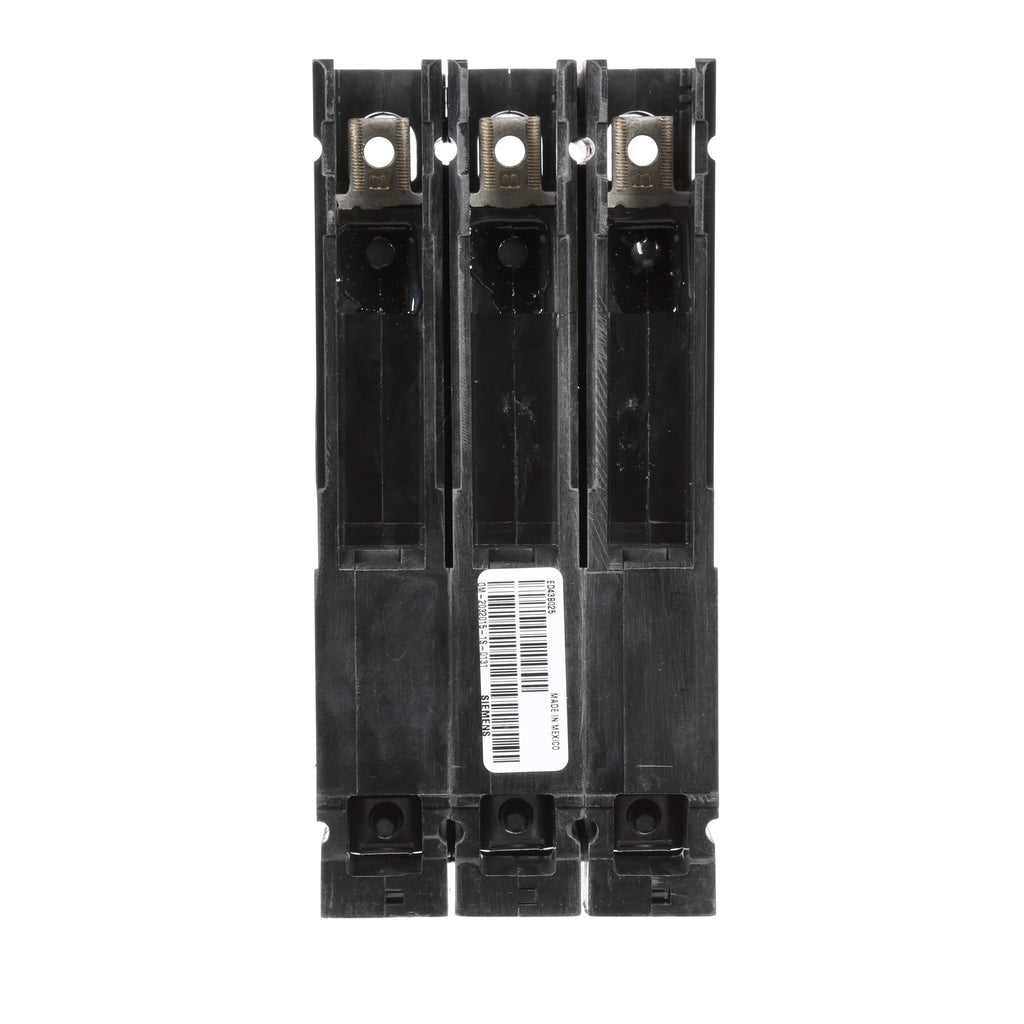

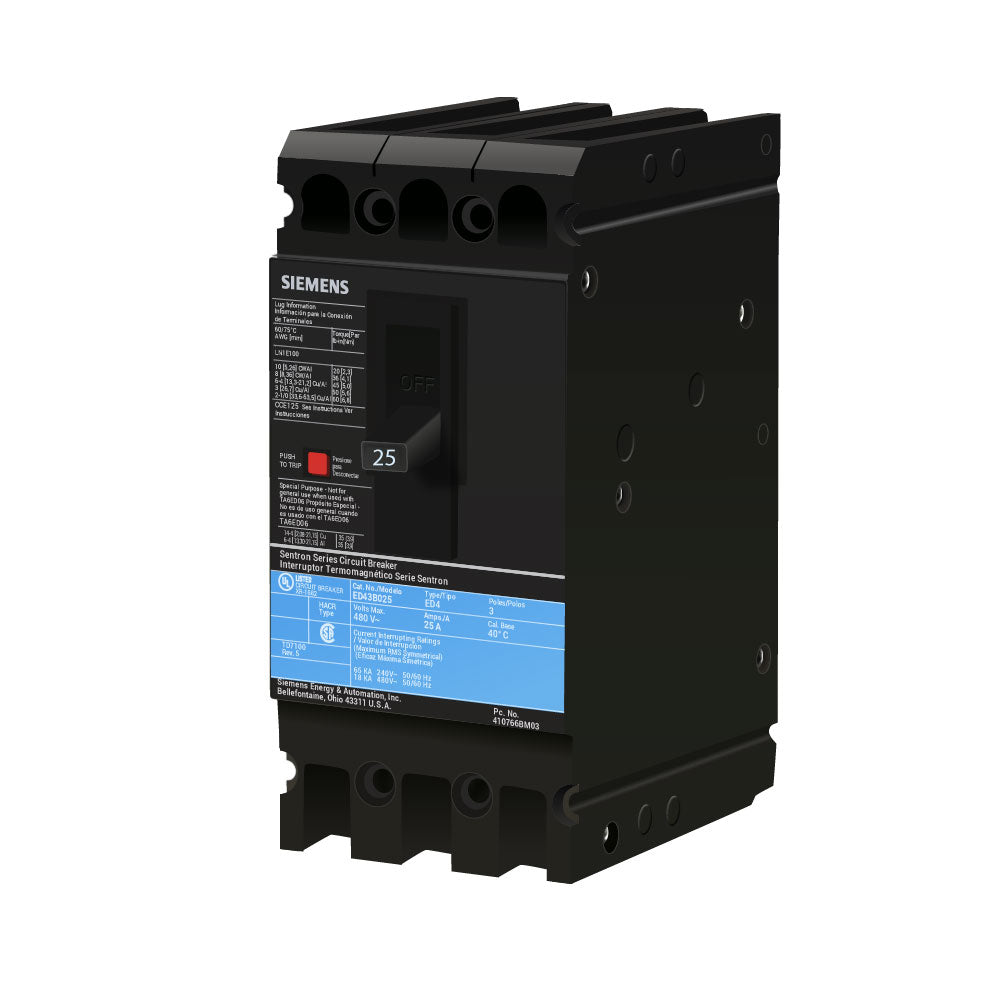

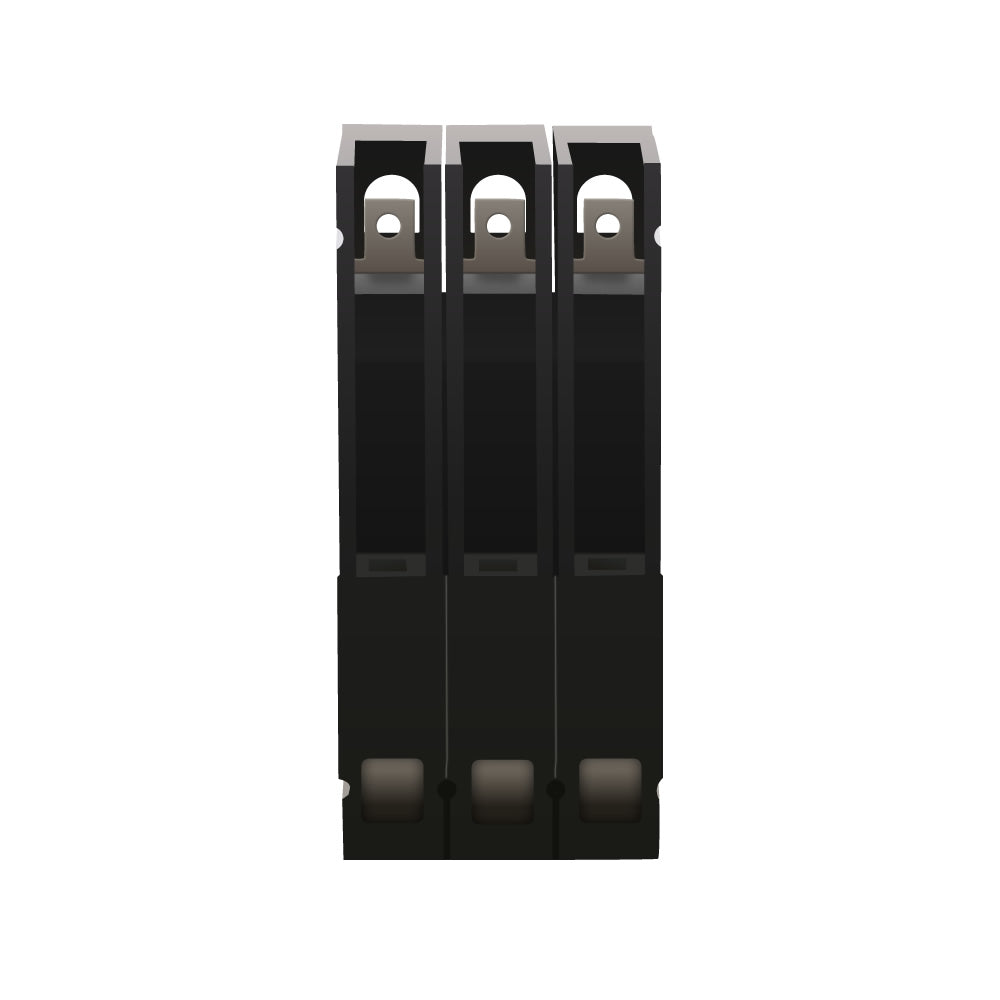

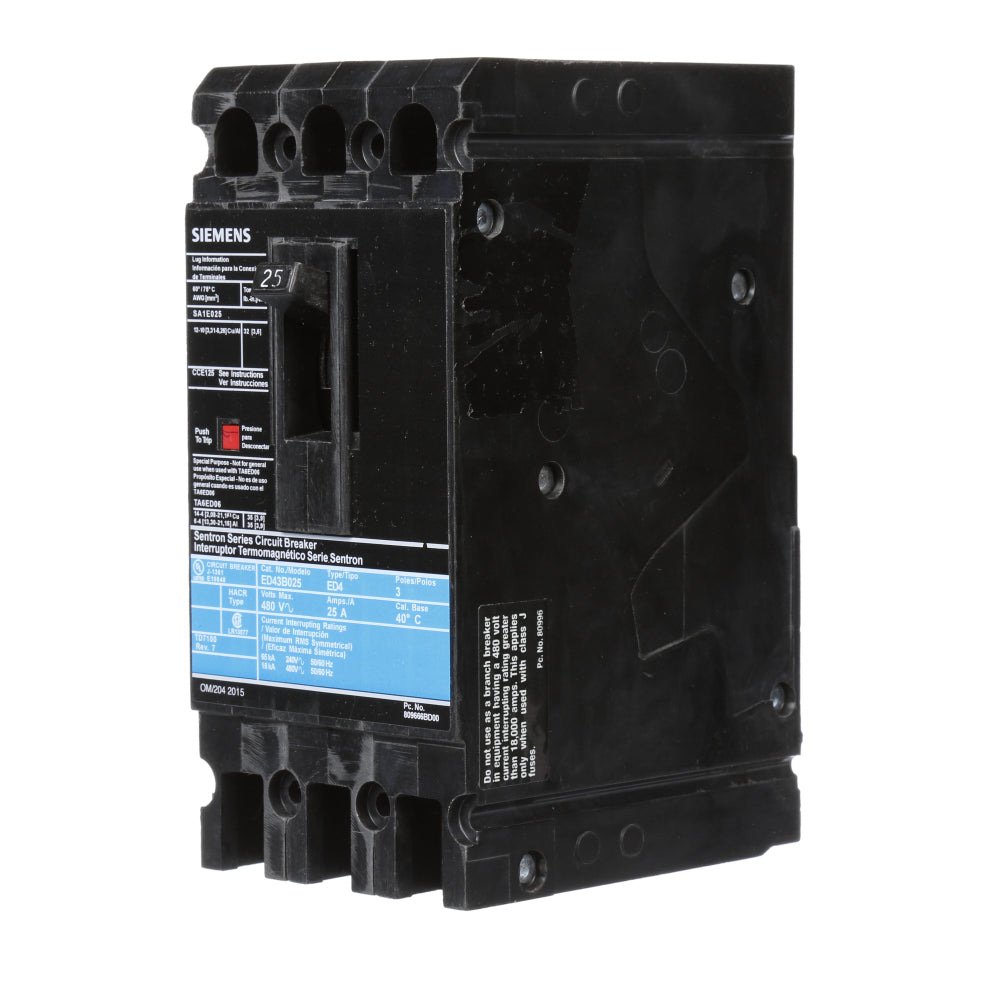

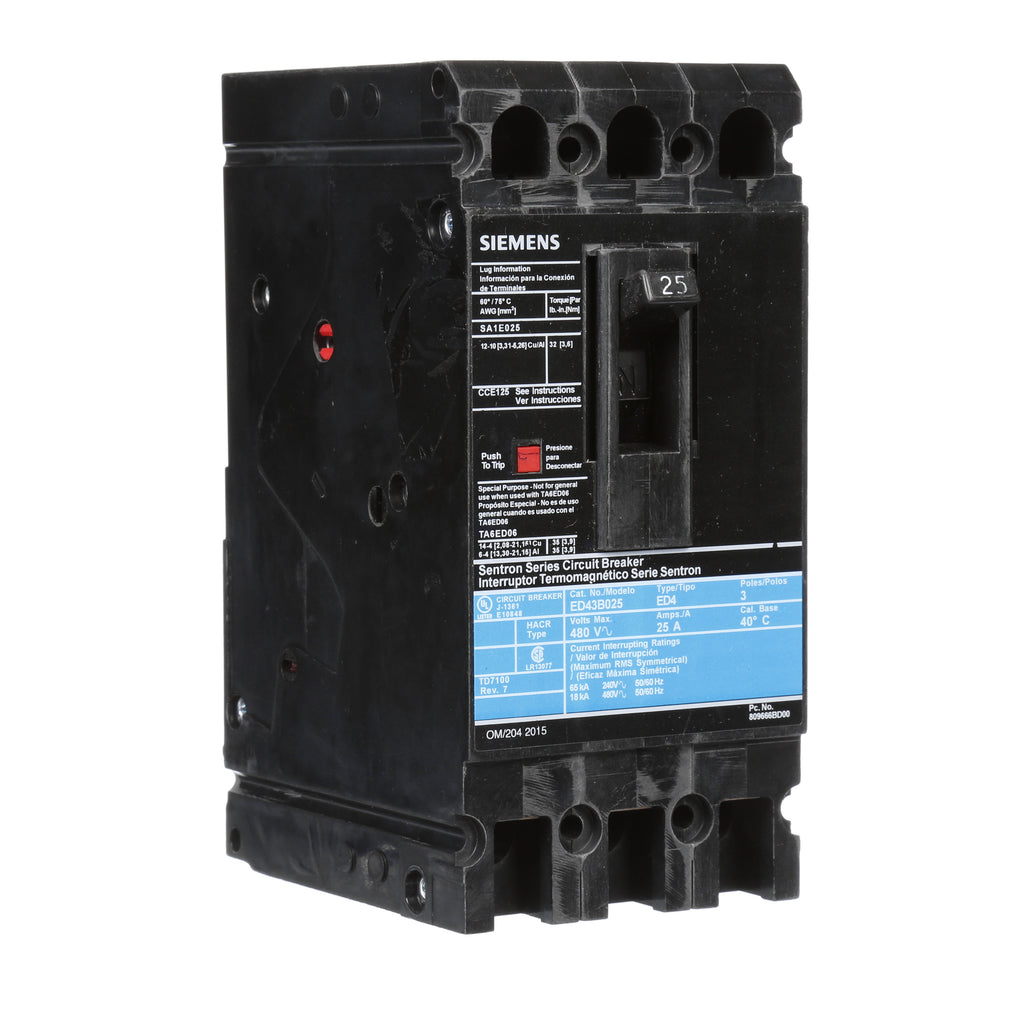

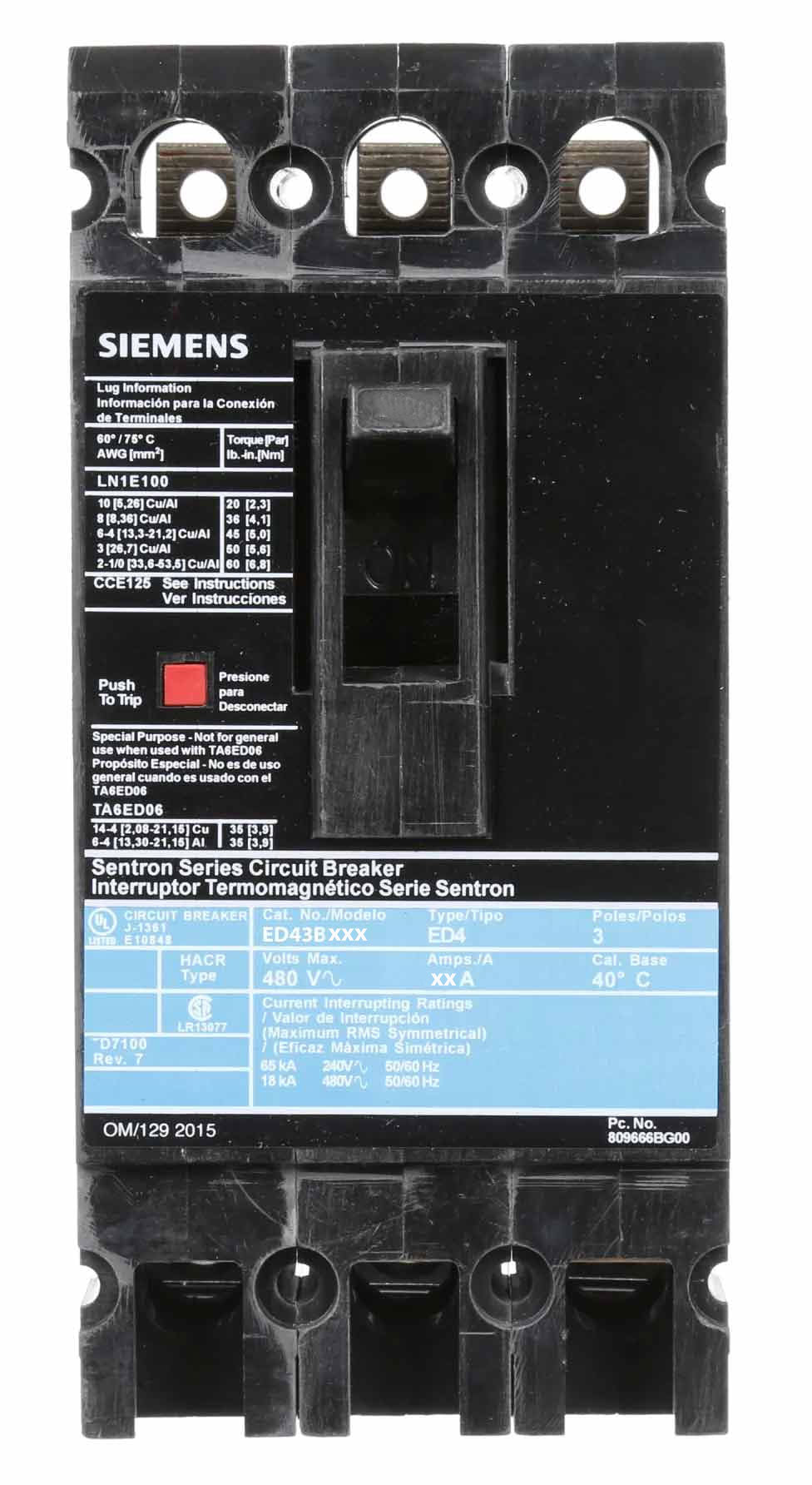

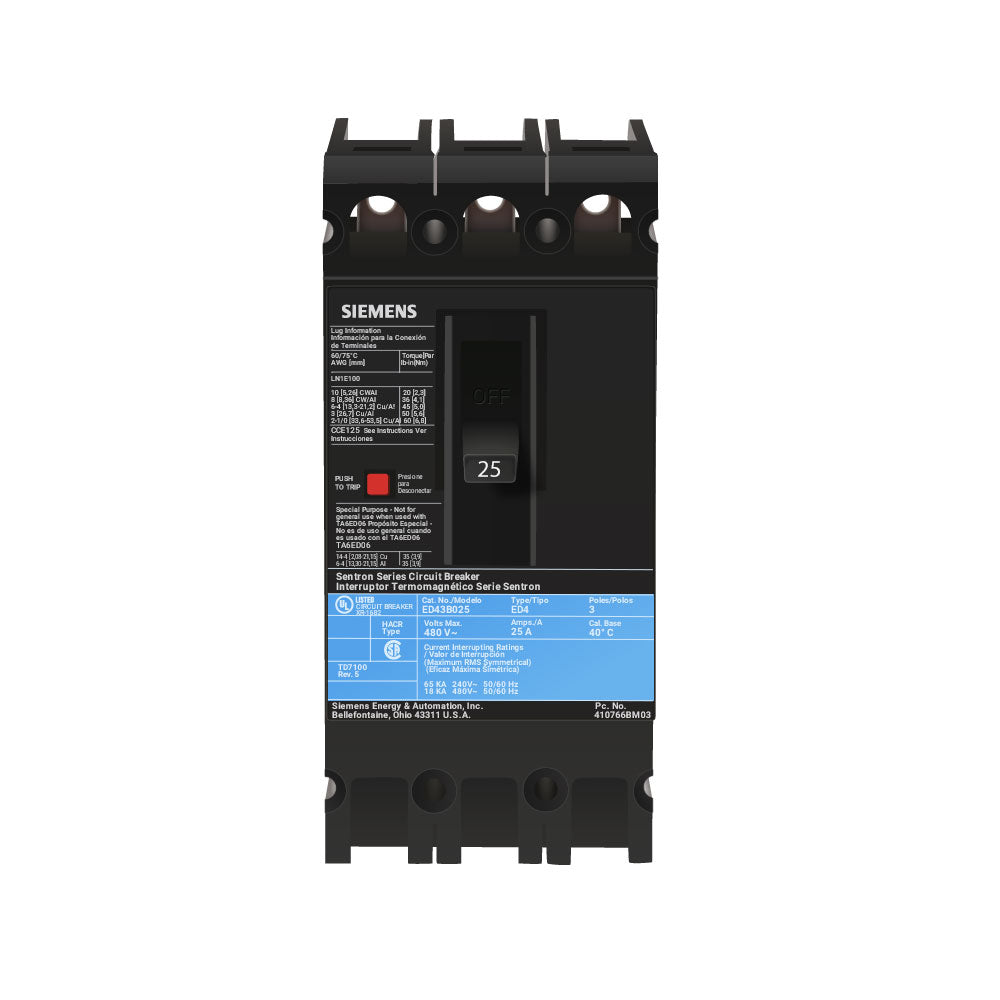

ED43B025 - Siemens 25A 3-Pole 480V Molded Case Circuit Breaker ED Frame

ED43B025

ED43B025 is a Siemens 25 Amp, 3-pole molded case circuit breaker designed for reliable power distribution protection.This Siemens Sentron Series breaker features an ED frame, 480V voltage rating, and a standard interrupting capacity of 18kA at 480V. It includes a non-interchangeable trip unit and is suitable for bolt-on mounting. The breaker is rated for use at 40 degrees Celsius and complies with industry certifications for safety and performance.

• Amperage: 25A
• Voltage: 480V AC
• Poles: 3
• Frame Type: ED
• Interrupt Rating: 18kA at 480V
• Mounting Type: Bolt-On
• Trip Unit: Non-interchangeable
• Series: Sentron ED
• Operating Temperature: 40¡C
• Certifications: Industry standard safety certifications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED43B025
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209381
• GTIN : 00783643209381
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.942
• Weight : 3.688
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al
