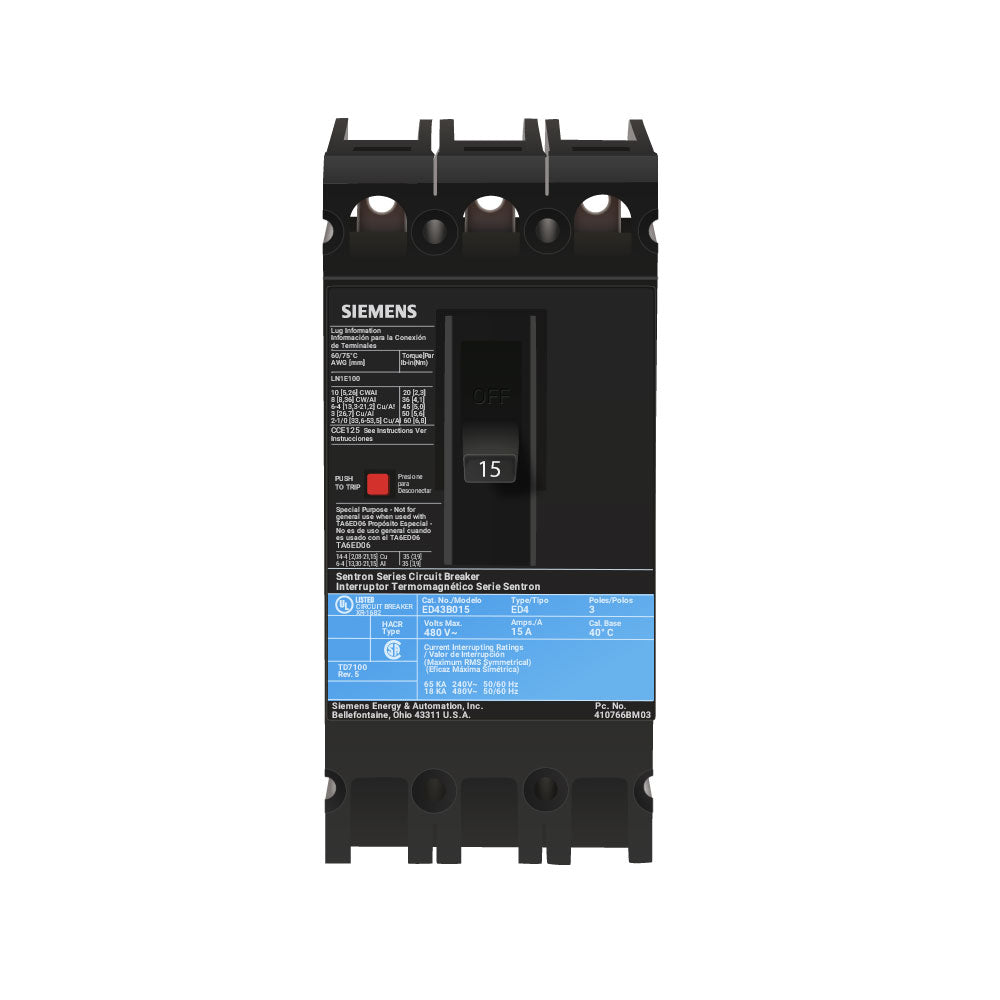

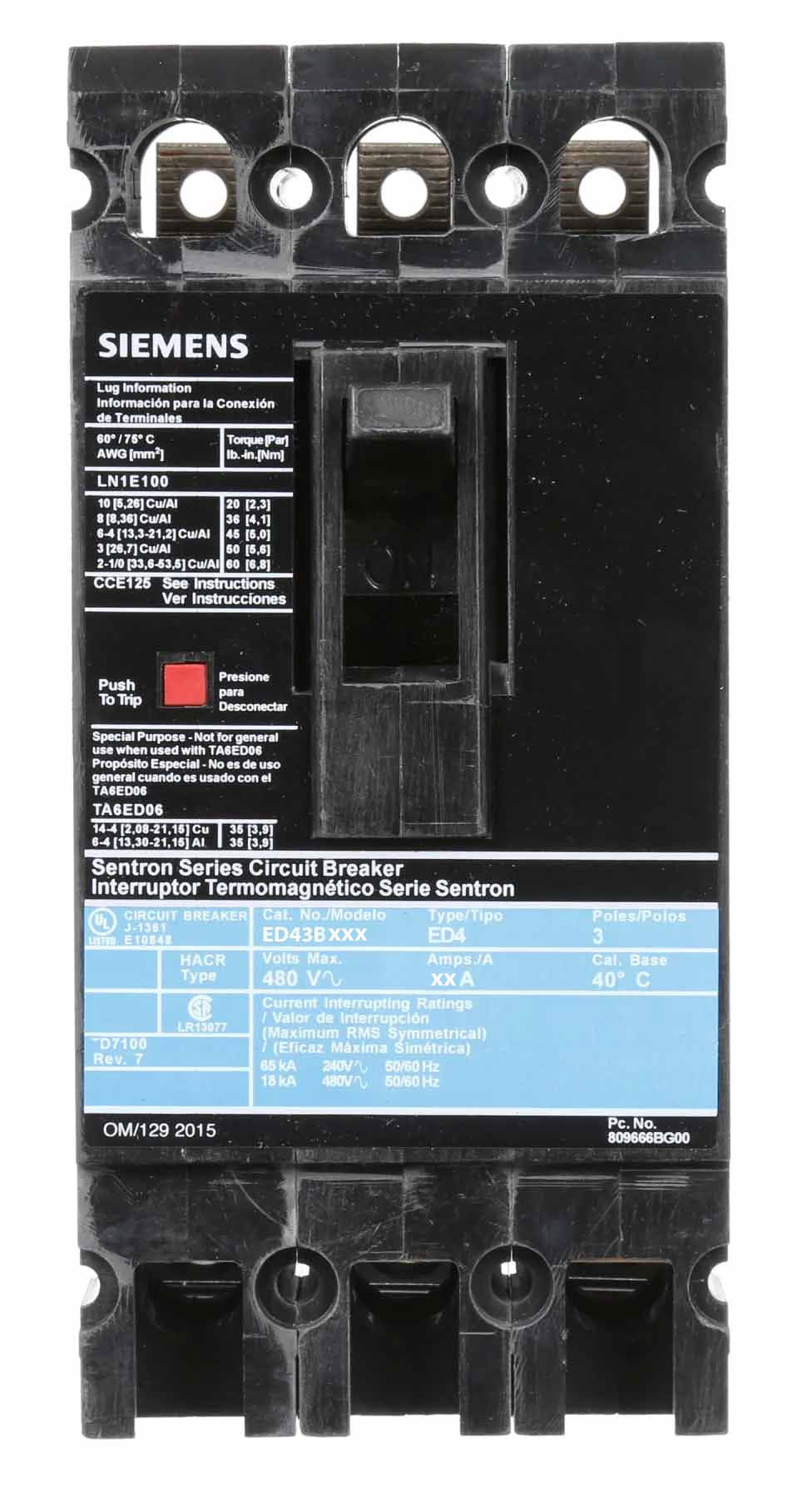

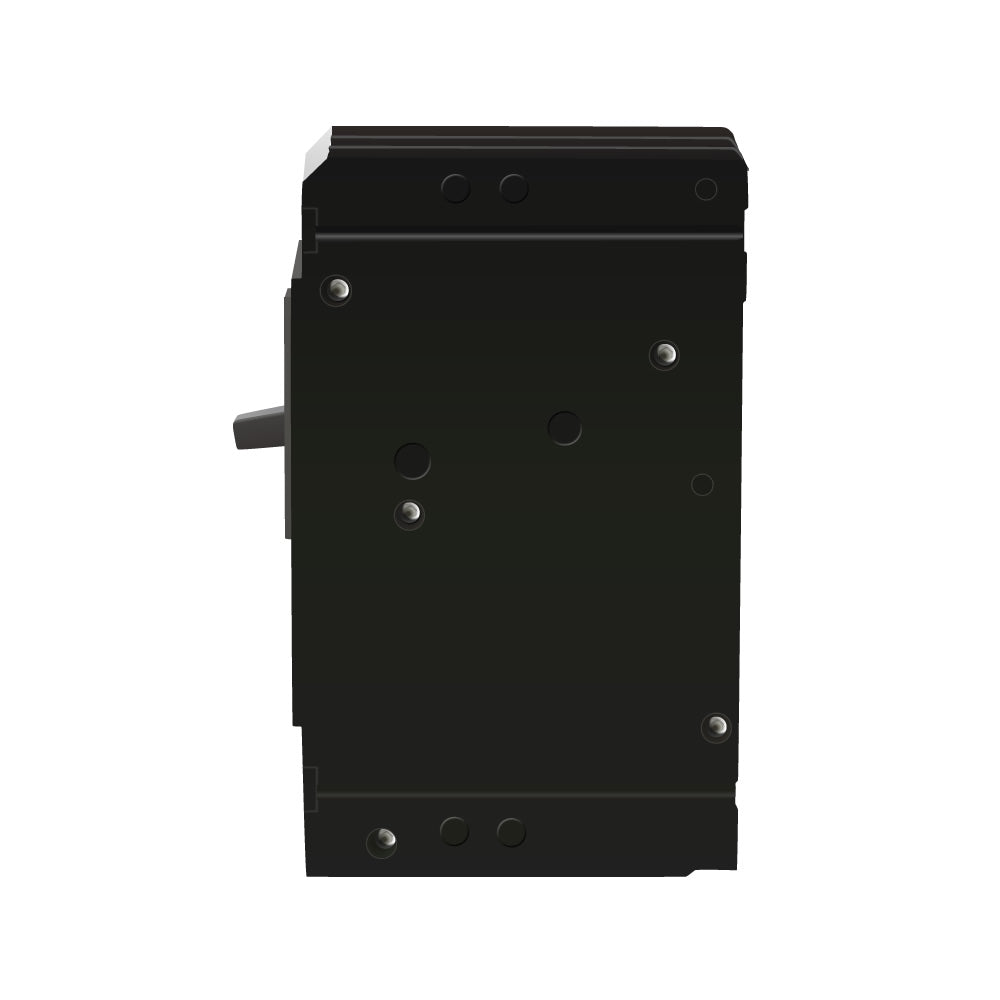

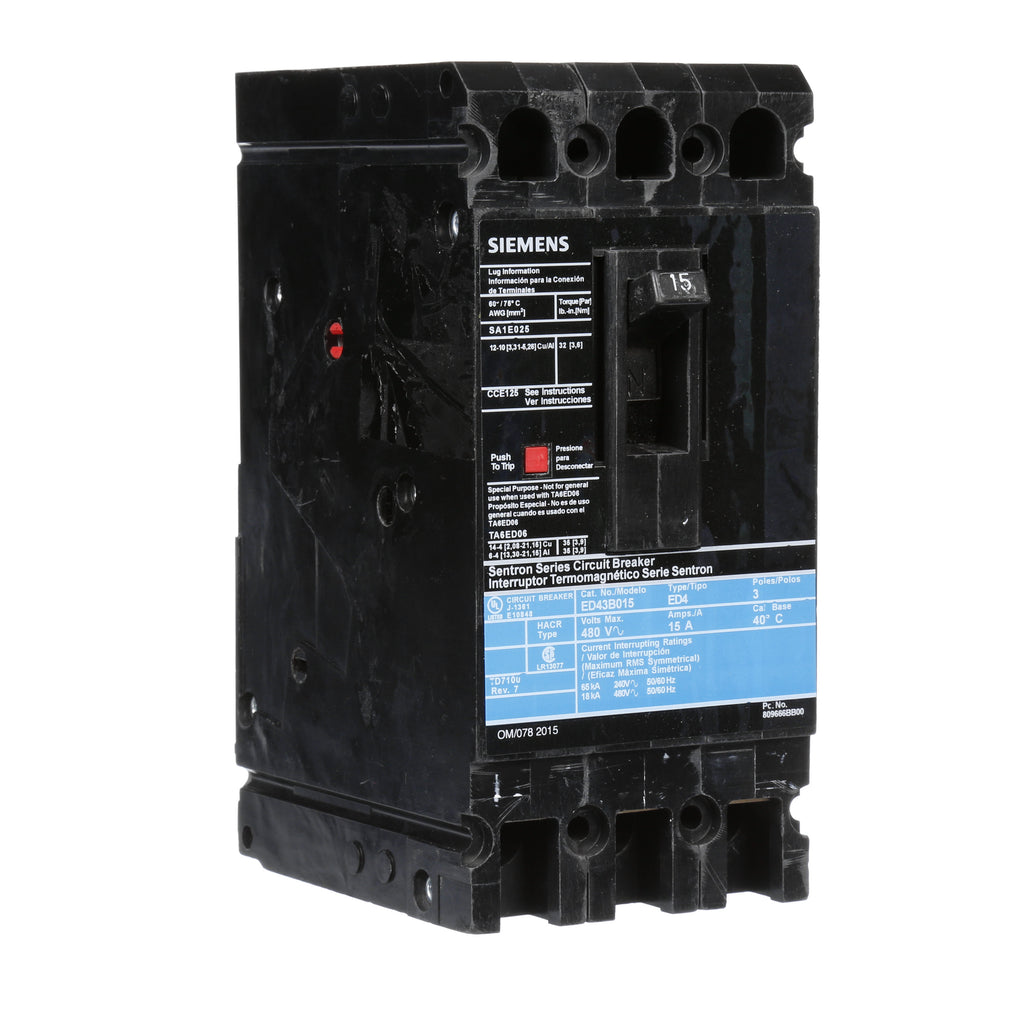

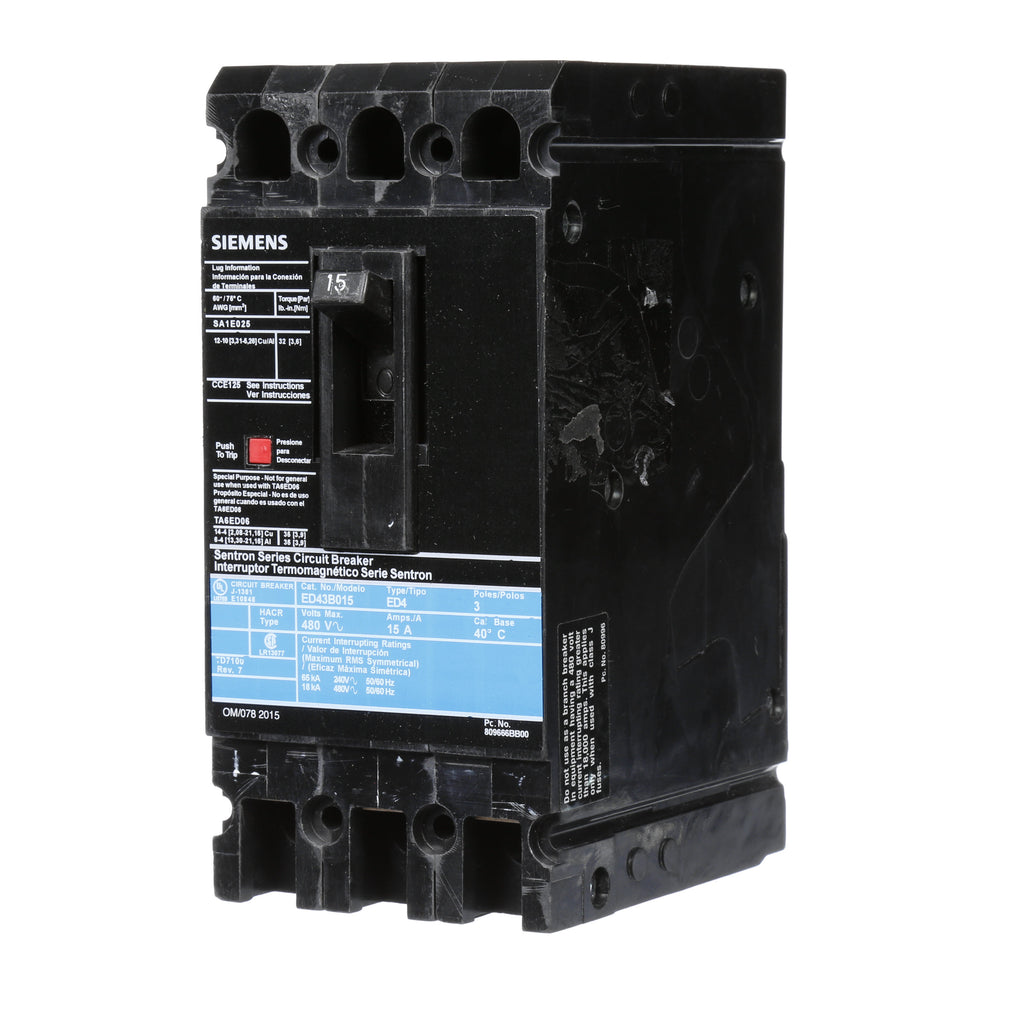

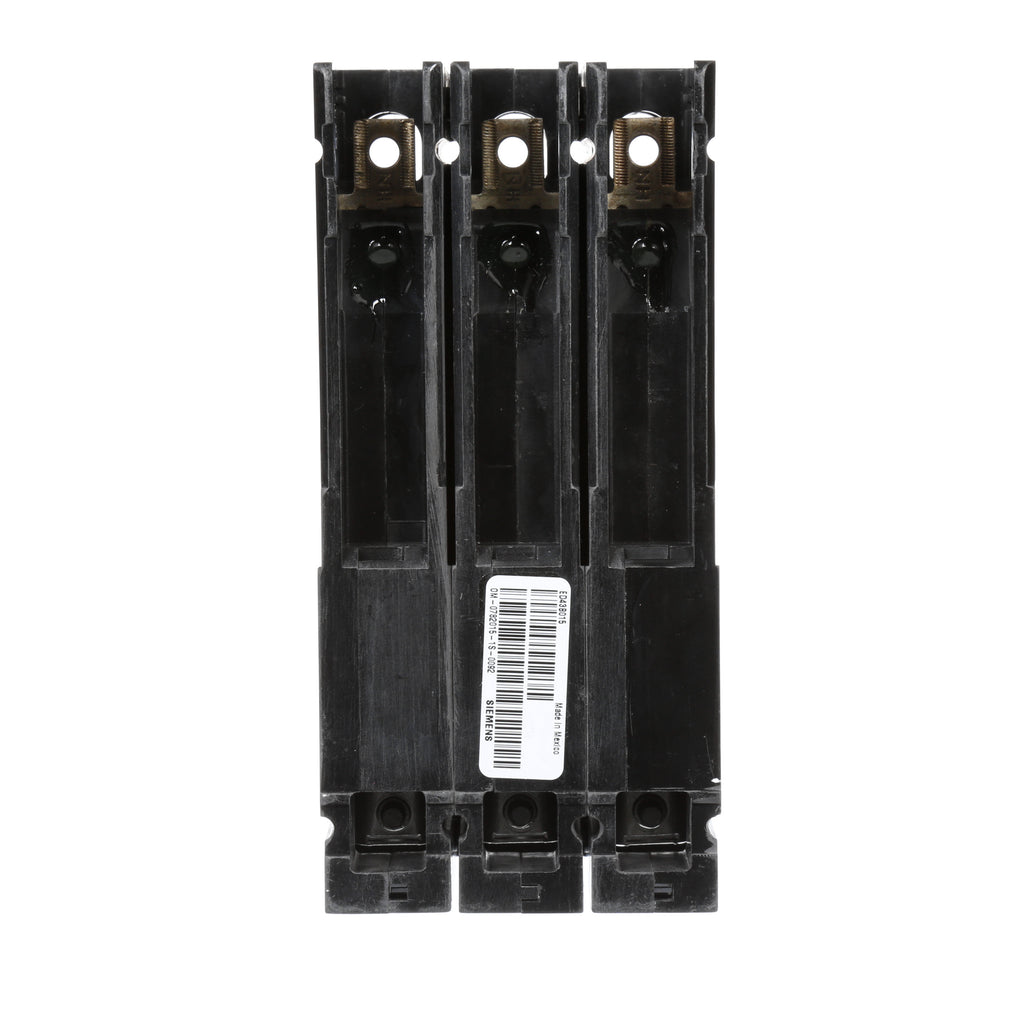

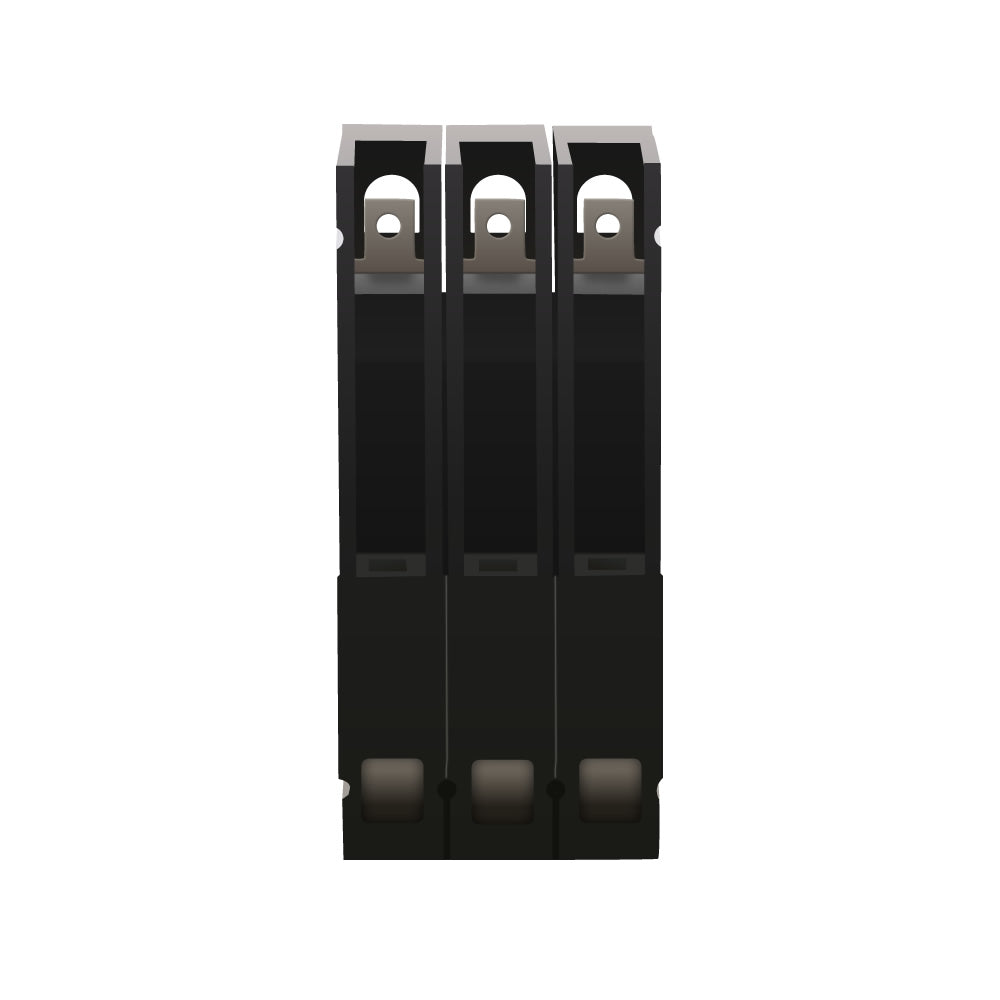

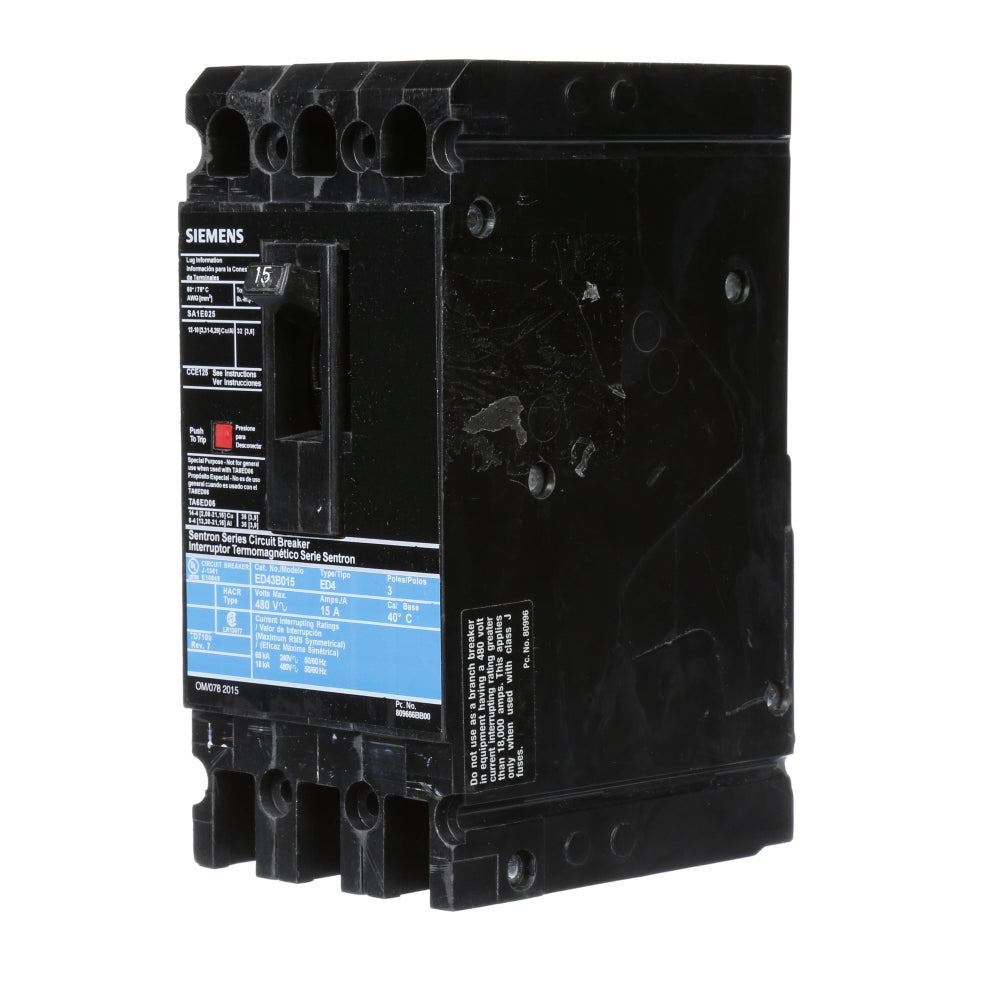

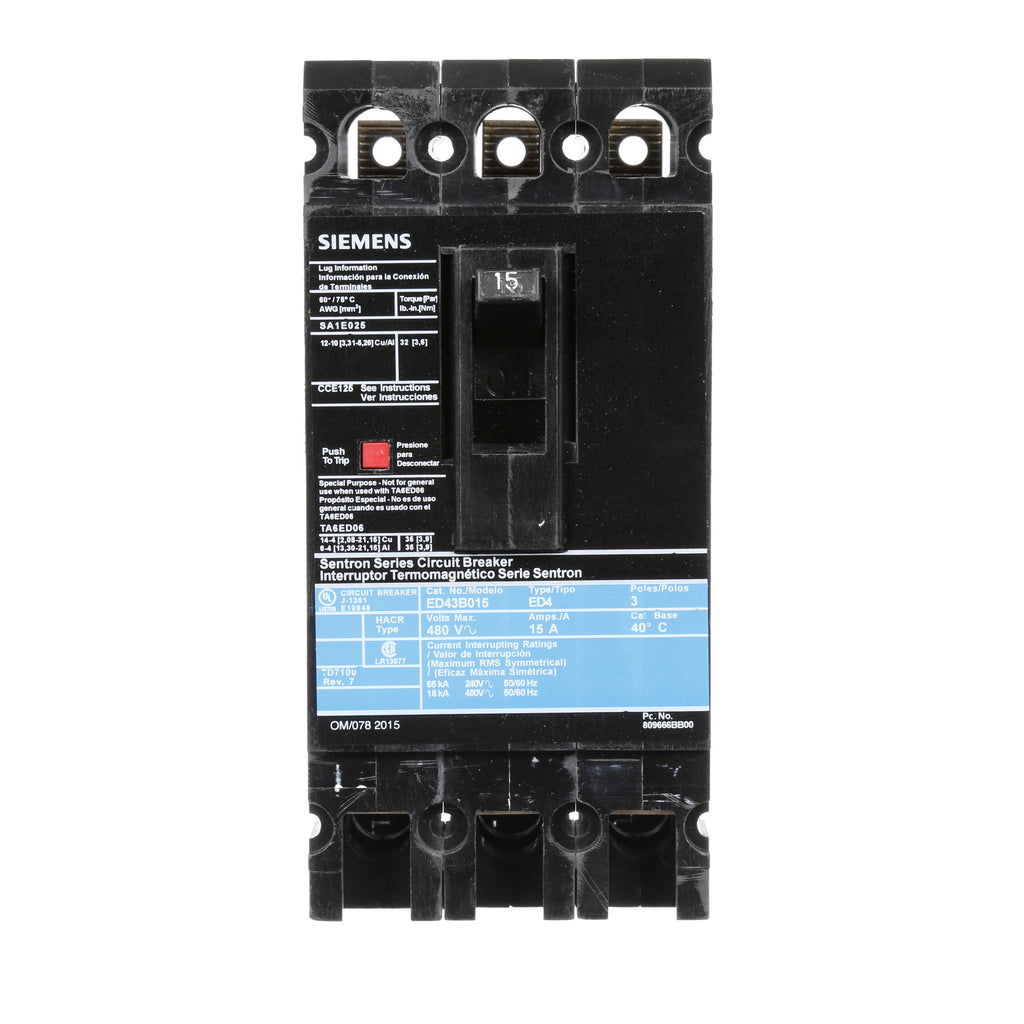

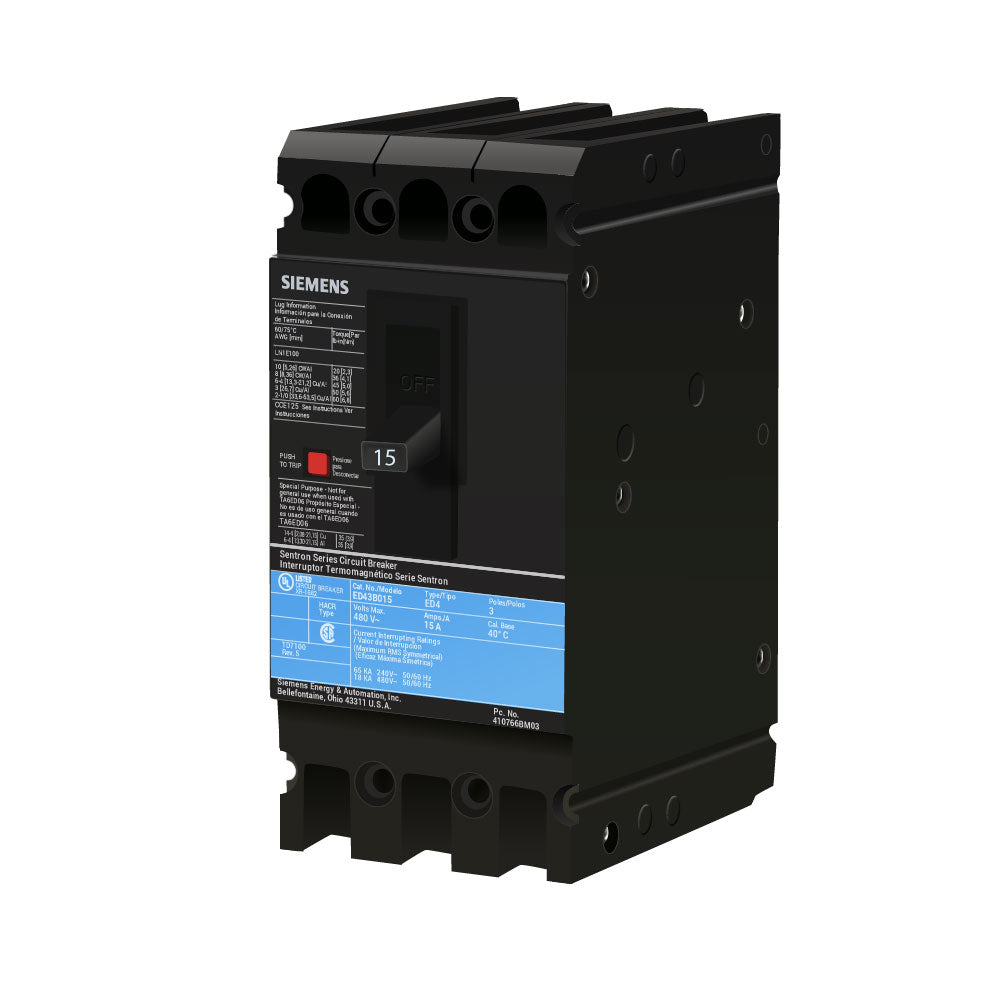

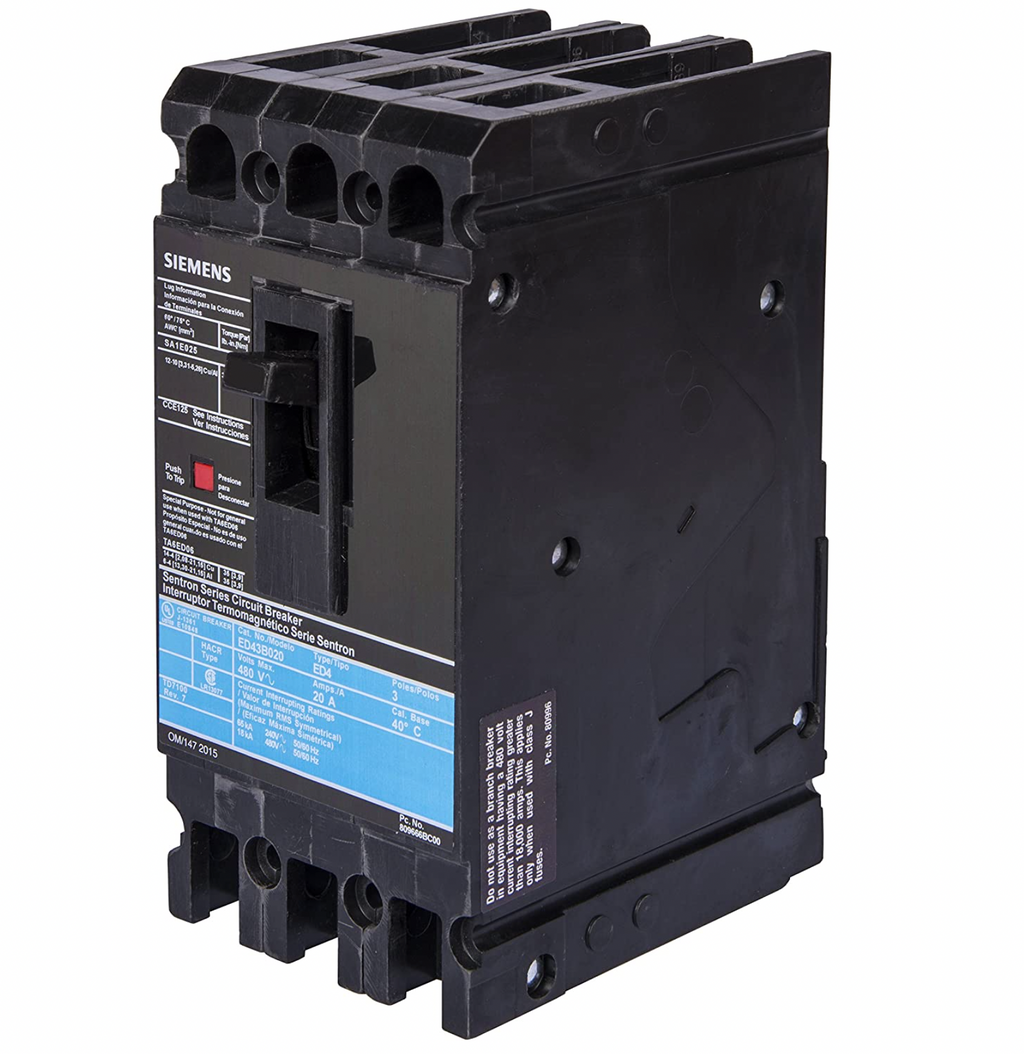

ED43B015 - Siemens 15 Amp 480V 3 Pole ED Frame Molded Case Circuit Breaker

ED43B015

ED43B015 is a Siemens Sentron Type ED molded case circuit breaker designed for three-phase power distribution at 480 VAC. This bolt-on breaker features thermal-magnetic trip protection with standard interrupting capacity and is rated for continuous operation at 40 degrees Celsius. The breaker includes line and load side lug terminals compatible with wire sizes #10 AWG to 1/0 AWG and meets HACR standards for reliable performance in industrial and commercial applications.

• Amperage: 15 Amp
• Voltage: 480 VAC / 250 VDC
• Poles: 3 Pole
• Frame Type: ED
• Mounting: Bolt On
• Interrupt Rating: 18 kA at 480V AC
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
• Operating Temperature: 40 degrees C
• Dimensions: 3 inch Wide x 6.35 inch High x 3.92 inch Deep
• Weight: 3.8 lbs
• Terminal Type: Lug (Line and Load Side)
• Standard: HACR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED43B015
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209367
• GTIN : 00783643209367
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.938
• Weight : 3.715
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al
