Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED43B020L

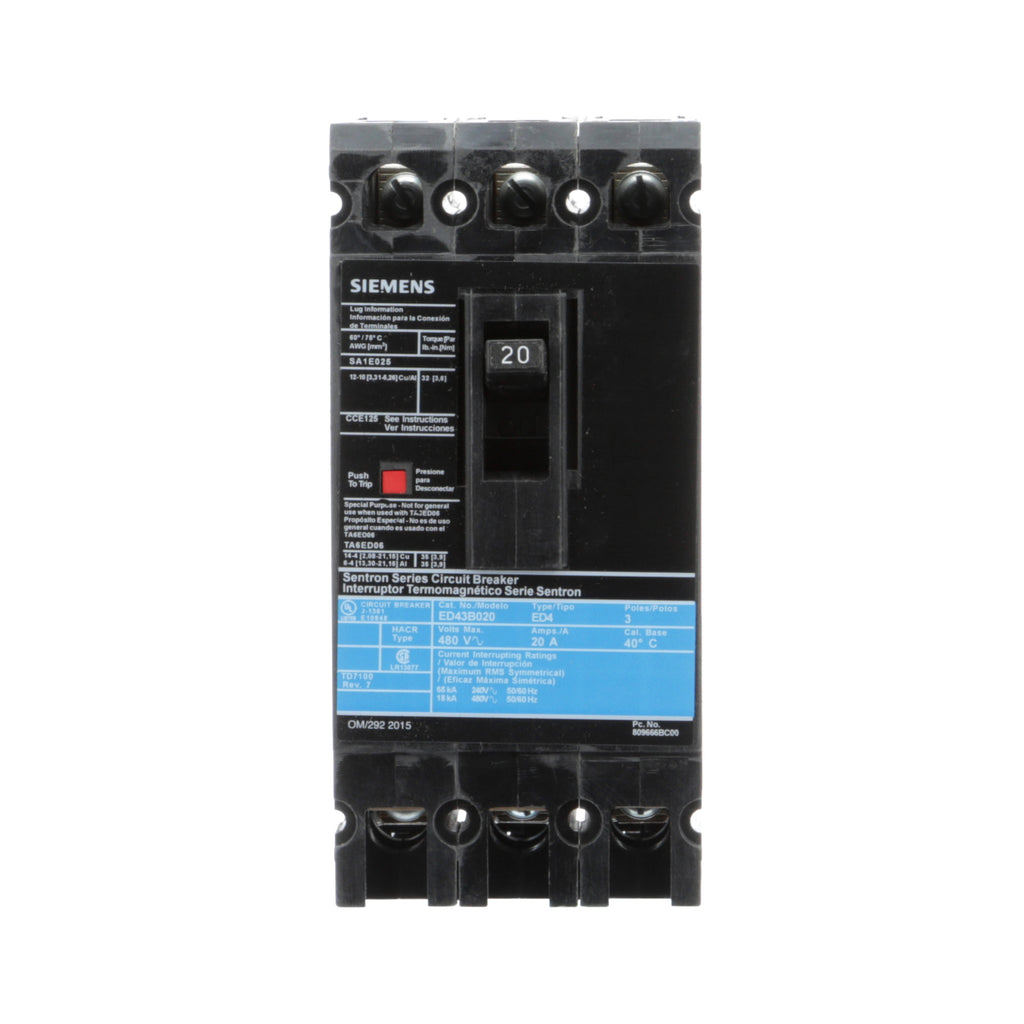

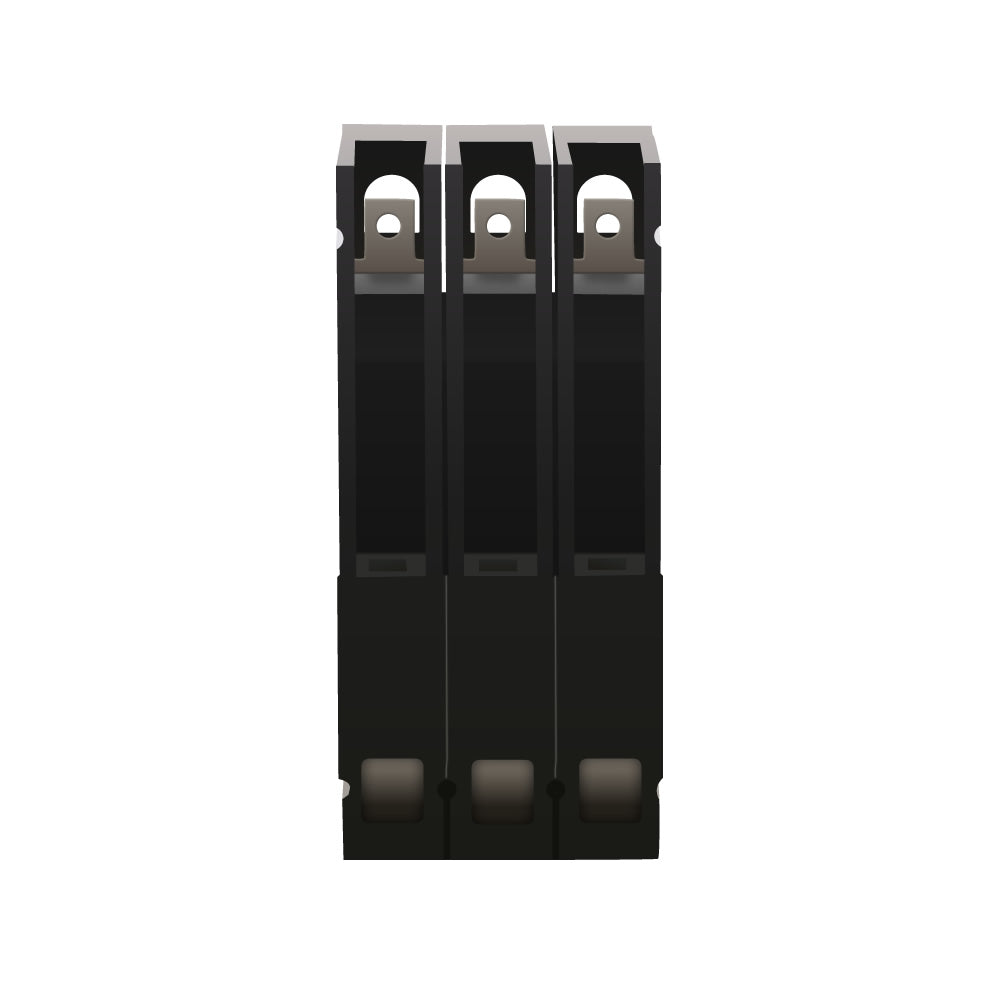

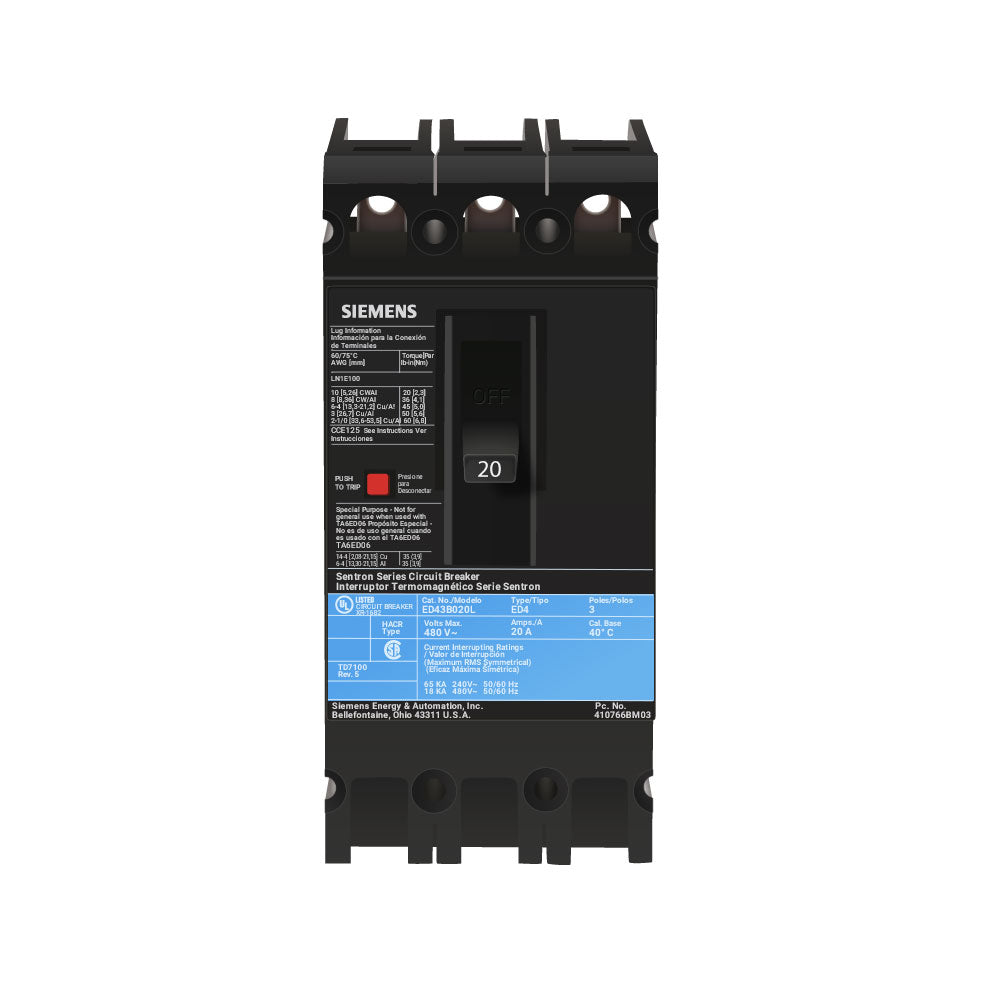

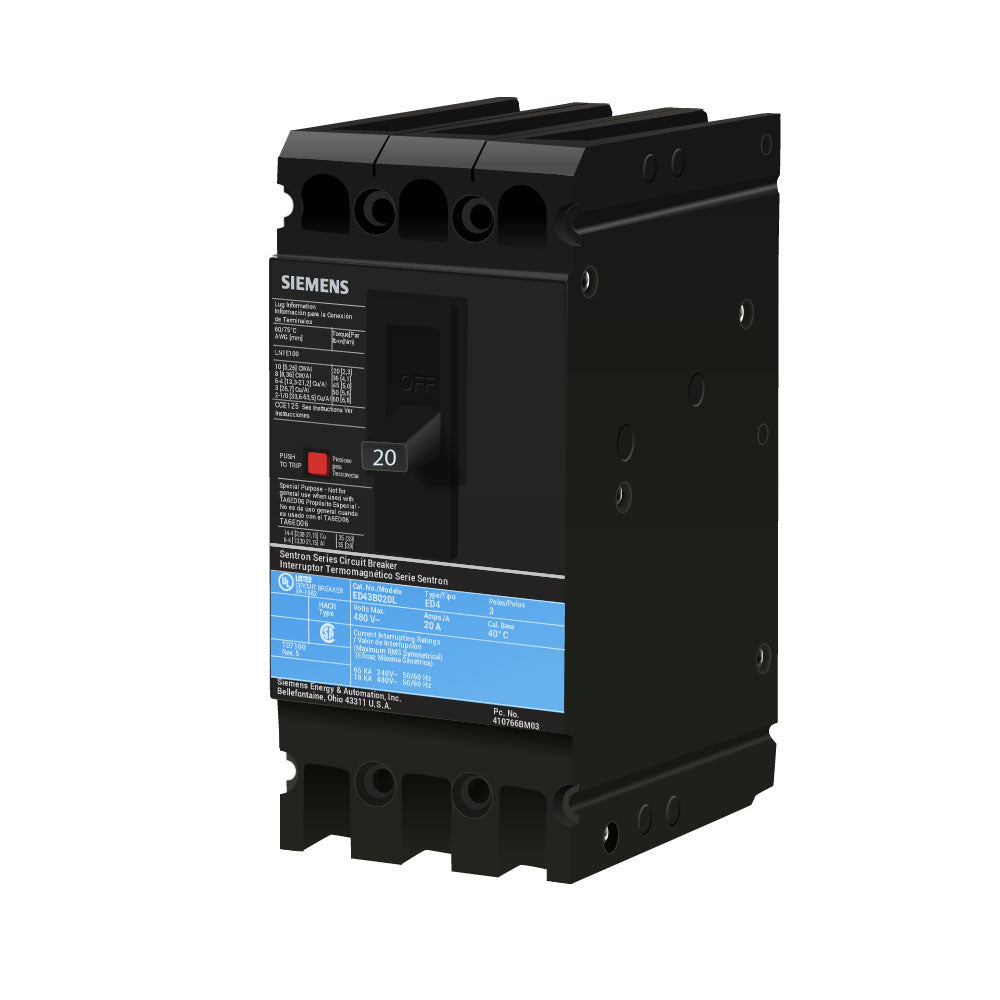

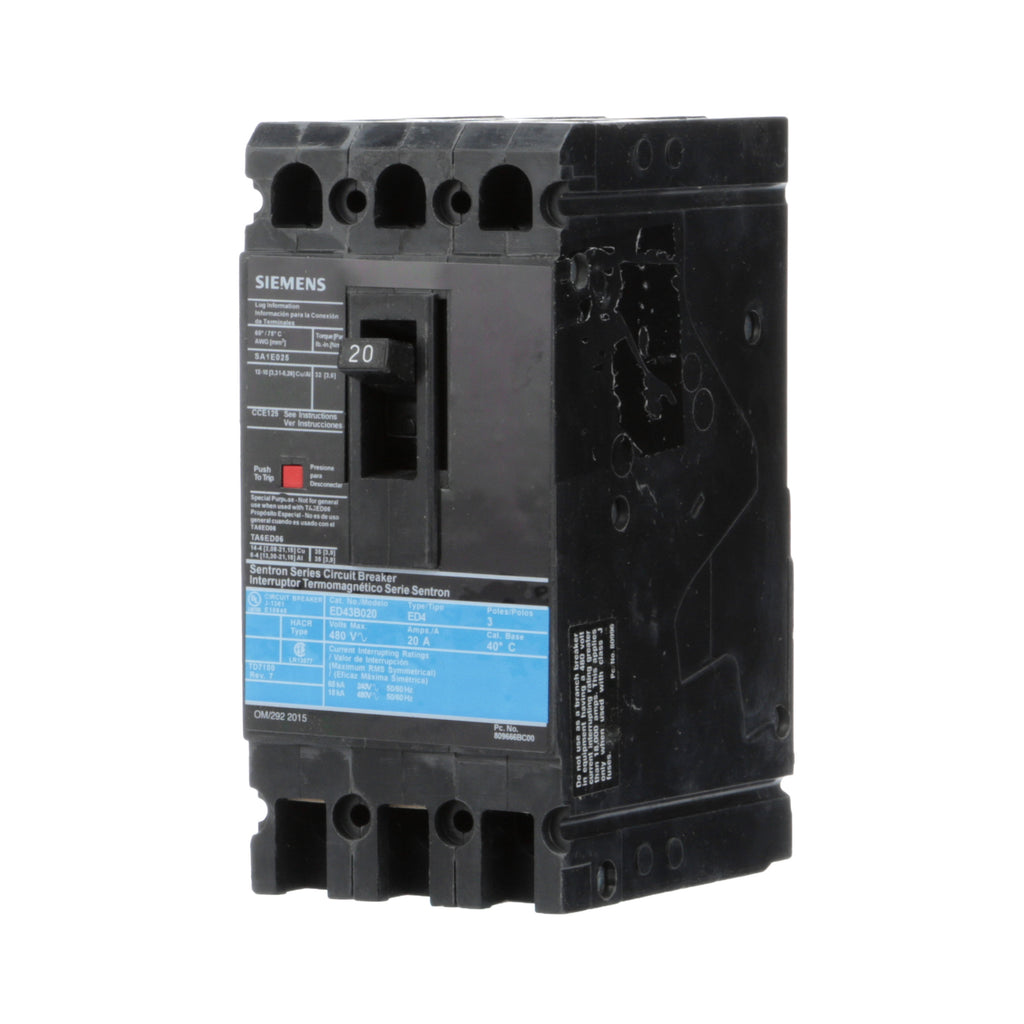

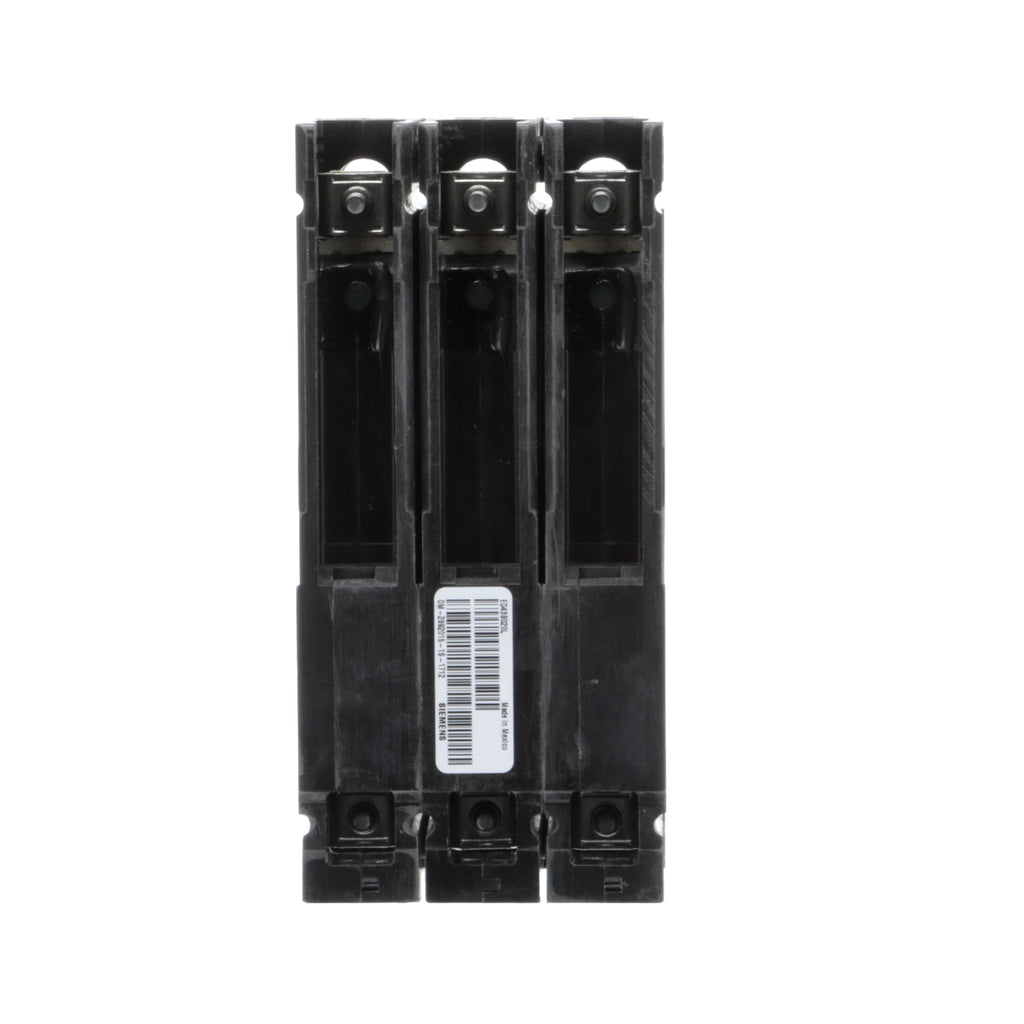

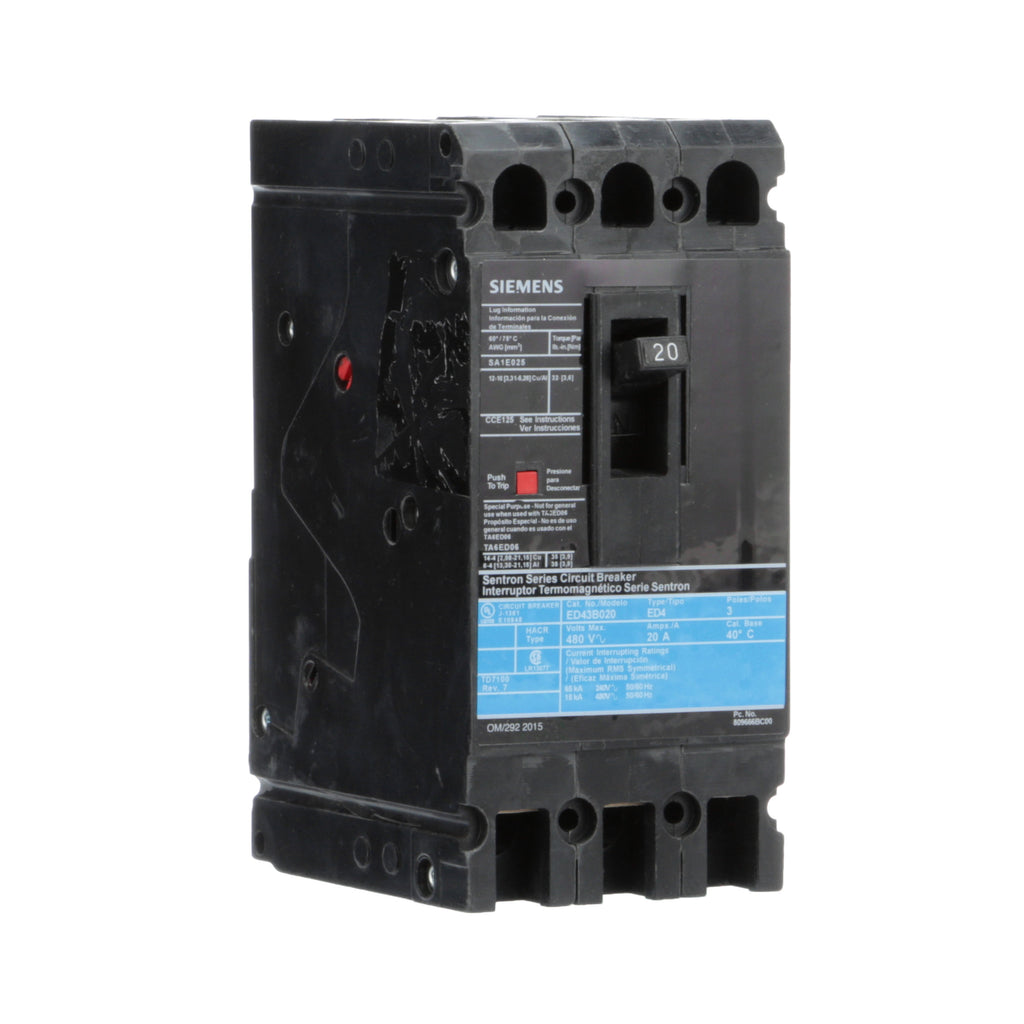

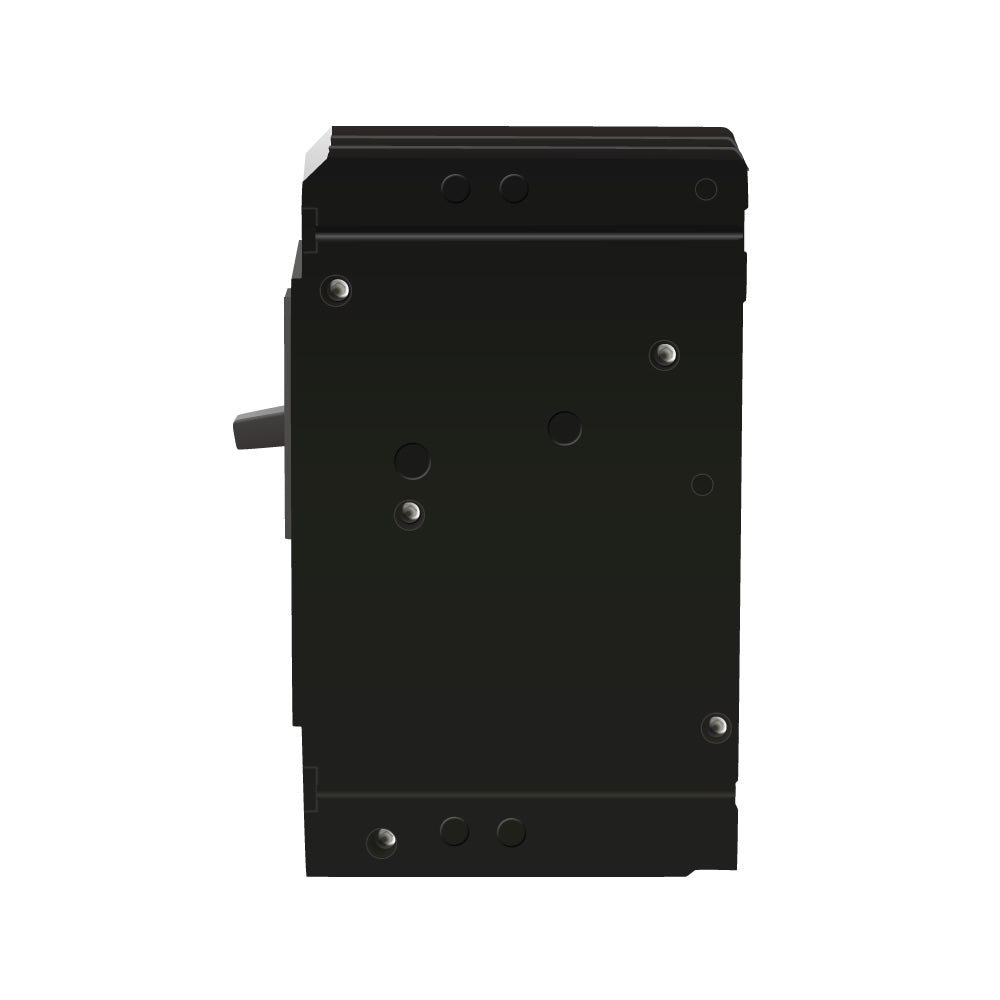

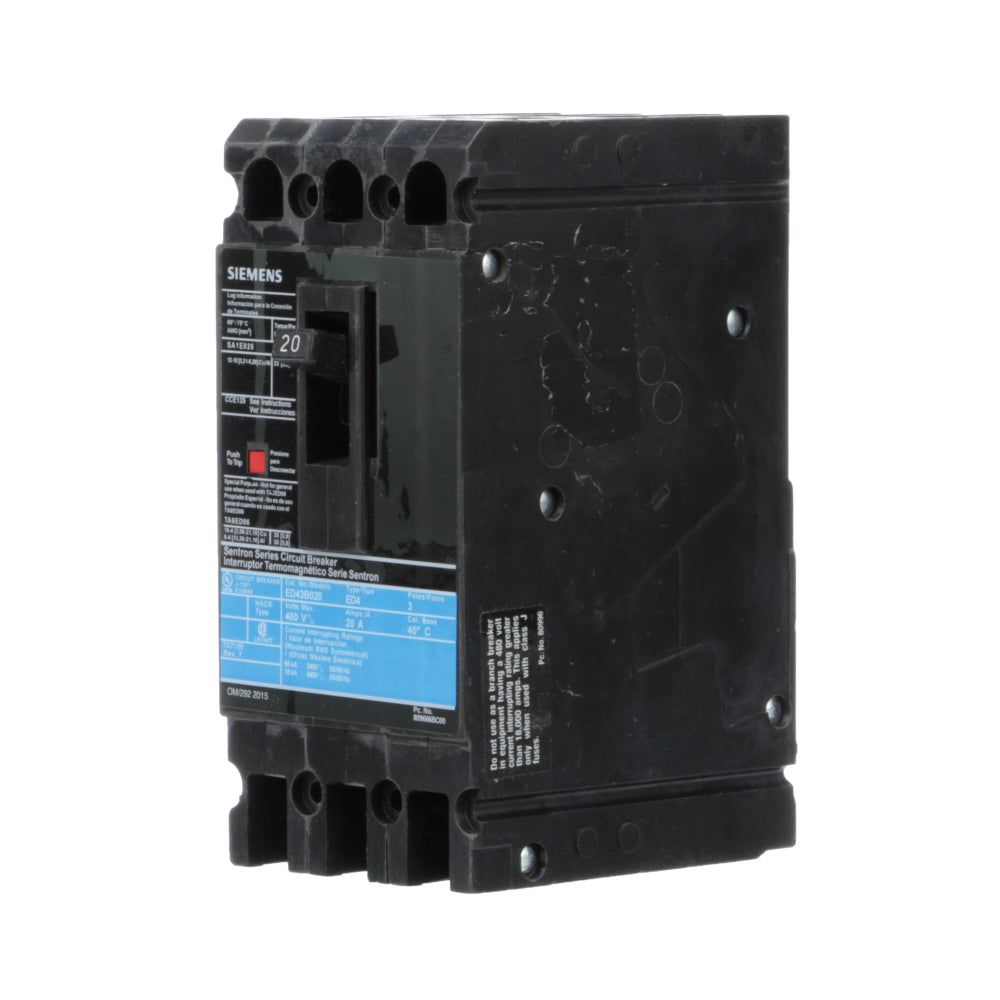

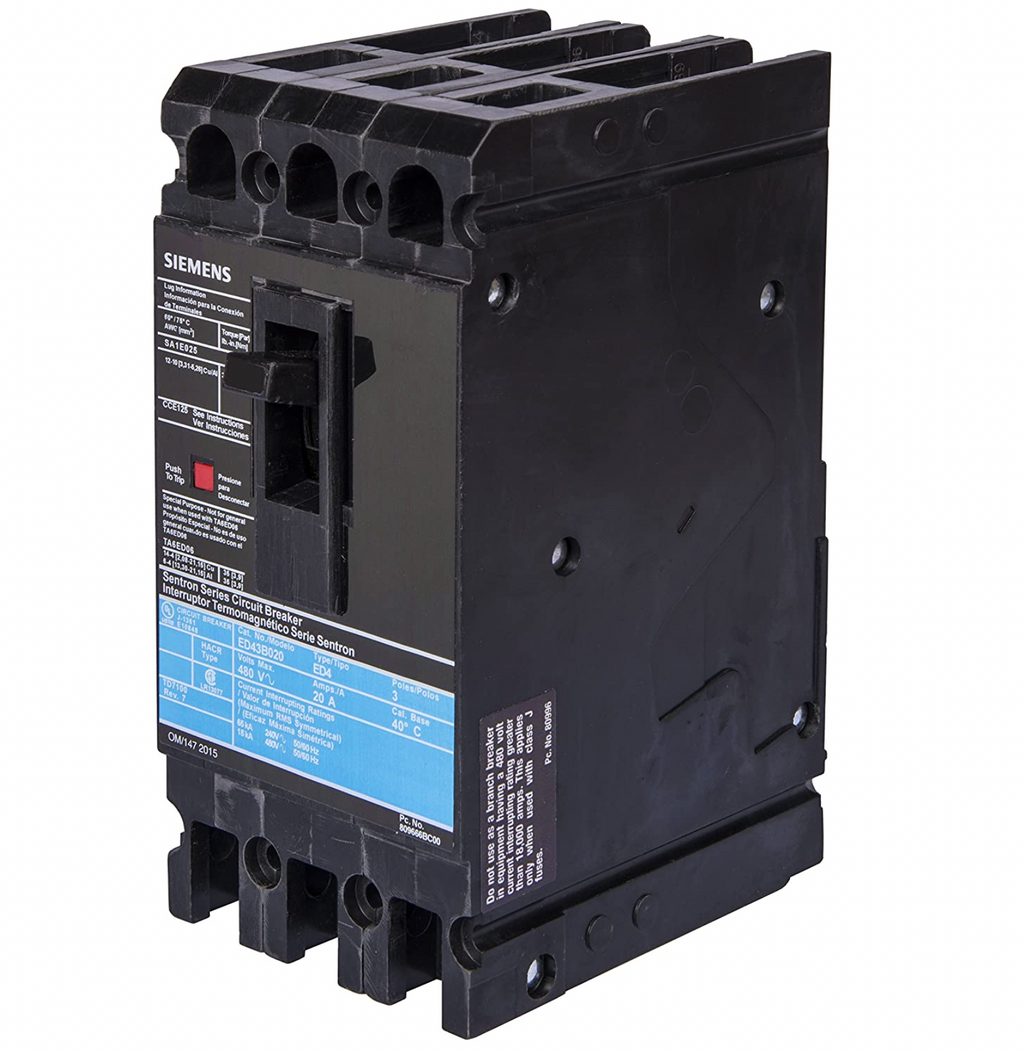

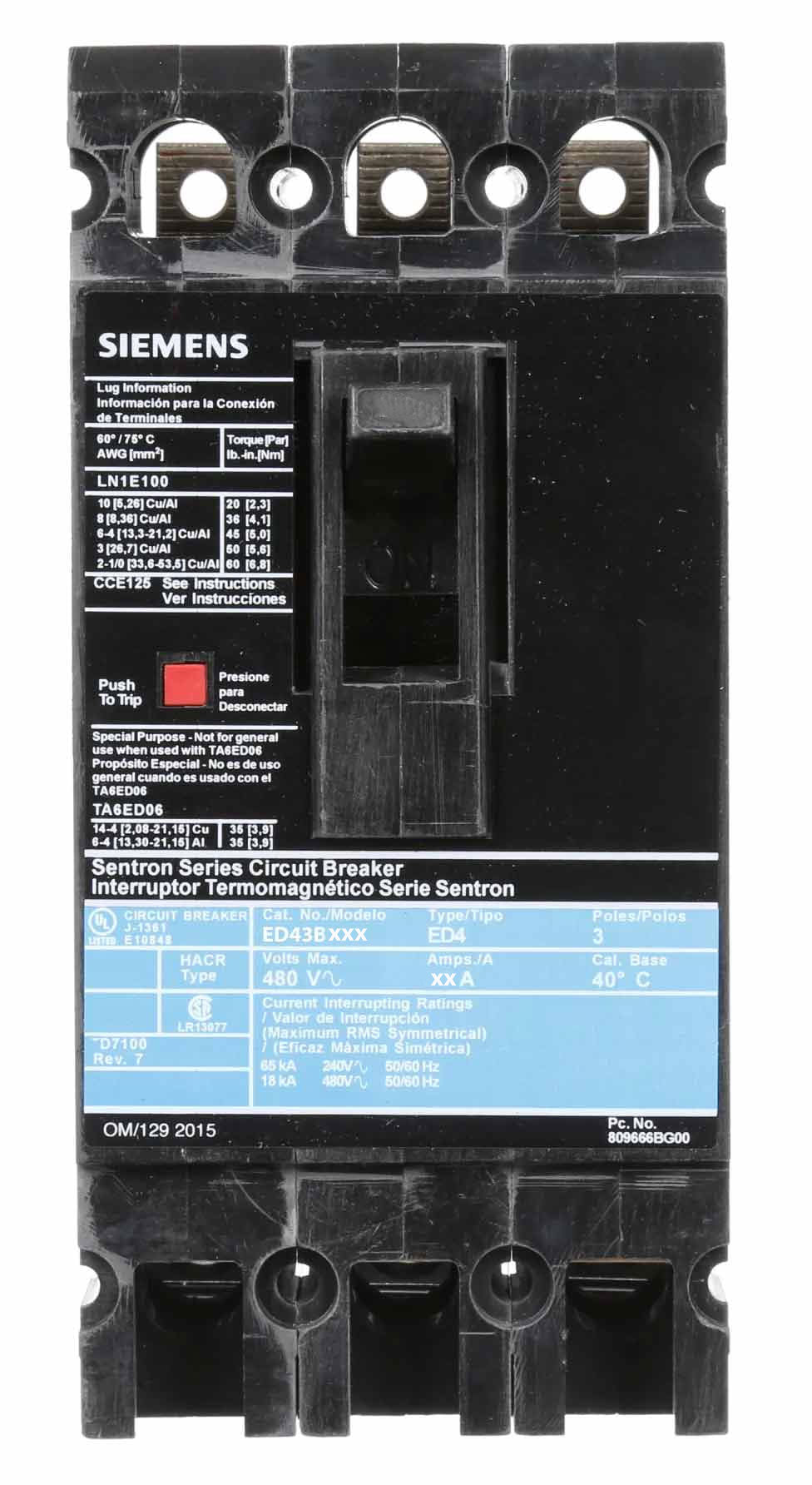

ED43B020L - Siemens Sentron ED frame molded case circuit breaker with thermal-magnetic trip, 20A 3-pole, 480VAC rated.This low voltage circuit breaker features a non-interchangeable thermal-magnetic trip unit for overload and short circuit protection, standard breaking capacity of 18kAIC at 480VAC and 65kAIC at 240VAC, line and load lugs, HACR rated, and 40C standard operation.
- Part Number: ED43B020L
- Manufacturer: Siemens
- Amperage: 20A
- Voltage: 480VAC / 250VDC
- Poles: 3
- Frame/Series: ED / ED4
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 18kAIC @ 480VAC; 65kAIC @ 240VAC
- Mounting Type: Panel
- Certifications: UL 489; IEC 60947-2
Specifications
- Part Number: ED43B020L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 480 AC
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643236127
- GTIN : 00783643236127
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.941
- Weight : 3.801
- Certification : Ul Listed, IEC
- Wire Size : AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al
