Siemens

S01ED62A

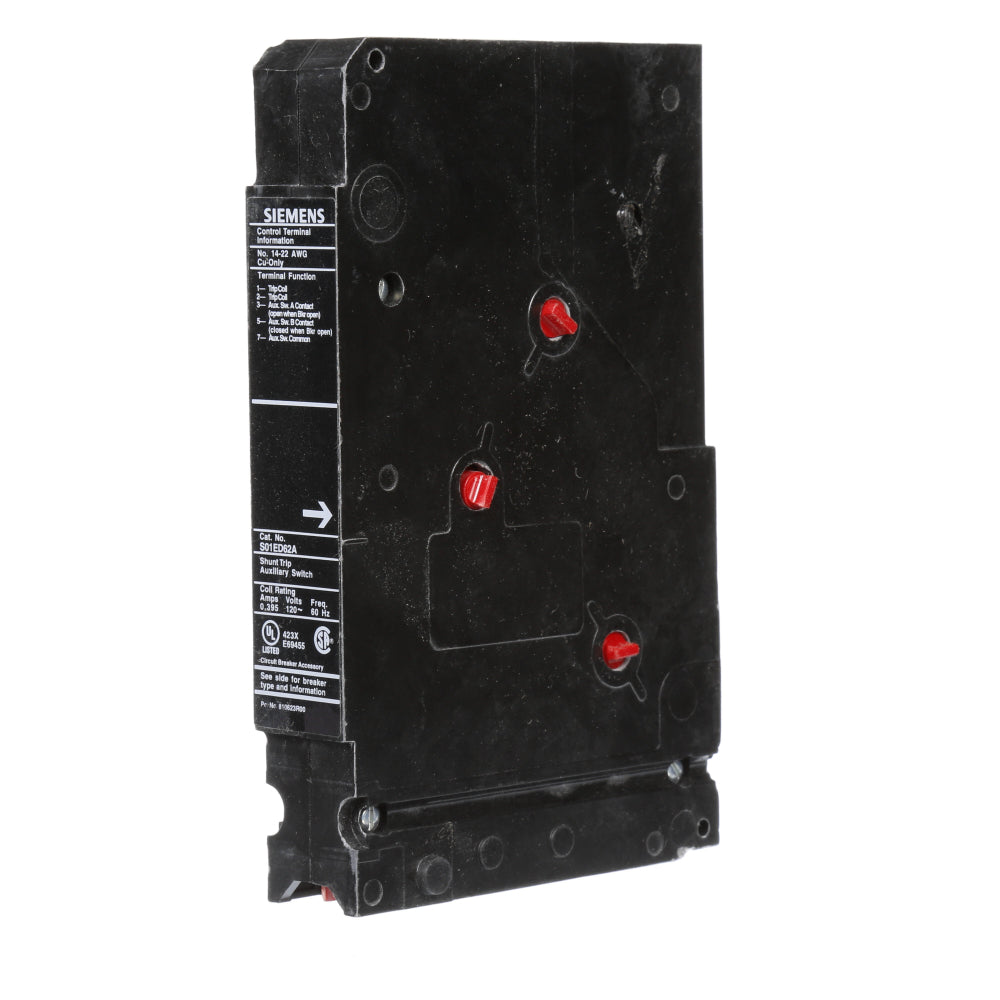

Siemens 125A 120V AC Shunt Trip for ED Frame Circuit Breaker

Current: 125Voltage: 120V
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$999.46 $2,857.00
Save $1,857.54
1 in stock
Limited availability. Call (866) 377-3532 to check stock. We'll confirm stock immediately after your order.
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Siemens
Sub-Category
Shunt Trip
Series
Sentron Series
Frame
S01E
Rated current
125
Voltage
120V
Country of origin
Mexico
Control Voltage Minimum
110
Compatible Frames
ED,HED,HHED,CED,EM6B,EMKB
Control Voltate Maximum
120
UPC
783643234581
GTIN
00783643234581
Weight
1.001
Certification
UL
Product description & additional details

S01ED62A


S01ED62A is a Siemens shunt trip accessory designed for ED frame molded case circuit breakers with a 125 ampere rating and 120V AC control voltage.This Siemens S01ED62A shunt trip combines a 120 VAC shunt trip with a Form C 240 VAC auxiliary switch (1NO/1NC), compatible with ED, HED, HHED, CED, EM6B, and EMKB frame types. It is a low voltage Sentron molded case circuit breaker internal accessory that enhances breaker control and safety.
    Key Specifications
    • Manufacturer: Siemens
    • Part Number: S01ED62A
    • Amperage: 125A
    • Voltage Rating: 120 VAC (shunt trip), 240 VAC (auxiliary switch)
    • Poles: Accessory for multi-pole breakers
    • Mounting Type: Internal accessory for ED frame breakers
    • Interrupt Rating: Matches ED frame circuit breakers
    • Series/Frame: ED, HED, HHED, CED, EM6B, EMKB
    • Trip Unit: Shunt trip with auxiliary switch (Form C 1NO/1NC)
    • Certifications: RoHS compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: S01ED62A
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Circuit Breaker
  • Item Subcategory : Shunt Trip
  • Family : Sentron Series
  • Type : S01E
  • Voltage : 120
  • Amperage : 125
  • Control Voltage Minimum : 110
  • Compatible Frames : ED,HED,HHED,CED,EM6B,EMKB
  • Control Voltate Maximum : 120

Product Data

  • UPC : 783643234581
  • GTIN : 00783643234581
  • Country of Origin : Mexico
  • Weight : 1.001
  • Certification : UL
