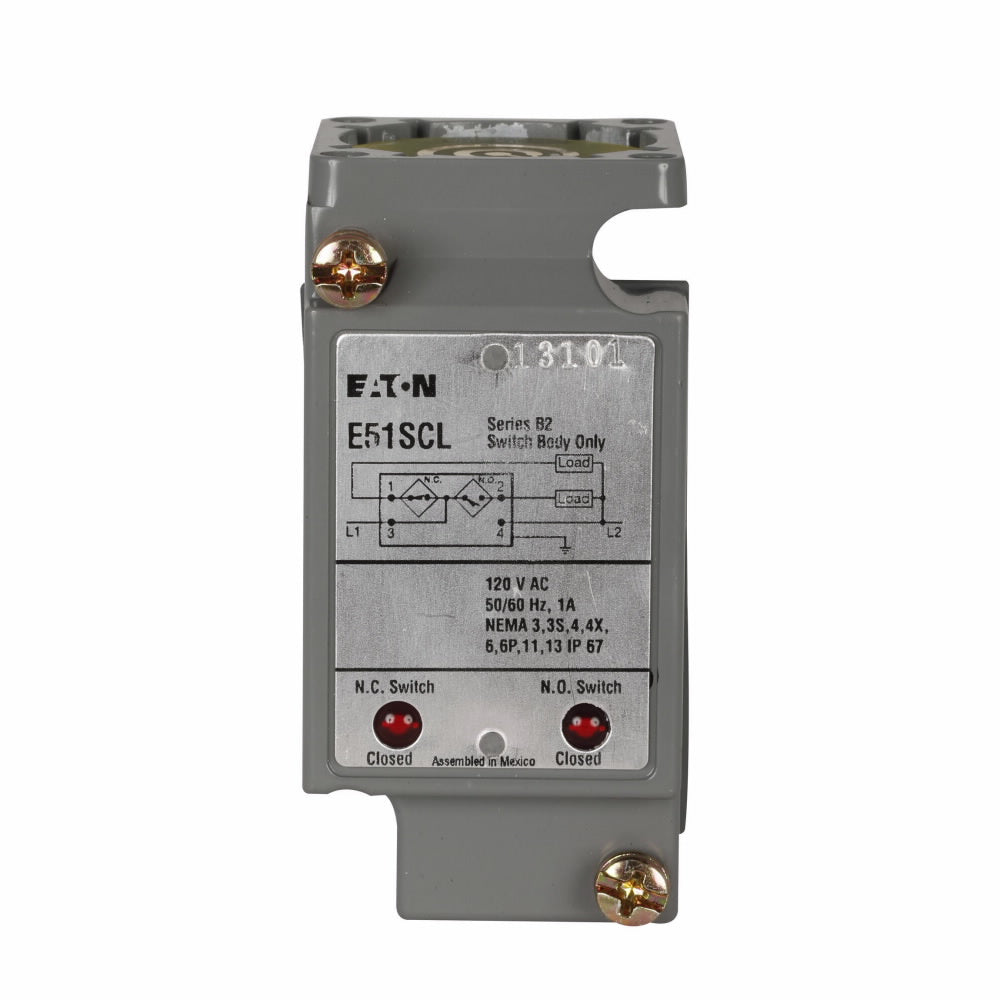

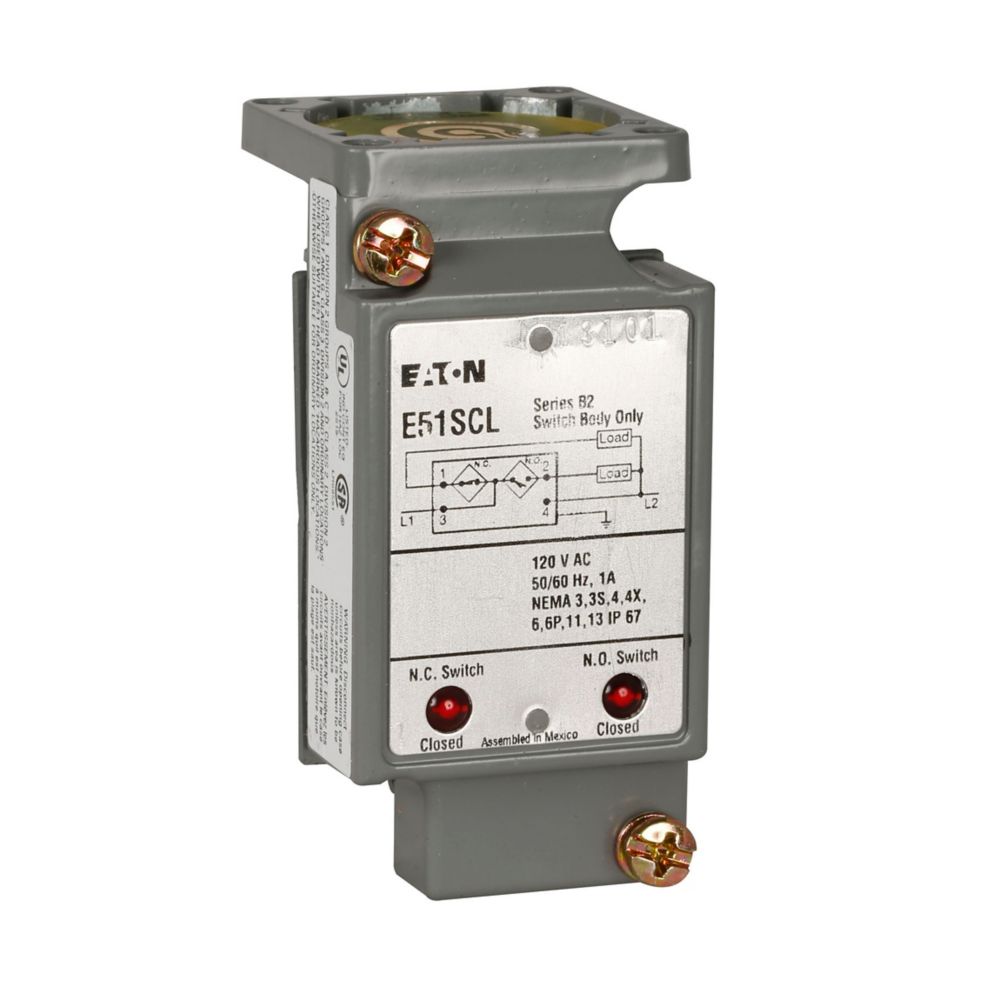

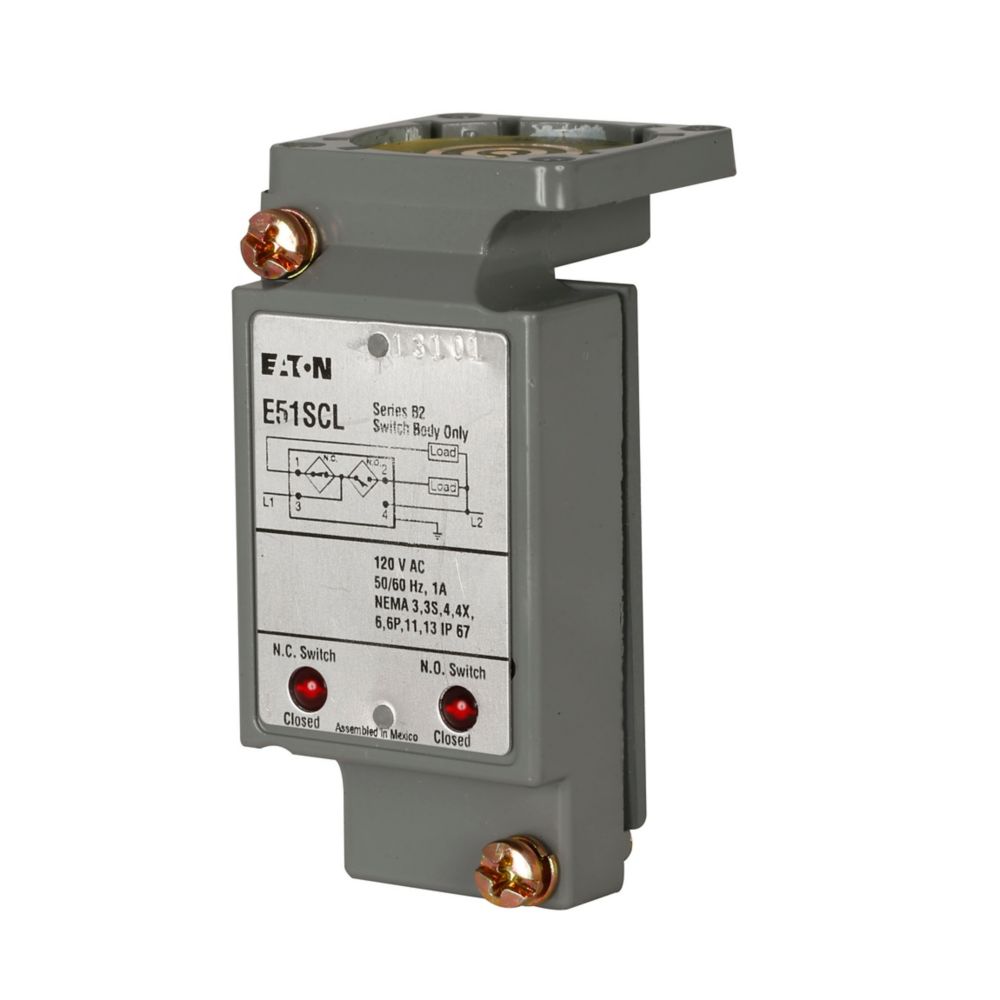

E51SCL - Cutler Hammer E51 NEMA 3 Inductive Proximity Sensor 120VAC 1.0A

E51SCL

E51SCL is an assembled inductive proximity sensor from the E51 modular limit switch style series, designed for industrial automation and control applications.

This NEMA-rated sensor features a 1.0 A solid state output with L1 switched contact configuration and operates at 120 VAC input voltage. The die-cast zinc enclosure provides durability in industrial environments, with an operating temperature range from -13 degrees Fahrenheit to 158 degrees Fahrenheit. The sensor includes an output ON LED indicator for visual status confirmation and is compatible with both U.S. and DIN mounting dimensions. Components are interchangeable with other E51 proximity sensors, and the modular design allows for easy maintenance and customization.

• Catalog Number: E51SCL
• Series: E51 Modular
• Type: Assembled Inductive Proximity Sensor
• Input Voltage: 120 VAC
• Contact Rating: 1.0 A solid state output
• Contact Configuration: L1 switched
• Enclosure Material: Die-cast zinc
• NEMA Rating: NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
• Operating Temperature: -13 degrees Fahrenheit to 158 degrees Fahrenheit
• LED Indicator: Output ON (1 LED per output)
• Certifications: UL Listed, CSA Certified
• Product Weight: 0.3 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E51SCL
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Automation
• Item Subcategory : Proximity Sensors
• Family : E51
• Type : E51
• Voltage : 120VAC
• Amperage : 1
• Temp Rating : -13–158 °F (-25–70 °C)
• Wire : 4
• Aux Contacts : 1 NO, 1 NC
• Nema Rating : 3, 3S, 4, 4X, 6, 6P, 12, 13
• Mounting : Surface
• Enclosure Grade : Die Cast Zinc

Product Data

• UPC : 782113107219
• GTIN : 00782113107219
• Country of Origin : Mexico
• Dimensions : 3.14 in x 1.73 in x 1.54 in (Length/Depth x Height x Width)
• Weight : 0.3
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL, CSA
