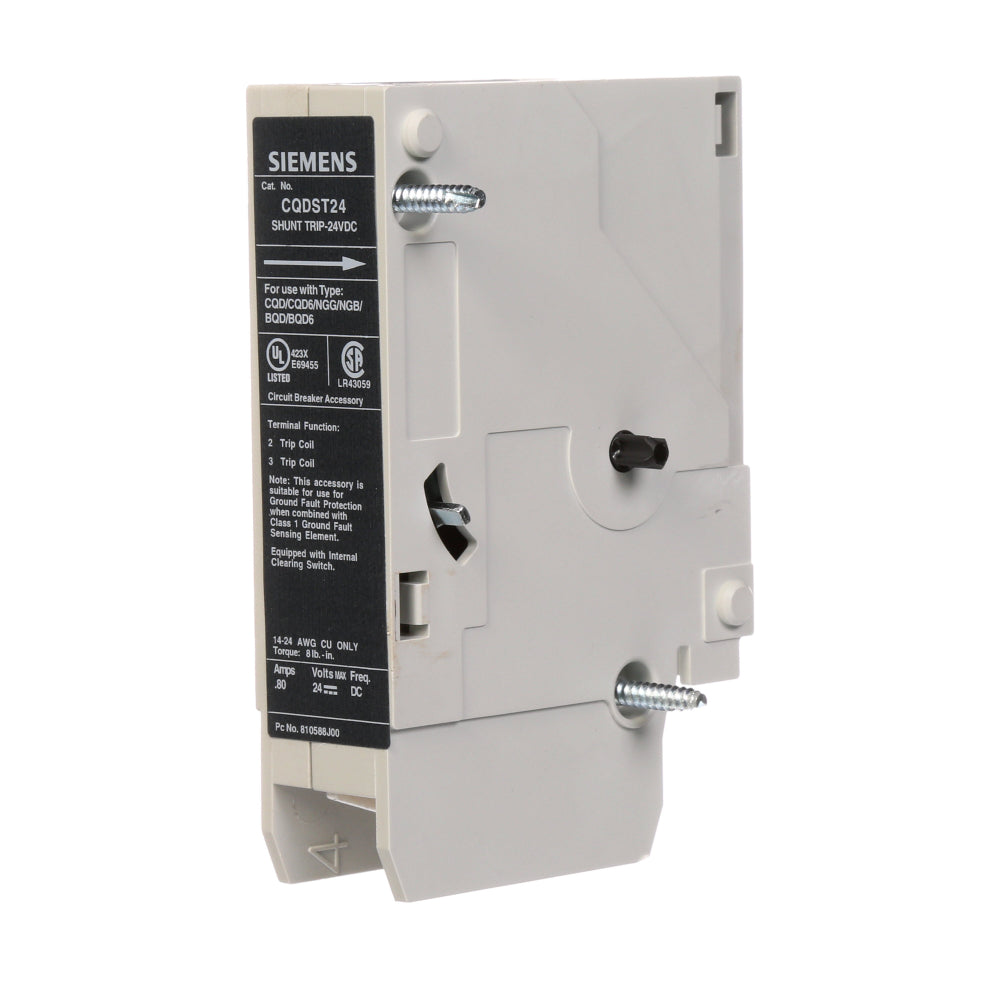

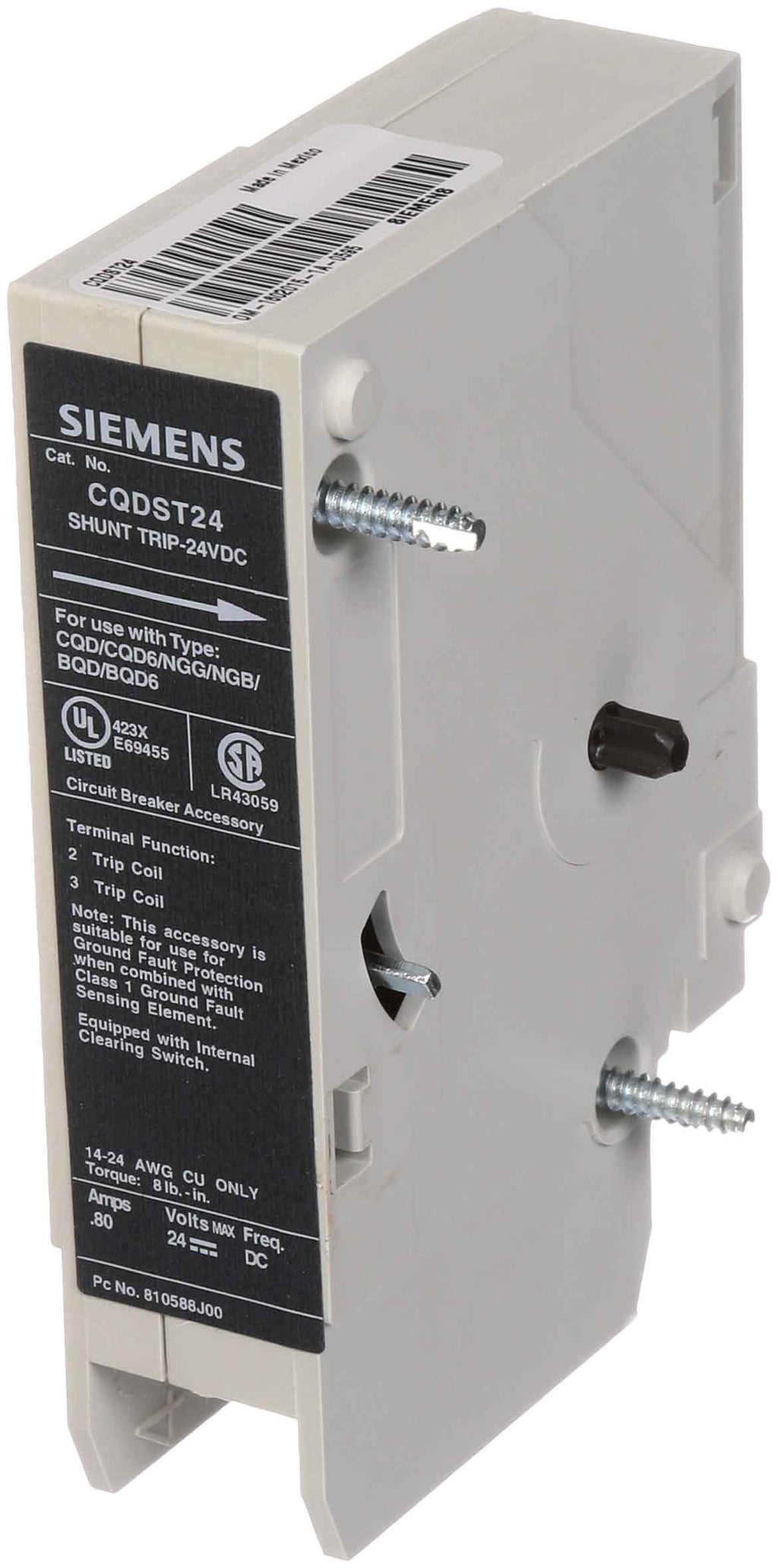

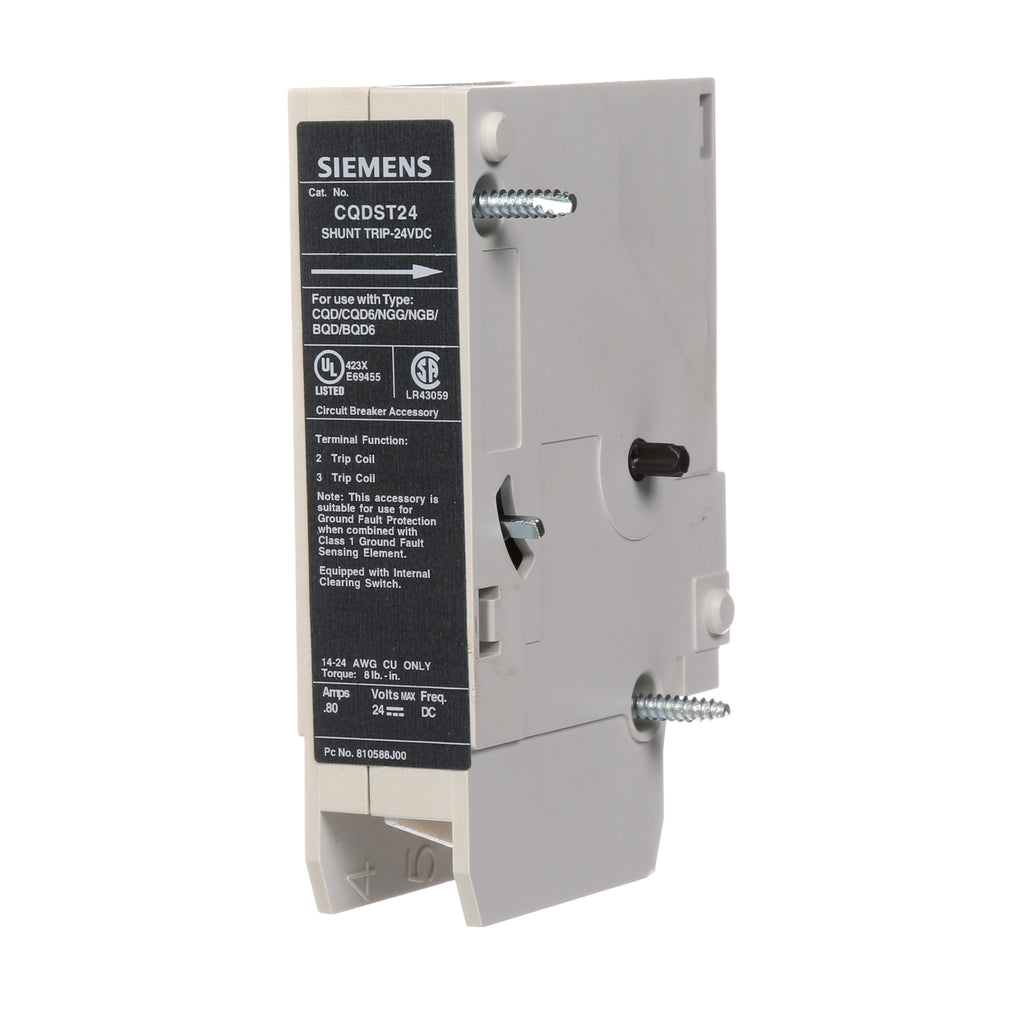

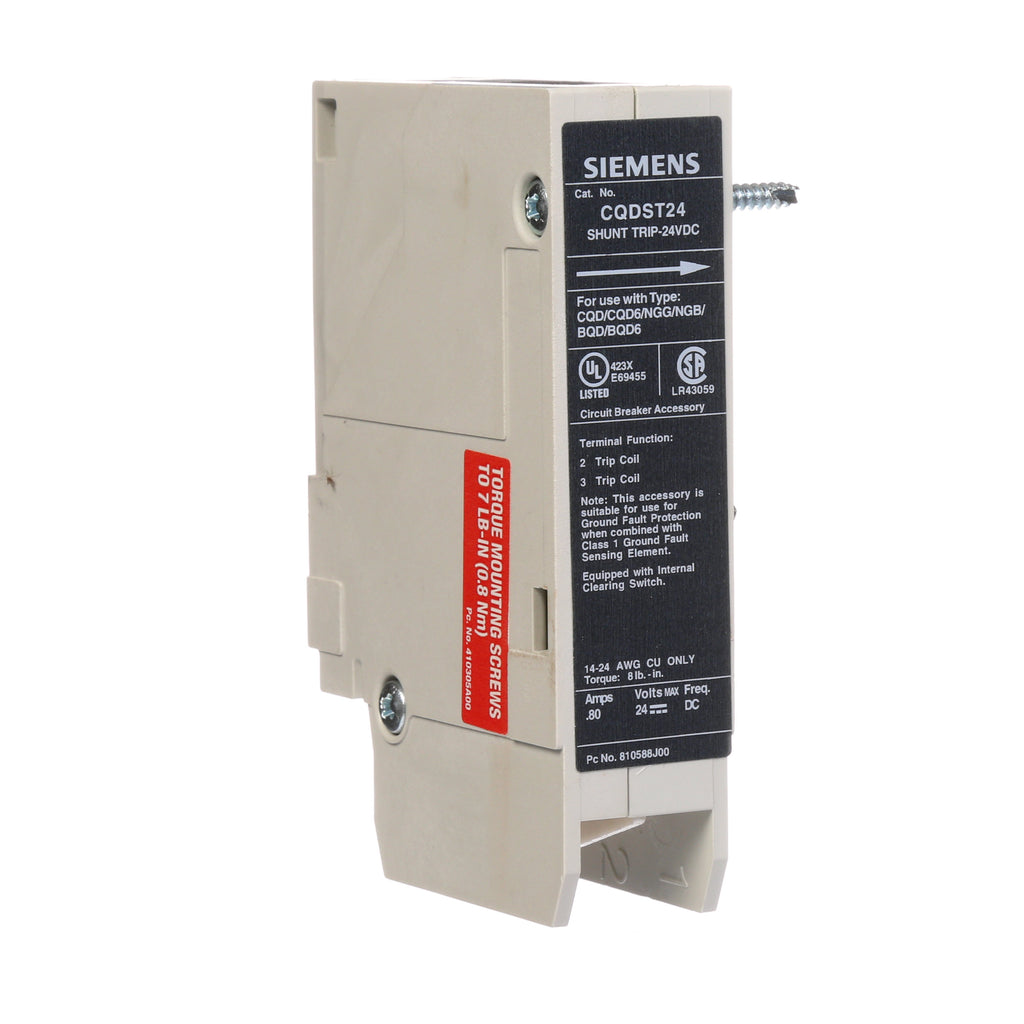

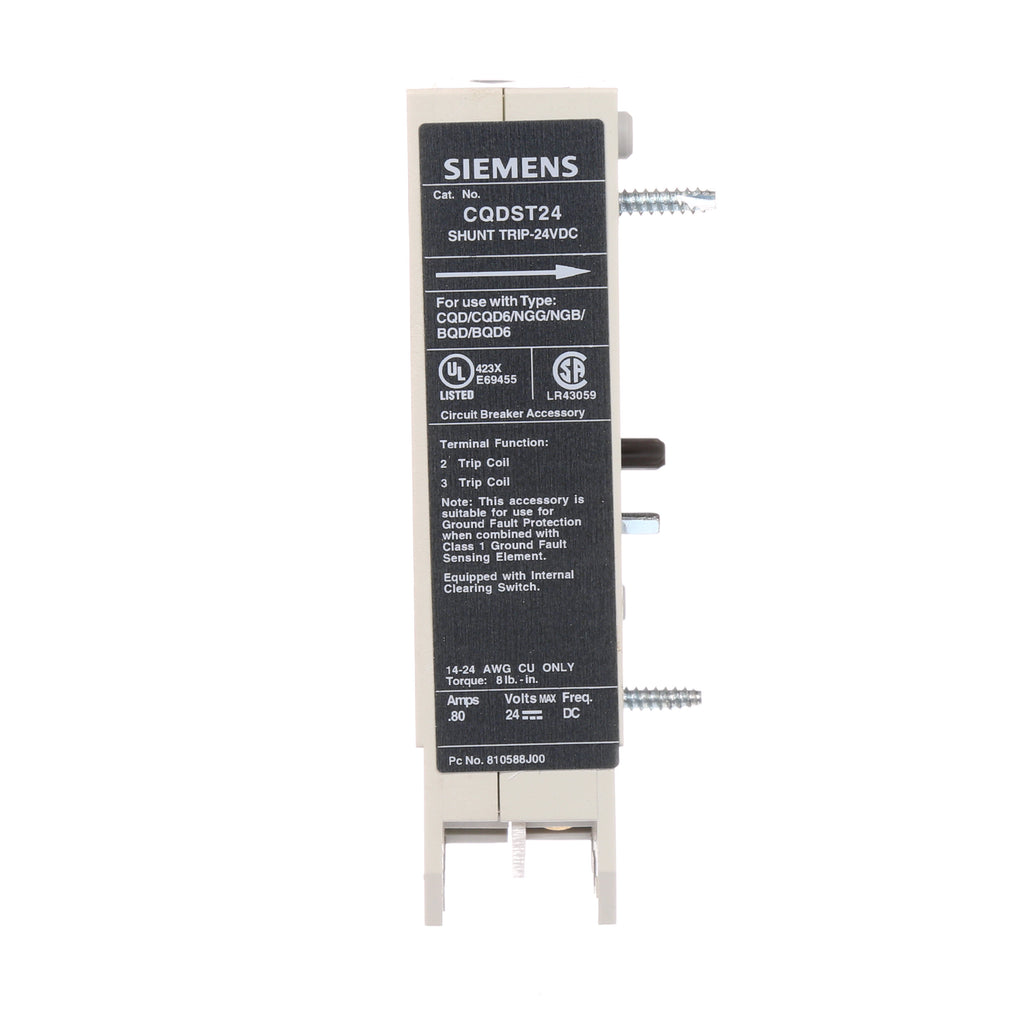

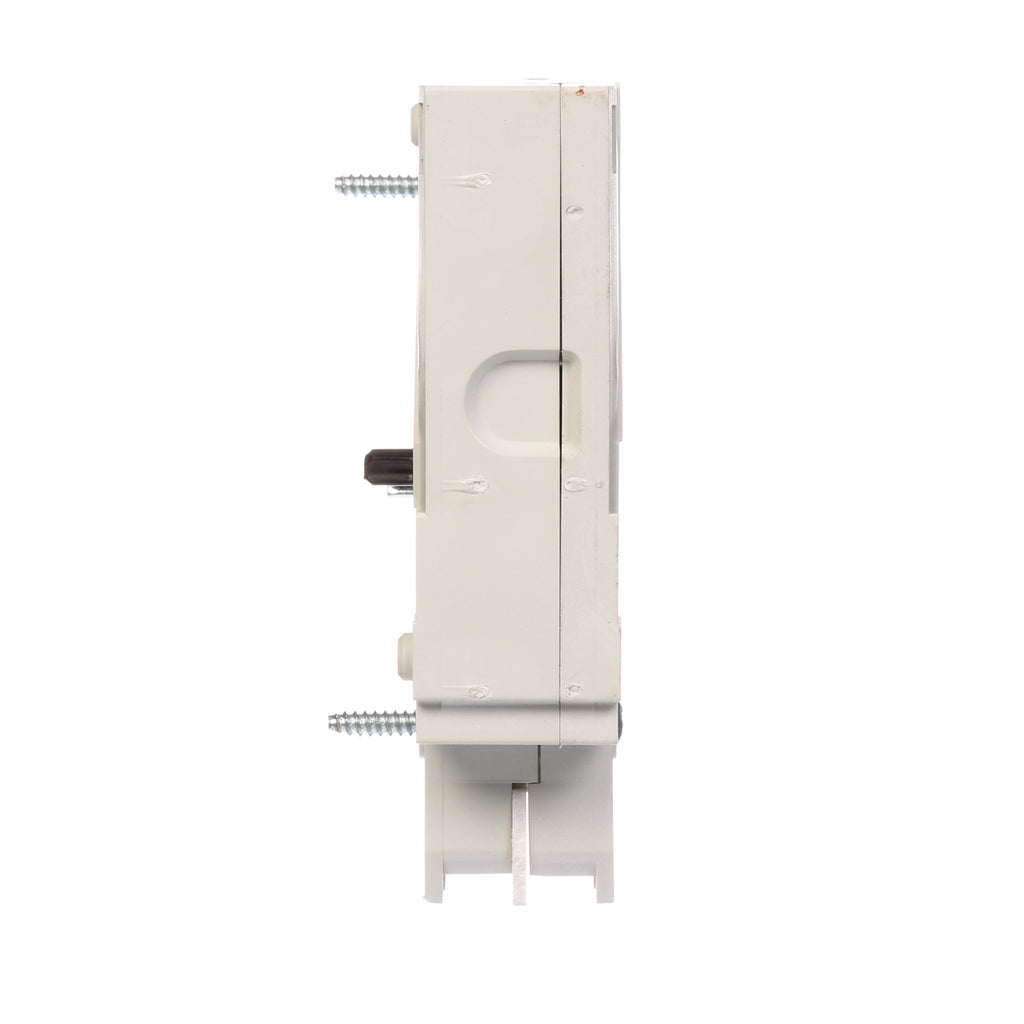

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Shunt Trip
- Series
- Sentron Series
- Frame
- Sentron
- Rated current
- 100
- Voltage
- 24VDC
- Poles
- 3
- Interrupting rating
- 10kAIC
- Standards
- RoHS
- Country of origin
- Mexico
- Control Voltage Minimum
- 24
- Compatible Frames
- CQD, CQD6
- Control Voltate Maximum
- 24
- UPC
- 783643304949
Show all specifications (2 more)
- GTIN
- 00783643304949
- Weight
- 0.28
Product description & additional details
CQDST24
CQDST24 is a Siemens shunt trip accessory designed for CQD frame molded case circuit breakers, providing remote trip capability with a 24VDC coil voltage.This shunt trip unit is rated for 100 amps and operates at 24 volts DC, compatible with Siemens CQD, CQD6, NGG, and NGB frame breakers. It enables remote tripping of the breaker for enhanced safety and control in electrical distribution systems.
- Amperage: 100 Amps
- Voltage: 24 VDC coil
- Compatible Frames: CQD, CQD6, NGG, NGB
- Type: Shunt Trip
- Mounting: For molded case circuit breakers
- Interrupt Rating: Matches CQD frame breakers (typically 10kAIC or higher)
- Poles: Works with 3-pole breakers
- Series: Siemens CQD series
- Trip Unit: Remote shunt trip coil
- Certifications: UL Listed, CSA Certified (standard for Siemens MCCBs)
Specifications
- Part Number: CQDST24
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Sentron Series
- Type : Sentron
- Voltage : 24VDC
- Amperage : 100
- Poles : 3
- AIC rating : 10kAIC
- Control Voltage Minimum : 24
- Compatible Frames : CQD, CQD6
- Control Voltate Maximum : 24
Product Data
- UPC : 783643304949
- GTIN : 00783643304949
- Country of Origin : Mexico
- Weight : 0.28
- Standards : RoHS
