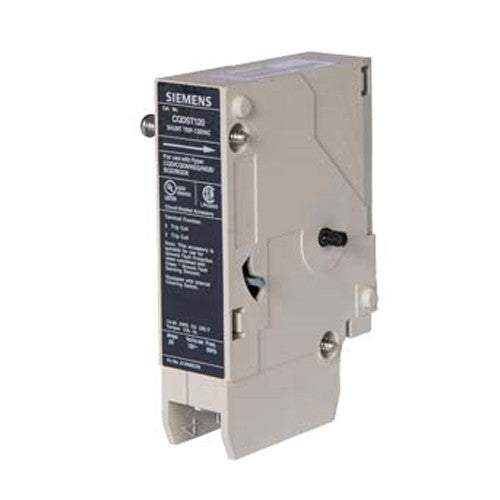

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Shunt Trip
- Series
- Sentron Series
- Frame
- CQD
- Poles
- 3
- Country of origin
- Mexico
- Compatible Frames
- CQD,CQD6,NGG,NGB
- Control Voltate Maximum
- 12
- UPC
- 783643304932
- GTIN
- 00783643304932
- Weight
- 0.3
Product description & additional details
CQDST12
CQDST12 is a Siemens 3-pole circuit breaker shunt trip accessory with a 12V DC control voltage designed for use with Siemens molded case circuit breakers.This shunt trip device provides remote tripping capability for Siemens CQD series circuit breakers, enabling enhanced control and safety in electrical distribution systems. It is compatible with 3-pole breakers, supports a control voltage of 12 volts DC, and is suitable for low voltage applications. The CQDST12 is constructed with composite materials and designed for reliable operation within standard industrial temperature ranges.
- Manufacturer: Siemens
- Part Number: CQDST12
- Type: Shunt Trip Accessory
- Number of Poles: 3
- Control Voltage: 12 V DC
- Compatible Series: CQD Molded Case Circuit Breakers
- Interrupt Rating: Up to 10 kAIC (typical for CQD6 series)
- Mounting Type: Internal accessory for molded case breakers
- Material: Composite
- Operating Temperature: Up to 40°C
- Certifications: UL Listed, CSA Certified (typical for Siemens MCCB accessories)
Specifications
- Part Number: CQDST12
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Sentron Series
- Type : CQD
- Poles : 3
- Compatible Frames : CQD,CQD6,NGG,NGB
- Control Voltate Maximum : 12
Product Data
- UPC : 783643304932
- GTIN : 00783643304932
- Country of Origin : Mexico
- Weight : 0.3
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
