CHF230 - Cutler Hammer 30A 120/240V Two-Pole Thermal Magnetic Circuit Breaker Type CHF 10kAIC

CHF230

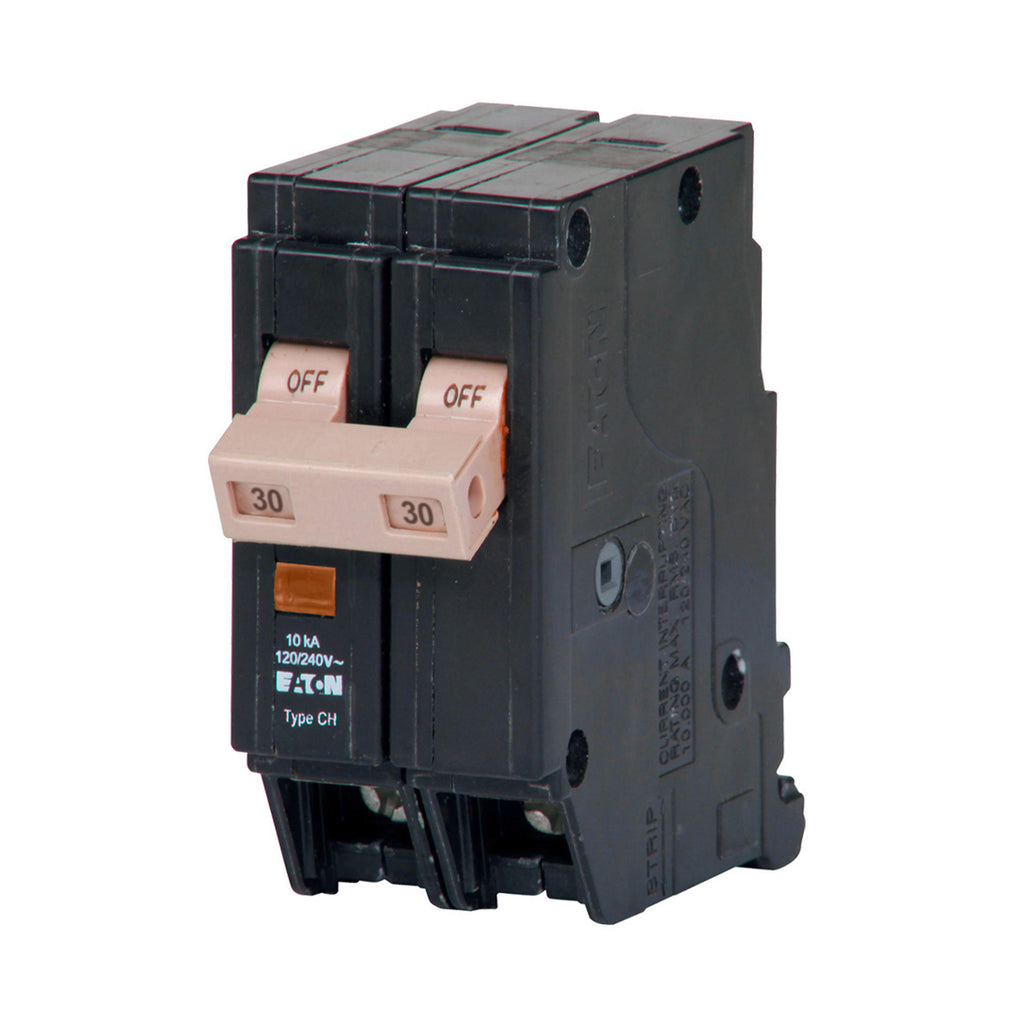

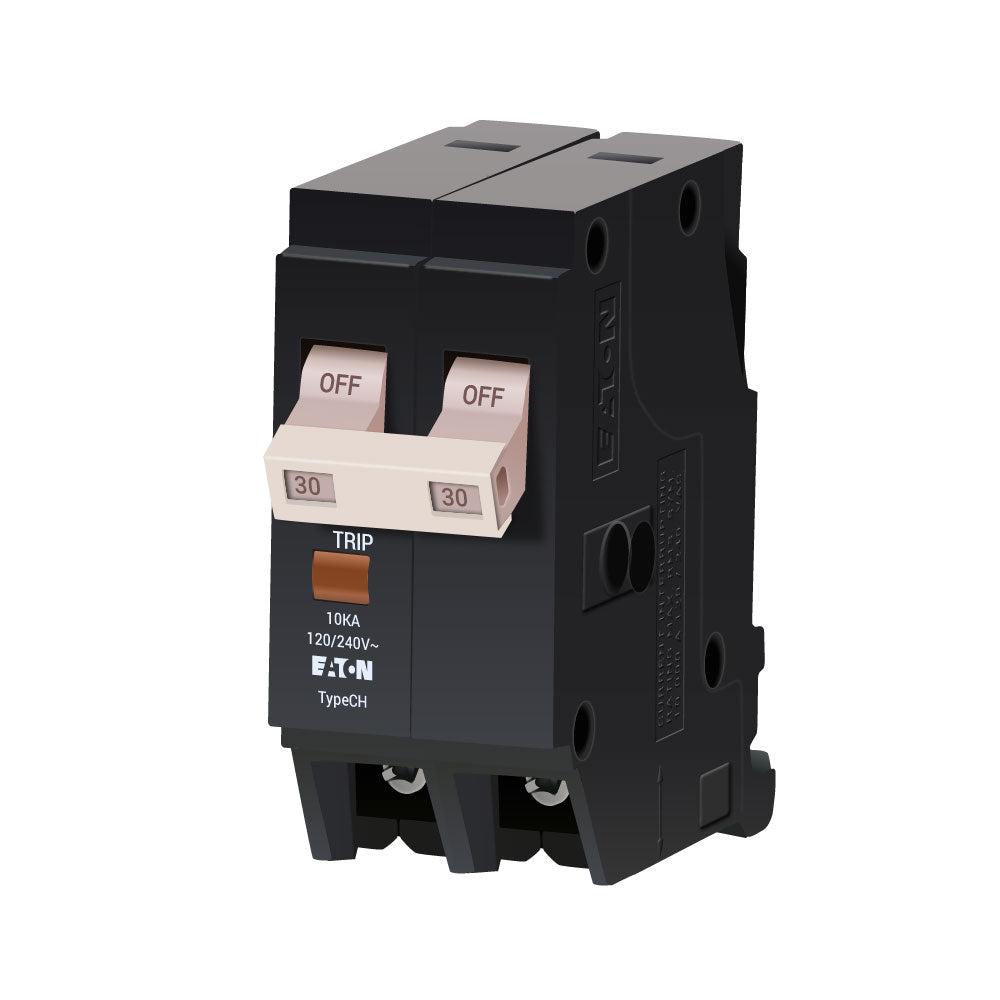

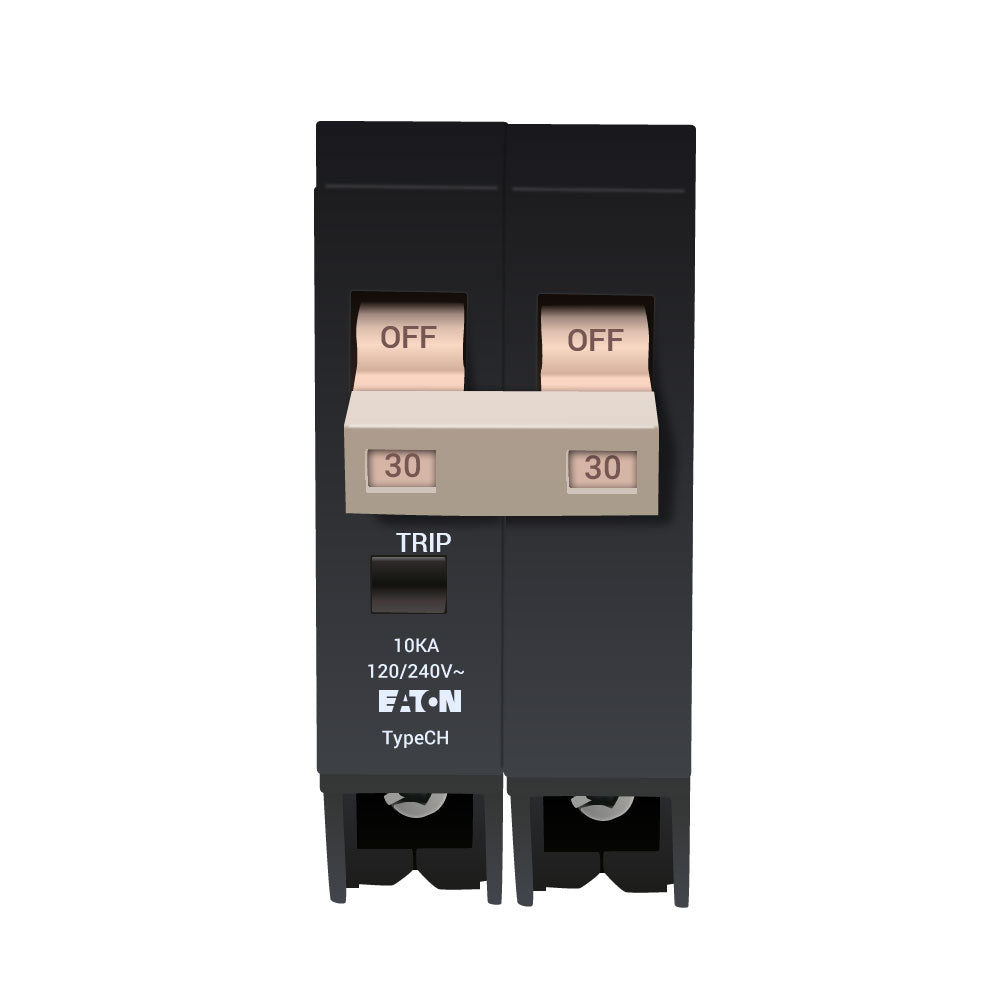

CHF230 is a Cutler Hammer 30 amp, two-pole thermal magnetic circuit breaker designed for 120/240V applications with a 10 kA interrupt rating.This Type CHF 3/4-inch standard circuit breaker features a common trip flag for easy trip indication, is HACR rated for heating and air conditioning equipment, and fits Type CH loadcenters. It supports copper and aluminum wiring with wire size ranges of (1) #14-8 AWG and (2) #14-10 AWG. The breaker has UL 489 certification and offers a limited lifetime warranty for residential use and one year for commercial use.

• Amperage: 30 A
• Voltage: 120/240 V AC
• Poles: Two-pole
• Interrupt Rating: 10 kAIC
• Trip Type: Thermal magnetic with trip flag
• Mounting: Plug-in for Type CH loadcenters
• Wire Size: (1) #14-8 AWG Cu/Al, (2) #14-10 AWG Cu/Al
• Certifications: UL 489, HACR rated
• Series/Frame: Type CHF 3/4-Inch standard breaker
• Warranty: Limited lifetime residential, 1 year commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHF230
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CHF
• Voltage : 24
• Amperage : 3
• Phase : 1
• Poles : 2
• AIC rating : 1kA@12V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : CHF
• Protection : Thermal Magnetic

Product Data

• UPC : 78668536190
• GTIN : 00786685361901
• Country of Origin : United States
• Dimensions : 1.5 in x 2.6 in x 0.75 in (Length/Depth x Height x Width)
• Weight : 0.28 lb
• Panel Type : Type CH Loadcenters
• Standards : UL 489, HACR Rated
• Certification : UL 489, HACR Rated
• Wire Size : 2x AWG 14 to AWG 10, Cu/Al, 1x AWG 14 to AWG 8
