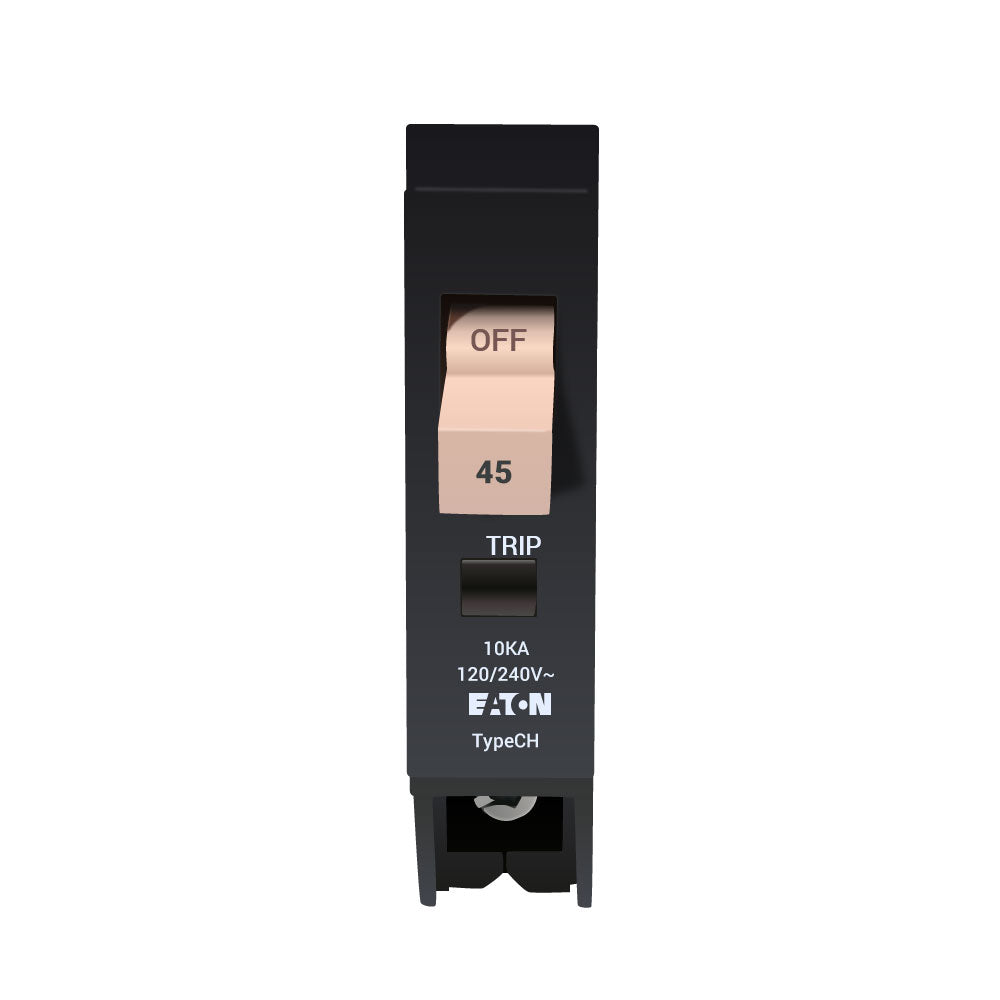

CHF145 - Eaton 45A 120/240V 1-Pole Thermal Magnetic Circuit Breaker Plug-On Type CHF 10kAIC

CHF145

CHF145 is a Eaton 45 amp, 1-pole thermal magnetic circuit breaker designed for residential and light commercial applications.CHF145 features a 120/240 VAC voltage rating, 10 kA interrupt rating, and plug-on mounting compatible with Eaton Type CH loadcenters. It includes a mechanical trip flag for trip indication and supports wire sizes from 14 to 2 AWG copper or aluminum. The breaker is UL listed, HACR rated, and meets UL 489 standards.

Key Specifications
• Amperage: 45 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC
• Trip Type: Mechanical Trip Flag
• Wire Size: #14-2 AWG Cu/Al
• Series/Frame: Type CHF
• Certifications: UL Listed, UL 489, HACR Rated
• Dimensions: 3 in H x 3 in D x 0.75 in W

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHF145
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CHF
• Voltage : 240
• Amperage : 45
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786685545608
• GTIN : 00786685545608
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 0.75 in (Length/Depth x Height x Width)
• Weight : 0.28
• Certification : UL Listed,UL 489,HACR Rated
