CHF115 - Eaton 15 Amp 1 Pole 120/240V Type CH Plug-On Circuit Breaker, 10kAIC, Thermal Magnetic Trip, HACR, UL 489

CHF115

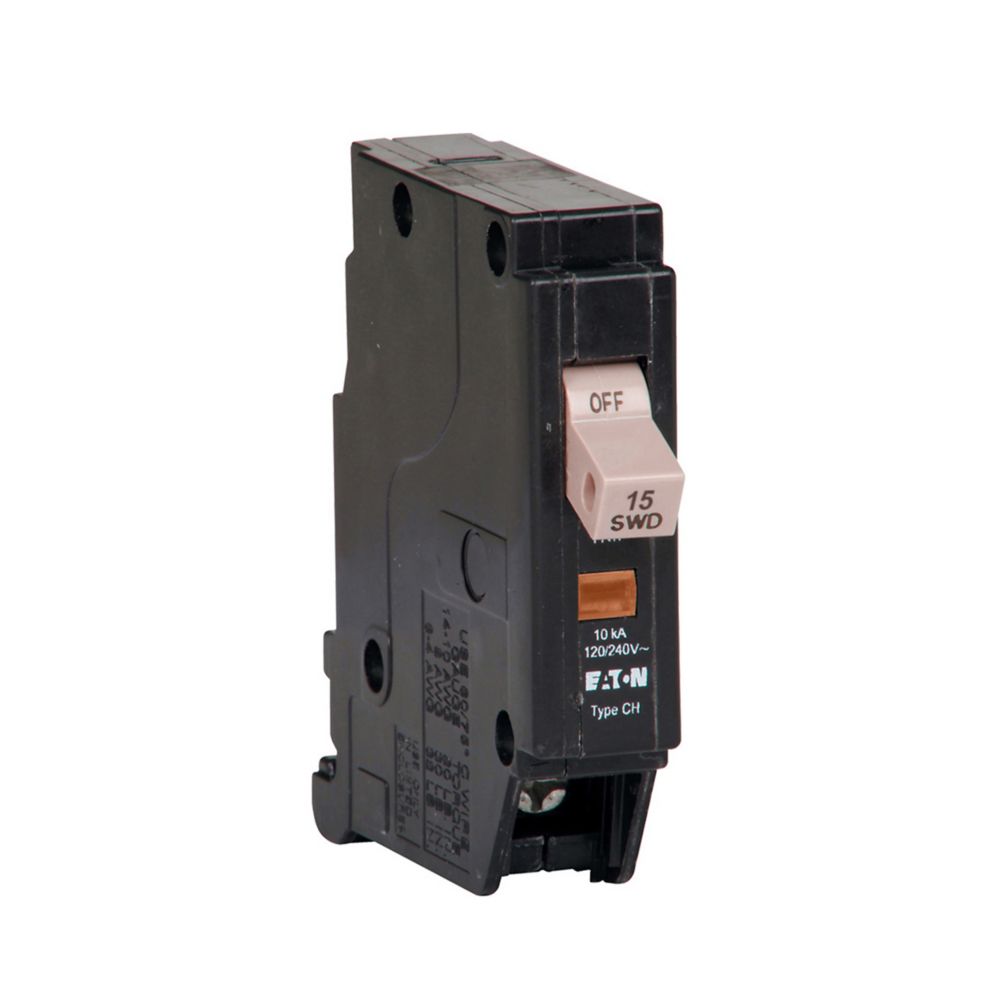

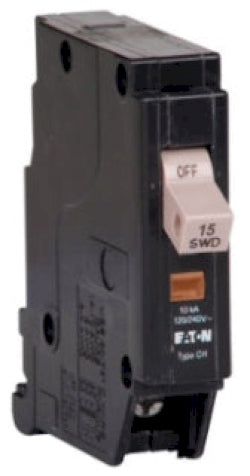

CHF115 is a single-pole, 15 Amp, 120/240V circuit breaker from Eaton, designed for reliable circuit protection in residential and light commercial applications.

This Eaton CHF115 features a thermal magnetic trip unit for both overload and short-circuit protection, a plug-on mounting type for easy installation in Type CH loadcenters, and a visible trip flag for quick status identification. It is certified for HACR applications and meets UL 489 standards, ensuring safety and compliance.

Key Specifications
• Part Number: CHF115
• Manufacturer: Eaton
• Amperage: 15A
• Voltage: 120/240V AC
• Poles: 1
• Mounting Type: Plug-on
• Interrupt Rating: 10kAIC at 120/240V
• Series/Frame: Type CH
• Trip Unit: Thermal magnetic (LI)
• Certifications: UL 489, HACR
• Connection: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Trip Indication: Trip flag
• Application: Residential and light commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHF115
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CHF
• Voltage : 240
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• MCM Size : Min. Wire Size (1) or (2) 14 AWG Max. Wire Size (1) 8 AWG, (2) 10 AWG (Cu/Al)
• Breaker Type : CHF
• Protection : Thermal Magnetic

Product Data

• UPC : 786685361833
• GTIN : 00786685361833
• Country of Origin : United States
• Dimensions : 0.7 in x 2.6 in x 3.2 in (Length/Depth x Height x Width)
• Weight : 0.25
• Panel Type : Type CH Loadcenters
• Standards : UL 489, HACR Rated
• Certification : UL 489, HACR Rated
