CHF125 - Westinghouse 25A 120/240V 1-Pole Circuit Breaker Plug-In CH Frame 10kAIC Trip Flag

CHF125

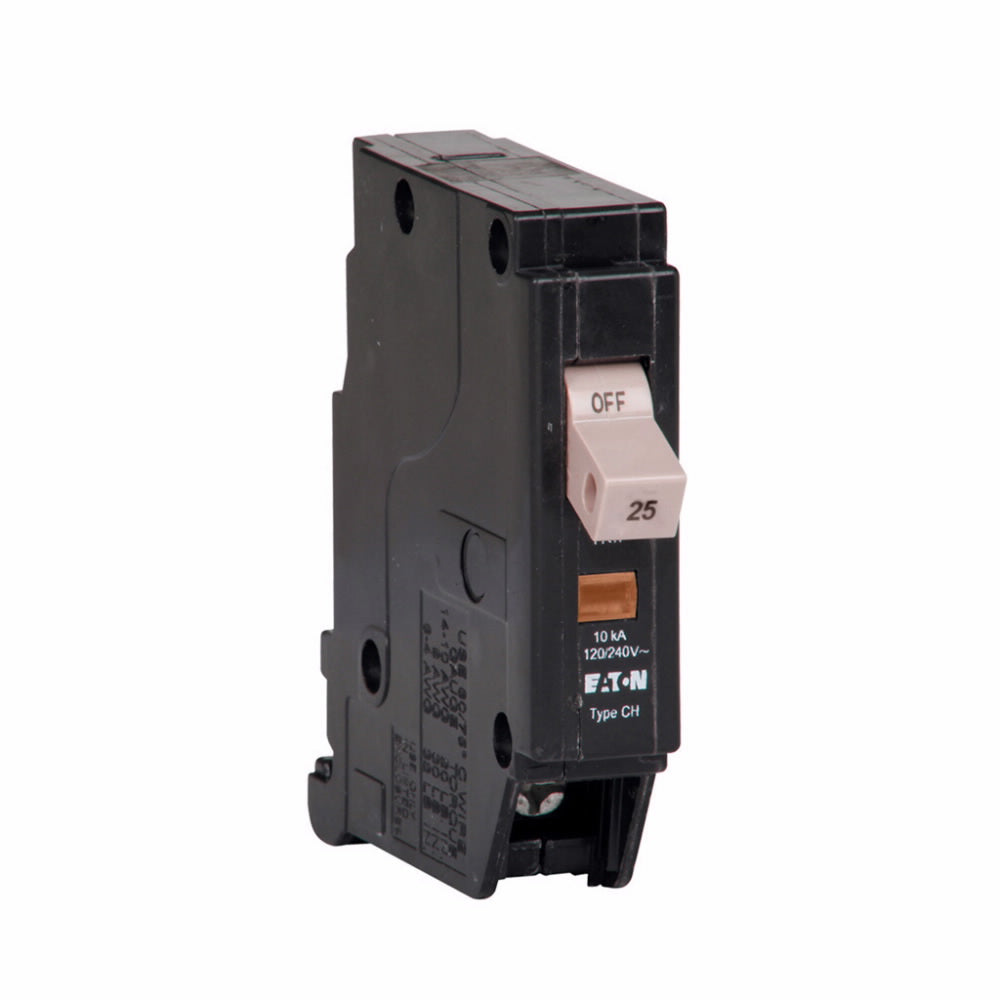

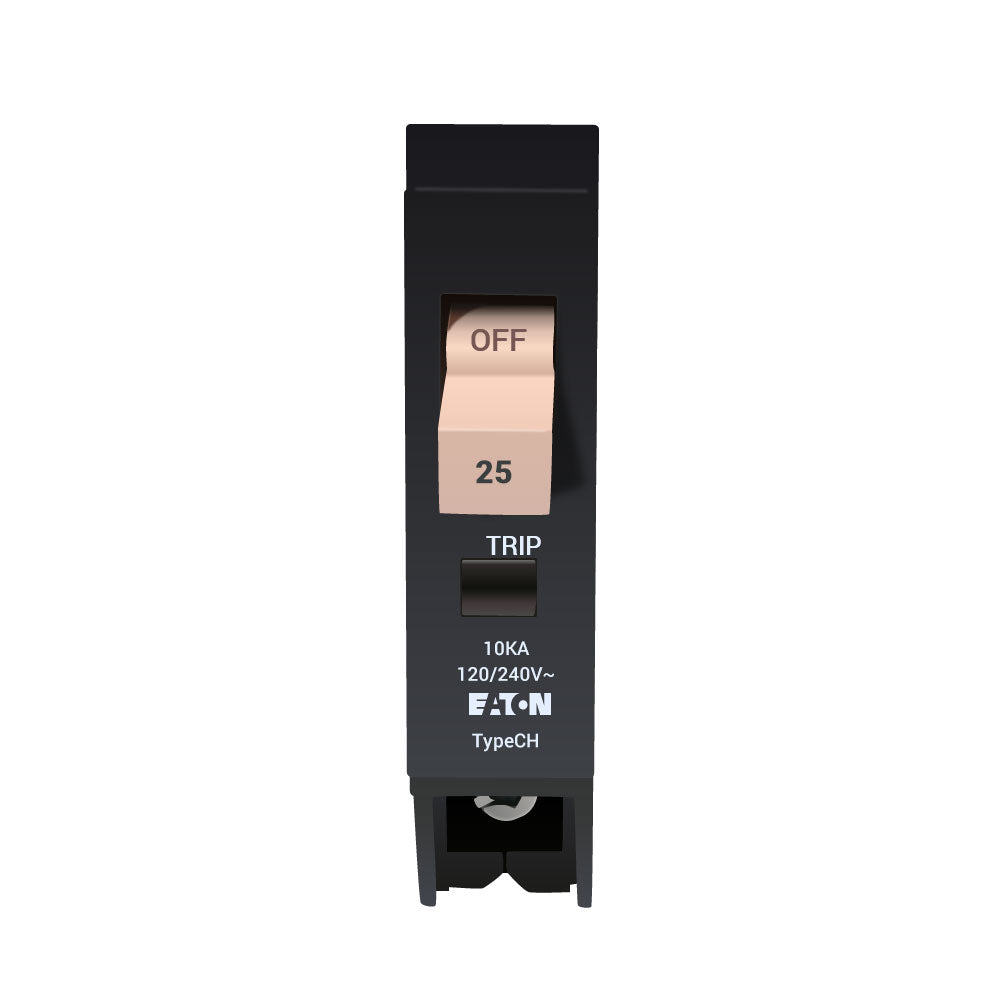

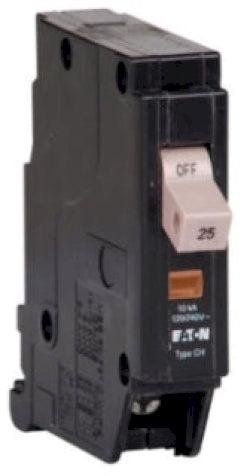

CHF125 is a Westinghouse 25 amp, 120/240 volt, single-pole plug-in circuit breaker designed for Type CH loadcenters.This Eaton CH thermal magnetic circuit breaker features a 10 kA interrupt rating at 120 volts, trip flag indication, and is HACR rated for HVAC applications. It supports wire sizes from #14 to #8 AWG copper or aluminum and fits a 3/4-inch standard CH frame. Certified to UL 489 standards, it provides reliable protection with a limited lifetime residential warranty.

Key Specifications
• Amperage Rating: 25 A
• Voltage Rating: 120/240 V
• Number of Poles: Single-pole
• Interrupt Rating: 10 kAIC @ 120 V
• Mounting Type: Plug-In
• Frame/Series: CH Frame
• Trip Unit: Thermal Magnetic with Trip Flag
• Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Certifications: UL 489, HACR Rated
• Application: Type CH Loadcenters
• Warranty: Limited lifetime residential, 1 year commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHF125
• Manufacturer : Westinghouse
• Brand : Westinghouse
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CHF
• Voltage : 240
• Amperage : 25
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786685361857
• GTIN : 00786685361857
• Country of Origin : Dominican Republic
• Dimensions : 0.7 in x 2.6 in x 3.2 in (Length/Depth x Height x Width)
• Weight : 0.25
• Certification : UL 489,HACR Rated
