Product Info
- Manufacturer: Westinghouse
- Sub-Category: Molded Case
Description
CHF130

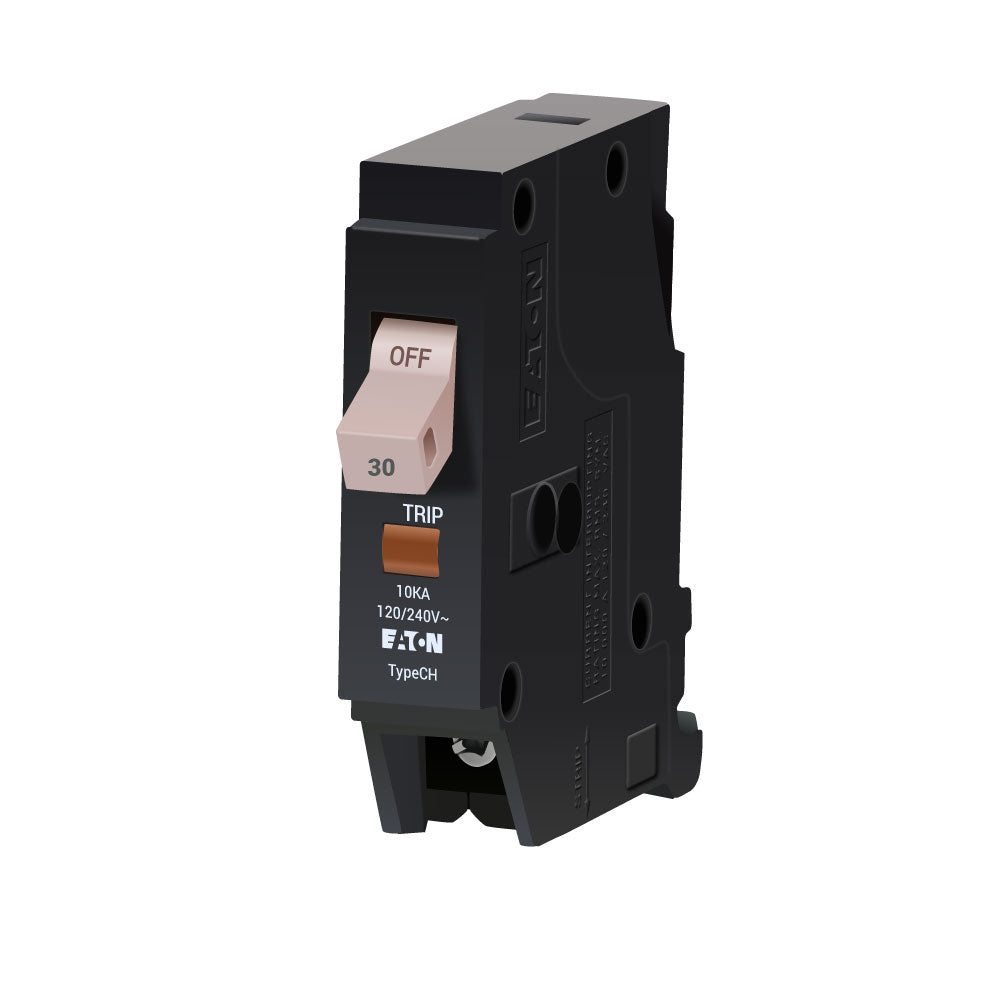

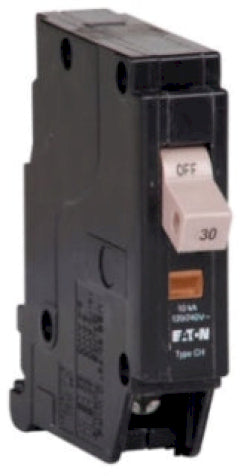

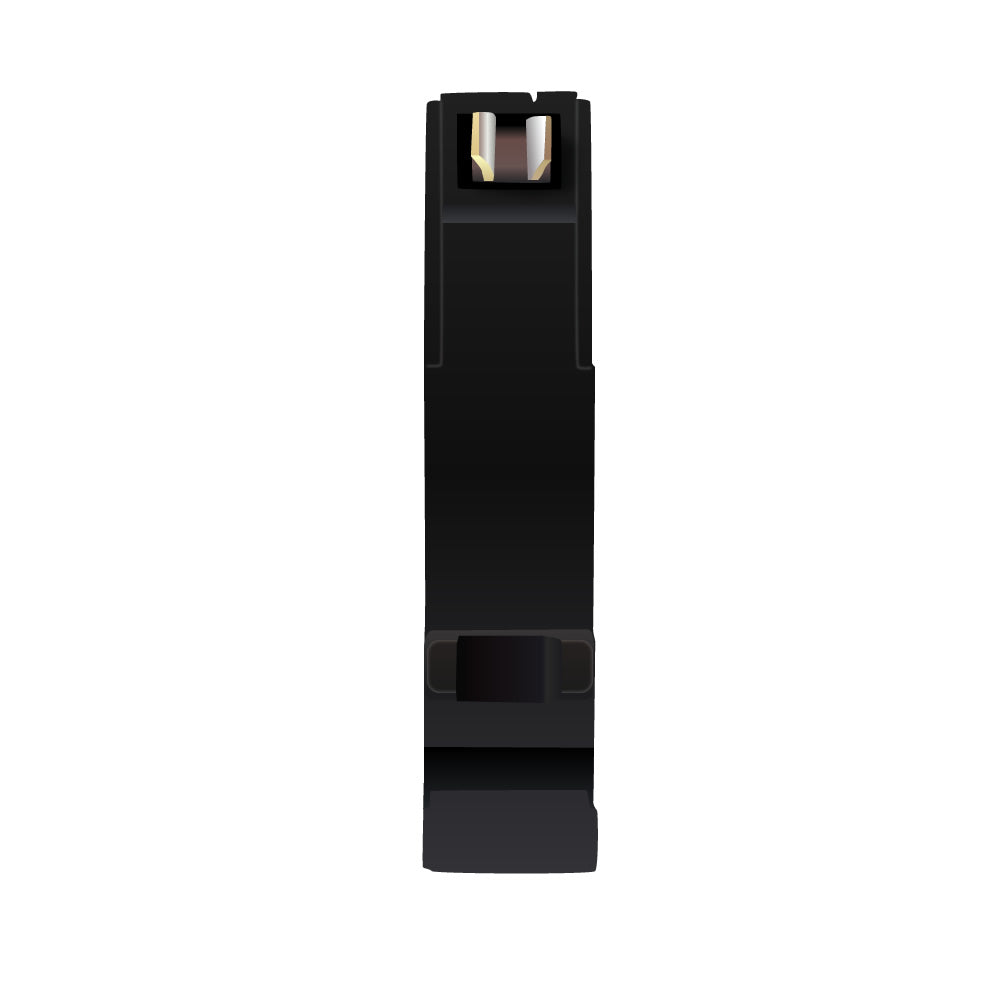

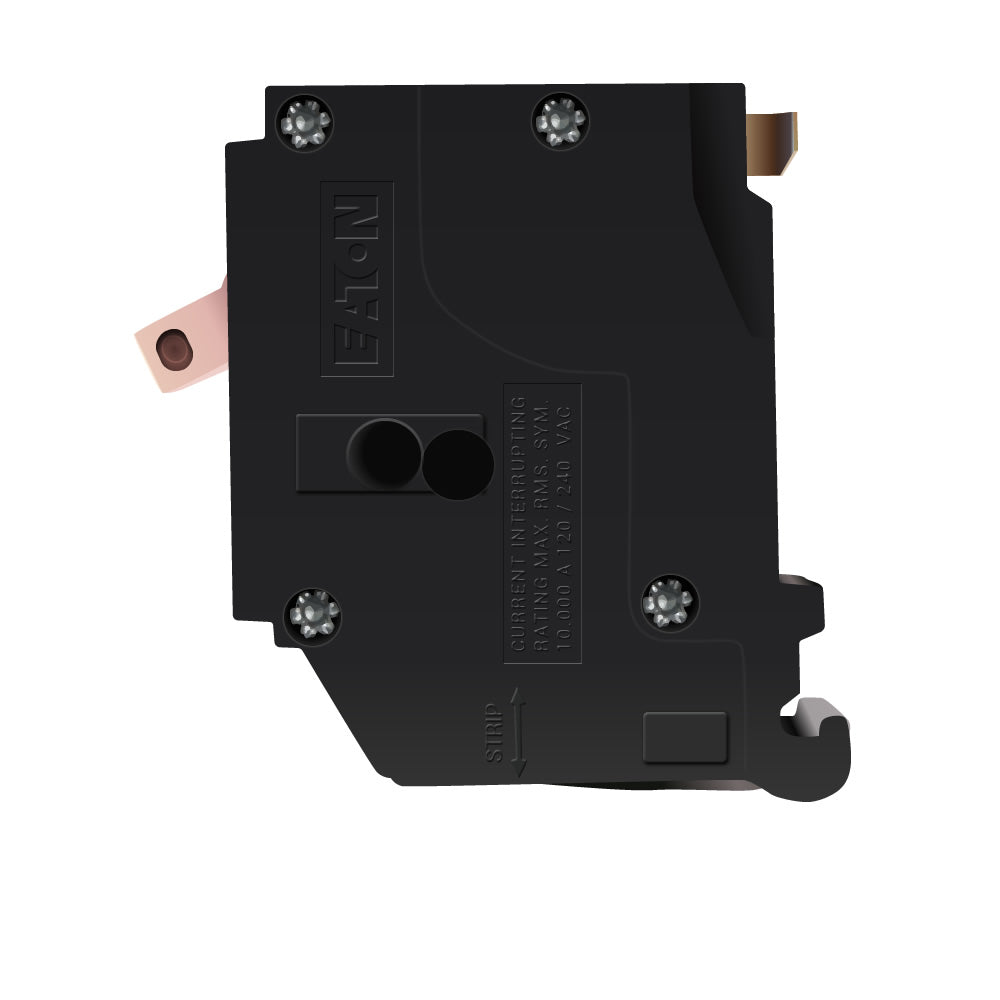

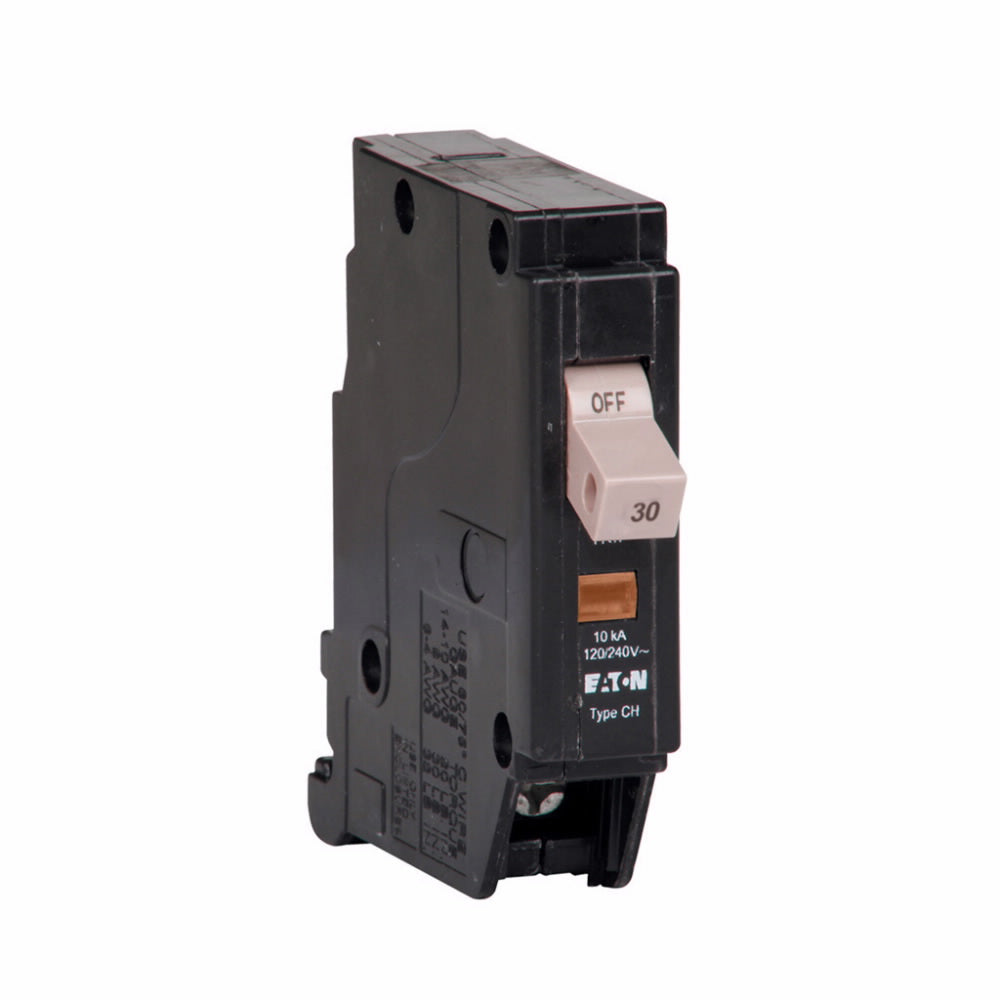

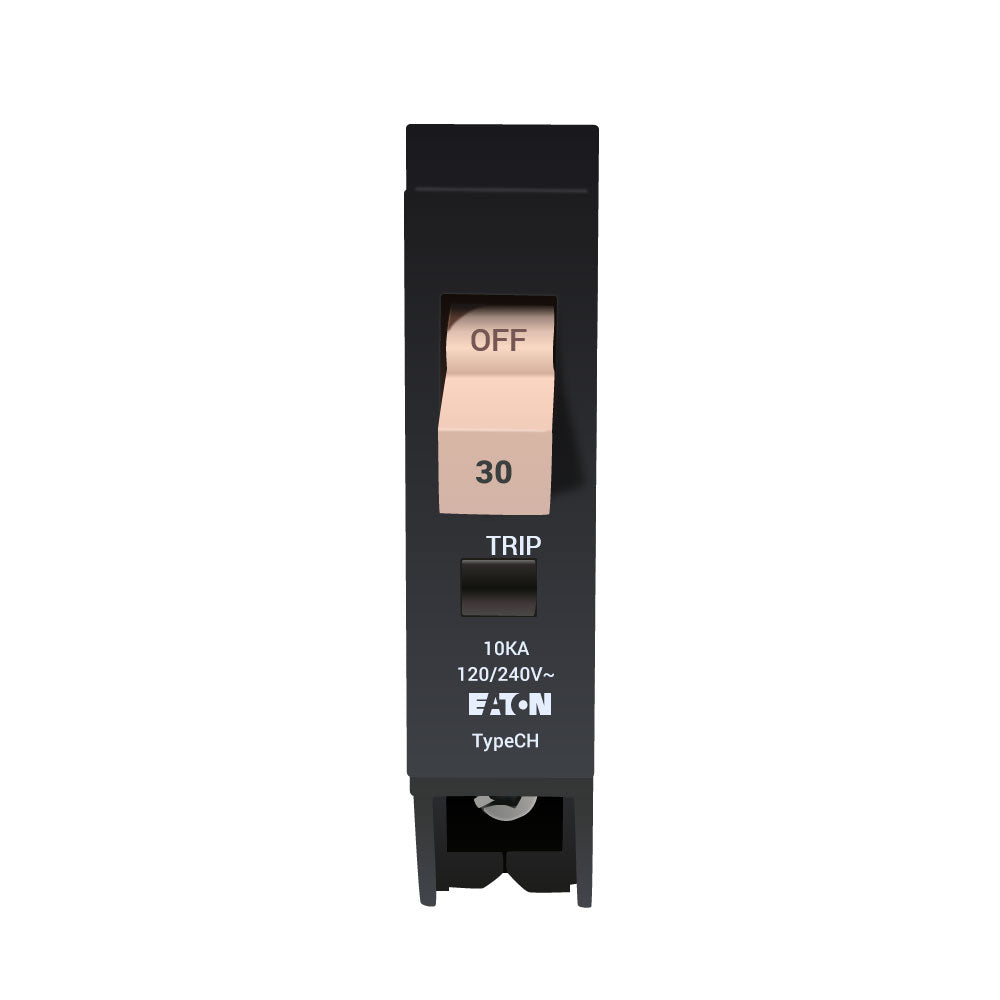

The Westinghouse CHF130 is a Molded Case Circuit Breaker. This type CHF circuit breaker is a member of The CH Series family. The CHF130 is a 1 pole, 240 Volt, 30 amp rated circuit breaker, with an AIC rating of 10kA@120V. The CHF130 is manufactured by Westinghouse. The CHF130 uses a Plug-In connection. Includes Thermal Magnetic protection. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.
Specifications
- Part Number: CHF130
- Manufacturer : Westinghouse
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CHF
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- MCM Size : Min. Wire Size (2) 14 AWG (Cu/Al) Max. Wire Size (2) 10 AWG (Cu/Al)
- Breaker Type : CHF
Product Data
- UPC : 786685361864
- GTIN : 00786685361864
- Country of Origin : Dominican Republic
- Dimensions : Length 23.84in Height 42.03in Width 24.22in
- Weight : 0.3
- Panel Type : Type CH Loadcenters
- Standards : UL 489, HACR Rated
- Certification : UL 489,HACR Rated
