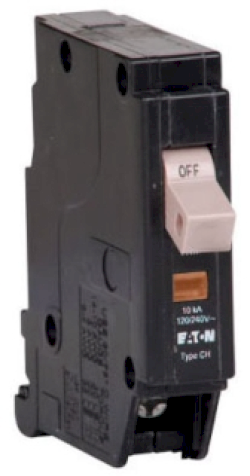

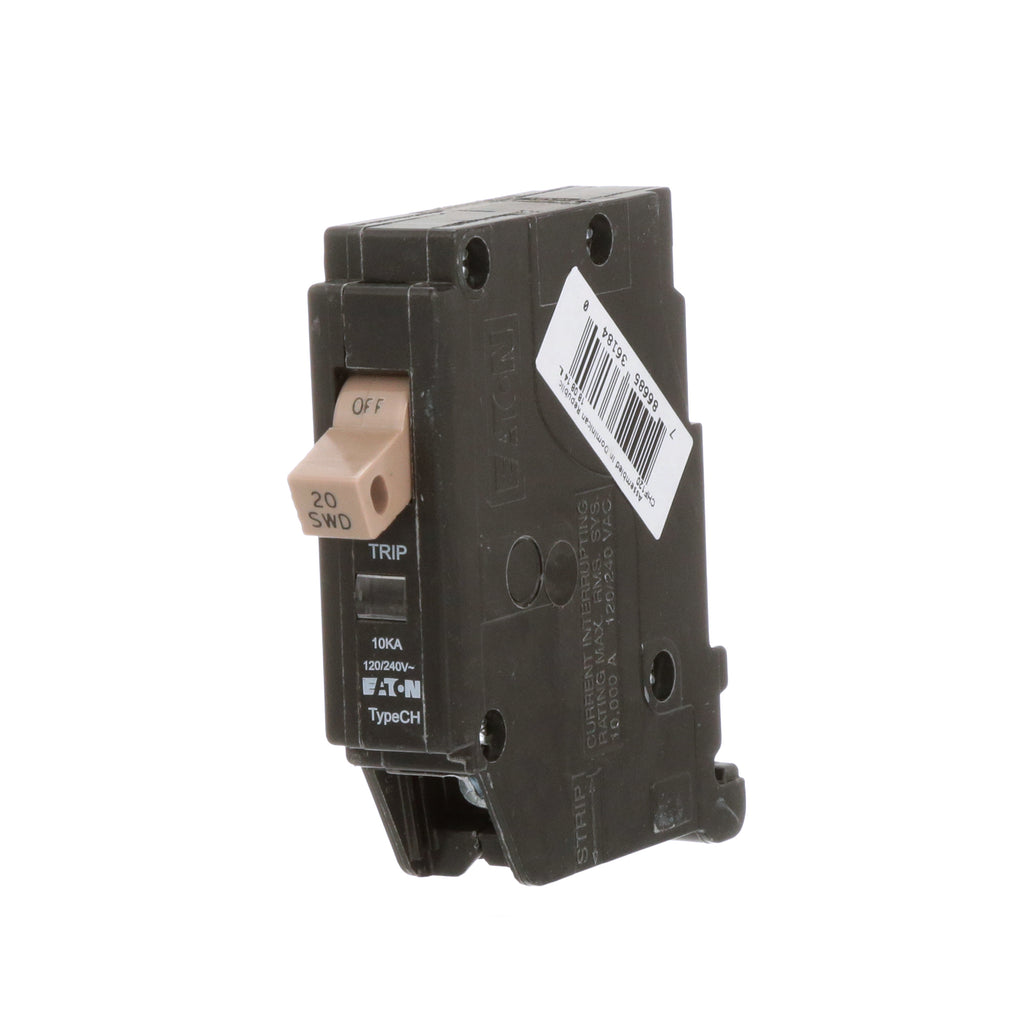

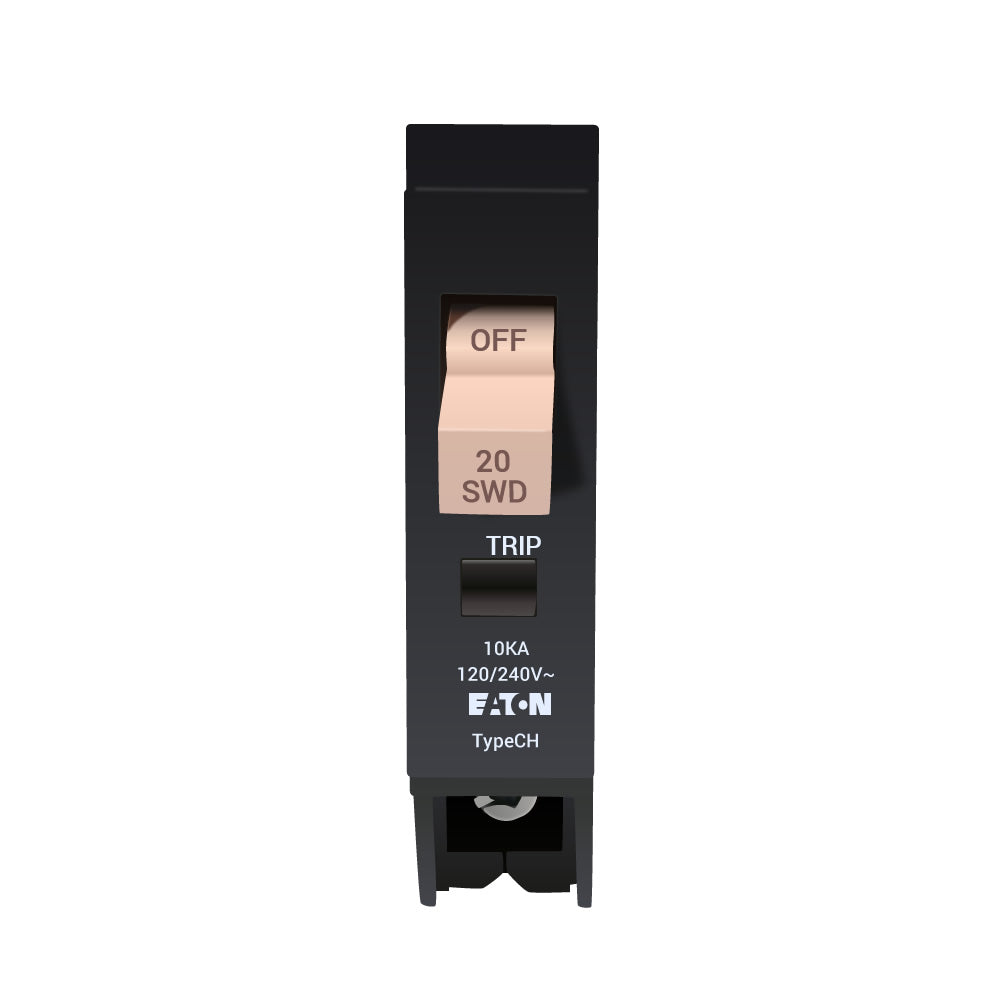

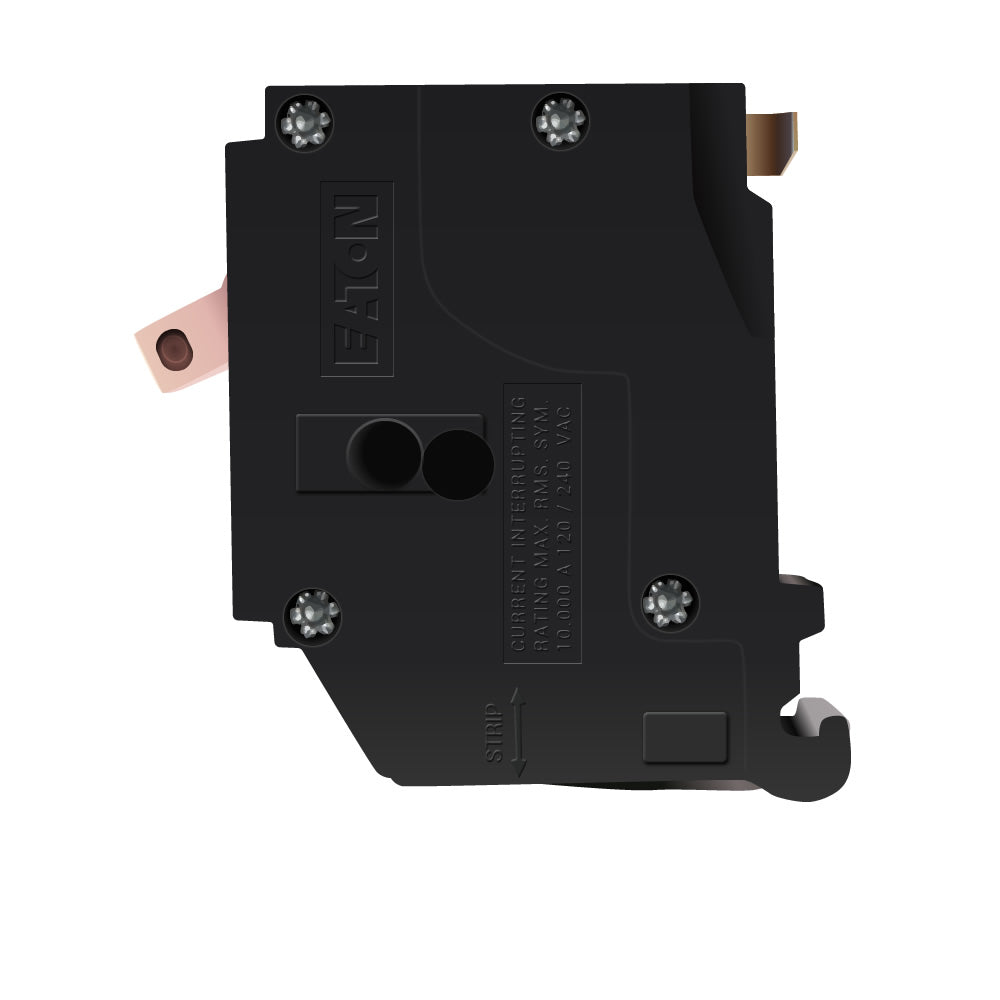

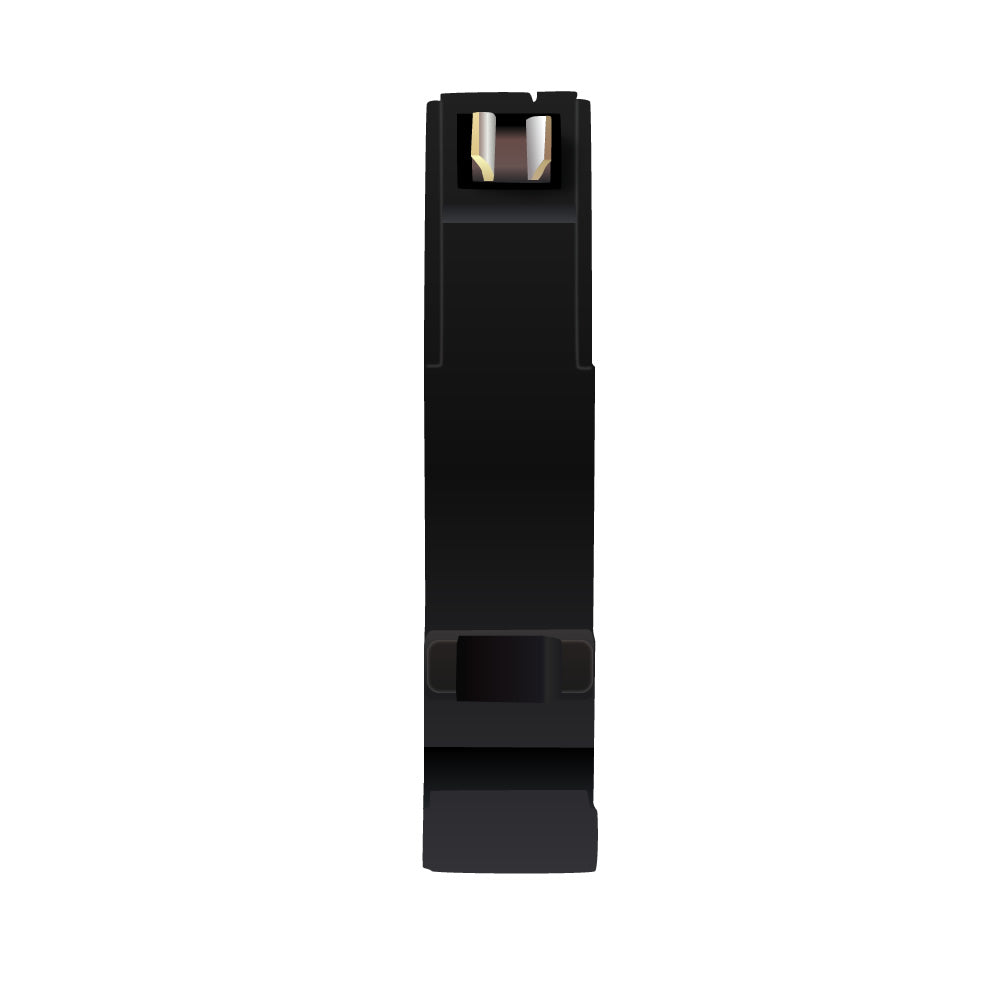

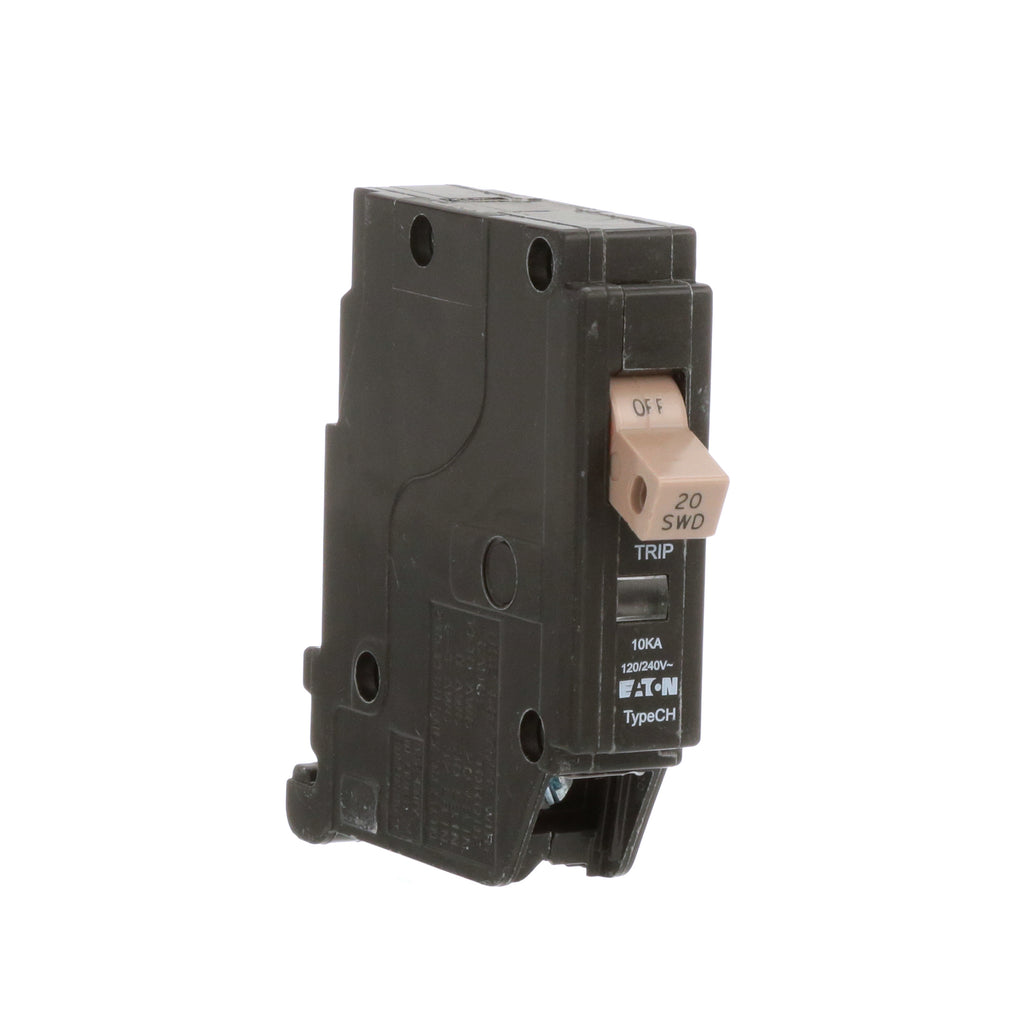

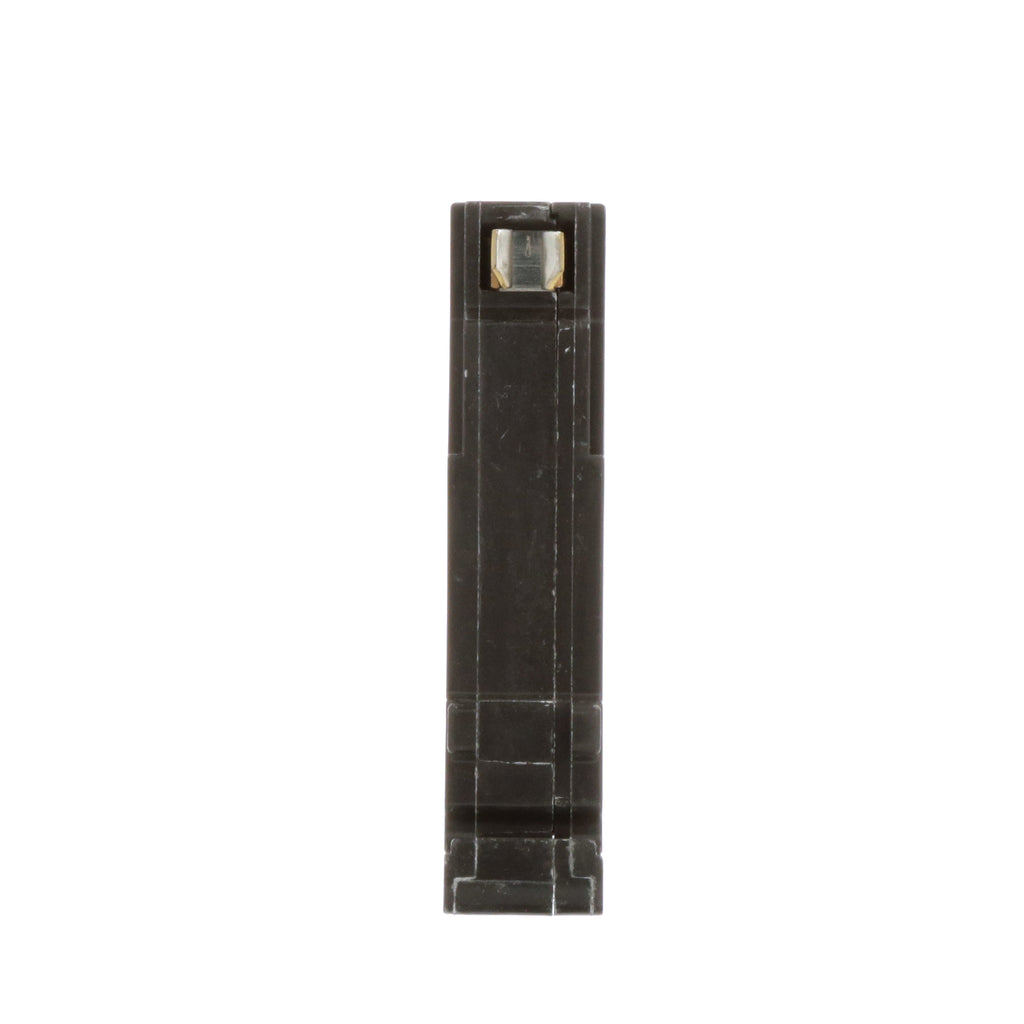

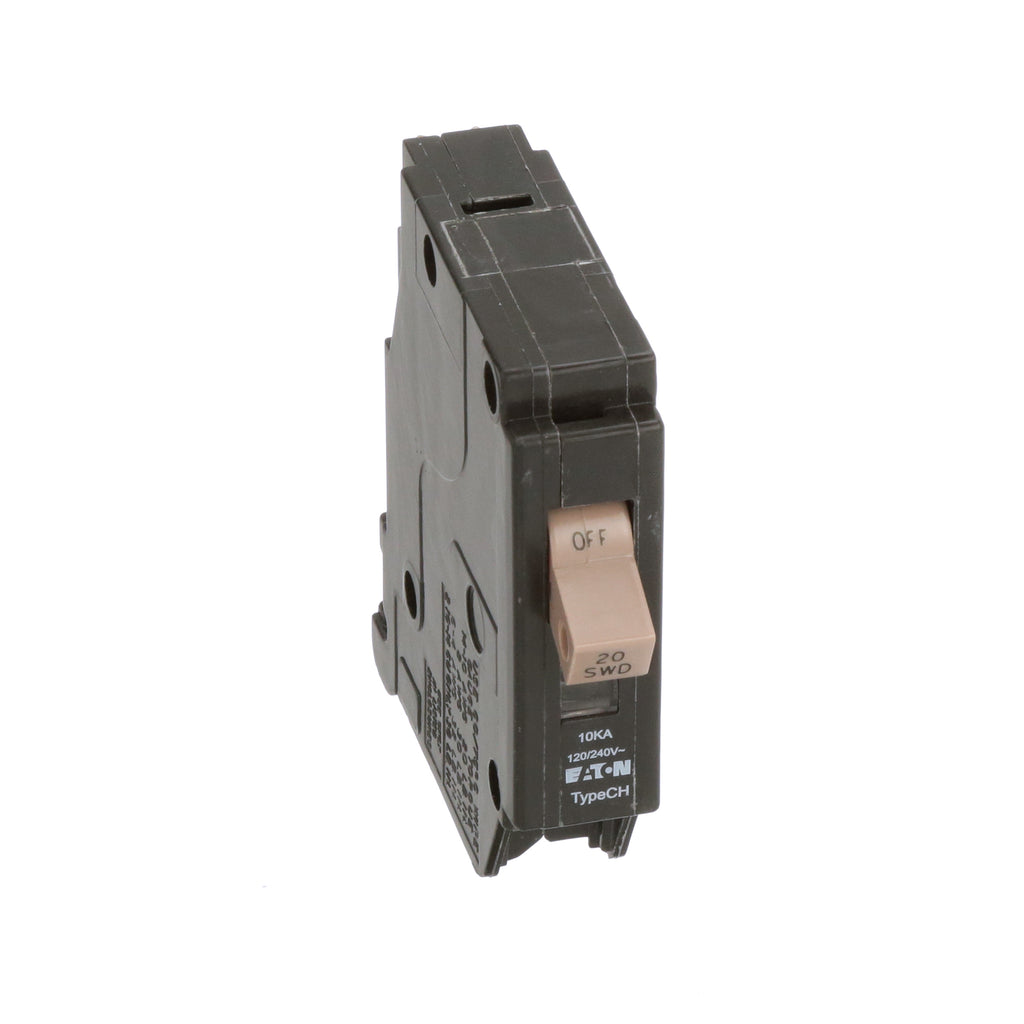

CHF120 - Westinghouse 20 Amp 120/240V 1-Pole Plug-On Circuit Breaker, 10kA Interrupt Rating

CHF120

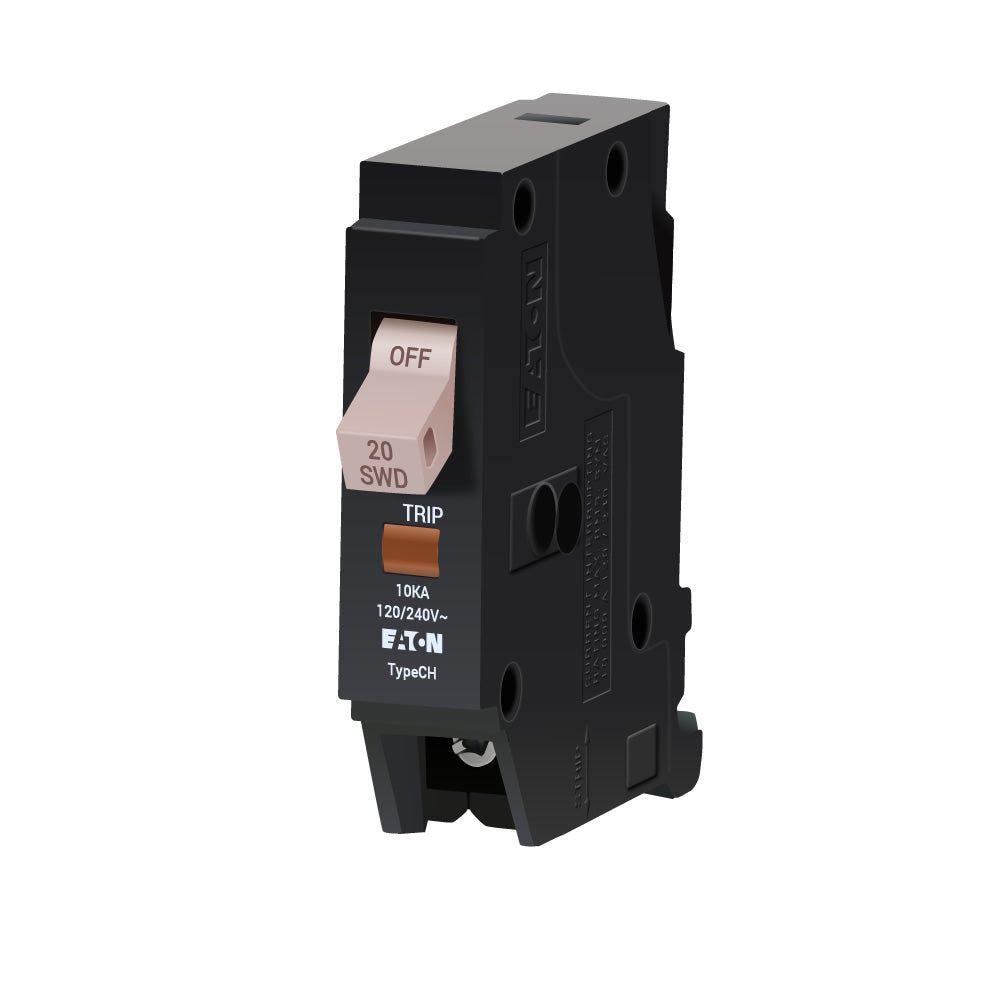

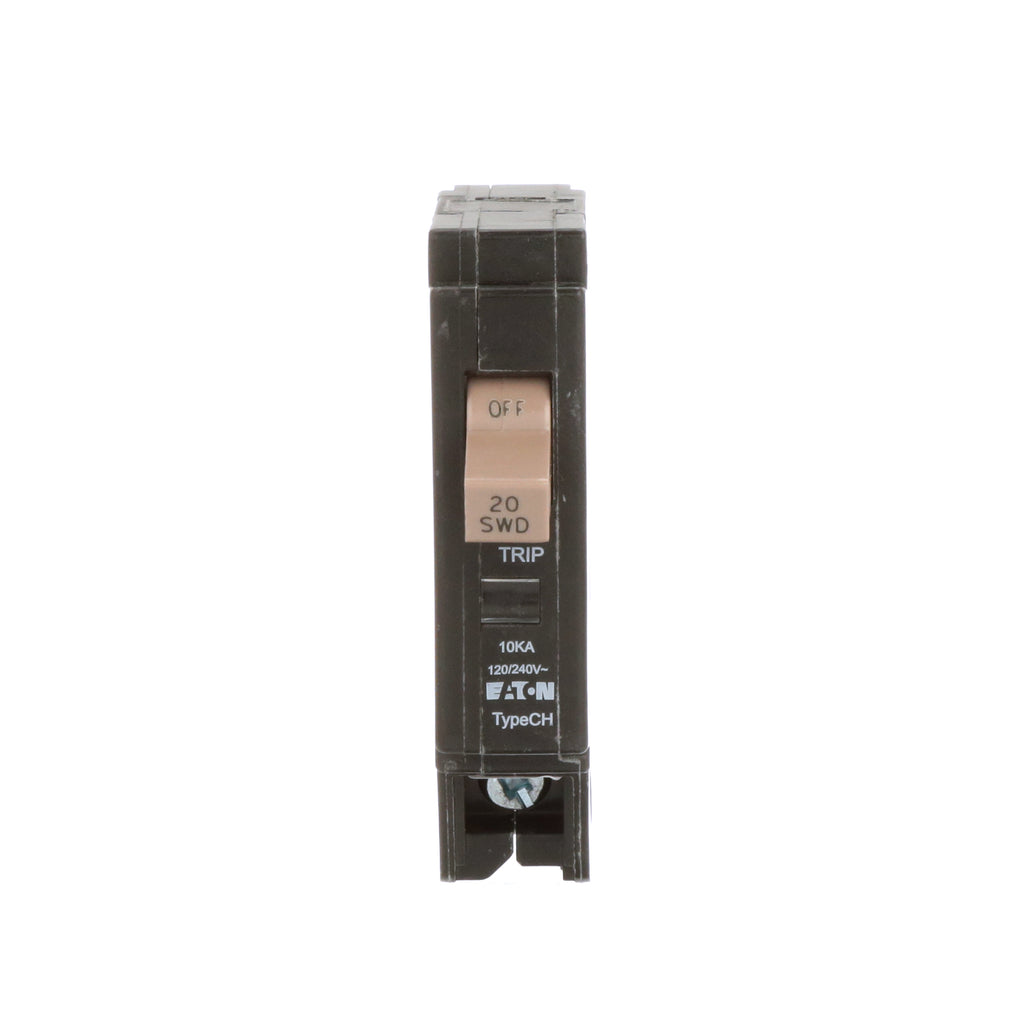

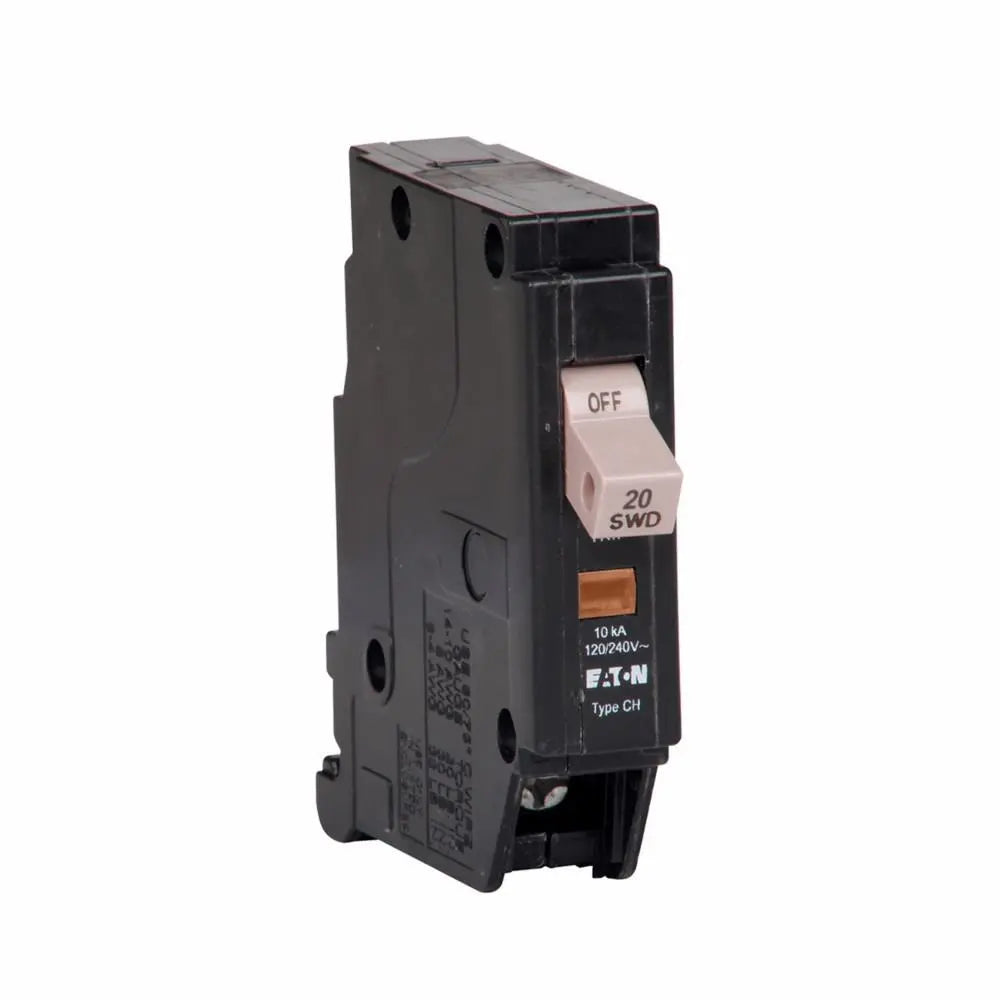

CHF120 is a Westinghouse 1-pole circuit breaker rated for 20 amps and 120/240 volts with a 10kA interrupting rating.This molded case circuit breaker features a plug-on mounting type compatible with Type CH loadcenters. It includes thermal magnetic protection with long-time and instantaneous trip functions and a trip flag for trip indication. The breaker is UL listed and designed for residential and light commercial applications.

• Manufacturer: Westinghouse
• Part Number: CHF120
• Amperage: 20 Amps
• Voltage: 120/240 VAC
• Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 10kA at 120V
• Series/Frame: CH
• Trip Unit: Thermal Magnetic with Trip Flag
• Certifications: UL Listed
• Compatible with Type CH Loadcenters
• Wire Size: #14-8 AWG Copper/Aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHF120
• Manufacturer : Westinghouse
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CHF
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• MCM Size : Min. Wire Size (1) or (2) 14 AWG Max. Wire Size (1) 8 AWG, (2) 10 AWG (Cu/Al)
• Breaker Type : CHF
• Protection : Thermal Magnetic

Product Data

• UPC : 786685361840
• GTIN : 00786685361840
• Country of Origin : United States
• Dimensions : 3 in x 3 in x 0.75 in (Length/Depth x Height x Width)
• Weight : 0.28
• Panel Type : Type CH Loadcenters
• Standards : UL 489, HACR Rated
• Certification : UL 489, HACR Rated
• Wire Size : 1x AWG 14 to AWG 8, 2x AWG 14 to AWG 10, Copper/Aluminum
