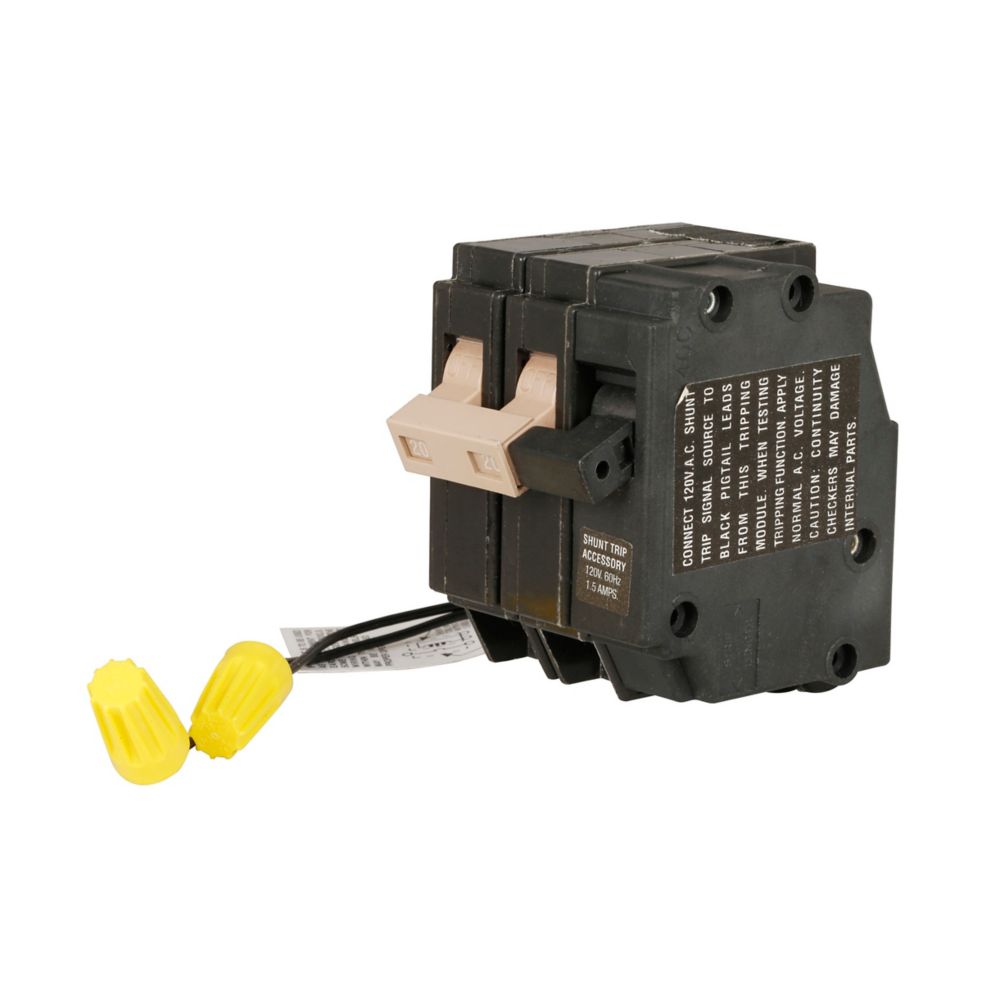

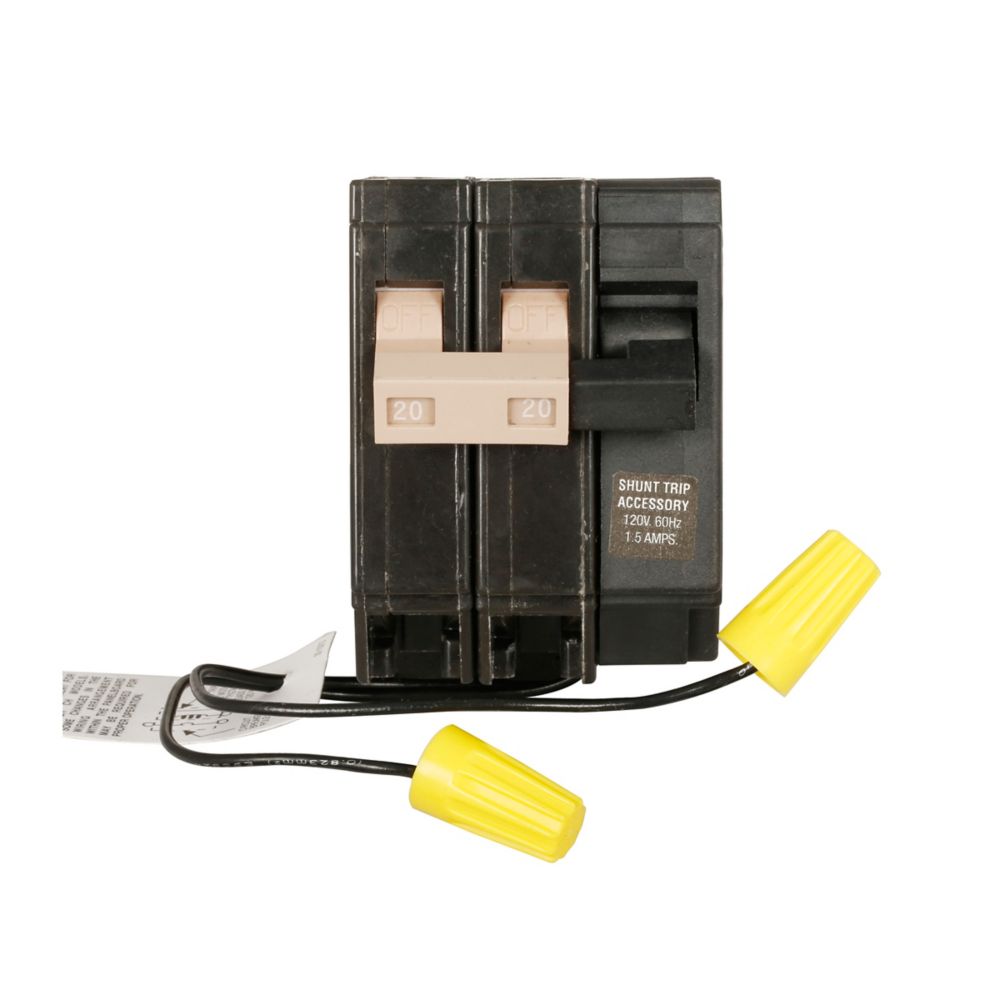

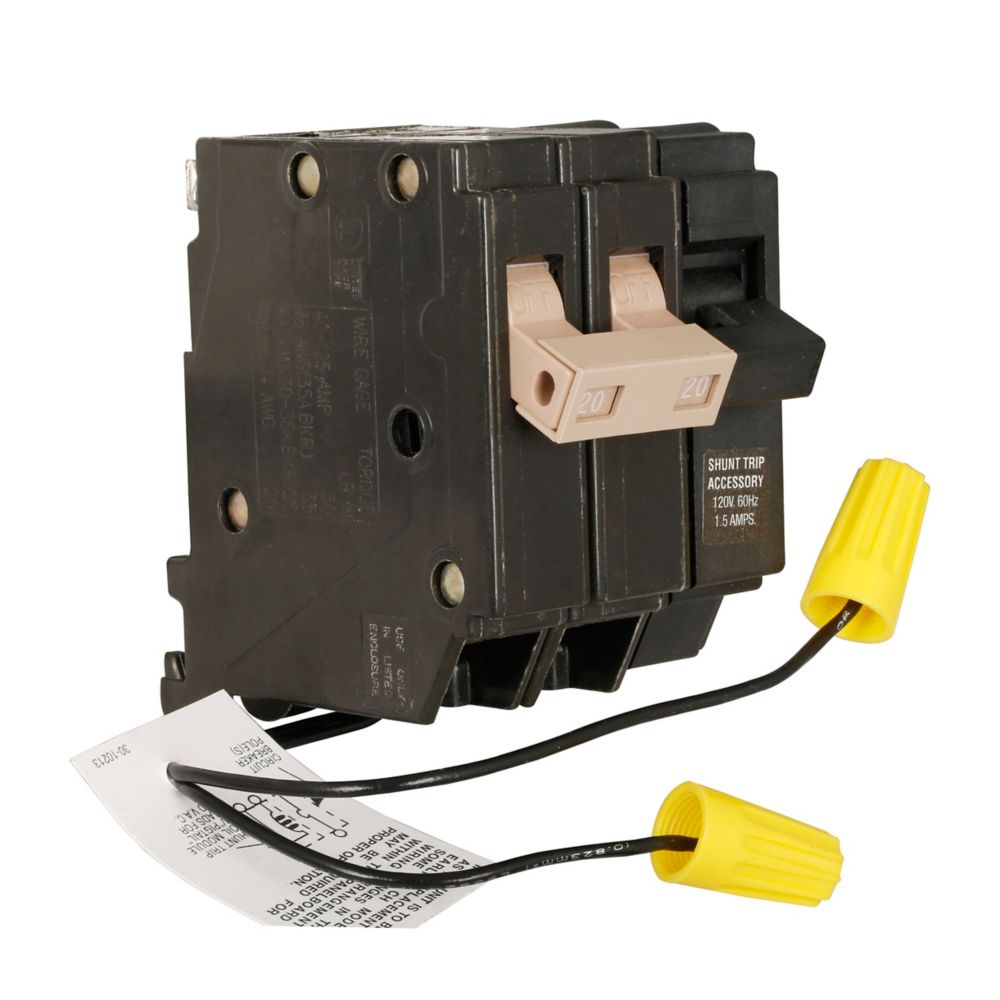

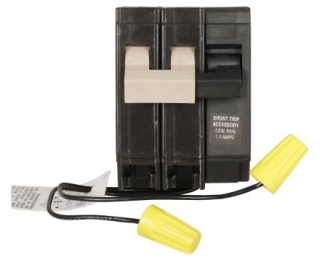

CH2100ST - Cutler Hammer 100A 120/240V 2-Pole Thermal Magnetic Circuit Breaker with Shunt Trip

CH2100ST

CH2100ST is a Cutler Hammer Type CH 3/4-inch standard circuit breaker designed for residential and commercial load centers. This 100A, 120/240V, two-pole breaker features a 10 kAIC interrupt rating, common trip, and includes a shunt trip for remote circuit disconnection. It is compatible with Type CH loadcenters and supports wire sizes from #10 to 1/0 AWG copper or aluminum. This molded case circuit breaker provides reliable thermal magnetic protection for branch circuits. The shunt trip mechanism allows for remote tripping, making it ideal for applications requiring remote control or emergency shutdown. The breaker is UL 489 listed and suitable for use in both 120V and 240V AC systems.

• Part Number: CH2100ST
• Manufacturer: Cutler Hammer
• Amperage Rating: 100 A
• Voltage Rating: 120/240 V
• Number of Poles: Two-pole
• Mounting Type: 3/4-inch plug-in for Type CH loadcenters
• Interrupt Rating: 10 kAIC
• Series/Frame: Type CH
• Shunt Trip: Included
• Wire Size: #10-1/0 AWG Cu/Al
• Common Trip: Yes
• Certifications: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH2100ST
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : CH
• Protection : Thermal Magnetic

Product Data

• UPC : 782113364285
• GTIN : 00782113364285
• Country of Origin : Dominican Republic
• Dimensions : 3.5 in x 4.4 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 0.9
• Certification : UL 489
