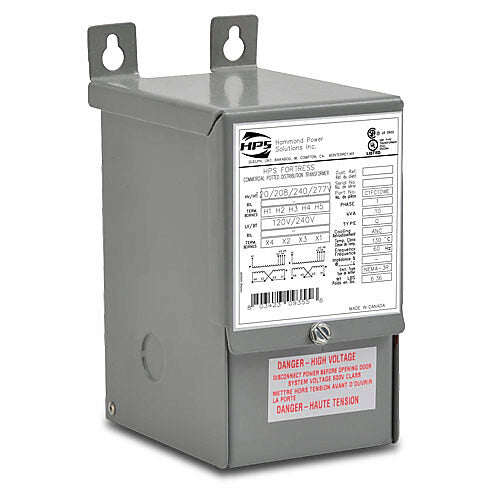

Hammond Power Solutions C1FC25WE - Single-Phase Transformer 250VA (Type 3R/IP24)

C1FC25WE

Hammond Power Solutions C1FC25WE is a general duty single-phase transformer designed for industrial power distribution applications. This 250VA transformer features flexible primary voltage inputs of 277V, 240V, 208V, or 120V with a secondary output of 120/240V, constructed with copper windings rated for 95°C temperature rise and 130°C insulation class. The unit is housed in a compact Type 3R/IP24 enclosure measuring 7.19×4.31×5.56 inches with ANSI 61 grey finish, operating at 60Hz frequency with sound levels below 45dBA. It complies with IBC 2018 seismic standards (Sds=2.0, z/h=1, lp=1.5) and features UL50 enclosure certification for reliable performance in demanding environments. Typical applications include industrial control systems, machinery power supplies, and commercial electrical distribution where robust construction and seismic compliance are required. Key Features & Specifications

• Type: Single-phase general duty transformer
• Voltage: Primary 277/240/208/120V, Secondary 120/240V
• Current: 250VA capacity
• Frequency: 60Hz operation
• Material: Copper windings
• Temperature Rating: 95°C rise, 130°C insulation class
• Enclosure: Type 3R/IP24, ANSI 61 Grey
• Dimensions: 7.19" H × 4.31" W × 5.56" D (183×110×142mm)
• Sound Level: 45dBA maximum
• Seismic Compliance: IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Impedance: 1-5% standard

Specifications

• Part Number: C1FC25WE
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 250VA 277,240,208,120V-120/240V 60Hz CU
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 277, 240, 208, 120
• Primary Connection : Series (V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 95°C
• Insulation Class : 130°C
• EKVA : 0.25
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Secondary Termination (NPL) : Wire Leads
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ1-N3R
• Enclosure Dimensions : 7.19in/183mm(H), 4.31in/110mm(W), 5.56in/142mm(D)
• Nameplate : Standard
• Standard kVA : 0.25
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No

Product Data

• UPC : 803423093570
• Weight : 13
• Certification : CSA, UL
