C1F005LES - Hammond Power Solutions 5kVA 1-Phase 240/480V Primary NEMA 3R

C1F005LES

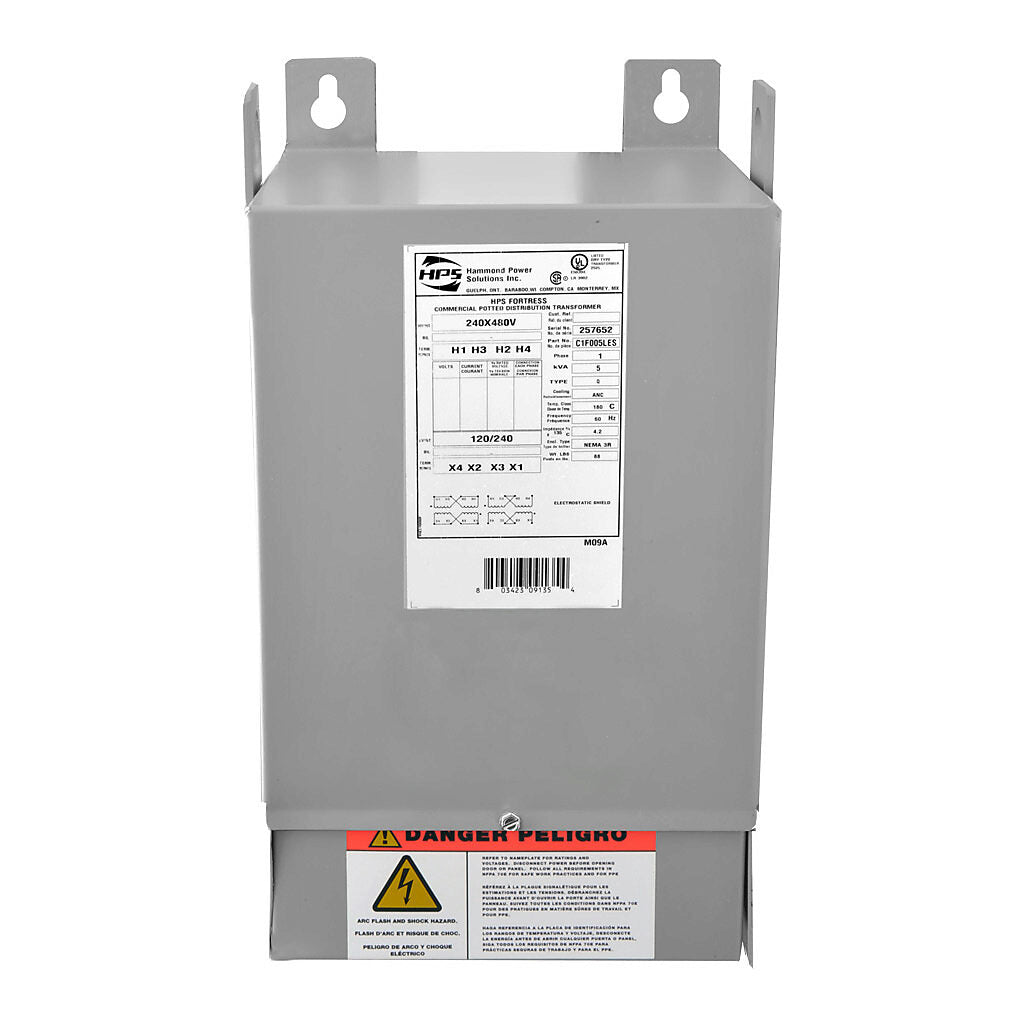

C1F005LES is a single-phase encapsulated core distribution transformer rated 5kVA with 240/480 VAC primary voltage and 120/240 VAC secondary voltage for commercial and light industrial applications.

This wall-mounted transformer features an innovative potted design with a hinged cover providing single screw access to the wiring compartment. The totally enclosed construction seals out moisture and airborne contaminants. Rear and side entry conduit knockouts lead to an easily accessible wiring compartment. The unit includes keyhole mounting slots and a supplied wall mounting template for quick installation. All welded core construction uses high-quality, high-permeability silicon steel laminations with copper or aluminum windings. An electrostatic shield is standard. The NEMA 3R enclosure meets or exceeds NEMA and ANSI standards for indoor and outdoor applications, with NEMA 4/12 rating available when an optional gasket kit is installed.

• Power Rating: 5kVA
• Phase: Single Phase (1-Phase)
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Frequency: 60 Hz
• Enclosure Type: NEMA 3R
• Mounting Type: Wall Mount
• Core Construction: All Welded, Silicon Steel Laminations
• Electrostatic Shield: Standard
• Dimensions: 10 in W x 7.75 in D x 17.25 in H
• Approximate Weight: 115 lbs
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: C1F005LES
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 5kVA 240x480V-120/240V 60Hz AL
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 240x480
• Primary Connection : Parallel x Series (Vx2V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Aluminum
• Temperature Rise : 135°C
• Insulation Class : 180°C
• EKVA : 5
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Secondary Termination (NPL) : Wire Leads
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ5-N3R
• Enclosure Dimensions : 17.25in/439mm(H), 10in/254mm(W), 7.75in/197mm(D)
• Electrostatic Shield : Single
• Nameplate : Standard
• Standard kVA : 5
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No

Product Data

• UPC : 803423091354
• GTIN : 00803423091354
• Weight : 110
• Certification : CSA, UL

Documentation and Resources

• Engineering Drawing (PDF)
• Brochure
• Hammond Product Application Videos
• Frequently Asked Questions
• Troubleshooting Guide
• Enclosure CAD Drawing (PDF)
