C1FC10WE Hammond Power Solutions HPS Fortress Commercial Encapsulated Distribution Transformer

C1FC10WE

C1FC10WE HPS Fortress Commercial Encapsulated Distribution Transformer

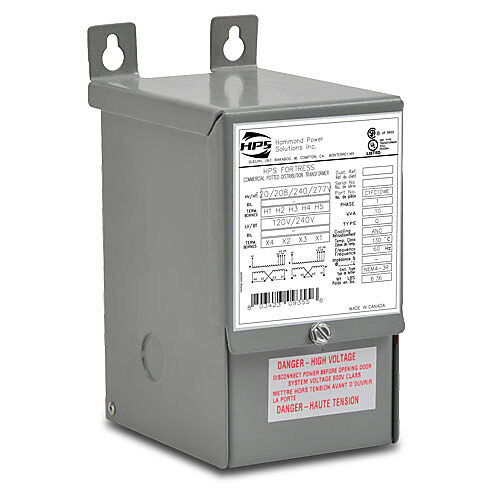

C1FC10WE is a Hammond Power Solutions HPS Fortress commercial encapsulated distribution transformer rated 100 VA for single-phase, 60 Hz service. It provides a selectable 120/208/240/277 V AC primary and a 120/240 V AC secondary in a Type 3R configuration.

The exact catalog build uses an NQ0 case, wall mounting, pigtail connections, a 130 deg C insulation system with 80 deg C rise, and no electrostatic shield. Manufacturer documentation identifies UL file E50394 and CSA file LR3902 for the applicable HPS Fortress rating range.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

• Commercial power distribution in shopping centers and office buildings
• Transformer service for schools and sports complexes
• Lighting applications supported by the HPS Fortress series

Key Features

• Encapsulated construction: Electrical-grade silica sand and resin surround the core and coil.
• Outdoor-capable case: Type 3R construction supports manufacturer-listed indoor and outdoor applications.
• Installation format: Wall mounting and front-accessible pigtail connections are specified for this exact catalog number.
• Finish: ANSI 61 Grey finish is documented to UL50.

Specifications

• Power Rating: 0.10 kVA / 100 VA
• Phase: Single phase
• Primary Voltage: 120/208/240/277 V AC
• Secondary Voltage: 120/240 V AC
• Frequency: 60 Hz
• Enclosure Type: Type 3R / NEMA 3R
• Case Style: NQ0
• Mounting: Wall
• Connection: Pigtail
• Insulation System: 130 deg C with 80 deg C rise
• Electrostatic Shield: No
• Fused: No

Product Identification

• Catalog Number: C1FC10WE
• Manufacturer: Hammond Power Solutions Inc.
• Series: HPS Fortress
• Approximate Case Dimensions: 3.69 W x 5.06 D x 7.19 H in
• Maximum Overall Dimensions: 3.75 W x 5.25 D x 7.25 H in
• Approximate Product Weight: 7 lb
• UPC: 803423093556
• GTIN: 00803423093556
• UL Listing: File E50394
• CSA Certification: File LR3902

FAQ

What is Hammond Power Solutions C1FC10WE?

It is a 100 VA, single-phase HPS Fortress commercial encapsulated distribution transformer for 60 Hz service.

What primary and secondary voltages does C1FC10W

Specifications

• Part Number: C1FC10WE
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 100VA 277,240,208,120V-120/240V 60Hz CU
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 277, 240, 208, 120
• Primary Connection : Series (V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 95°C
• Insulation Class : 130°C
• EKVA : 0.1
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Secondary Termination (NPL) : Wire Leads
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ0-N3R
• Enclosure Dimensions : 7.19in/183mm(H), 3.69in/94mm(W), 5.06in/129mm(D)
• Nameplate : Standard
• Standard kVA : 0.1
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No

Product Data

• UPC : 803423093556
• Weight : 6 lb
• Certification : CSA, UL

Documentation and Resources

• Engineering Drawing (PDF)
• Brochure
• Hammond Product Application Videos
• Frequently Asked Questions
• Troubleshooting Guide
• Enclosure CAD Drawing (PDF)
