Hammond Power Solutions C1F007LES - Transformer 7.5kVA 240x480V-120/240V

C1F007LES

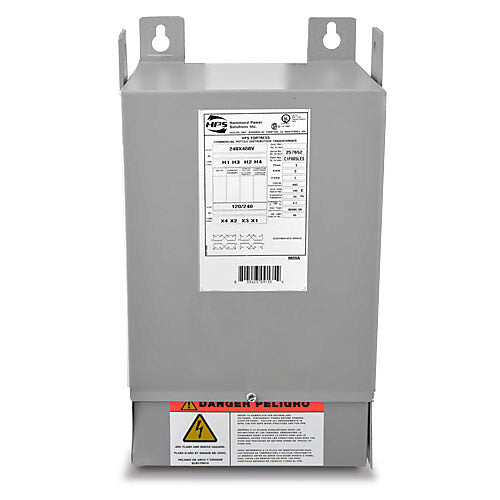

Hammond Power Solutions C1F007LES is a single-phase general duty transformer designed for industrial power distribution applications. This 7.5 kVA transformer features versatile voltage configurations with primary voltage of 240x480V and secondary voltage of 120/240V, operating at 60Hz frequency with aluminum windings rated for 135°C temperature rise and 180°C insulation class. The unit is housed in a Type 3R/IP24 enclosure with ANSI 61 Grey finish, measuring 17.63 inches in height, 12.25 inches in width, and 9.25 inches in depth, and operates at a quiet 45dBA sound level. It complies with IBC 2018 seismic standards (Sds=2.0, z/h=1, lp=1.5) and features NEMA ST-20 construction with standard impedance ranging from 1% to 5%. Typical applications include industrial control systems, machinery power supplies, and commercial electrical distribution where reliable voltage transformation is required. Key Features & Specifications

• Type: Single-Phase General Duty Transformer
• Voltage: Primary 240x480V, Secondary 120/240V
• Current: 7.5 kVA Capacity
• Frequency: 60Hz
• Material: Aluminum Windings
• Temperature Rise: 135°C
• Insulation Class: 180°C
• Enclosure: Type 3R/IP24, ANSI 61 Grey
• Dimensions: 17.63" H x 12.25" W x 9.25" D
• Sound Level: 45dBA (NEMA ST-20)
• Impedance: 1% - 5% Standard
• Seismic Compliance: IBC 2018 (Sds=2.0)

Specifications

• Part Number: C1F007LES
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 7.5kVA 240x480V-120/240V 60Hz AL
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 240x480
• Primary Connection : Parallel x Series (Vx2V)
• Primary FCAN (NPL) : 2x2.5%
• Primary FCBN (NPL) : 4x2.5%
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Aluminum
• Temperature Rise : 135°C
• Insulation Class : 180°C
• EKVA : 7.5
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Secondary Termination (NPL) : Mounting Pads
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ6A-N3R
• Enclosure Dimensions : 17.63in/448mm(H), 12.25in/312mm(W), 9.25in/235mm(D)
• Electrostatic Shield : Single
• Nameplate : Standard
• Standard kVA : 7.5
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No

Product Data

• UPC : 803423091361
• GTIN : 00803423091361
• Weight : 155
• Certification : CSA, UL
