C1F1C5LES - Hammond Power Solutions 1.5 kVA 1-Phase 240/480V Primary 120/240V Secondary NEMA 3R Wall Mount Transformer

C1F1C5LES

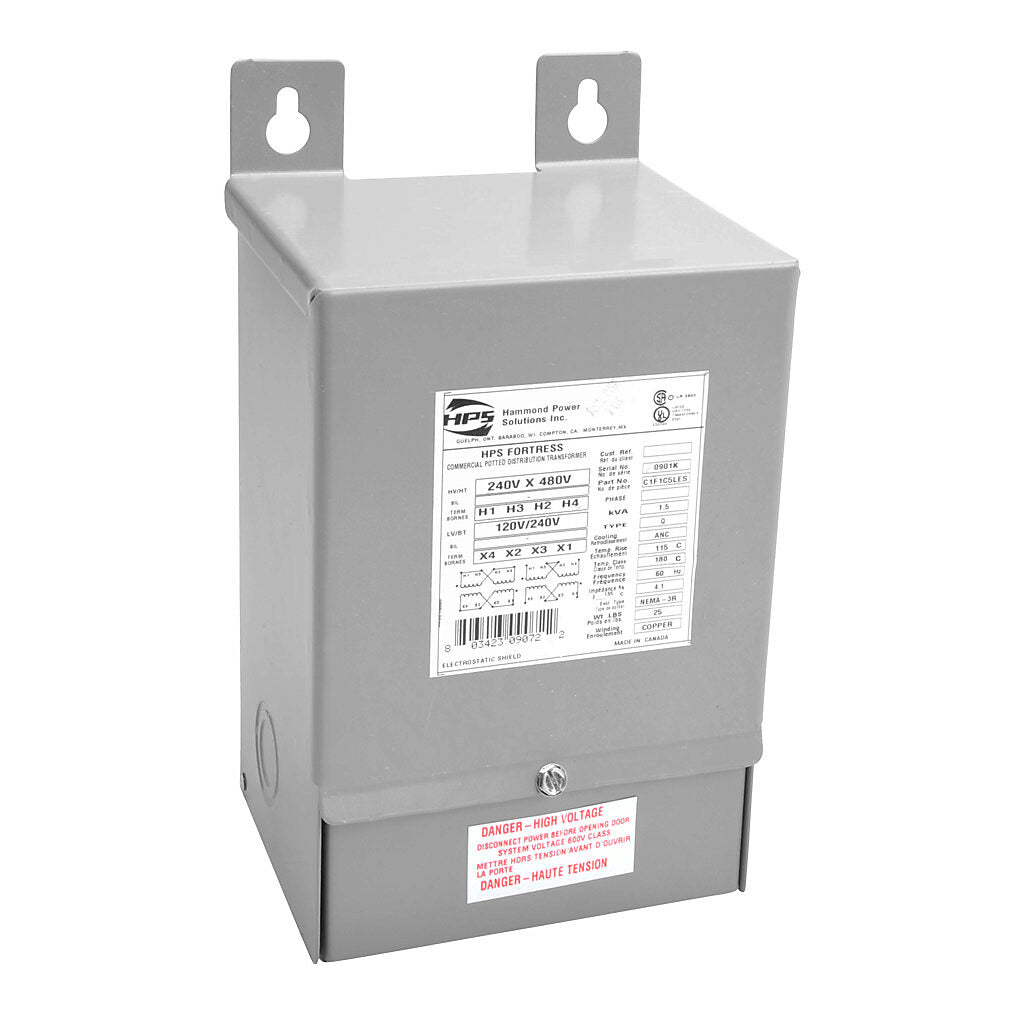

C1F1C5LES is a 1.5 kVA single-phase encapsulated transformer designed for commercial applications by Hammond Power Solutions.This transformer features a 240/480 VAC primary voltage and 120/240 VAC secondary voltage with a 60 Hz frequency. It is part of the HPS Fortress series, encapsulated with electrical grade silica sand and resin compounds to protect against moisture and contaminants. The unit comes in a NEMA 3R rated enclosure suitable for indoor and outdoor use and is designed for wall mounting. It includes lead wire/tab connections and an electrostatic shield for enhanced performance.

Key Specifications
• Power Rating: 1.5 kVA
• Phase: Single-phase
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Frequency: 60 Hz
• Enclosure Type: NEMA 3R (Indoor/Outdoor)
• Mounting Type: Wall Mount
• Connection Type: Lead Wire/Tab
• Series: HPS Fortress
• Encapsulation: Electrical grade silica sand and resin
• Electrostatic Shield: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: C1F1C5LES
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 1.5kVA 240x480V-120/240V 60Hz CU
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 240x480
• Primary Connection : Parallel x Series (Vx2V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 135°C
• Insulation Class : 180°C
• EKVA : 1.5
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Secondary Termination (NPL) : Wire Leads
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ3-N3R
• Enclosure Dimensions : 10.56in/269mm(H), 5.88in/150mm(W), 5.19in/132mm(D)
• Electrostatic Shield : Single
• Nameplate : Standard
• Standard kVA : 1.5
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No

Product Data

• UPC : 803423090722
• GTIN : 00803423090722
• Weight : 36
• Certification : CSA, UL

Documentation and Resources

• Engineering Drawing (PDF)
• Brochure
• Hammond Product Application Videos
• Frequently Asked Questions
• Troubleshooting Guide
• Enclosure CAD Drawing (PDF)
