C1F1C0LES - Hammond Power Solutions 1kVA 240/480V 120/240V 1-Phase Distribution Transformer

C1F1C0LES

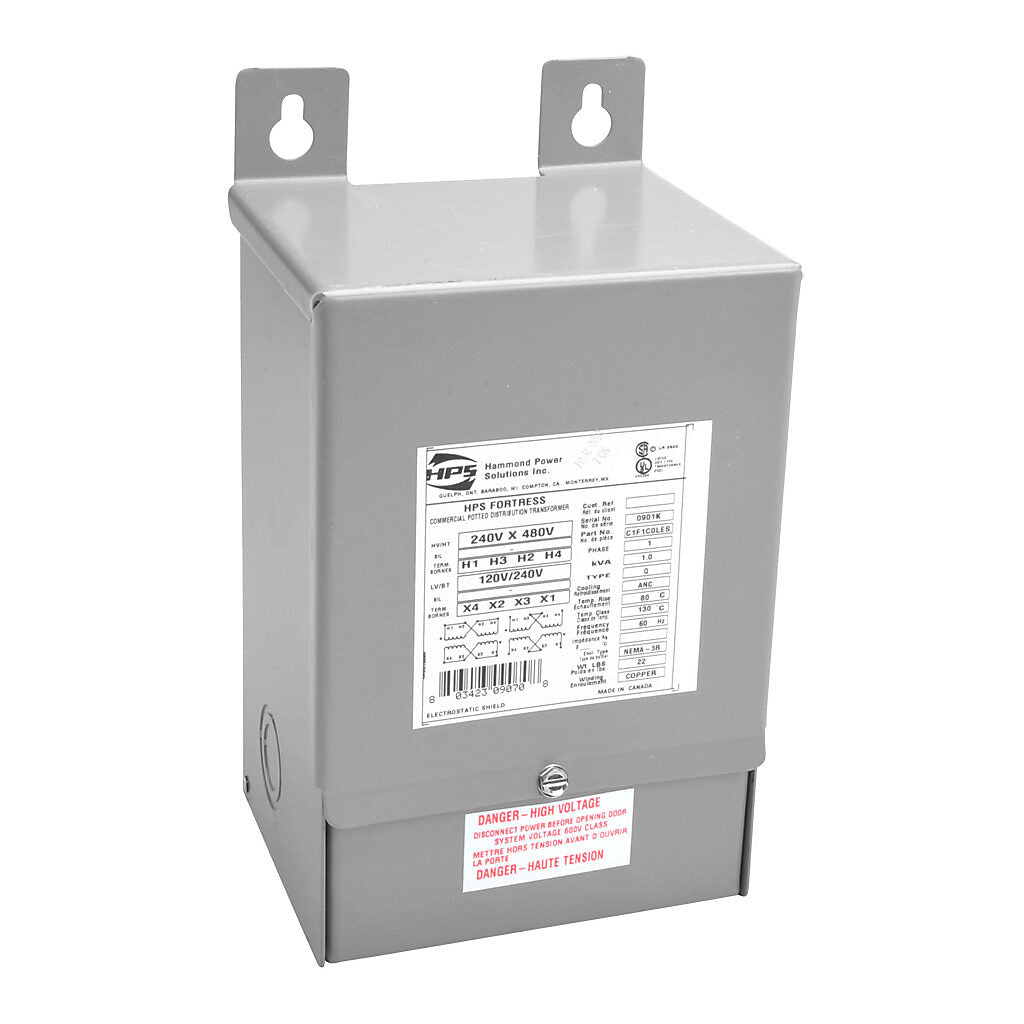

C1F1C0LES is a single-phase encapsulated distribution transformer designed for commercial indoor and outdoor applications. This 1 kVA unit features a 240/480 VAC primary voltage and 120/240 VAC secondary voltage with 60 Hz frequency rating and wall-mount installation. Key Specifications

• Part Number: C1F1C0LES
• Manufacturer: Hammond Power Solutions
• Power Rating: 1 kVA
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Phase: Single Phase (1-ph)
• Frequency: 60 Hz
• Enclosure Type: NEMA 3R (NQ3-N3R)
• Mounting: Wall Mount
• Connection: Copper Lead Wire/Tab
• Core Construction: All welded, high permeability silicon steel laminations
• Certifications: UL Listed, CSA Certified
• Approximate Weight: 23.97 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: C1F1C0LES
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 1kVA 240x480V-120/240V 60Hz CU
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 240x480
• Primary Connection : Parallel x Series (Vx2V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 95°C
• Insulation Class : 130°C
• EKVA : 1
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ3-N3R
• Enclosure Dimensions : 10.56in/269mm(H), 5.88in/150mm(W), 5.19in/132mm(D)
• Electrostatic Shield : Single
• Nameplate : Standard
• Standard kVA : 1
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No
• Primary Termination (Std) : Wire Leads

Product Data

• UPC : 803423090708
• Weight : 22
• Certification : CSA, UL
