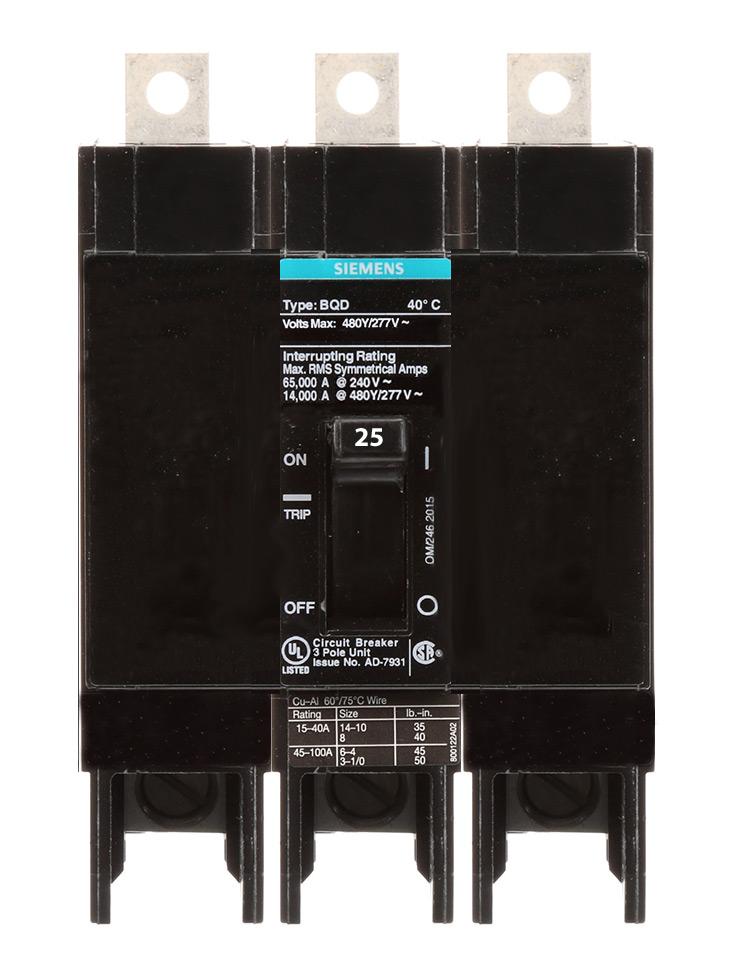

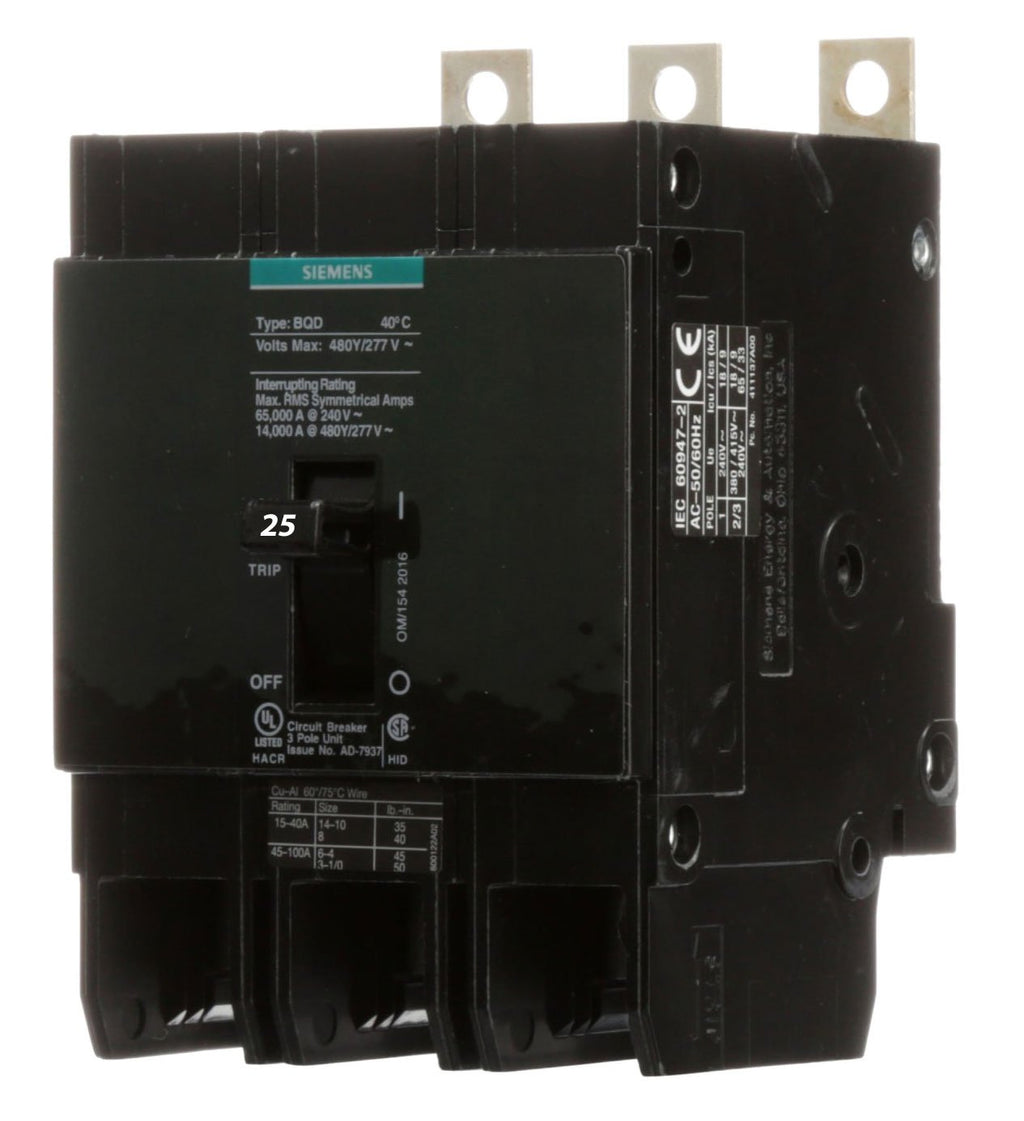

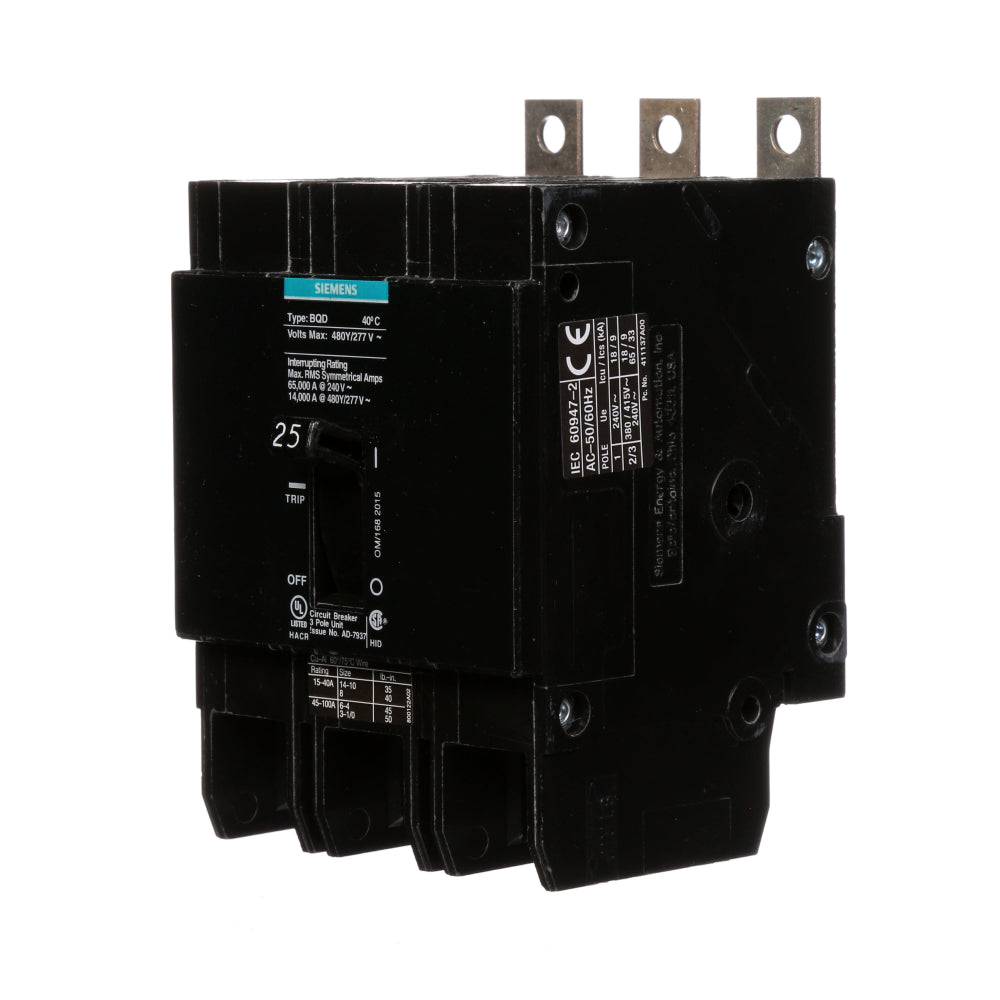

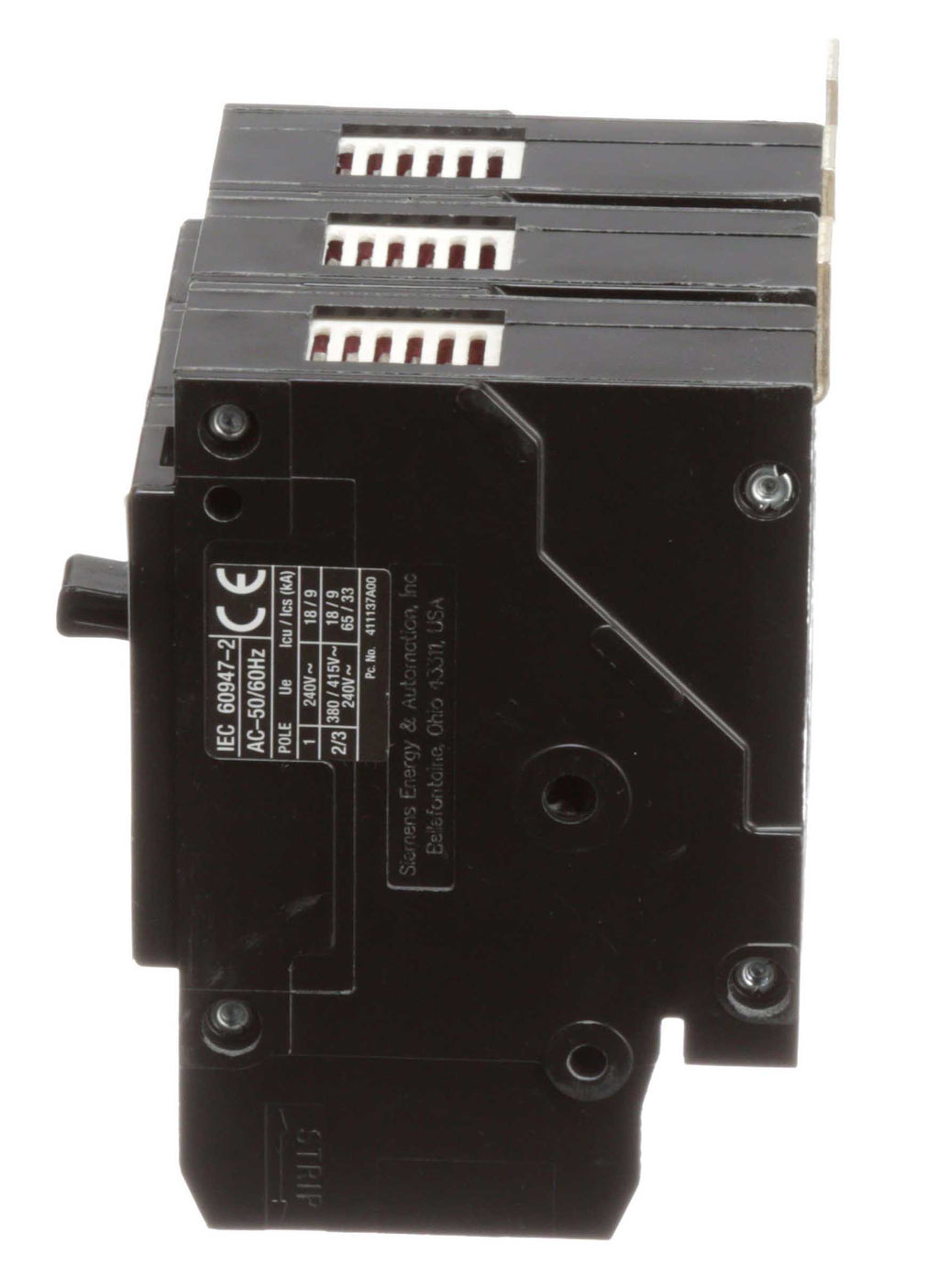

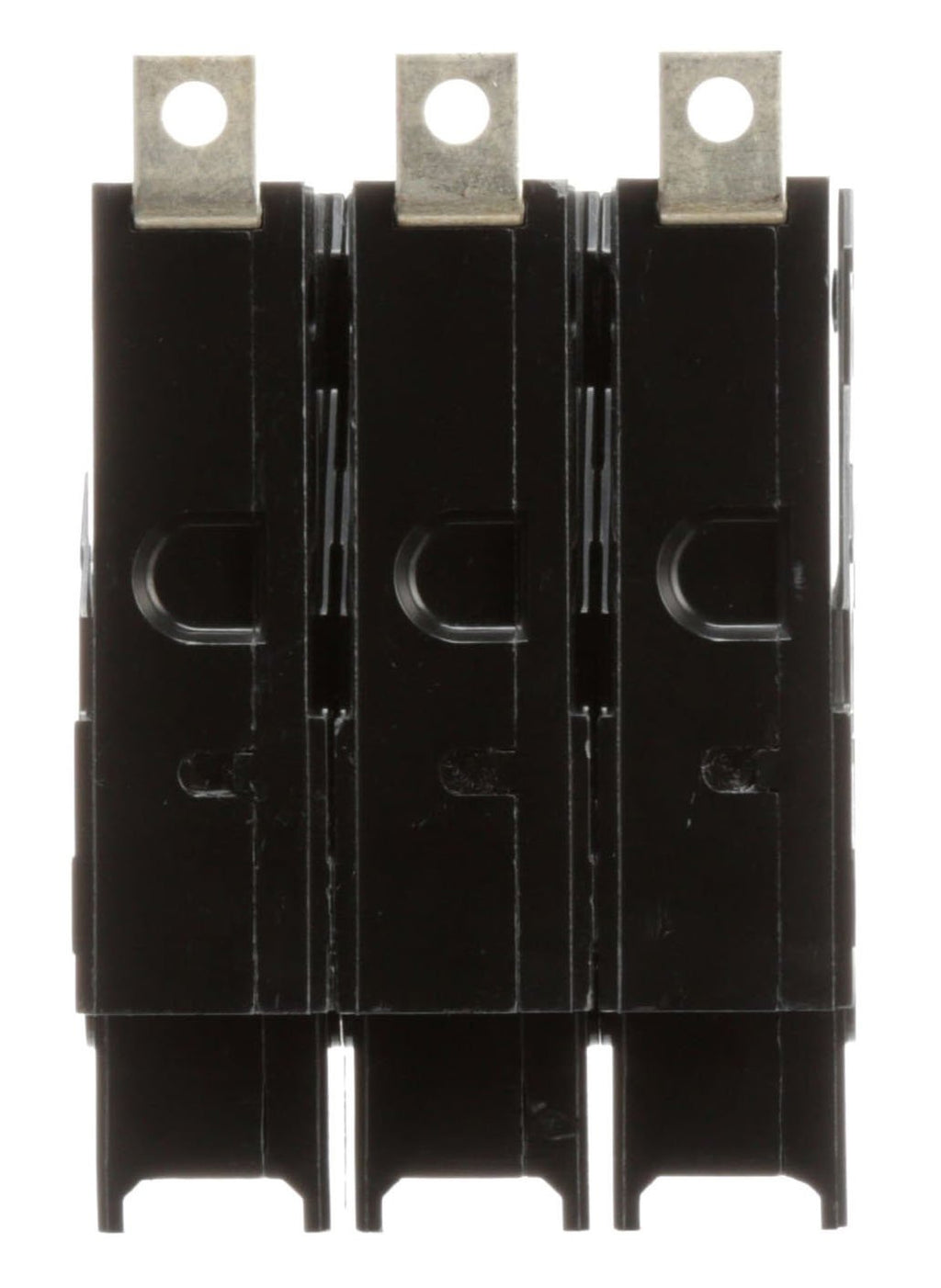

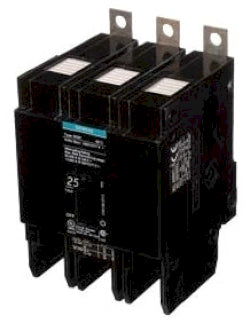

BQD325 - Siemens 25 Amp 480VAC 3 Pole Bolt-On Circuit Breaker, 14kA Interrupt Rating

BQD325

BQD325 is a Siemens 3 Pole 25 Amp circuit breaker designed for 480VAC applications with a 14kA interrupt rating.This Siemens BQD325 circuit breaker features a bolt-on mounting type and thermal magnetic trip unit with long time and instantaneous trip functions. It is part of the BQD series frame, UL, CSA, and IEC certified, suitable for use in P1 panelboards. The breaker supports wire sizes from AWG 12 copper to AWG 6 maximum, with a toggle actuator for easy operation.

Key Specifications
• Manufacturer: Siemens
• Part Number: BQD325
• Amperage: 25 Amps
• Voltage Rating: 480VAC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 14kA at 480VAC
• Frame Type: BQD
• Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
• Certifications: UL, CSA, IEC
• Connection Type: Lug
• Compatible Panelboards: P1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQD325
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQD Series
• Type : BQD
• Voltage : 480
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/BQD
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643277366
• GTIN : 00783643277366
• Country of Origin : Mexico
• Dimensions : 3 in x 4.49 in x 4.49 in
• Weight : 1.601
• Panel Type : Siemens P1 Panelboards
• Standards : CSA-C22.2,UL 525
• Certification : CSA-C22.2,UL 525
