BQC230240 - Cutler Hammer Eaton 4-Pole 30/40A 120/240V Plug-On Circuit Breaker 10kAIC Common Trip

BQC230240

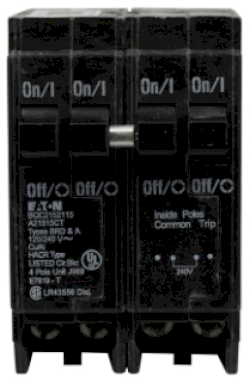

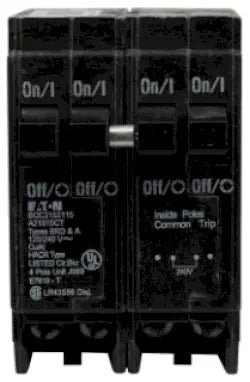

BQC230240 is an Eaton BR Type BQC thermal magnetic quadplex circuit breaker designed to create four circuits in two spaces, allowing for efficient 240-volt circuit distribution.

This 1-inch CTL plug-on circuit breaker features a common breaker trip mechanism and includes a rejection tab feature for secure installation in Type BR loadcenters. The quad configuration provides one 2-pole 30-amp circuit and one 2-pole 40-amp circuit at 120/240 volts, with an interrupt rating of 10 kAIC. Wire compatibility ranges from #14 to #4 AWG for both copper and aluminum conductors.

• Amperage Rating: (1) Two-Pole 30A, (1) Two-Pole 40A
• Voltage Rating: 120/240V
• Number of Poles: Four-pole
• Mounting Method: Plug-on (1-Inch CTL)
• Interrupt Rating: 10 kAIC
• Trip Type: Common breaker trip, thermal magnetic
• Wire Size: #14-4 AWG Cu/Al
• Special Features: Rejection tab feature
• Certification: UL 489
• Compliance: Federal Specifications Classification W-C375
• Compatible with Type BR Loadcenters
• HACR listed (all Type BQ quadplex breakers)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQC230240
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQC
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676371902
• GTIN : 00786676371902
• Country of Origin : United States
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Standards : HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C400
• Wire Size : AWG 14 to AWG 4, Cu/Al
