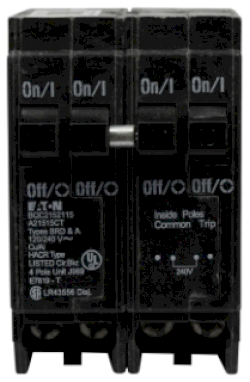

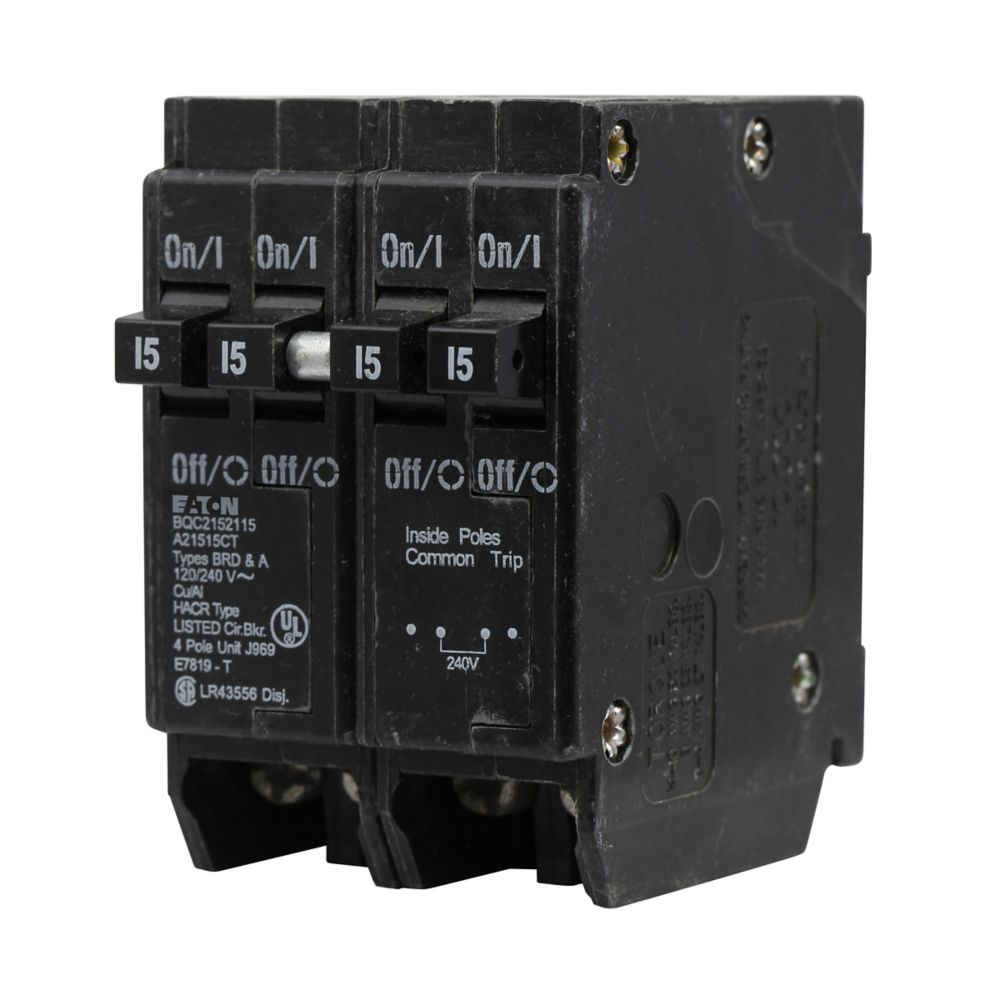

BQC2302115 - Eaton 4-Pole 120/240V Quadplex Molded Case Circuit Breaker, 15/30A, 10kA Interrupt, Plug-On

BQC2302115

BQC2302115 - Eaton Type BQC 1-inch CTL plug-on quad circuit breaker with (2) single-pole 15A, (1) two-pole 30A, and rejection tab feature.This Eaton BR thermal magnetic circuit breaker features common trip functionality, plug-on mounting for Type BR loadcenters, and 10 kAIC interrupt rating at 120/240V. It accepts #14-4 AWG Cu/Al wire and includes UL 489 certification with HACR and switch duty ratings.

• Amperage Rating: (2) Single-Pole 15A, (1) Two-Pole 30A
• Voltage Rating: 120/240V
• Number of Poles: Four-pole
• Mounting Type: Plug-on
• Interrupt Rating: 10 kAIC
• Series/Frame: BQC
• Trip Type: Thermal magnetic, common trip
• Wire Size: #14-4 AWG Cu/Al
• Certifications: UL 489
• Special Features: Rejection tab, HACR rated, switch duty rated
• Used With: Type BR loadcenters

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQC2302115
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQC
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676371773
• GTIN : 00786676371773
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Standards : HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C394
• Wire Size : AWG 14 to AWG 4, Cu/Al
