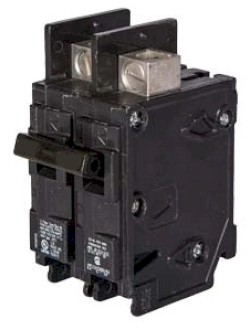

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Molded Case
- Series
- BQ Series
- Frame
- BQ
- Rated current
- 60
- Voltage
- 240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-on
- Terminals
- Lug
- Lugs
- Included
- Panel / equipment
- Siemens Panelboards
- Standards
- HACR Rated, UL Listed
- Country of origin
- Mexico
Show all specifications (9 more)
- Frame Size
- 125A/BQ
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
- Breaker Type
- Shunt Trip
- UPC
- 783643237766
- GTIN
- 00783643237766
- Dimensions
- 2.571 x 3.00 x 3.736 inch
- Weight
- 0.926
- Certification
- CSA, HACR, UL
Product description & additional details
BQ2B06000S01
BQ2B06000S01 is a Siemens 60 Amp, 240 Volt, 2 Pole bolt-on circuit breaker with a 120V shunt trip feature for enhanced control and safety.This BQ Series molded case circuit breaker offers thermal magnetic trip protection, a 10,000 A interrupting rating at 240V AC, and is designed for bolt-on mounting. It is suitable for commercial and industrial electrical distribution applications requiring reliable overcurrent protection and remote trip capability.
- Amperage: 60 Amps
- Voltage: 240 Volts AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupting Rating: 10,000 A at 240V AC
- Series/Frame: BQ Series
- Trip Unit: Thermal Magnetic with 120V Shunt Trip
- Type: Molded Case Circuit Breaker
- Standards/Certifications: UL Listed (implied by Siemens standard products)
Additional Information
complete with non-interchangeable 120V shunt trip
Specifications
- Part Number: BQ2B06000S01
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 60
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BQ
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
- Breaker Type : Shunt Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643237766
- GTIN : 00783643237766
- Country of Origin : Mexico
- Dimensions : 2.571 x 3.00 x 3.736 inch
- Weight : 0.926
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
