BMXCPS3020 - Schneider Electric 24-48V DC Power Supply Module for Modicon X80 PLC, 31.2W, IP20, 4.5A 3.3V/1.3A 24V Output

SKU: BMXCPS3020-New
Condition: New
Price:
$979.96
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

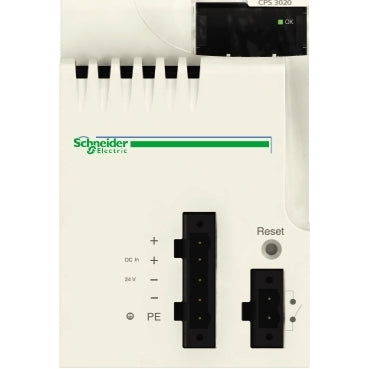

BMXCPS3020 - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BMXCPS3020 - Essential Electric Supply

Description

BMXCPS3020


BMXCPS3020 is a high-efficiency DC power supply module designed for Modicon X80 PLC systems, providing reliable power for industrial automation applications. This module delivers 31.2W output with dual voltage support, robust protection features, and a compact design for easy integration. The BMXCPS3020 supports input voltages from 24 to 48V DC and features short-circuit, overload, and overvoltage protection on the secondary circuit. It includes an internal fuse on the primary circuit and a reset pushbutton for cold restart control. The module is equipped with a green LED status indicator for rack voltage and connectors for alarm relay and line supply. Designed for harsh environments, it offers high vibration and shock resistance, ensuring stable operation under demanding conditions.
  • Input Voltage: 24 to 48 V DC
  • Output: 4.5 A at 3.3 V DC, 1.3 A at 24 V DC
  • Power Dissipation: ≤ 8.5 W
  • Protection Type: IP20
  • Short-Circuit Protection: Secondary circuit
  • Overload Protection: Secondary circuit
  • Overvoltage Protection: Secondary circuit
  • Internal Fuse: Primary circuit
  • Reset Pushbutton: Cold restart control
  • Status LED: Green rack voltage OK
  • Electrical Connection: 5-pin line supply, 2-pin alarm relay
  • Operating Temperature: 0 to 60 °C
  • Storage Temperature: -40 to 85 °C
  • Humidity: 10 to 95% without condensation
  • Vibration Resistance: 3 gn
  • Shock Resistance: 30 gn
  • Dielectric Strength: 1500 V primary/secondary, 1500 V primary/ground
  • Insulation Resistance: ≥ 10 mOhm primary/ground, ≥ 10 mOhm primary/secondary
  • Mounting: DIN rail compatible
  • Certifications: CE, CSA, UL, RCM, Merchant Navy, EAC
  • Standards: EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201
  • Product Weight: 0.34 kg
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BMXCPS3020
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Automation
  • Item Subcategory : I O

Product Data

  • UPC : 59586390898
  • GTIN : 03595863908985
  • Country of Origin : Indonesia
  • Weight : 1.144
