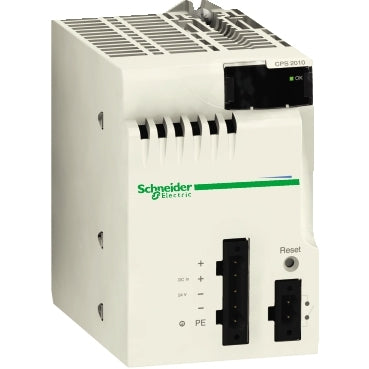

BMXCPS2010 - Schneider Electric 24V DC 16.8W Power Supply Module Modicon X80

BMXCPS2010

This power supply module operates within a voltage range of 18 to 31.2 V DC with a nominal 24 V DC output. It provides 16.8 W at 24 V DC for I/O module power and processor supply, and 8.3 W at 3.3 V DC for I/O module logic power. The module features overload, overvoltage, and short circuit protection on the secondary circuit, ensuring reliable and safe operation. It includes a status LED indicating rack voltage status and offers high insulation resistance and dielectric strength for electrical safety. The device is rated IP20 and operates in ambient temperatures from 0°C to 60°C.

Key Specifications
• Voltage: 24 V DC nominal (18 to 31.2 V DC range)
• Power Output: 16.8 W at 24 V DC, 8.3 W at 3.3 V DC
• Input Current: 1 A at 24 V DC
• Protection: Overload, overvoltage, and short circuit on secondary circuit
• Status Indicator: 1 green LED for rack voltage OK
• Insulation Resistance: ≥ 10 MOhm primary/ground and primary/secondary
• Dielectric Strength: 1500 V primary/ground and primary/secondary
• IP Rating: IP20
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Weight: Approximately 1.00 lbs (0.45 kg)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BMXCPS2010
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Automation
• Item Subcategory : I O



Product Data

• UPC : 59586390900
• GTIN : 03595863909005
• Country of Origin : Indonesia
• Weight : 1.027
