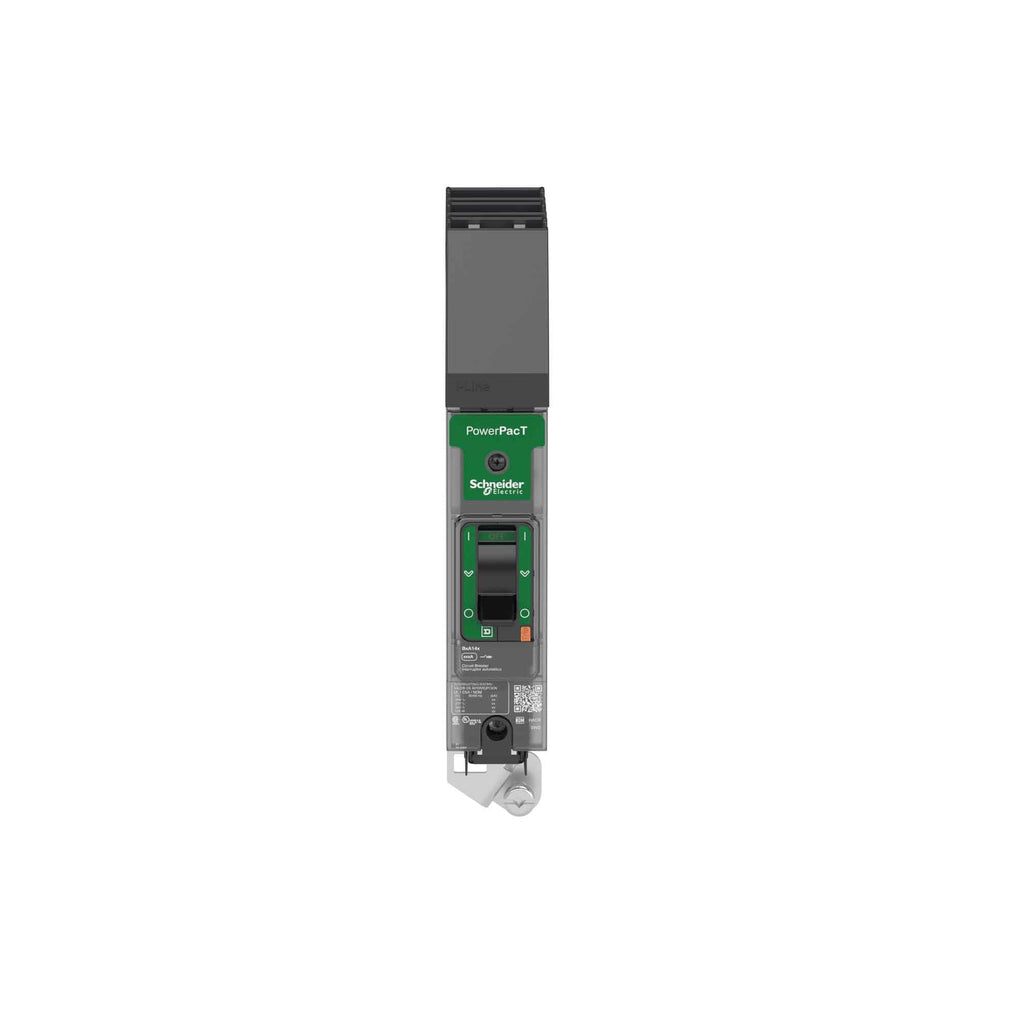

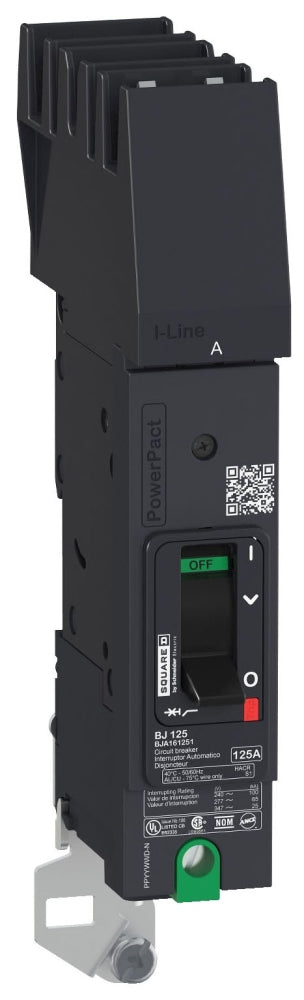

BGA160305 - Square D PowerPact B 30 Amp 1 Pole 600V I-Line Circuit Breaker

BGA160305

BGA160305 is a Square D PowerPact B molded case circuit breaker designed for I-Line style plug-in distribution systems with thermal magnetic trip protection. This 1 pole, 30 ampere rated breaker operates at 600Y/347 volts AC and features multiple interrupt ratings depending on voltage configuration: 65 kA at 208Y/120V and 240V AC, 35 kA at 480Y/277V AC, 18 kA at 600Y/347V AC, and 20 kA at 125V DC. The breaker is suitable for reverse fed applications and includes long time and instantaneous trip functions with non-interchangeable trip design.

• Amperage: 30A
• Poles: 1
• Voltage Rating: 600Y/347V AC
• Interrupt Rating: 65 kA @ 240V AC
• Interrupt Rating: 35 kA @ 480Y/277V AC
• Interrupt Rating: 18 kA @ 600Y/347V AC
• Interrupt Rating: 20 kA @ 125V DC
• Series: PowerPact B
• Mounting: I-Line Style Plug-In
• Trip Type: Thermal Magnetic
• Certifications: UL 489, IEC, CSA
• Current Limiting: 80% rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA160305
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 65kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : G
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : C

Product Data

• UPC : 060648115339
• GTIN : 03606481153395
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.8
• Standards : NEMA AB1, EN/IEC 60947-5-1, NMX J-266, EN/IEC 60947-2, GB 14048.2, UL 489, CSA C22.2 No 5
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
