BGA160301 - Square D 30A 1-Pole 600V Molded Case Circuit Breaker PowerPact Series

SKU: BGA160301-New
Condition: New
Price:
$327.50
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

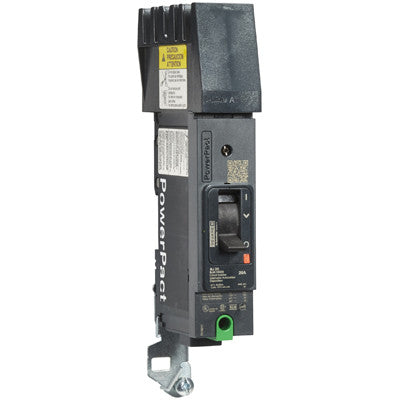

BGA160301 - Square D/ Schneider Electric I-Line Style Plug-In 30 Amp 1 Pole Circuit Breaker - Essential Electric Supply

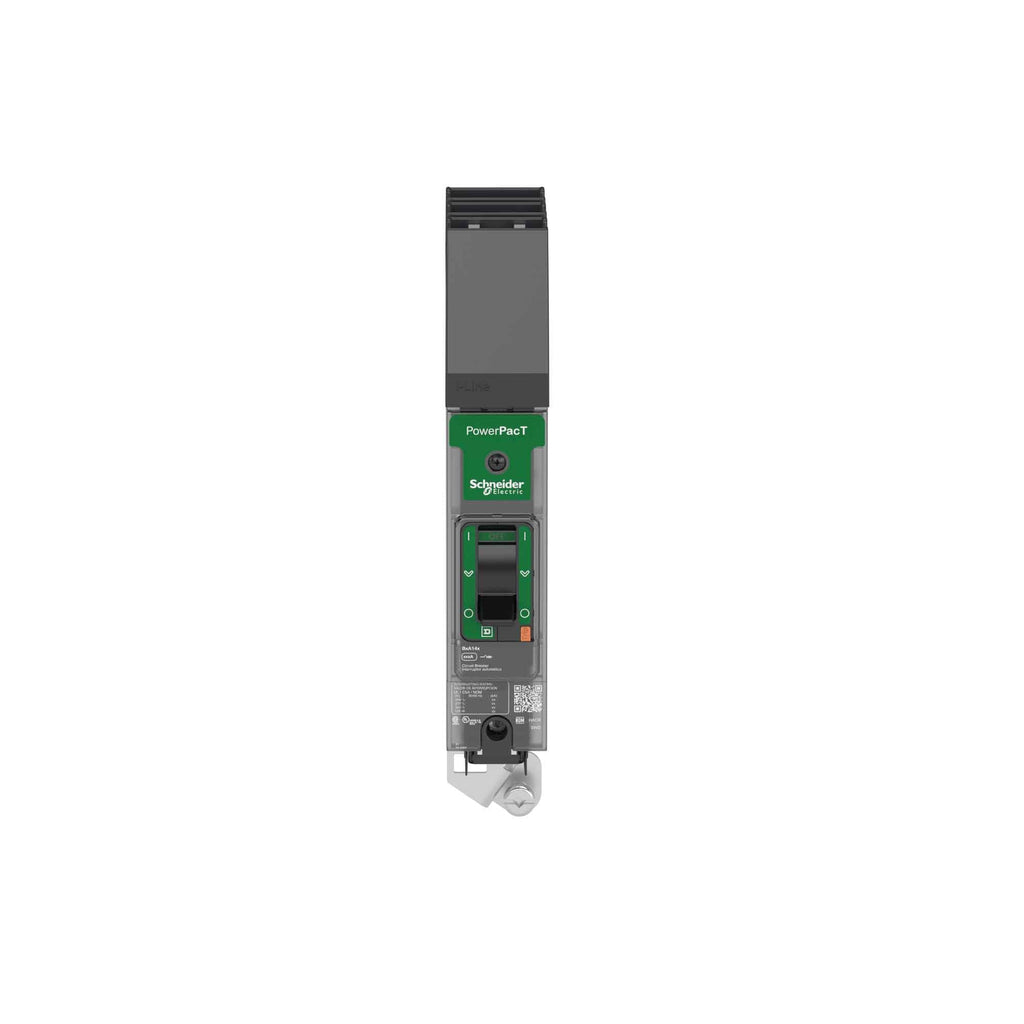

BGA160301 - Square D I-Line Style Plug-In 600V 30A 1 pole circuit breaker 65kA@240V - Essential Electric Supply
BGA160301 - Square D 30A 1-Pole 600V Molded Case Circuit Breaker PowerPact Series - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BGA160301 - Square D/ Schneider Electric I-Line Style Plug-In 30 Amp 1 Pole Circuit Breaker - Essential Electric Supply
BGA160301 - Square D I-Line Style Plug-In 600V 30A 1 pole circuit breaker 65kA@240V - Essential Electric Supply
BGA160301 - Square D 30A 1-Pole 600V Molded Case Circuit Breaker PowerPact Series - Essential Electric Supply

Description

BGA160301


BGA160301 is a 30 amp, 1-pole molded case circuit breaker from Square D's PowerPact series designed for reliable circuit protection up to 600 volts.

This circuit breaker features a thermal magnetic trip unit with a fixed instantaneous trip, suitable for industrial and commercial applications. It has an interrupt rating of 65kA at 240V AC and supports a maximum voltage rating of 600V AC. The breaker is I-Line style plug-in mounted, providing easy installation and replacement in compatible switchgear.

  • Amperage: 30 Amps
  • Poles: 1
  • Voltage Rating: 600V AC
  • Interrupt Rating: 65kA at 240V AC
  • Series: PowerPact
  • Mounting Type: I-Line Style Plug-In
  • Trip Unit: Thermal Magnetic with Fixed Instantaneous Trip
  • Frame: BGA
  • Height: 5.39 inches
  • UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: BGA160301
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BGA
  • Voltage : 600
  • Amperage : 30
  • Phase : 1
  • Poles : 1
  • AIC rating : 65kA@240V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BG
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : A

Product Data

  • UPC : 785901009191
  • GTIN : 03606481153371
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 1.75
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : UL 489, NMX J-266, EN/IEC 60947-5-1, NEMA AB1, EN/IEC 60947-2, CSA C22.2 No 5, GB 14048.2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
