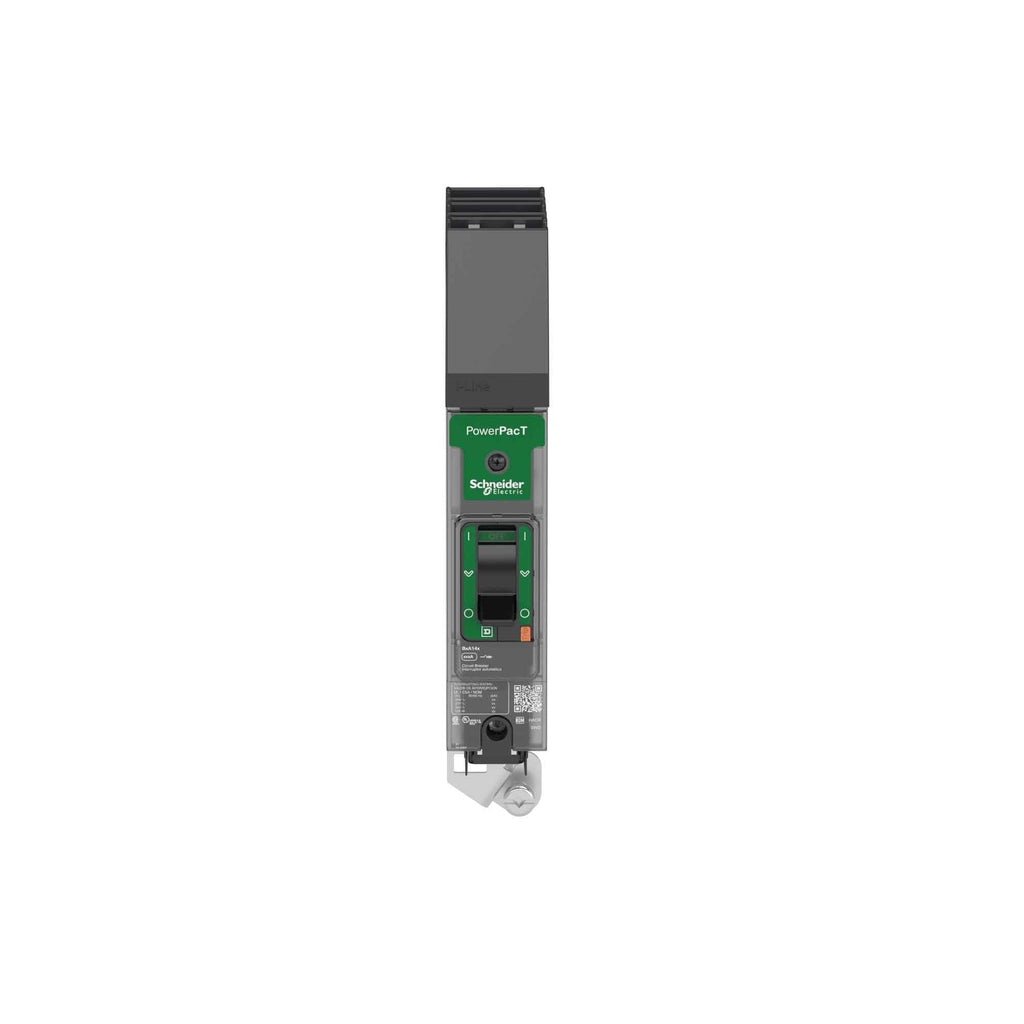

BGA160155 - Square D 15 Amp 1 Pole 600Y/347VAC I-Line Thermal Magnetic Circuit Breaker PowerPact B Frame

BGA160155

BGA160155 is a Square D 1 Pole thermal magnetic molded case circuit breaker rated for 15 Amps and 600Y/347VAC voltage with I-Line mounting style.This PowerPact B frame circuit breaker features long time and instantaneous trip functions, an interrupting rating of 18kA at 600/347VAC and 65kA at 240VAC, and load side mechanical lug terminals. It is UL, CSA, CE, and IEC certified, designed for reliable circuit protection in commercial and industrial applications.

• Amperage: 15 Amp
• Voltage: 600Y/347VAC
• Poles: 1
• Mounting Type: I-Line Style Plug-In
• Interrupting Rating: 18kA at 600/347VAC, 65kA at 240VAC
• Frame Type: PowerPact B (BGA)
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Terminal Connection: Load Side Mechanical Lug
• Wire Gauge: AWG 14 to AWG 2/0 Aluminum/Copper
• Certifications: UL 489, CSA, CE, IEC, NOM, CCC, EAC
• Temperature Rating: -25 to 70 °C
• Color: Gray

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA160155
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 65kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : B Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 060648115327
• GTIN : 03606481153272
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.707
• Standards : EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, CSA C22.2 No 5, EN/IEC 60947-2, NMX J-266, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
