BGA160201 - Square D PowerPact B Molded Case Circuit Breaker, 20A, 1 Pole, 600Y/347VAC, 18kA Interrupt Rating, I-Line Plug-In, Thermal Magnetic Trip, UL/CSA/CE Certified

SKU: BGA160201-New
Condition: New
Price:
$327.50
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

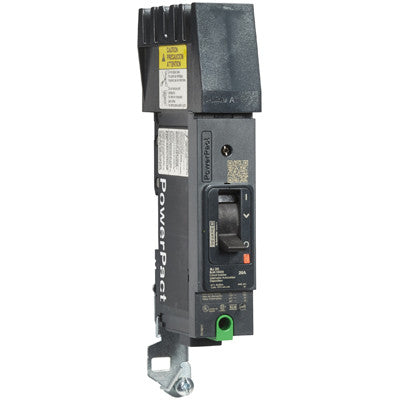

BGA160201 - Schneider Electric/ Square D I-Line Style Plug-In 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply

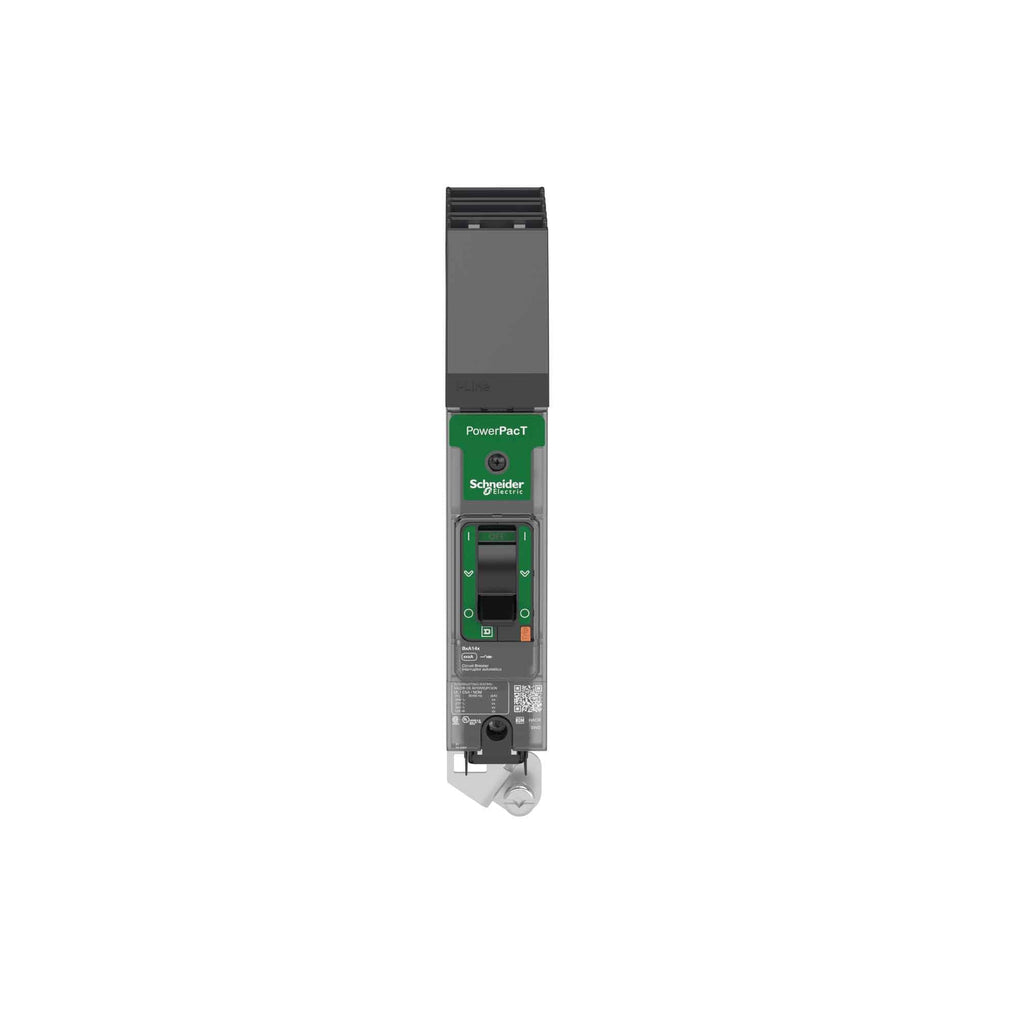

BGA160201 - Square D I-Line Style Plug-In 600V 20A 1 pole circuit breaker 65kA@240V - Essential Electric Supply
BGA160201 - Square D PowerPact B Molded Case Circuit Breaker, 20A, 1 Pole, 600Y/347VAC, 18kA Interrupt Rating, I-Line Plug-In, Thermal Magnetic Trip, UL/CSA/CE Certified - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BGA160201 - Schneider Electric/ Square D I-Line Style Plug-In 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply
BGA160201 - Square D I-Line Style Plug-In 600V 20A 1 pole circuit breaker 65kA@240V - Essential Electric Supply
BGA160201 - Square D PowerPact B Molded Case Circuit Breaker, 20A, 1 Pole, 600Y/347VAC, 18kA Interrupt Rating, I-Line Plug-In, Thermal Magnetic Trip, UL/CSA/CE Certified - Essential Electric Supply

Description

BGA160201


BGA160201 is a Square D PowerPact B series molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This 1-pole, 20A breaker features a thermal magnetic trip unit, I-Line plug-in mounting, and is rated for 600Y/347VAC (18kA interrupt rating) and 125VDC (20kA interrupt rating). It is UL, CSA, and CE certified for safety and compliance.

    Key Specifications
  • Amperage: 20A
  • Voltage: 600Y/347VAC, 125VDC
  • Poles: 1
  • Mounting Type: I-Line Plug-In
  • Interrupt Rating: 18kA at 600Y/347VAC, 20kA at 125VDC
  • Series/Frame: PowerPact B, BGA
  • Trip Unit: Thermal Magnetic
  • Certifications: UL, CSA, CE
  • Dimensions: 1.06" W x 3.5" D x 5.39" H
  • Weight: 1.41 lb
  • Standards: California Proposition 65
  • Connection: Load side mechanical lug terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BGA160201
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BGA
  • Voltage : 600
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 65kA@240V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BG
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : A

Product Data

  • UPC : 785901009191
  • GTIN : 03606481153289
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 1.68
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : NMX J-266, UL 489, GB 14048.2, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-2, EN/IEC 60947-5-1
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
