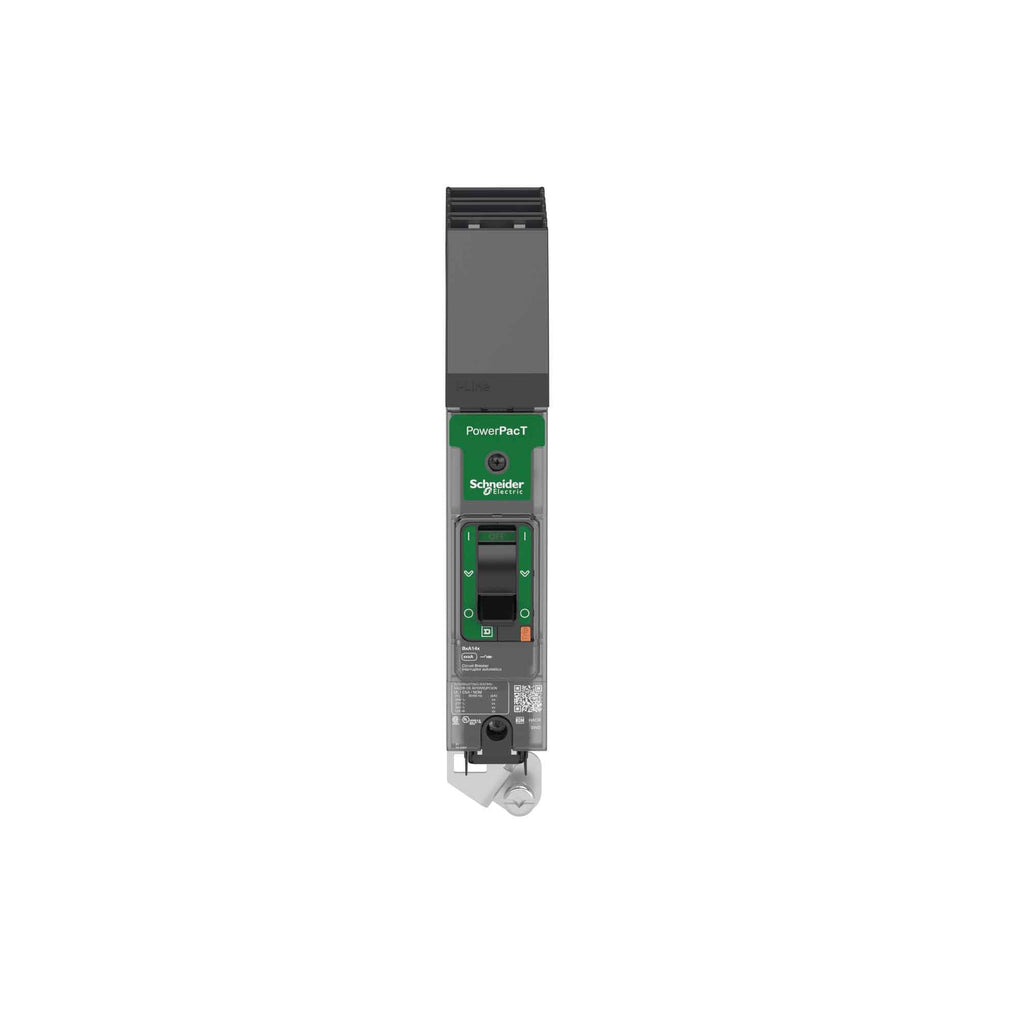

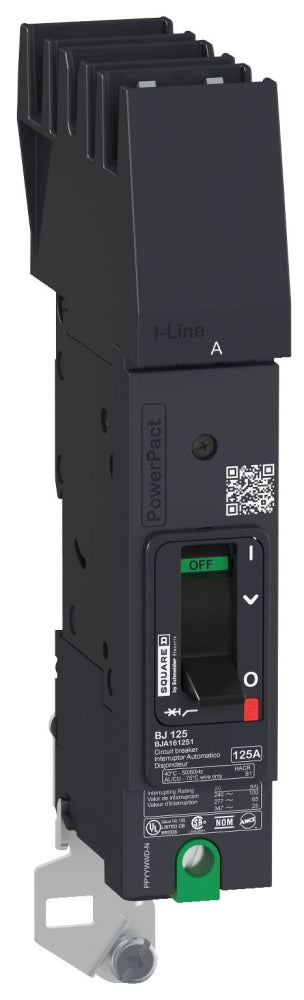

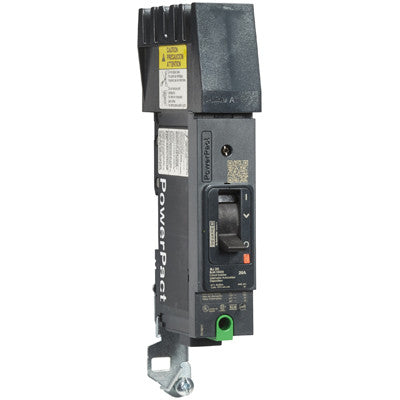

BGA160151 - Square D 15 Amp 1 Pole 600Y/347VAC PowerPact B Molded Case Circuit Breaker I-Line Thermal Magnetic

BGA160151

BGA160151 is a 15 Amp, 1 Pole molded case circuit breaker from Square D's PowerPact B series designed for reliable thermal magnetic protection.This circuit breaker features a 600Y/347VAC voltage rating and I-Line mounting connection, providing compact and efficient circuit protection with an interrupt rating of 18kA. It is UL, CSA, NOM, IEC, CCC certified, and CE marked, ensuring compliance with multiple international standards.

• Amperage: 15 Amps
• Poles: 1
• Voltage Rating: 600Y/347VAC
• Interrupt Rating: 18kA
• Series/Frame: PowerPact B
• Mounting Type: I-Line
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, NOM, IEC, CCC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA160151
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 65kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : A

Product Data

• UPC : 785901009191
• GTIN : 03606481153258
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.738
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : GB 14048.2, UL 489, EN/IEC 60947-2, NEMA AB1, NMX J-266, CSA C22.2 No 5, EN/IEC 60947-5-1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
