BGA160303 - Square D 30A 1-Pole 600Y/347V AC I-Line PowerPact B Circuit Breaker 65kA Interrupt Rating

SKU: BGA160303-New
Condition: New
Price:
$327.50
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

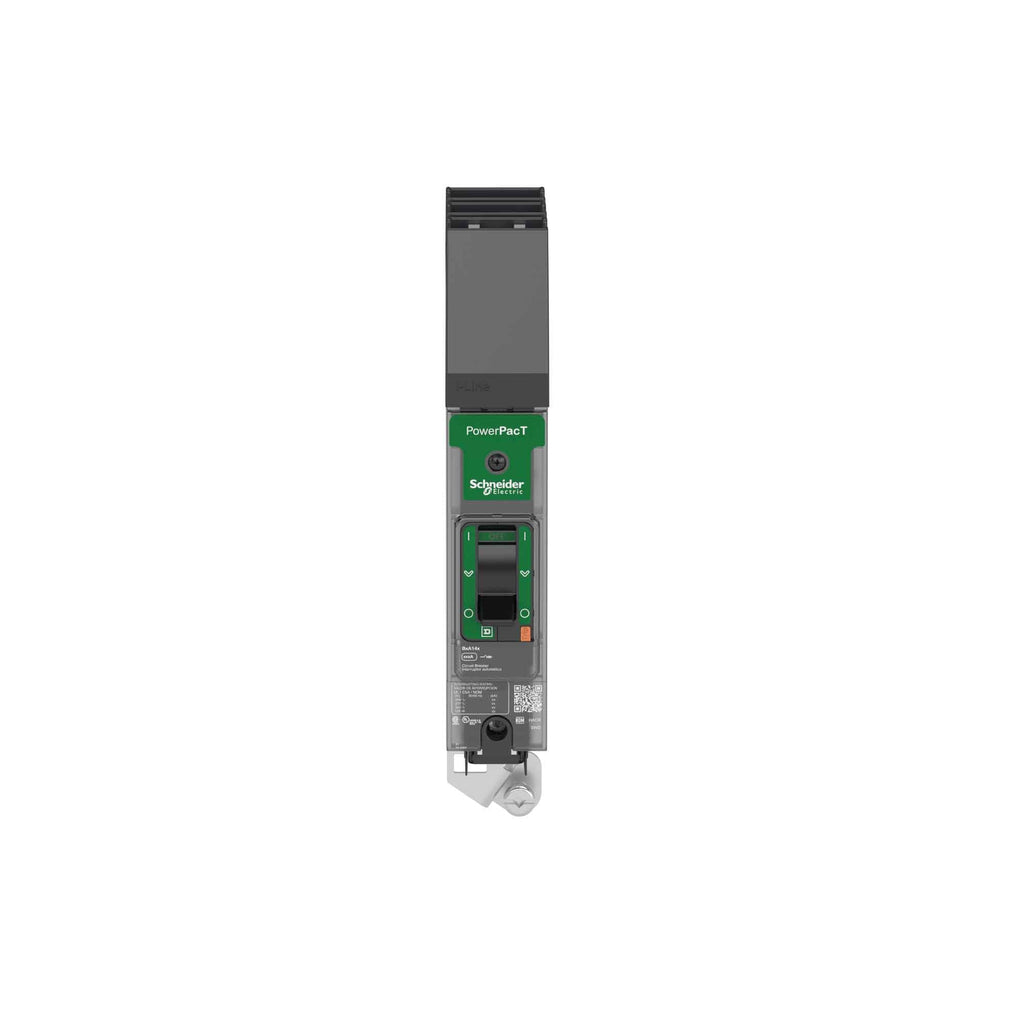

BGA160303 - Schneider Electric/ Square D I-Line Style Plug-In 30 Amp 1 Pole Circuit Breaker - Essential Electric Supply
BGA160303 - Square D 30A 1-Pole 600Y/347V AC I-Line PowerPact B Circuit Breaker 65kA Interrupt Rating - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BGA160303 - Schneider Electric/ Square D I-Line Style Plug-In 30 Amp 1 Pole Circuit Breaker - Essential Electric Supply
BGA160303 - Square D 30A 1-Pole 600Y/347V AC I-Line PowerPact B Circuit Breaker 65kA Interrupt Rating - Essential Electric Supply

Description

BGA160303


BGA160303 is a Square D PowerPact B molded case circuit breaker rated for 30 amps, 1 pole, and 600Y/347 volts AC with I-Line plug-in mounting.This thermal magnetic circuit breaker features a B frame, 65kA interrupt rating at 240V, and is UL 489 listed. It includes long-time and instantaneous trip functions with non-interchangeable trip units and load side mechanical lug terminals. Designed for reliable protection in single-phase applications, it supports dual AC/DC ratings and meets multiple certifications including UL, CSA, and IEC.
  • Amperage: 30 Amp
  • Voltage: 600Y/347 VAC max
  • Poles: 1 Pole
  • Mounting Type: I-Line Style Plug-In
  • Interrupt Rating: 65kA @ 240V, 18kA @ 600Y/347V
  • Frame/Series: PowerPact B Frame
  • Trip Unit: Thermal Magnetic, non-interchangeable
  • UL Listing: UL 489
  • Functions: Long-Time and Instantaneous Trip
  • Certifications: UL, CSA, IEC, CCC, EAC, NOM
  • Connection: Load side mechanical lug terminals
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BGA160303
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BGA
  • Voltage : 600
  • Amperage : 30
  • Phase : 1
  • Poles : 1
  • AIC rating : 65kA@240V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : G
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : B

Product Data

  • UPC : 060648115338
  • GTIN : 03606481153388
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 1.769
  • Standards : NMX J-266, GB 14048.2, UL 489, EN/IEC 60947-5-1, CSA C22.2 No 5, EN/IEC 60947-2, NEMA AB1
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
