BGA160203 - Square D 20 Amp 600Y/347VAC 1 Pole PowerPact B Circuit Breaker I-Line Mounting

SKU: BGA160203-ReCert
Condition: Re-Certified
Price:
$275.26
Stock:
Low inventory, please call for stock check
This ships in 1-2 business days

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

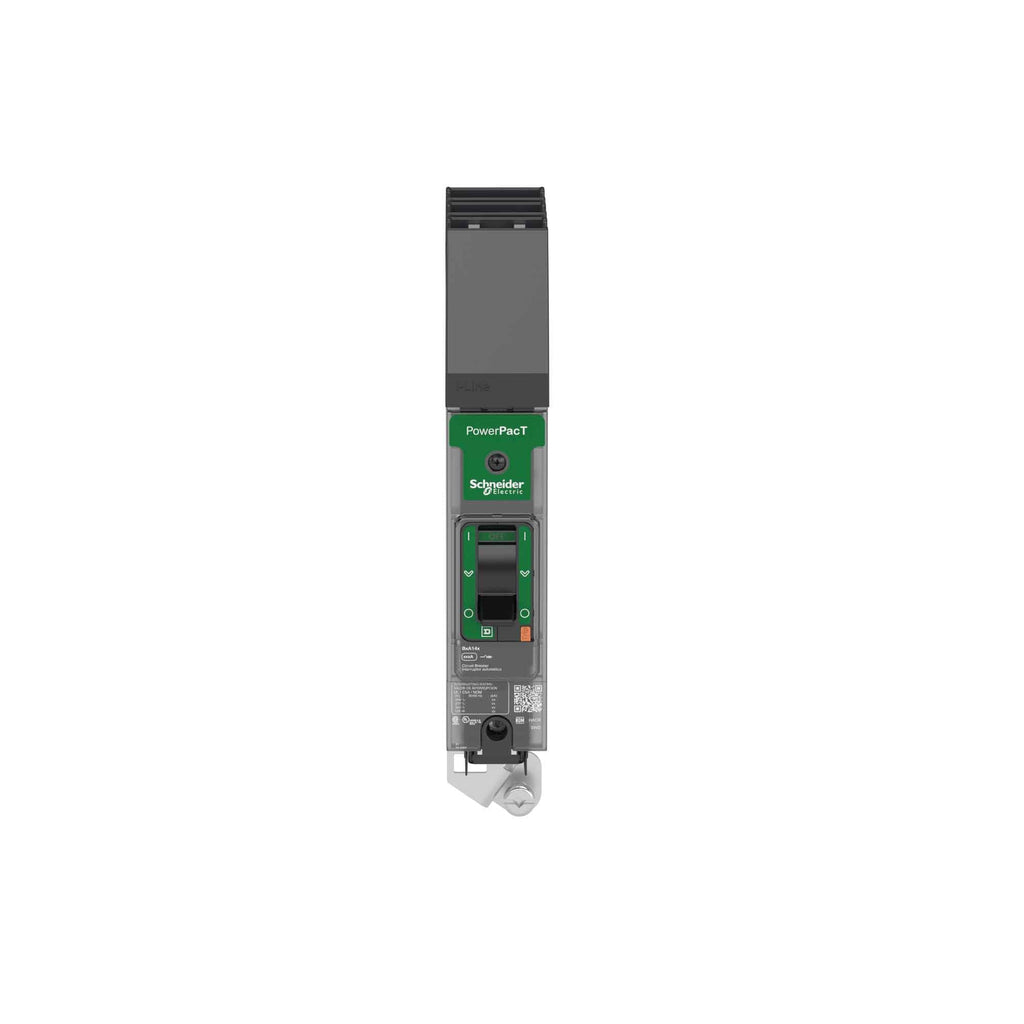

BGA160203 - Square D/ Schneider Electric I-Line Style Plug-In 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply
BGA160203 - Square D 20 Amp 600Y/347VAC 1 Pole PowerPact B Circuit Breaker I-Line Mounting - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BGA160203 - Square D/ Schneider Electric I-Line Style Plug-In 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply
BGA160203 - Square D 20 Amp 600Y/347VAC 1 Pole PowerPact B Circuit Breaker I-Line Mounting - Essential Electric Supply

Description

BGA160203


BGA160203 is a 1 Pole, 20 Amp thermal magnetic molded case circuit breaker from Square D's PowerPact B series designed for reliable circuit protection.This breaker features a 600Y/347VAC and 125VDC voltage rating with an interrupting capacity of up to 18kAIC at 600/347VAC, 35kAIC at 480VAC, and 65kAIC at 240VAC. It mounts using the I-Line style plug-in system and includes long-time and instantaneous trip functions for enhanced protection. The breaker supports wire sizes from AWG 14 to AWG 2/0 for both aluminum and copper conductors and meets multiple certifications including UL, CSA, CE, and IEC standards.
    Key Specifications
    • Amperage: 20 Amps
    • Voltage: 600Y/347VAC, 125VDC
    • Poles: 1 Pole
    • Mounting Type: I-Line Style Plug-In
    • Interrupting Rating: 18kAIC at 600/347VAC, 35kAIC at 480VAC, 65kAIC at 240VAC
    • Series/Frame: PowerPact B / BGA Frame
    • Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
    • Terminal Connection: Load Side Mechanical Lug
    • Wire Gauge: AWG 14 to AWG 2/0, Aluminum/Copper
    • Certifications: UL, CSA, CE, IEC, NOM, CCC, EAC
    • Operating Temperature: -25 to 70 °C
    • Breaker Features: Mercury Free, PVC Free
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BGA160203
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BGA
  • Voltage : 600
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 65kA@240V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : G
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : B

Product Data

  • UPC : 060648115331
  • GTIN : 03606481153319
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 1.713
  • Standards : NMX J-266, EN/IEC 60947-5-1, NEMA AB1, EN/IEC 60947-2, UL 489, GB 14048.2, CSA C22.2 No 5
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
