Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3610GNW

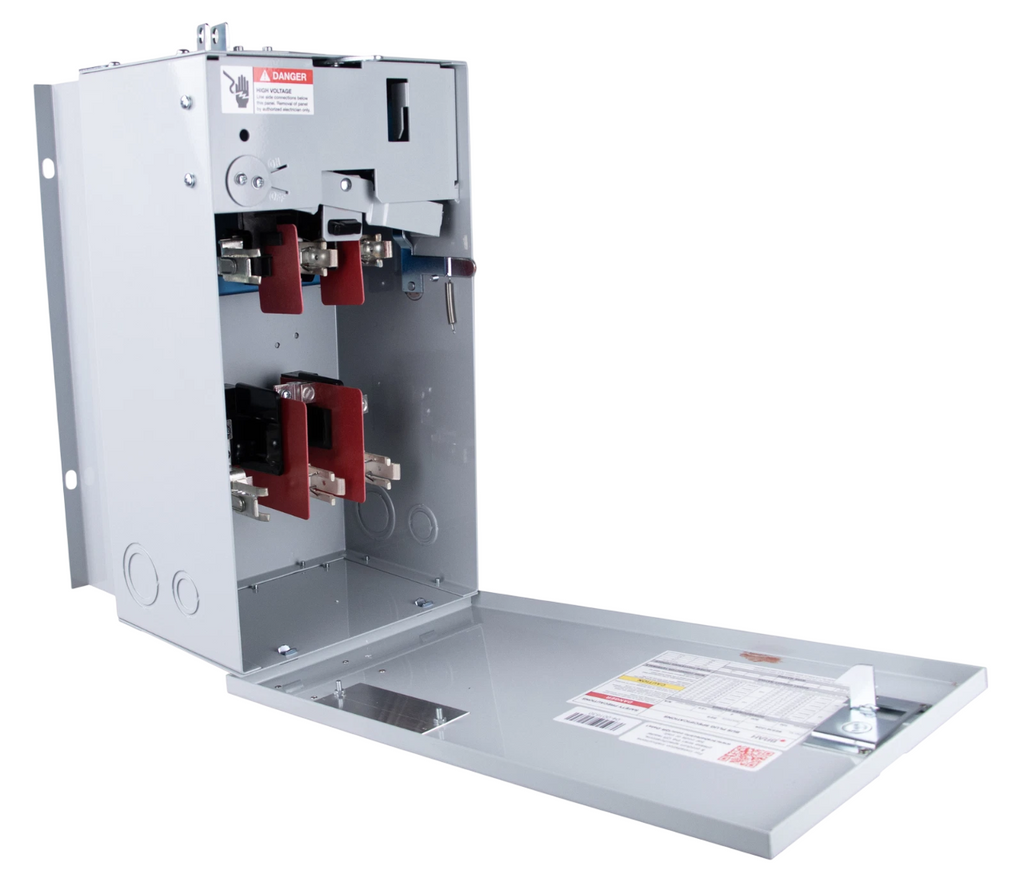

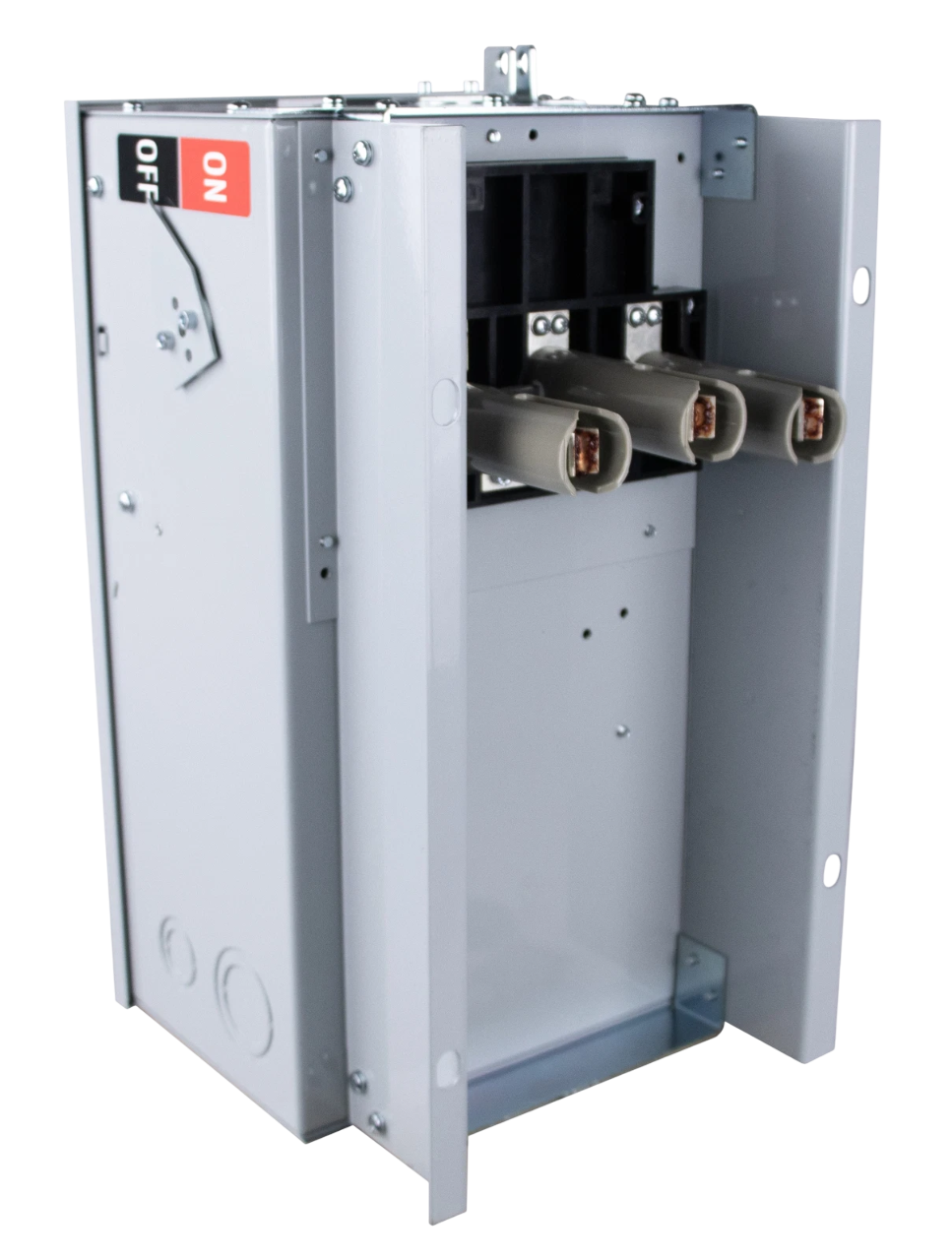

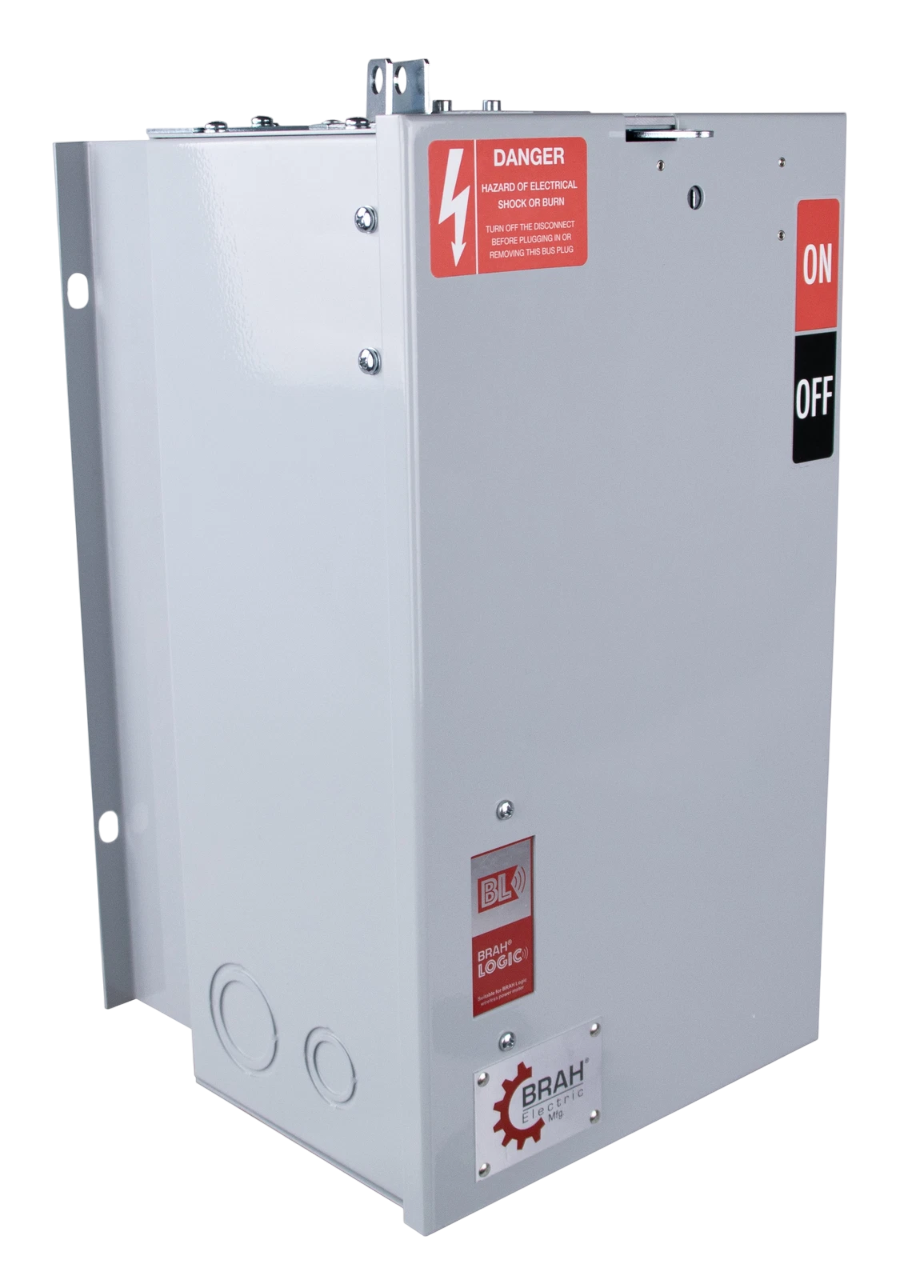

BES3610GNW is a 100 amp, 600 volt, 3 phase, 4 wire fusible type bus plug with ground designed for reliable power distribution in industrial busway systems. This UL Listed assembly features integrated weather stripping for drip protection and accepts Class H, R, and K fuse types, making it suitable for Bulldog, ITE, and Siemens BD series busway systems. Key Specifications
- Amperage: 100A
- Voltage: 600V
- Phase: 3 Phase
- Poles: 4 Wire with Ground
- Type: Fusible Bus Plug
- Fuse Class: H, R, K
- Interrupt Rating: 65kA at 480VAC
- Weather Stripping: Yes
- UL Listed: Yes
Specifications
- Part Number: BES3610GNW
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R,H,K
- Wire : 4
Product Data
- UPC : 699252496657
- Country of Origin : China
- Dimensions : 9 61/100 in x 16 7/10 in
- Weight : 45
- Certification : UL Listed, UL Recognized
