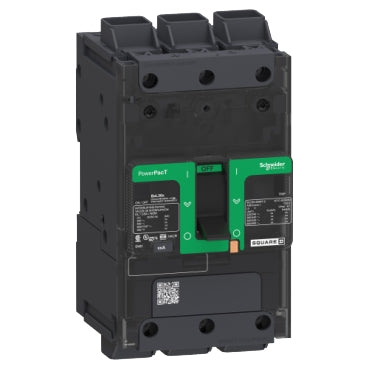

BDL36100SA - Schneider Electric PowerPact B 100A 3 Pole 600Y/347VAC 14kA Thermal Magnetic Circuit Breaker

BDL36100SA

BDL36100SA is a 3 pole, 100A, 600Y/347VAC molded case circuit breaker from the Schneider Electric PowerPact B series, designed for reliable thermal magnetic protection in commercial and industrial applications. This breaker features a 14kA interrupt rating, unit mount with integrated DIN rail and back pan mounting, and is suitable for use in both AC and DC systems. It is UL, CSA, NOM, IEC, CCC certified, and CE marked for broad compliance.

• Part Number: BDL36100SA
• Manufacturer: Schneider Electric
• Series: PowerPact B
• Amperage Rating: 100A
• Voltage Rating: 600Y/347VAC
• Poles: 3
• Interrupt Rating: 14kA @ 600Y/347VAC
• Mounting Type: Unit mount with DIN rail and back pan
• Frame: BDL
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Continuous Current Rating: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL36100SA
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 606481153237
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 3.24
• Standards : EN/IEC 60947-5-1, UL 489, NMX J-266, NEMA AB1, CSA C22.2 No 5, GB 14048.2, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
