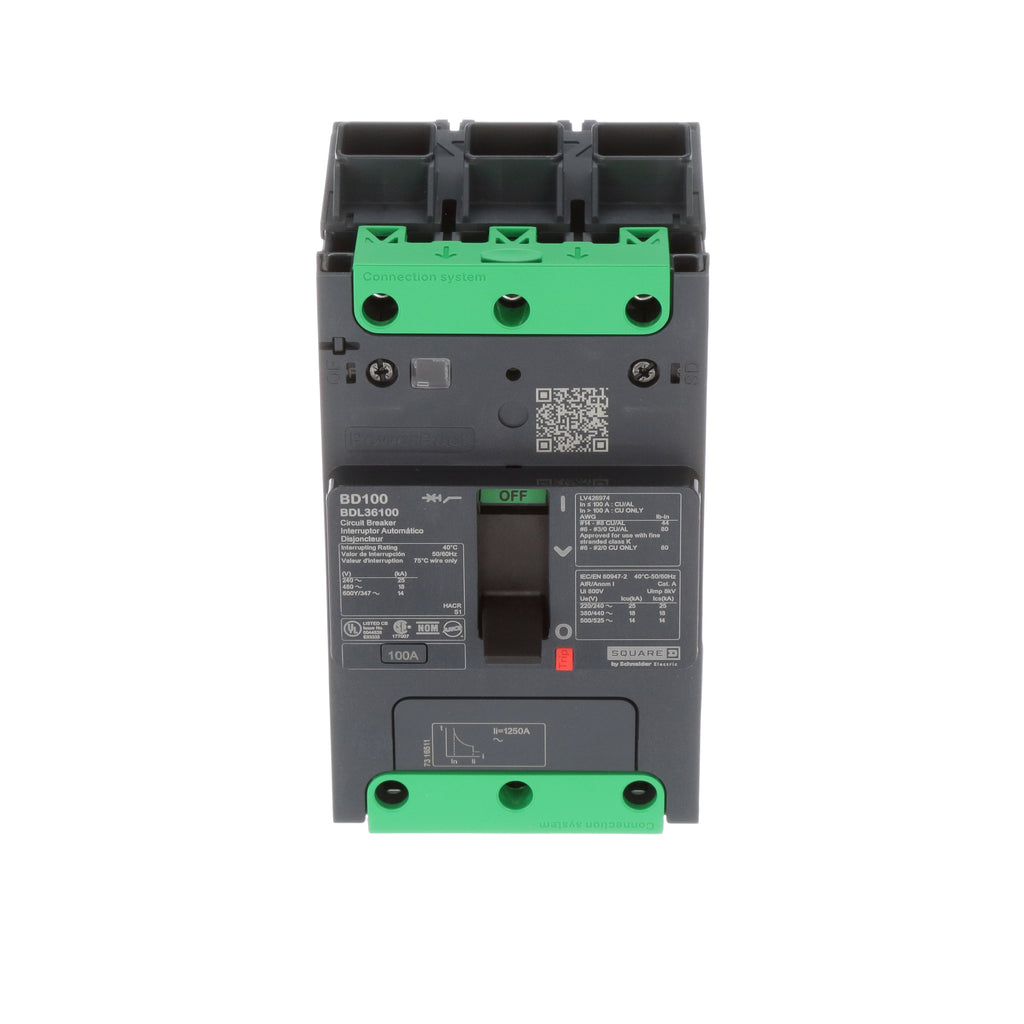

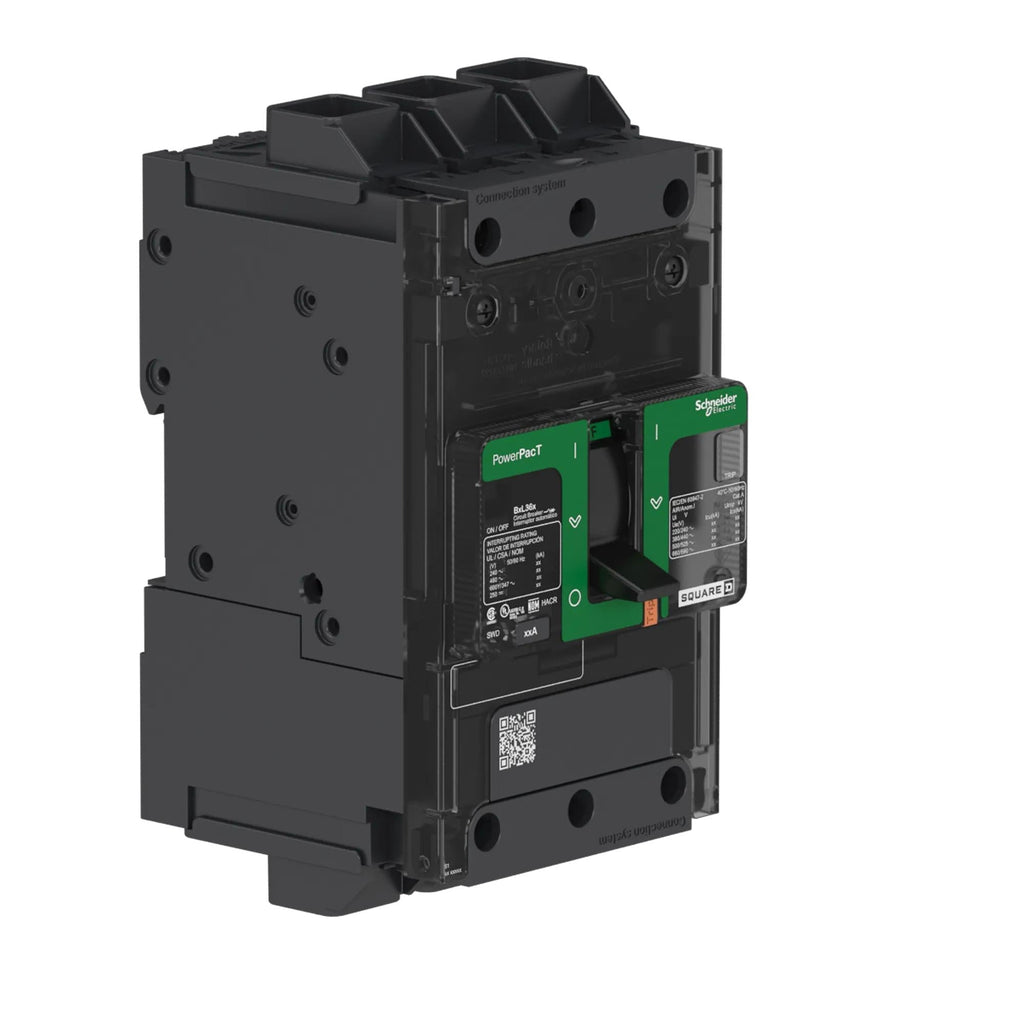

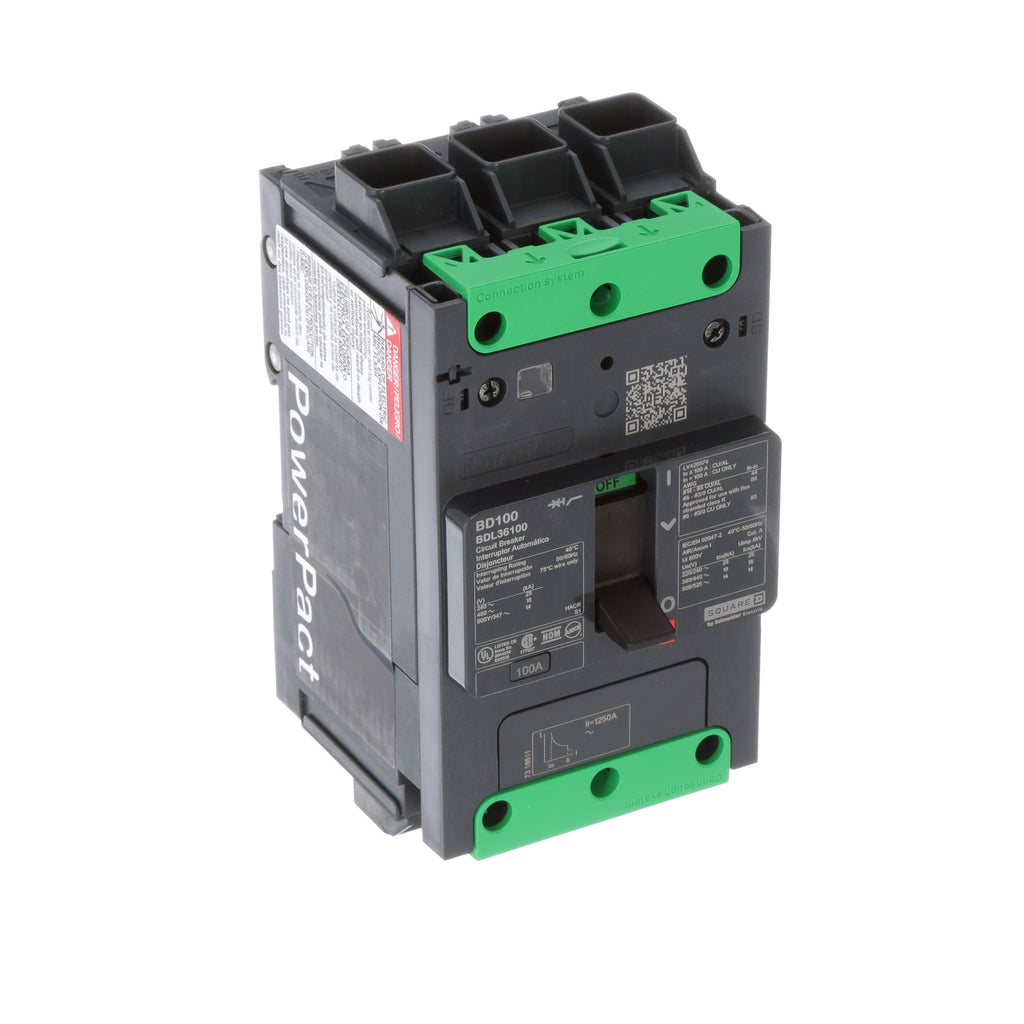

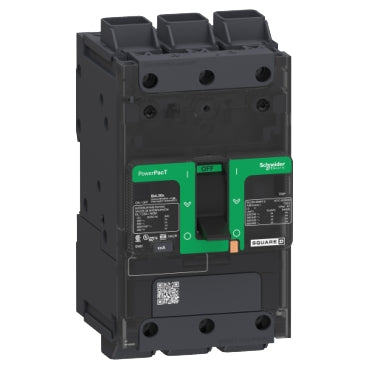

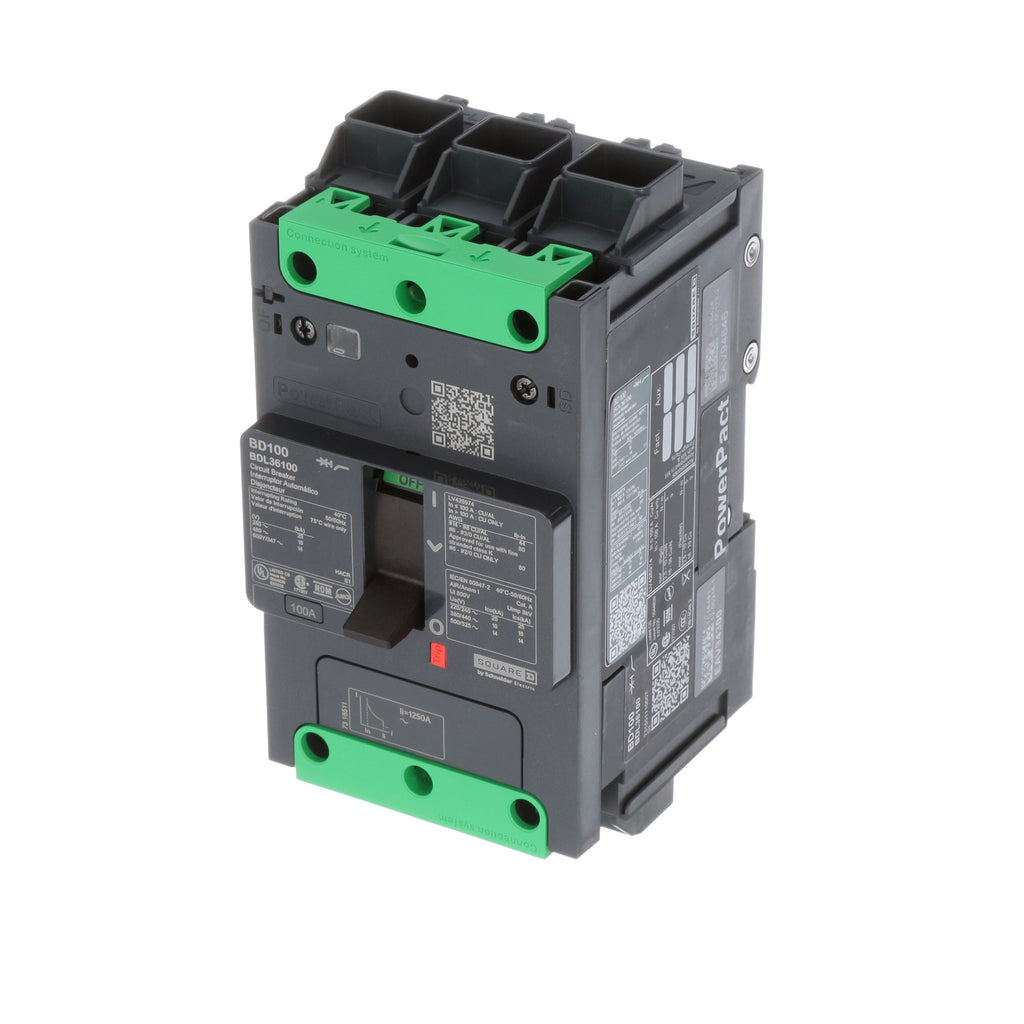

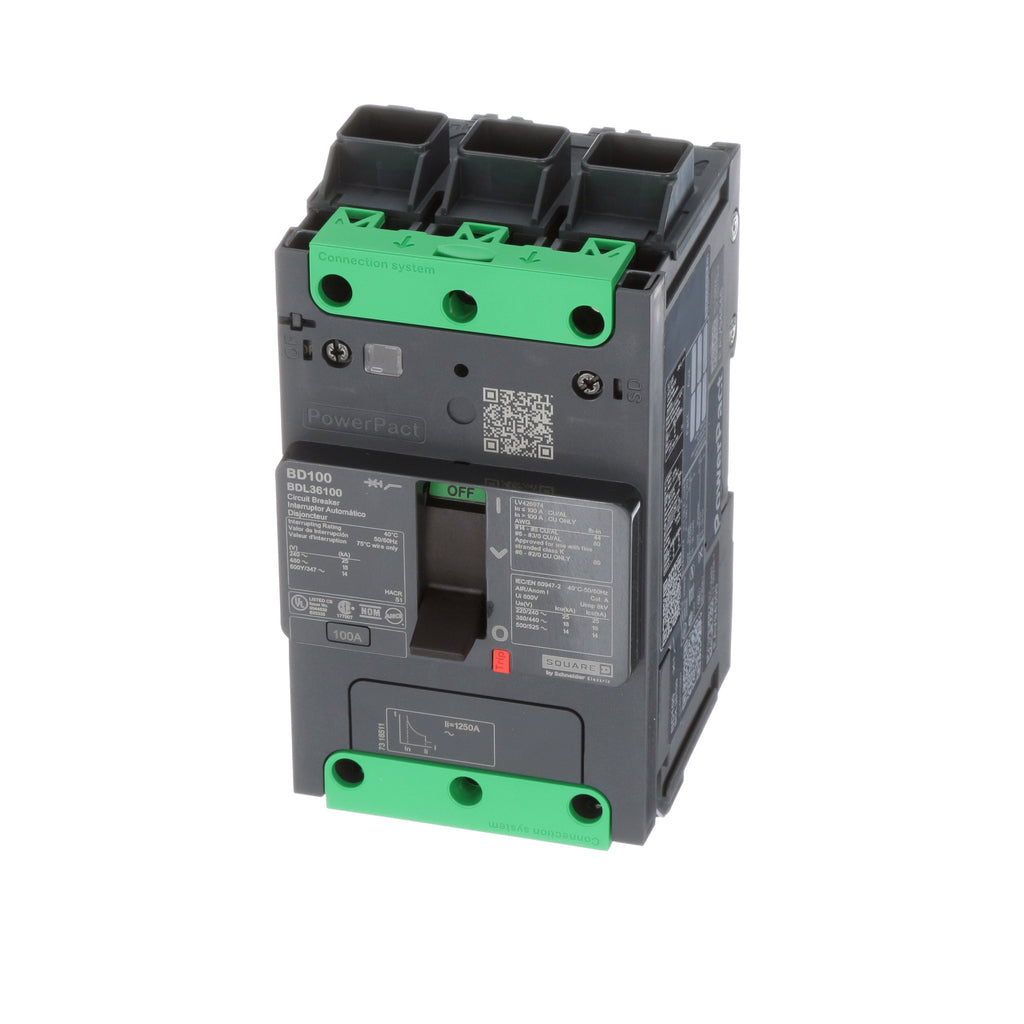

BDL36100 - Square D 100A 3 Pole PowerPact B Molded Case Circuit Breaker 600Y/347VAC Thermal Magnetic

BDL36100

BDL36100 is a 3 pole, 100 amp molded case circuit breaker from Square D's PowerPact B series designed for reliable power distribution protection.This thermal magnetic circuit breaker features a 600Y/347 VAC voltage rating, 14kA interrupt rating, and unit mounting with integrated DIN rail and back pan mounting capability. It is UL, CSA, NOM, IEC, CCC certified, and CE marked, ensuring compliance with multiple safety standards.

• Amperage: 100 A
• Voltage Rating: 600Y/347 VAC
• Poles: 3
• Frame Type: PowerPact B
• Interrupt Rating: 14 kA
• Trip Unit: Thermal Magnetic

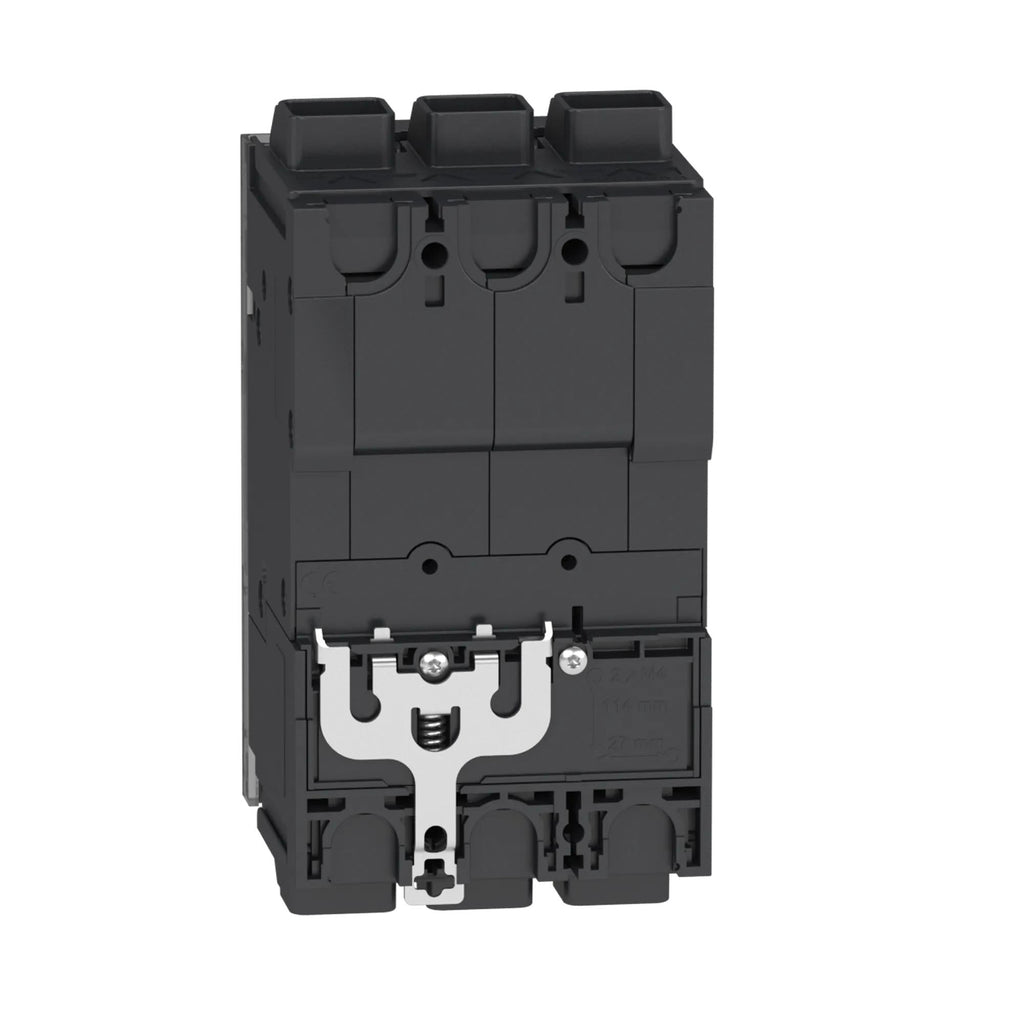

• Mounting Type: Unit mount with DIN rail and back pan
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Connection: Everlink lug line and load
• Environmental: RoHS compliant, mercury free

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901001003
• GTIN : 03606481153227
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 3.13
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : UL 489, GB 14048.2, NEMA AB1, EN/IEC 60947-2, EN/IEC 60947-5-1, NMX J-266, CSA C22.2 No 5
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
