BDL36110 - Schneider Electric PowerPact B 110A 3-Pole 600Y/347VAC Thermal Magnetic Circuit Breaker

Save $539.50
SKU: BDL36110-New
Condition: New
Price:
$954.50 $1,494.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

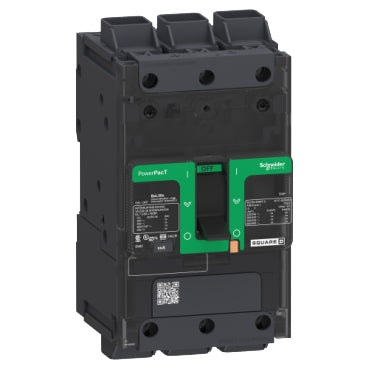

BDL36110 - Schneider Electric Feed-Thru 600V 110A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
BDL36110 - Schneider Electric Feed-Thru 600V 110A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDL36110 - Schneider Electric Feed-Thru 600V 110A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
BDL36110 - Schneider Electric Feed-Thru 600V 110A 3 pole circuit breaker 18kA@480V - Essential Electric Supply

Description

BDL36110


BDL36110 is a Schneider Electric PowerPact B series 110 Amp, 3-pole thermal magnetic circuit breaker designed for reliable power distribution protection.This molded case circuit breaker features a 600Y/347VAC voltage rating with a 14kA interrupting capacity, suitable for heavy-duty industrial and commercial applications. It supports lug-to-lug mounting and offers an 80% continuous current rating. Certified to UL, CSA, NOM, IEC, CCC standards and CE marked, it ensures compliance with global safety and performance requirements.
  • Amperage: 110 Amp
  • Poles: 3
  • Voltage Rating: 600Y/347VAC
  • Interrupt Rating: 14kA
  • Trip Unit: Thermal Magnetic
  • Mounting Type: Lug to Lug
  • Series/Frame: PowerPact B
  • Continuous Current Rating: 80%
  • Certifications: UL, CSA, NOM, IEC, CCC, CE
  • Breaking Capacity: 14kA at 600Y/347VAC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDL36110
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDL
  • Voltage : 600
  • Amperage : 110
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Feed-Thru
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Everlink Lug Both Ends
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901072270
  • GTIN : 00785901072270
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
  • Weight : 2.599
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : NEMA AB1, CSA C22.2 No 5, UL 489, EN/IEC 60947-5-1, NMX J-266, EN/IEC 60947-2, GB 14048.2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
    AWG 14...AWG 3/0 rigid or stranded aluminium/copper
