BDL36100LU - Schneider Electric PowerPact B 100A 3-Pole 600Y/347VAC Molded Case Circuit Breaker, 14kA Interrupt, Thermal Magnetic Trip, DIN Rail/Threaded Mount, NEMA AB4/IP40, B Frame

BDL36100LU

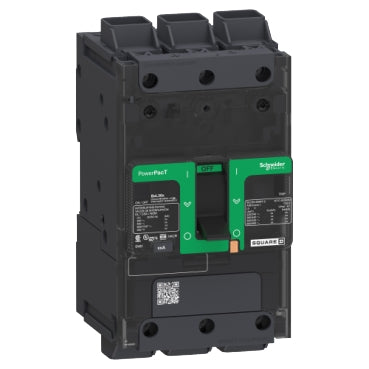

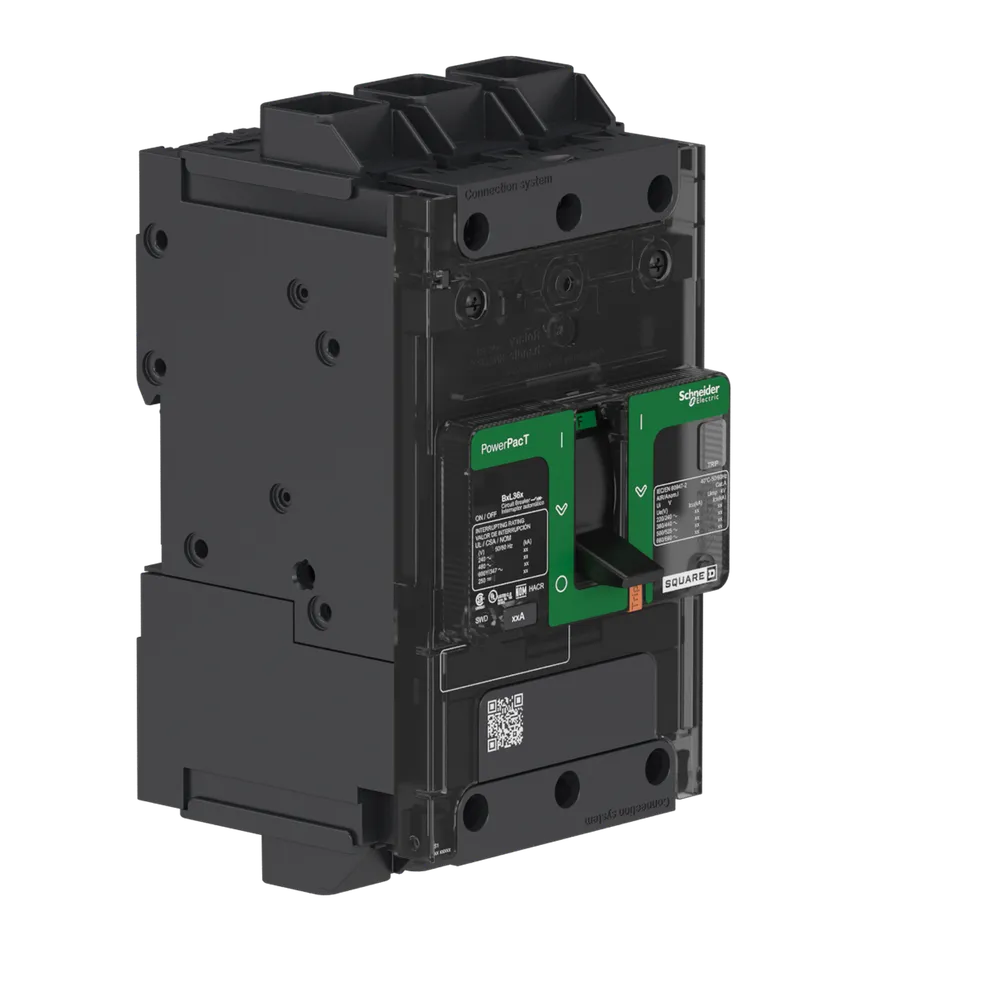

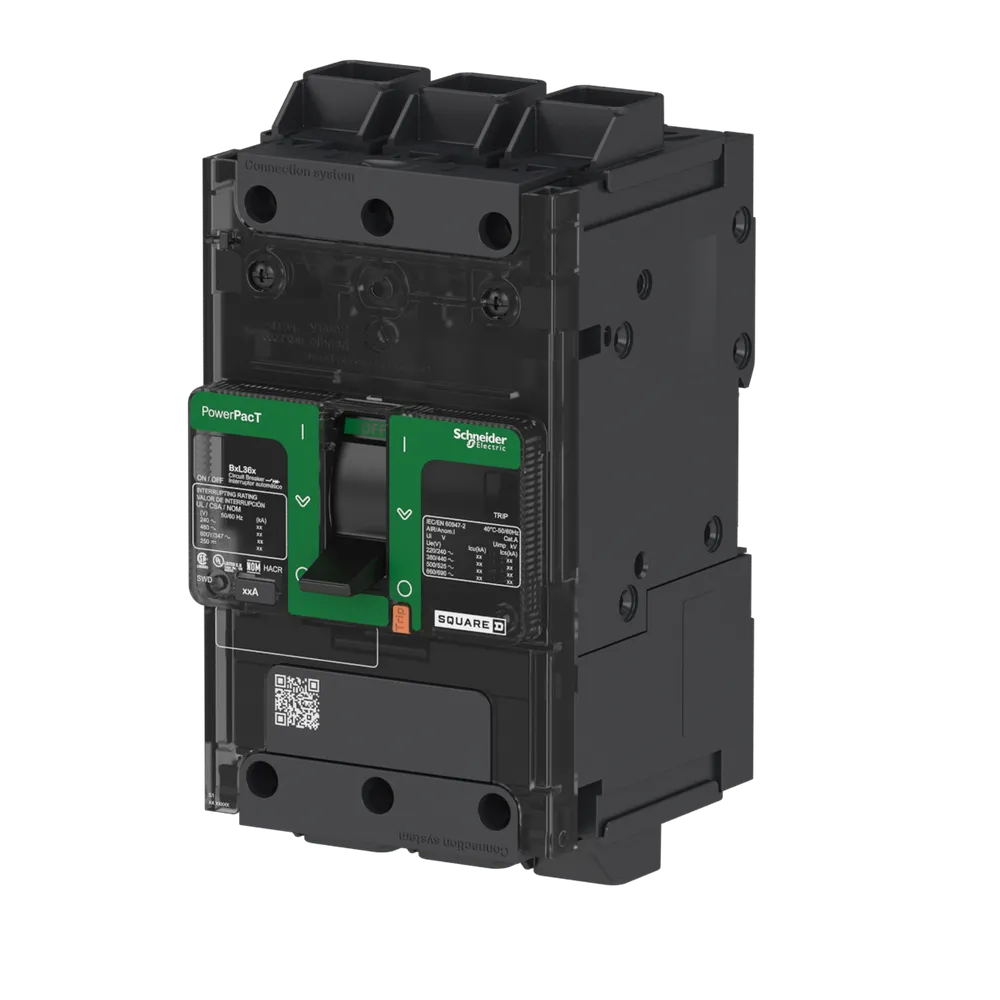

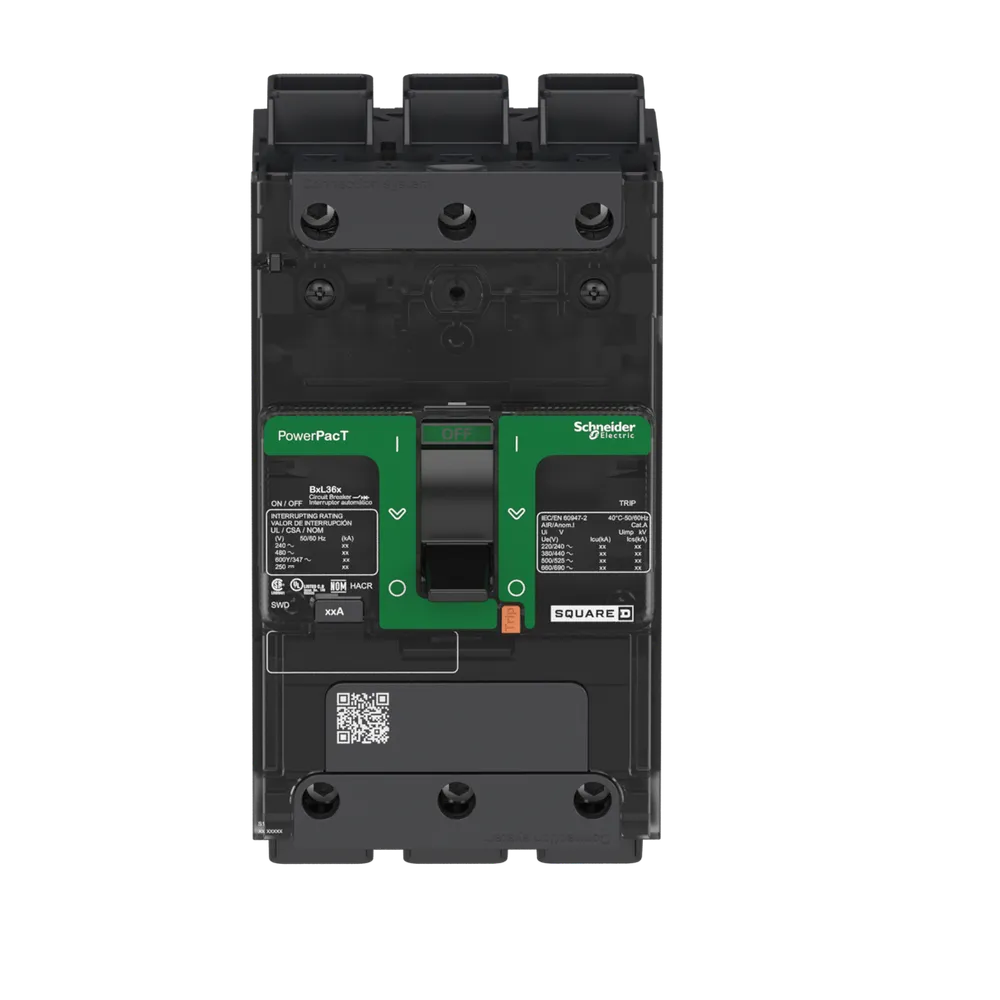

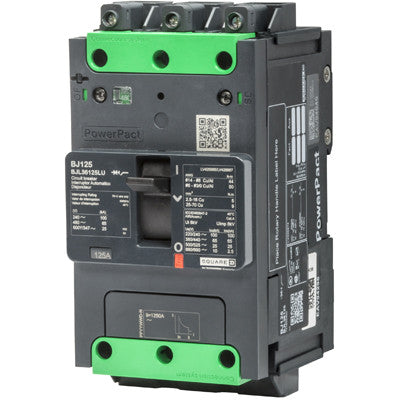

BDL36100LU Schneider Electric PowerPact B 100A 3-pole molded case circuit breaker delivers reliable thermal magnetic protection for 600Y/347VAC systems.

This circuit breaker features a B frame, 100A amperage rating, and 3 poles for robust three-phase circuit protection. It offers a 14kA interrupting rating at 600Y/347VAC (25kA at 240VAC, 18kA at 480VAC), with a continuous current rating of 80%. The unit is designed for DIN rail or threaded mounting, supports 14 to 2/0 AWG (14 to 3/0 AWG Cu) wire sizes, and operates in temperatures from -13 to 158°F. Its NEMA AB4/IP40 enclosure ensures durability in demanding environments.

Key Specifications
• Amperage: 100A
• Voltage: 600Y/347VAC
• Poles: 3

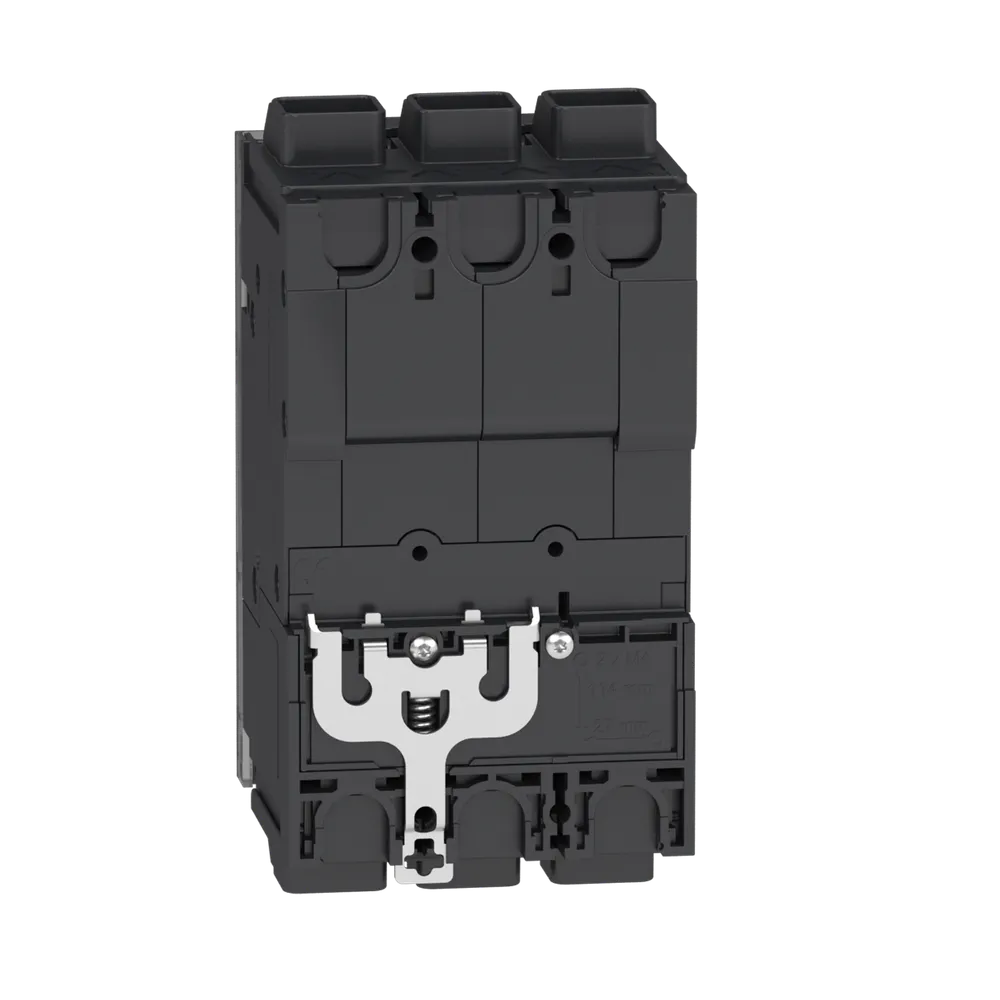

• Mounting Type: DIN Rail/Threaded
• Interrupt Rating: 14kA at 600Y/347VAC (25kA at 240VAC, 18kA at 480VAC)
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic (LI)
• Certifications: NEMA AB4/IP40
• Wire Size: 14 to 2/0 AWG (14 to 3/0 AWG Cu)
• Continuous Current: 80%
• Temperature Range: -13 to 158°F
• Actuator: Toggle
• Connection: Line/Load Lug

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL36100LU
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Phase Connection : ABC

Product Data

• UPC : 785901095330
• GTIN : 03606481149176
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.599
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : CSA C22.2 No 5, GB 14048.2, NMX J-266, UL 489, EN/IEC 60947-2, NEMA AB1, EN/IEC 60947-5-1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
